Quantity: | |
---|---|

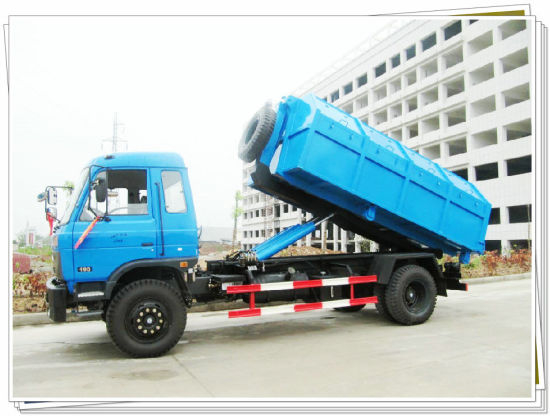

Hooklift Garbage Truck with Hydraulic Self Loading System
Dongfeng Roll off Garbage Truck
Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck
waste compactor truck
Item | Parameter |
Production name | garbage truck |
Engine | Engine model: B170-33 |
Cummins Engine | |
Exhaust: 5900ml | |
Power: 125kw | |
Chassis model | EQ1162/ EQ1120 |
Tire | Tire specification: 9.00-20 |
Number of tire:6 | |
Axle | Number of axles: 2 |
Axle-load: 5995/9995 | |
Wheel base(mm): 3950 | |
Traction system | 4*2 |
Tank fact cubage(cbm) | 10 |
GVW(kg) | 15990 |
Curb weight(kg) | 5795 |
Rated load(kg) | 10000 |
Overall dimensions(mm) | 6400×2470×2710 |
F / R track base(mm) | 1910/1800 |
F/R overhang(mm) | 1250/1200 |
Approach / departure angle(°) | 34/22 |
Max speed(Km/h) | 80 |
equipment | Equipped with hermetic dustbin, hydraulic system and operating system; Equipped with one advanced doubleacting hydrocylinder, cycling time<60s; One vehicle can cooperate with several dustbins to improve the ability of cycle operation. |
Product cycle | 25-30 days |
Warranty | 12months, from the date of supply |
FOB Shanghai |
Our hot sale hydraulic garbage truck
Product name | Dongfeng 145 Hook Loader Garbage Truck | |
Chassis type | EQ1121GKJ | |
Cubage( T ) | 4.9 | |
Parameters | Dimensions(mm) | 7350×2480×3350 |
Total Mass(kg) | 12450 | |
Payload(kg) | 4900 | |
Unladen Mass(kg) | 7355 | |
Approach/ Departure angle(mm) | 30/18 | |
Front/rear suspension(mm) | 1250/2150 | |
Fuel Type | diesel | |
Max Speed(km/h) | 85 | |
Engine | Type | YC6J160-31 |
Displacement/Power(kw) | 6500/118 | |
Manufacturer | Guangxi YUCHAI /Dongfeng CUMMINS Engine | |
Chassis | Drive type | 4×2 |
Wheelbase(mm) | 3950 | |
Number of axles | 2 | |
Axle load | 4730/7720 | |
Tread(front/rear) | 1900/1800 | |
Cab | Set according to the chassis | |
Number of spring axle(front/rear) | 8/10+8 | |
Number of tires | 6 | |
Tires | 9.00-20,9.00R20,10.00-20,10.00R20 | |
Air-condition | Choose to fix | |
Notes | *This truck is mainly used to transport the garbage,or the construction materials such as the plaster,sand,stones and clay,etc.Also can be used to carry the mineral and the coal. *The truck in our company are equipped with large hydraulic cylinder to drive the two arms. Installed with hydraulic legs to ensure stability and safety during operation. *Composed by chassis,litter bins and swing arm deceleration buffer oil cylinder.Its marked feature is the seperating of the litter bins and the truck,which realize one truck matches with many different litter bins. *The litter bins can be sealed or semitight,can be rectangular or trapezoid. | |
Contact me for further information,and we'll serve you with all our heart. |
We are specialzied in offer various kinds of garbage trucks.
Diesel Truck Tractor Truck Truck Lift Mini Truck Off Road Truck Dongfeng Garbage Truck Garbage Collection Truck Dongfeng Van Truck Dongfeng Fuel Tank Truck Dongfeng Bulk Powder Truck Hook Lift Truck
Recommended Suppliers
Diesel Truck Manufacturers Tractor Truck Manufacturers Truck Lift Manufacturers Mini Truck Manufacturers Off Road Truck Manufacturers Dongfeng Garbage Truck Manufacturers Garbage Collection Truck Manufacturers Dongfeng Van Truck Manufacturers Dongfeng Fuel Tank Truck Manufacturers Dongfeng Bulk Powder Truck Manufacturers Hook Lift Truck Manufacturers
Hot Wholesale Products
Wholesale China Heavy Truck Wholesale Mini Forklift Truck Wholesale Off Heavy Truck Wholesale Truck Car Lift Wholesale Loader Forklift Truck Wholesale Auto Lift Truck
Garbage bucket can be characterized by hanging from the crane, the arm, a working cycle time: 60S. The car is characterized by separate cargo compartment with the body, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.
Private Function Description:
Envelope materialGarbage trucks can be used: Carbon steel, stainless steel, epoxy anti-corrosion treatment taken internally
Car-typeJunk cars varies depending on the model shape
Scope of useWidely used for small-scale garbage truck waste management and city streets, all with the dump functions, hydraulic operation, dumping easy.
Seal FormsSeal in the form of garbage trucks can choose: All sealed, on the clamshell, slide-type form are sealed to prevent secondary pollution, open the roof may take the form, please choose a user according to their different types of garbage trucks
