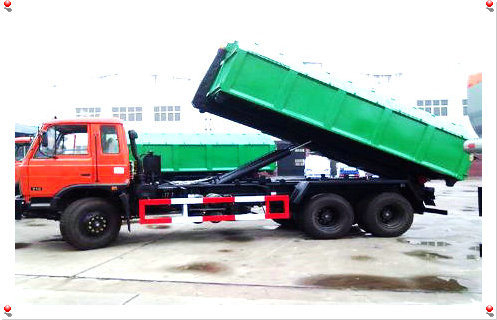

Hooklift Garbage Truck with Hydraulic Self Loading System
Dongfeng Roll off Garbage Truck
Item |
unit |
parameter |
SPECIFICATION |
Vehicle model |
Hooklift container garbage truck |
|
Model code |
DONGFENG |
Chassis code |
DFS1251GLJ5 |
Traction system |
6*4 |
Number of axles |
3 |
GVW (kg) |
25000 |
Mass in working order(kg) |
11460 |
Overall dimensions (mm) |
8540*2490*3100 |
|
|
Performance & DIMENSION |
Wheel base |
4350+1300 |
Max speed(km/h) |
90 |
Allowable passengers in cab |
3 |
Electric system |
24Volts |
Approach/departure angle |
18/10 |
F/R track base |
2022 2022/1830 1830 |
Operation control system |
Electrically hydraulic control |
Fuel tank capacity(L) |
200L WITH LOCK AND PROTECTION GUARD |
ENGINE |
Engine MODEL |
B 220-33 |
Engine Power(HP) |
220 |
EMISSION STANDARD |
Euro III |
Engine type |
DONGFENG CUMMINS engine,6 cylinders, turbo charged, intercooler |
TRANSMISSIION MODEL |
12- speed front gears and 2 reverse gears |
CLUTCH |
Single plate dry diaphragm spring clutch, hydraulically with air assist |
TIRES |
11.00-20 |
EQUIPMENT |
PAINTING |
Grit blasted to SA 2.5 one coat of epxy primer followed by two coats of propylene(metallic paint) |
Detachable container design |
Max. pressure of hydraulic system : 20Mpa
Length of body is applicable to vehicle: 5500-6400mm
Lifting height: 1570mm
Time of container loading: ≤ 40s
Tilt: ≥48° |
Garbage Collection Truck with Hooklift Hydraulics
Hooklift Truck/hook loader/self loading unloading truck
waste compactor truck
Our hot sale hydraulic garbage truck
We are specialzied in offer various kinds of garbage trucks.
Diesel Truck Tractor Truck Truck Lift Mini Truck Off Road Truck Dongfeng Garbage Truck Garbage Collection Truck Dongfeng Van Truck Dongfeng Fuel Tank Truck Dongfeng Bulk Powder Truck Hook Lift Truck
Recommended Suppliers
Diesel Truck Manufacturers Tractor Truck Manufacturers Truck Lift Manufacturers Mini Truck Manufacturers Off Road Truck Manufacturers Dongfeng Garbage Truck Manufacturers Garbage Collection Truck Manufacturers Dongfeng Van Truck Manufacturers Dongfeng Fuel Tank Truck Manufacturers Dongfeng Bulk Powder Truck Manufacturers Hook Lift Truck Manufacturers
Hot Wholesale Products
Wholesale China Heavy Truck Wholesale Mini Forklift Truck Wholesale Off Heavy Truck Wholesale Truck Car Lift Wholesale Loader Forklift Truck Wholesale Auto Lift Truck
Garbage bucket can be characterized by hanging from the crane, the arm, a working cycle time: 60S. The car is characterized by separate cargo compartment with the body, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.
Private Function Description:
Envelope materialGarbage trucks can be used: Carbon steel, stainless steel, epoxy anti-corrosion treatment taken internally
Car-typeJunk cars varies depending on the model shape
Scope of useWidely used for small-scale garbage truck waste management and city streets, all with the dump functions, hydraulic operation, dumping easy.
Seal FormsSeal in the form of garbage trucks can choose: All sealed, on the clamshell, slide-type form are sealed to prevent secondary pollution, open the roof may take the form, please choose a user according to their different types of garbage trucks
