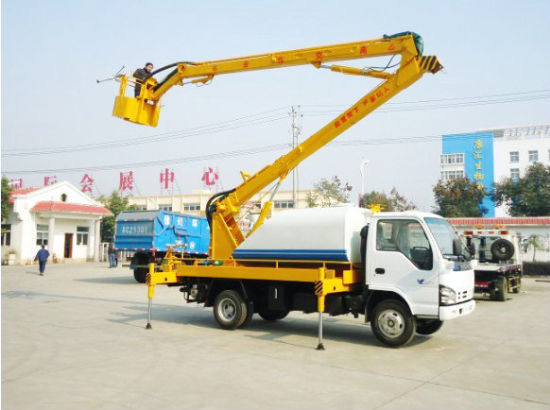

Isuzu Aerial Platform 14m Water Tank 4000L Truck
| Quantity: | |
|---|---|
- 1000
- T/T, Western Union
- Nil
ISUZU Water Tanker Truck Mounted Aerial Platform Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7635
ISUZU Work lift height: 12m
boom crane loading capacity1000kg
water Tank Volume: 3000L
Chassis parameter: LHD
Overall dimension (L*M *W) (mm) : 7500*2470*3050
Advantages
Durable Isuzu chassis, enjoy highly reputation in the world.
Electro-hydraulic proportional control, stepless throttle
Control box at both turret and platform
Imported key components, higher reliability, excellent property and long life span.
Large outrigger span, outrigger can be operate individually
Emergency descent power, Safety interlock
We can provide 12m, 14m,16m,18m, 20m, 24m,28m, 32m and so on.
Technical Specification
Model | Manufacturer |
Working Platform | |
Max. platform capacity | 200 Kg (2 persons) |
Internal size of platform | 1100x600x1100 mm |
Max. Working Height | 12 m~14 m |
Max platform height | 12.3 m |
Max. Working radius | 6.5 m |
Hook | |
Max lifting capacity | 1000 Kg |
Max Lifting height | 7.3 m |
Working Boom | |
Max. Raising angle of upper boom | 70° |
Max. Raising angle of lower boom | 70° |
Max. Raising angle of jib | 90° |
Boom rack ration angle | 360° |
Outrigger | |
Vertical span | 3200 mm |
Horizontal span | 3600 mm |
Traveling of vertical outrigger | 450 mm |
Adjustment | Single adjustable |
Chassis Spec | |
Drive | 4x2 Left Hand Drive |
Engine | ISUZU 4KH1-TC |
Power | 96kw/130HP |
Gearbox | ISUZU MSB 5-shift |
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
