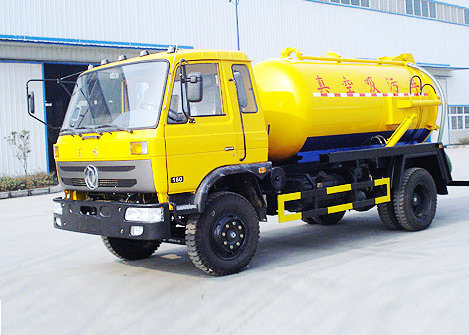

8000 liters sewage suction tank
Detailed Product Description
8000 liters sewage suction tank truck(4x2 drive type,160hp) | |||
Emission Standard | EUR 2 | ||
Driving Type | 4×2 | ||
Sewage tank volume (L) | 8000 liters | ||
Dimensions | |||
Wheelbase(mm) | 4500 | ||
Overall Dimension(mm) | 8200×2470×3080 | ||
Weight parameters | |||
GVW(kg) | 14450 | ||
Rated Payload (kg) | 6000 | ||
Curb weight(kg) | 8255 | ||
Front axle load(T) | 5 Ton front axle load capacity | ||
Rear axle load(T) | 10 Ton rear axle load capacity | ||
Front axle span(mm) | 2022 | ||
Rear axle span(mm) | 1830 | ||
Front/rear overhang(mm) | 1940/1860 | ||
Approach angle(°) | 34 | ||
Departure angle(°) | 18 | ||
Max speed(km/h) | 85 | ||
Engine performance | |||
Engine model | YC4E160-33 | ||
Engine manufacture | Guangxi Yuchai Engine Co., Ltd | ||
Engine type | 4 stroke,water-cooling,direct injection, with exhaust braking | ||
Displacement(L) | 4.257L | ||
Max. output | 160hp | ||
Drive line system | |||
Clutch | Dry-type single shock spring clutch | ||
Transmission | 6 forwarder,1 reverse gear, Mechanical control, manual operation | ||
Spring suspension type-Leaf spring mechanical suspension | |||
No. of leaf of spring | 8/10+8 | ||
Brake system | |||
Service braking | Pneumatic braking system | ||
Parking braking | Spring brake, acting on the front and rear axle, emergency braking | ||
Cab description | |||
Crew cut, one and half cab,3 passengers allowed, No air-conditioner, the cab can be tippable | |||
Tire specification | |||
Tire specification | 10.00-20,total 6 tires | ||
Sewage suction tanker system description | |||
Suction pump | Vacuum sewage suction pump | ||
Vacuum degree (kpa) | 90Kpa | ||
Pump type | vacuum pump model:50QZXDG-30/40 | ||
Rated speed (R/min) | 500r/min | ||
Pump speed (L/s) | 318m3/h | ||
Suction range (m) | 8m | ||
Tank material | Q235A | ||
Full suction time (m) | 4.4 minutes | ||
Absolute working pressure (Mpa) | 10Mpa | ||
Inlet /outlet hole diameter (mm) | DN100 |
Description:
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Applications:
Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com
Road to Your Success
