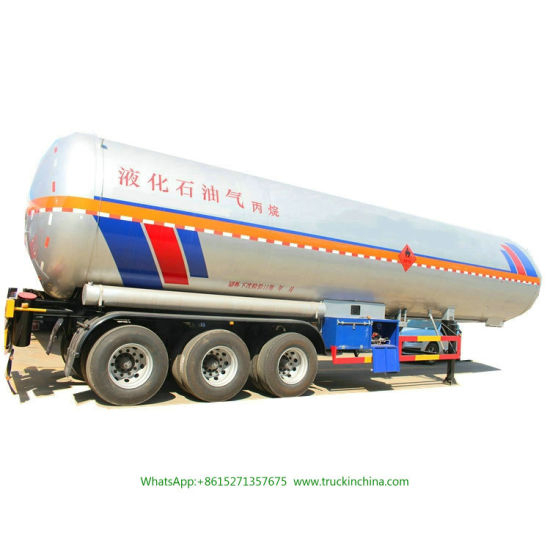

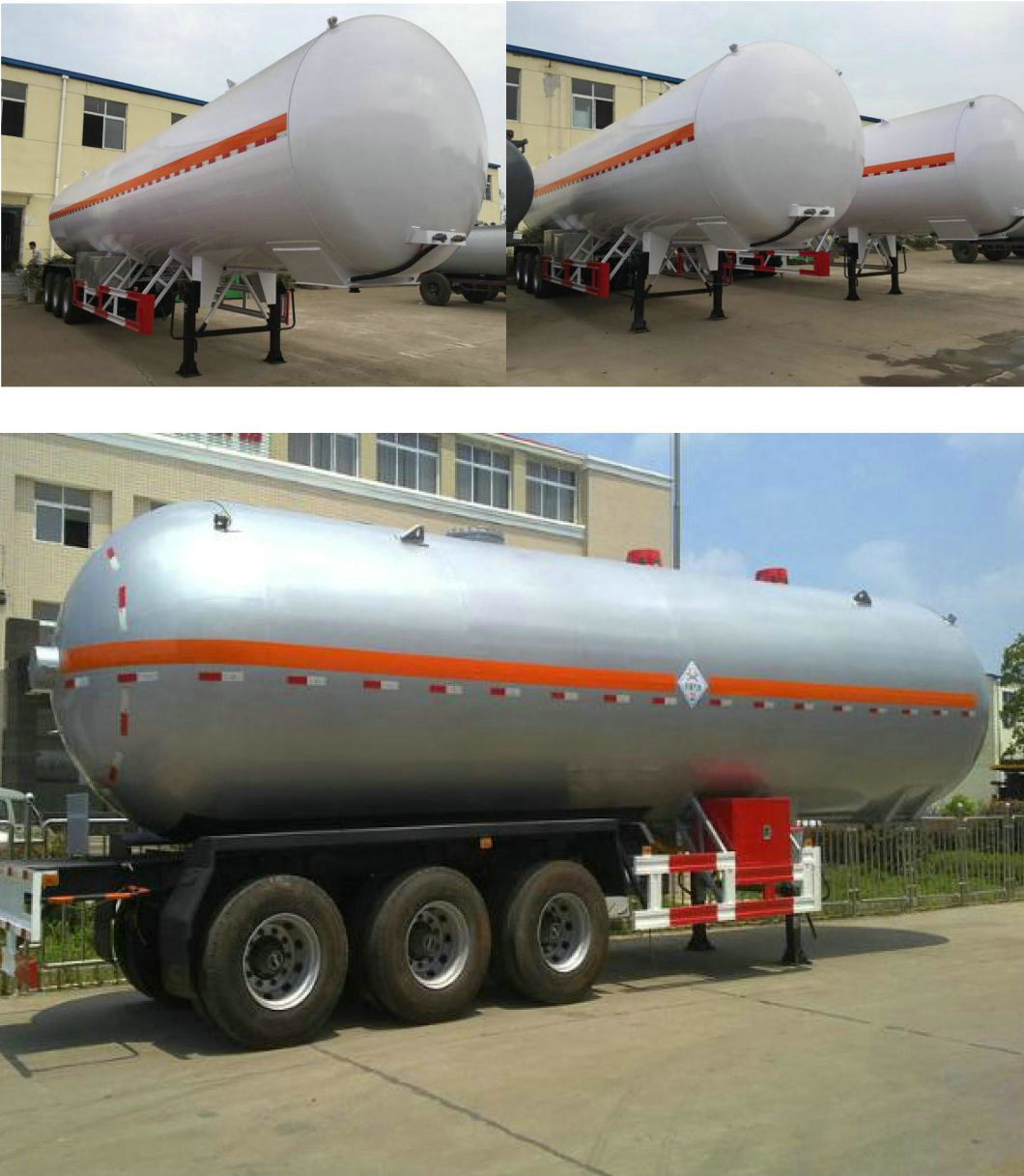

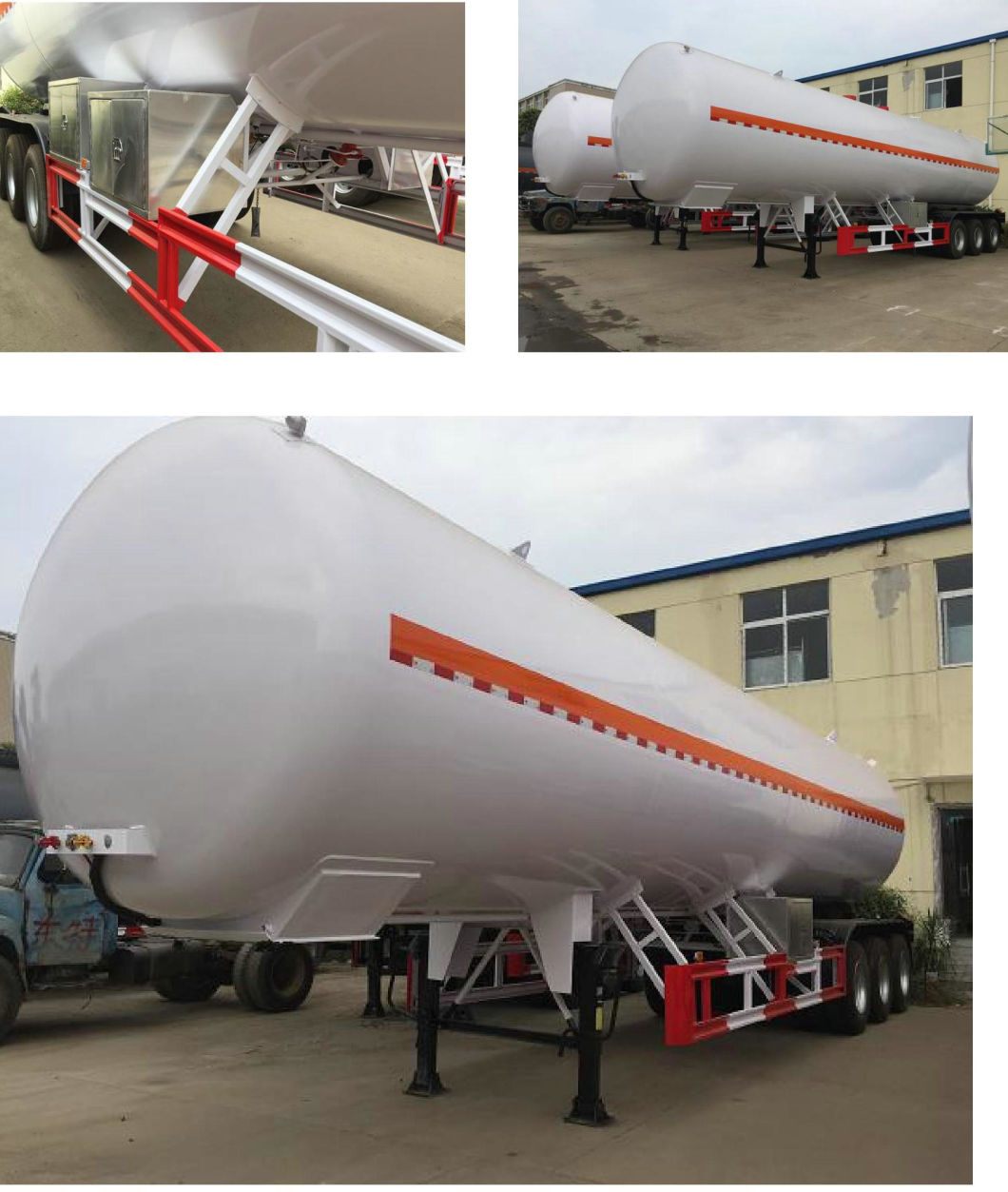

3 Axle Tank Semi Trailer for LPG/Propane /Dme/ Isobutane 59050liters
Quantity: | |
---|---|
3 Axle Tank Semi Trailer for LPG/Propane /Dme/ Isobutane 59050liters LPG Tank Trailer Manufacturers
3 Axle LPG/Propane /Dme/ Isobutane Tank Semi Trailer for Sale 59050liters
tanker semi trailer factory sale Call:86-15271357675
LPG Gas Semi Trailer specification:
Standard China 3 axles lpg tank semi trailer 56000Liters/lpg tank trailer for sale | |||
1 | GB150-1998 Steel pressure vessels | ||
2 | GB/T19905-2005 Liquefied gas truck | ||
3 | Pressure vessel safety technology and inspection procedures | ||
4 | Liquefied gas tanker safety monitoring procedures | ||
Tanker Essential Information | |||
1 | Dimensions (length*width*height) | 13000×2500×3995(MM) | |
2 | Estimated Tare Weight | 15514KG | |
3 | Payload | 24486KG | |
4 | Total Weight | 40000KG | |
Shell Of Tanker | |||
1 | Products | LPG, Butane , Propane | |
2 | Fluidproperty | flammable | |
4 | Design temperature | to 50ºC | |
5 | Design pressure | 1.61MPa | |
6 | Corrosion allowance | 1.0mm | |
7 | Major materials of bearing pressure | Tanker body : Q345R , 12mm End plate : Q345R , 14mm Main Beam : Q345B | |
8 | Filling weight per volume | 0.42/m3 | |
9 | Maximum filling weight | 25 tons | |
10 | Compartments | One | |
11 | Baffle inside the tank | 14-off Aluminium bolted plate , thickness is 5mm | |
12 | Shape | Cylindrical ; Ellipse head | |
Detection | |||
1 | Heat treatment | Overall heat treatment in a furnace , 500ºC to 560ºC | |
2 | Flaw detection | 100% Flaw detection | |
3 | Hydrostatic test | 2.66MPa | |
4 | Magnaflux | Aim at welding place flaw detection can not cover | |
Manhole (As customer's requirement ) | |||
1 | Quantity | 1 On top | |
Safety Valve | |||
1 | Quantity | Two | |
2 | Location | On the top of tanker ; | |
3 | Type | Only weld suitable flange | |
4 | Size | As customer's requirement | |
Liquidometer | |||
1 | Quantity and Model | 1 | |
2 | Location | On left side of tanker | |
3 | Type | Only weld suitable flange | |
4 | Size | As customer's requirement | |
Valve and pipe Detail | |||
Running System Quantity Configuration | |||
1 | Axles | 3 | 13 TON FUWA Axles |
2 | Suspension system | 1 | FUWA Air suspension |
3 | Wheel rim | 12 | 8.25*22.0 |
4 | Tyre | 12 | Brand : Triangle,425/65R22.5 |
5 | Kingpin | 1 | JOST2",bolt on ,in rubbing plate |
6 | Landing legs | 2 | JOST D200 single linkage,Gear type |
Pneumatic Brake System | |||
1 | Spring brake chamber | 6 | FUWA |
2 | Air connector | 2 | FUWA |
3 | Relay Valve | 1 | BRAND:WABCO |
4 | ABS | 1 | KEMI ABS |
Electronical System | |||
1 | 7-Pin Socket | 1 | 24V 7-pin socket |
2 | LED Lamp | 1 | All kinds of lamp |
3 | Cable | 1 | Stander cable |
Accessories | |||
1 | Small Tool box | 1 | pc |
2 | Wheel carrier | 1 | |
3 | Fire extinguisher | 2 | With red box |
4 | Cabinet | 1 | |
5 | Plastic fender | 6 | |
6 | Static conductive belt | 1 | |
7 | Impeller blasting | 1 | Completely |
8 | Paint | 1 | As customer requirements |
TERMS |
Item DRZ9401GYQ | Unit | Parameter | |
Product name | 3 axle semi-trailer | ||
Practical capacity | M3 | 59.05 | |
Gross weight | kg | 40000 | |
Curb weight | 15200 | ||
rated loading capacity | 24800-30000kg | ||
Overall dimension | mm | 12965 * 2500 * 3990 | |
Axle | 3 | ||
Wheelbase | 7970 +1310 +1310 | ||
Tread | Front tread | - | |
Rear tread | 1840/1840/1840 | ||
Front/rear suspension | mm | -/1450 | |
Leaf spring | -/8/8/8 , -/10/10/10 | ||
Fifth wheel max loading | kg | 16000 | |
Tyre specification | 12 | 12R22.5 /11.00R20 | |
Exclusive configuration | Tank material | Q345R | |
Standard configuration | 13T axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield. | ||
Other | Filling Medium:propane;design pressure 1.77Mpa,design temperature 50°C,filling ratio:0.42t/m3,corrosion allowance:1mm;dimension of tank:12850×2496mm . | ||
Standard configuration | GB150-1998 | ||
Shanghai price |
Tank Body | Maximum Work Pressure Mpa | 1.61 | |
Design Pressure Mpa | 1.61 | ||
Design Temperature ºC | -40 to 50 | ||
Loading weight per unit capacity kg/L | 0.42 | ||
Capacity m3 | 59.05 | ||
Loading medium | LPG | ||
Medium characteristics | Moderate Harm | ||
Body material | shell mm | Q345R | |
head mm | Q345R | ||
Corrosion allowance | shell mm | 2 | |
head mm | 2 | ||
Negative deviation ofthickness | shell mm | 0 | |
head mm | 0.3 | ||
Welded joint coefficient | 1 | ||
hydraulic test pressure Mpa | 2.1 | ||
Design service life | 15 years | ||
Heating method | Integrally annealing | ||
Safety Valve | Type | Built-in spring full-open type | |
Specification | PN4.0 DN50 | ||
Set pressure Mpa | 2.13 | ||
Liquid Level Meter | Type | Floating ball rotation | |
Range m | 0~2.38 | ||
Nominal presure Mpa | |||
Pressure Gauge | Dial diameter mm | ≥100 | |
TIRES | 12R22.5 12PR | 12pcs |
Filling Medium | Liquefied Petroleum Gas (propane) |
Medium Density | 420-590 kg/ cbm |
Design Temperature(ºC) | Under 50ºC |
Water Pressure Test(MPa) | 2.1 Mpa / 21 Bar |
Design Pressure(MPa) | 1.61 Mpa / 16.1 Bar |
Corrosion Allowance(mm) | 1mm |
Material of Main Parts | Tanker body: Q345,12mm, |
Tanker End plate:Q345R,12mm | |
Main beam:16Mn | |
Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
Flaw Detection | 100% Flaw detection with X-ray |
Manhole (Size as Customer's Requirement) | |
Quantity | 1xDN450mm on top |
Safety Valve(As Customer's Requirement) | |
Quantity | 1 piece |
Location | On the top of tanker |
Size | DN100 |
Level Gauge | |
Type | Hand Rotation Level Gauge |
Location | At the rear of the end plate |
Wheeling System | |
Axles | 3*13Ton FUWA Brand |
Leaf Spring | 10-piece, 6 sets |
Suspension | Heavy Duty Mechanical Suspension |
Tire | 12R22.5 Tubeless tire, 13 including one spare tire |
Landing leg | JOST Brand |
King Pin | JOST Brand 2" |
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks. |

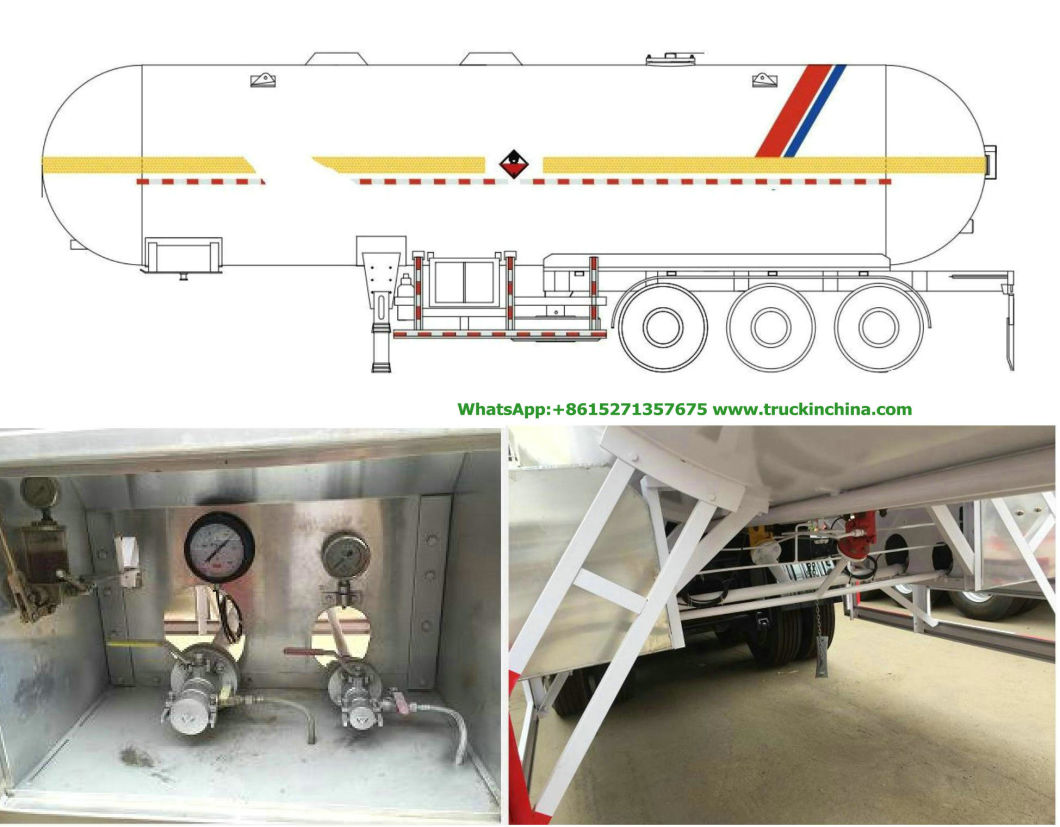

Safety Control System | |
Emergency Cut-off Valves | 2 pcs, DN25×1 for gas phase,DN50×1 for liquid phase |
Ball Valve | 4 pcs,DN25×2 for gas phase,DN50×2 for liquid phase |
Liquid Gauge | 1 piece |
Thermometer | 2 piece |
Pressure Gage | 2 piece |
Accessories | |
Small Tool Box | 1 piece |
Wheel Carrier | 2 pcs |
Fire Extinguisher | 4 pcs |
Mud Guard | 6 pcs |
Tanker Paint | Color or Logo painted as requirement |
