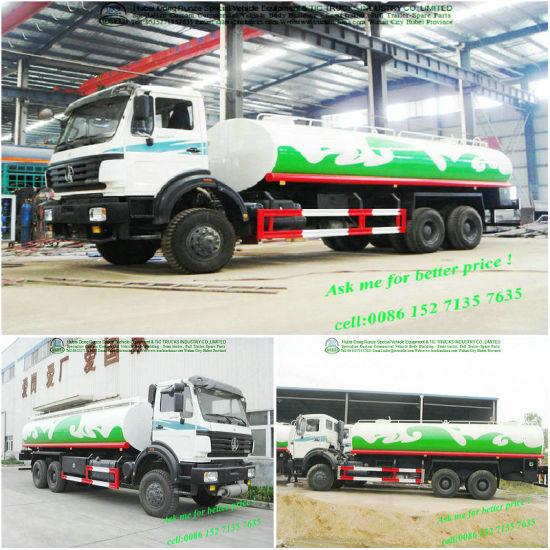

Bei Ben 6X6 off-Road Water Truck

Bei Ben 6X6 off-Road Water Truck

Quantity:
  • 1000
  • T/T, Western Union
  • Nil

BEI BEN 6x6 off-road water truck
good quality beiben 2527 water truck ,beiben 2529 , 2534,2638 water truck,beiben 3129 water truck ,beiben 3134 water tanker truck.
Our beiben water trucks can be beiben 4*4 drive system, beiben 6*4 driving system, and beiben 6*6 drivie system.  Also the tanker capacity of our beiben trucks can be range from 10CBM, 20 CBM, 30 CBM and 40 CBM.
6x6 off road tanker


2527A/6*6/4450+1450/
WP10.270N/1999T-160TAS8512.00-2012.00R20
11.00-20
11.00R20
2527A/6*6/5050+1450/WP10.270N/1999T-160TAS8512.00-2012.00R20
2530A/6*6/5050+1450/WP10.300N/2219T-16011.00-20
11.00R20
2534A/6*6/5050+1450/WP10.336/2479T-160TAS8512.00-2012.00R20
2538A/6*6/5050+1450/WP10.375/276RT11509C

6*6
ND4251F38J3850+1450WP10.375
ND3251F383800+1450WP10.336
ND3252F38JWP10.336
ND3250F38JWP10.375
4*4ND2161E484800WP10.270
ND2162E48JWP10.300N
ND21600E41J4500WP10.336
6*6ND2251F444450+1450WP10.336
ND1252F44JWP10.336
ND1250F44JWP10.375
ND1250F50J5050+1450WP10.336
WP10.375
8*8ND2310G41J1500+4150+1450WP10.336
WP10.375
ND2310G501500+5050+1450WP10.336
WP10.375

Beiben 18000L water tank truck(6x6,336hp)

Emission Standard

EUR 2/ 3

Model Name

TIC5250GSSND

Chassis model

ND5250GGSA50JQ

Driving Type

6×6

Dimensions

Wheelbase(mm)

5050+1450

Overall Dimension(mm)

10440x2500x3328

Water tanker size(mm)

7600x2250x1400

Weights

GVW(kg)

25000

Rated payload weight(kg)

13520

Curb weight(kg)

11010

In the quality of the
utilization factor

1.27

Front axle
(Mercedes Benz technology)

7 Ton front axle load capacity, Double shoe disc air break system

Rear/middle axle
(Mercedes Benz technology)

13Ton/axle (2 axle combined)
Dual-circuit air braking system,driving axle, ductalloy axle cover, with wheel side reducer

Front axle span(mm)

1,940

Rear axle span(mm)

1847/1847

Front/rear overhang(mm)

1410/2530

Approach angle(°)

34

Departure angle(°)

24

Max speed(km/h)

80

Engine

Engine model

WP10.336 from Weichai power Co.,Ltd

Engine type

4 stroke water-cooled, overhead camshaft, direct injection,
turbo-charge,Intercooling engine

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726L

Max. output (kw/Ps/rpm)

247kw(336ps)/2200 rpm

Max torque/Speed(N.m/rpm)

1250 N.m/1400-1600rpm

Drive Line

Clutch description

¢420,dry single plate, hydraulic control booster,mechnical
operation with hydraulic assistance

Transmission

Transmission model: 5S-111JP
8 forwarder,1 reverse gear,manual operation

Braking system

Service brake

Brake gap can be adjusted automatically
double circulation air brake system

Assistant brake

WEVB(Engine exhaust brake)

Park brake

Spring brake effect to middle and rear tires

Suspension system

Front axle

Semi-elliptic leaf springs shock absorbers

Rear axle

Torsion bar semi-elliptic leaf springs

Electrical Equipment

Voltage

24V

Batteries

2X12V/135Ah

Starter

6.2Kw/24V

Tanker body

Tanker body size(mm)

7600x2250x1400 (Tank capacity: 18000 Liters)

Tanker shape

Ellipse water tanker

Water tanker material

Stainless steel:Q304,Thickness:5mm

Tire specification

Tire specification

Triangle brand,12.00R24 standard tire,10 tires+1 spare tire

Cab description(Mercedes Benz technology and mould)

1. Full steel skeleton structure cab
2. The cab can turn over 70 degree
3. Short cab, with air-conditioner
4.Air- damping driver\ s seat, with fairwater cone
5. CD player AM/FM radio, Power steering

Special function of water tank truck

Water tanker material

Of high quality stainless steel (Q304)-5mm thickness. From WISCO

Sprinkling area(m)

»20m

Vertical suction range (m)

»7m

Watering pressure

250-450Mpa

Pump style

Self-priming centrifugalpump

Manhole

Man way access hole on top of tank;2 units DN500mm manhole

Front spray function

Front spray bar with fan sprayer on both sides, spray range: »20m

Man walk way

With skid resistance man walk way on top of tank

Horse reels

Two 75 ft hose reels at each side of the truck

Water pump

Water pump: Hangzhou Weilong water pump manufacture
Water pump model: 80QZB(F)-60/90(N/S)
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Suction height (m): 22.5m
Efficiency(%):95%


EURO 4

6*63800+1450ND2250F38JWP10.300E409JS150A
WP10.336E409JS180



  Euro 3,

6*4ND1255B444450+1450WP10.290
ND1252B44WP10.336
6*4ND1253B45J4500+1350WP7.270E30
8*4ND13105D44J1700+4425+1350WP10.270

Euro 4

6*44450+1450ND12500B44JWP10.300E409JS150A
WP10.336E40
8*41950+3900+1450
1950+3700+1450
ND13101D39JWP10.336E4012JS160T
WP10.375E4012JS200T
8*81500+4150+1450ND2311G41JWP10.336E4012JS160T
6*45050+1450ND12500B51J6Z00WP10.270E409JS135
WP10.300E409JS150A
6*44450+1450ND12501B45J7WP10.336E409JS150A
8*41950+3100+1450ND13103D31J7WP10.336E4012JS160T
WP12.375E4012JS200T
8*41950+4600+1450
1950+4300+1450
ND13104D46JWP10.336E4012JS160T
WP12.375E4012JS200T
6*43800+1450ND12505B38JWP10.336E4012JS160T
WP12.375E4012JS200T
6*63800+1450ND2250F38JWP10.300E409JS150A
WP10.336E409JS180
8*41950+2800+1450ND13103D28JWP10.336E4012JS160T
WP12.375E4012JS200T
8*41950+2800+1450ND13101D28J7WP10.336E4012JS160T
WP12.375E4012JS200T
6*45050+1450ND12500B51JWP10.336E409JS150A
WP12.375E409JS180
8*43800+1450ND12505B38J7WP10.336E4012JS160T
WP12.375E4012JS200T
8*41500+4750+1450ND13109D47JWP10.300E4012JS160T
WP10.336E4012JS160T
WP12.375E4012JS200T
8*41950+3100+1450ND13101D31JWP10.336E4012JS160T
WP12.375E4012JS200T

Our beiben water tanker trucks feature:
* Three patented items: Design patent, sde washing road device for vehicle and pneumatic pipe clean device.
* Low& Flat high water flow washing, high speed and high efficiency.
* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional .

Best design for beiben 4*2 water truck and beiben 6*4 water truck.
