40ft Bogie Type Flatbed Semi-Trailer

Quantity:
  • 200sets Per Month
  • by Bulk Cargo Carrier, Roro or Frt Container
  • T/T, Western Union
  • Stake
  • 6\10\12
  • Not Self-dumping
  • ABS Anti-lock Braking System
  • Steel
  • New
  • Color Advised by Client
  • L1 or BPW Axle 16t*2
  • Jost 3.5"
  • 12r22.5, 8PCS
  • 1 Unit
  • 24V
  • L1 or BPW 32ton Bogie Suspension Structure
  • TIC
  • Customization
  • Hubei China
  • 8716399000
  • 45~60t
  • ISO9001, CCC, ISO/TS16949
  • 8000-9000mm
  • 2240mm
  • Medium Duty
  • Trailing Arm Type
Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale call:+86-152 -7135-7635

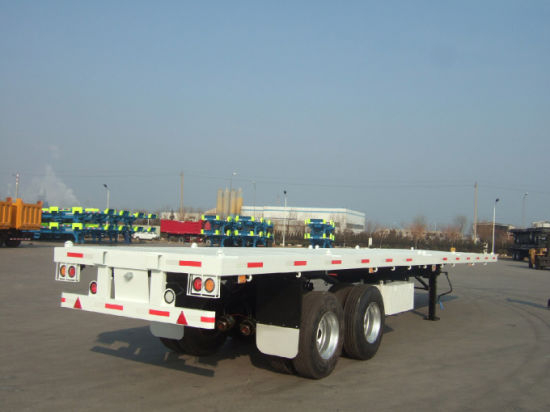

40FT Bogie type Flatbed semi-trailer
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!

Cellphone: (+86)15271357635
Website: www.truckinchina.com

MODEL: 40′ FLAT BED SEMI-TRAILER 2 axle
YEAR: New
LOAD CAPACITY: 30T, 40T
AXLE: L1 AXLE 13T (16T, 20T) OPTION: BPW AXLE (16T, 18T), ABS
TIRE: 315/80R22.5 OPTION: 385/65R22.5 (Single tire)

Main specification

DIMENSIONS
Tare weight 7000kg
Payload 44000kg
Total weight 51000kg
Overall length 12446mm
Overall width 2480mm
SPECIFICATION
Main frame Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged arc processes.
Height: 500mm; top flange: 14mm; width: 140mm; middle flange: 6mm;
bottom flange: 16mm; width: 140mm
Floor 3mm steel floor
Axle L1 or BPW axle
Suspension 2-axle L1 or BPW 32Ton Bogie suspension structure


Tyre 12R22.5, 8pcs
Wheel rim 9.00-22.5 rim, 8pcs
Kingpin JOST 90 Kingpin,
Twist lock 12pcs
Landing gear JOST C-200, Two-speed, manual operation, capacity: 28000kg-80000kg/pair
Spare wheel carrier 2 sets of spare wheel carrier
Pneumatic
braking system
Double line air brakes
Electrical System 24V system with standard 7 pole plug
Rear electrical lighting, brake lights, indicators,fog lights and reversing light
Painting Sand blasting before painting.
Anti-corrosive primer,.
Top paint color meet client's wish
Accessory One tool box, side protection
Option AXLE: BPW,SAF
TYRE: HANKOOK, DOUBLE COIN
SUSPENSION: AIR SUSPENSION
BRAKE SYSTEM: WABCO, KNORR

Technical Drawing:

40ft Flatbed Trailer with Bogie Suspension
40FT Bogie type Flatbed semi-trailer
