DRZ5090TSLE
DRZ
8705909990

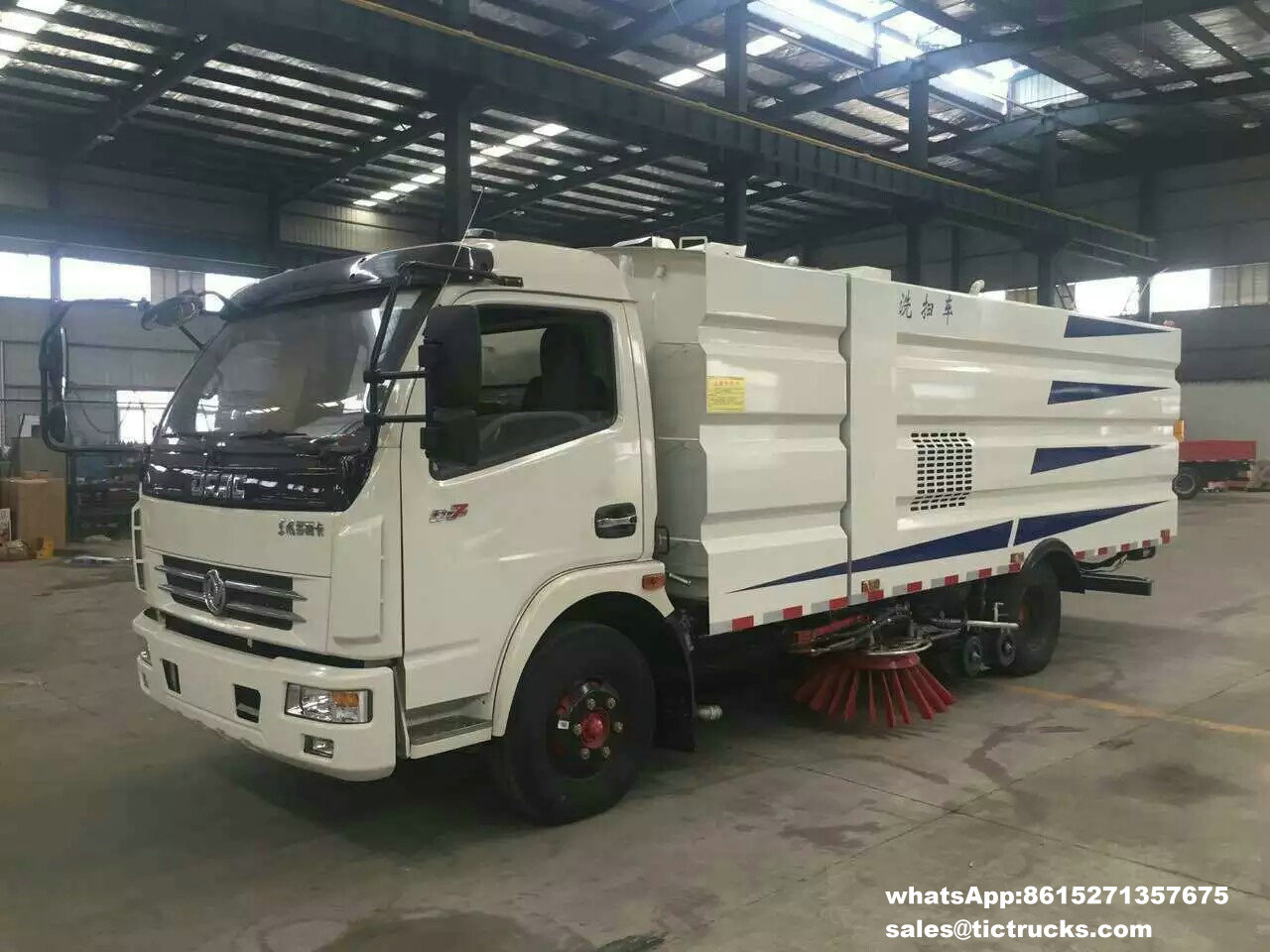

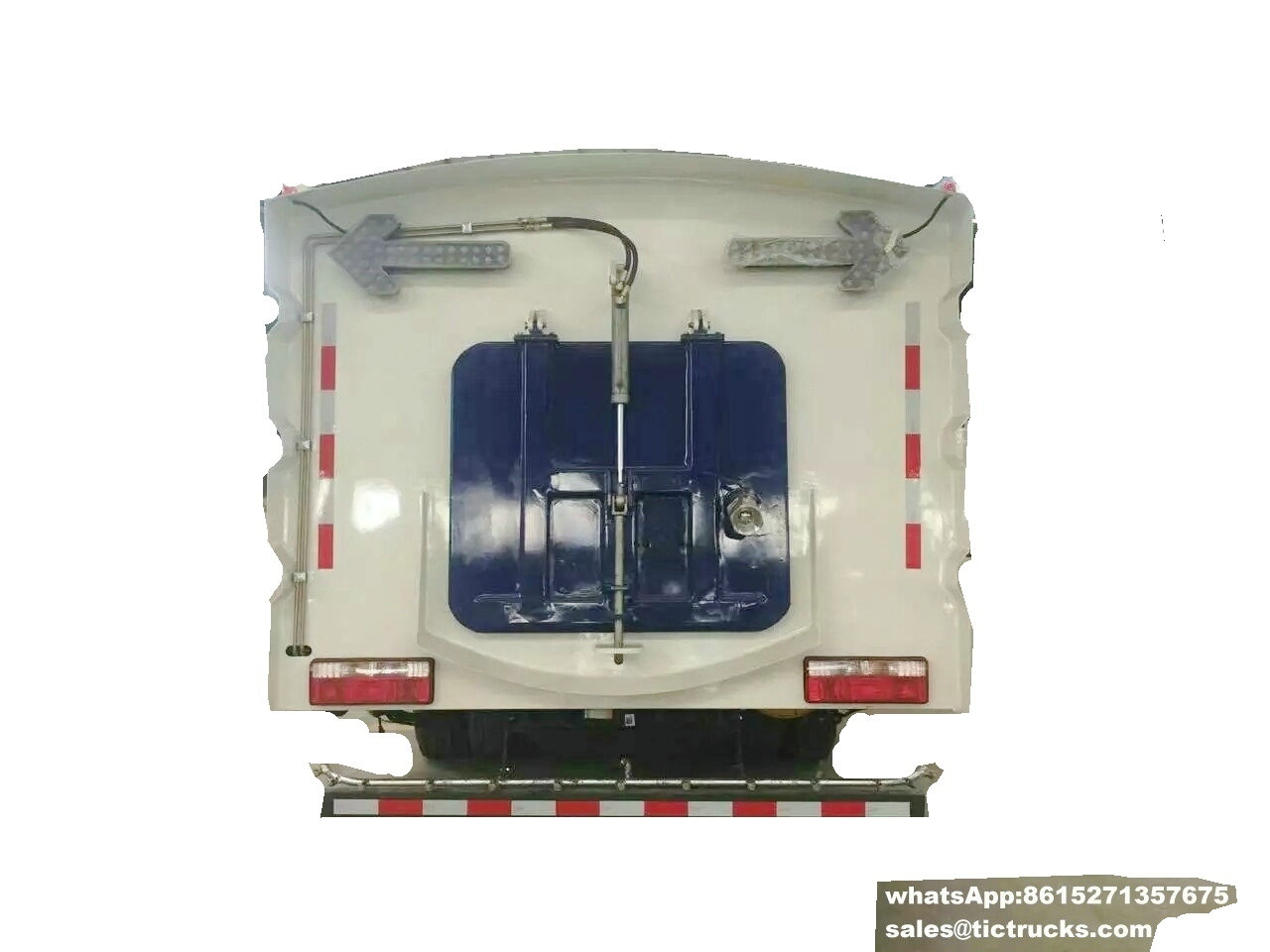

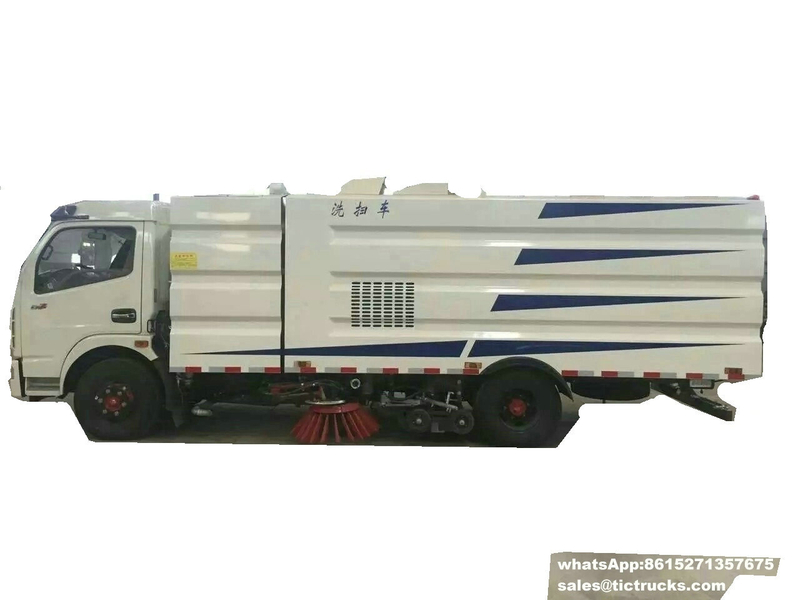

New Model Good Quality Low Price Dongfeng 4x2 vacuum pavement cleaning truck Chassis,sub frame,body,2 sweeping brushes, stainless steel vacuum tank, water tank, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Overall dimensions 6700X2290X2500mm Curb weight 5705kg
Dust tank volume 4500L Water tank volume 1000L
Vehicle parameters | |||
Vehicle Model | DRZ5090TSLE | Vehicle Brand | DRZ |
Overall dimensions | 6700X2290X2500mm | Curb weight | 5705kg |
Dust tank volume | 4500L | Water tank volume | 1000L |
Chassis parameters | |||||
Chassis model | EQ1090T9ADJ3AC | Chassis brand | DONGFENG | ||
Overall dimensions | 6695x2180x2350mm | Wheel base | 3800mm | ||
Front/rear wheel track | 1750/1586mm | Front/rear suspension | 1180/1715mm | ||
Approach/departure angle | 22/13° | Maximum speed | 80km/h | ||
Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||||
Cab | Configuration | Single row cab,air conditioner,allowable 3 passengers,cab can be flipped | |||
Color | White,other color is optional | ||||
Engine | Model | CY4102-E3C | |||
Emission | Euro 3 | ||||
Type | 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 120hp,rated power speed 2800rpm | ||||
Displacement | 3856ml | ||||
Bore x stroke | 102x118mm | ||||
Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||||
Tire | Size | 7.50R16,steel wire tire | |||
Number | 6+1 nos | ||||
Frame | 192mm | ||||
Brake | Air break, electronic flame out, exhaust brake | ||||
Fuel tank | 100L,steel | ||||
Front axle | 2.4T | ||||
Rear axle | 4.2T | ||||
Drive form | 4X2 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 5 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Air Conditioner, Cummins engine B140 33(140hp) | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Road sweeper structure parameters | ||||
Dust tank volume | 4500L | Water tank volume | 1000L | |
Sweep width | 3000m | Cleaning speed | 3-20km/h | |
Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% | |
Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm | |
Unloading angle | 45° | Unloading height | 970mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | |||
Selective configuration | surveillance system,rolling brush. | |||
Road sweeper truck
Here the price is for standard configuration.Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.
DRZ5060TSLE 4x2, 4x4 Sweeping Truck with various specification to meet your needs, please contact us for more details of Sweeping Trucks.
Parts | Technical Parameter | |
Overall | Chassis Model | EQ1060TJ20D3 |
Curb Weight | 5300kg | |
Rated Loading Weight | 2000kg | |
Overall Size (L*W*H) | 5995×2050×2400mm | |
Engine | Type of Fuel | Diesel |
Brand/Model | YC/YC4F90-30 | |
Horse Power | 90HP | |
Chassis | Brand | Dongfeng |
Wheelbase | 3300mm | |
Cabin | Left-hand driving, Air conditioner, Flat headed, One sleeping berth | |
Transmission | Dongfeng 6-speed | |
Brake System | Pneumatic brake | |
Tyre | Specification | 7.00-16 |
Number of Tyre | 6+1 Spare tire | |
Function | Sweeping width | 》2.8-3m |
Water Tank Volume | 0.8m3 | |
Dust Tank Volume | 3.5m3 | |
Working Speed | 3-15KM/H | |
Note | Some components are optional according to your requirements. |
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | ||
Dust | Water | mm | mm | USD | |||||||
DRZ5160TSLD | DONGFENG | DFL1160BX | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 45560 | |
DRZ5060TSLE | DONGFENG | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 23450 | |
DRZ5090TSLE | DONGFENG | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 29490 | |
DRZ5108TSLE | DONGFENG | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 37900 | |
DRZ5126TSLE | DONGFENG | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 41150 | |
DRZ5141TSLE | DONGFENG | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 40110 | |
DRZ5073TSLB | FOTON | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 21980 | |
DRZ5163TSLB | FOTON | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 44090 | |
DRZ5070TSLQ | ISUZU | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 37610 | |
DRZ511009TSLQ | ISUZU | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 48740 | |
DRZ51609TSLQ | ISUZU | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 59280 | |
DRZ5161TSLH | JAC | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 49700 | |
DRZ5165TSLS | SHACMAN | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 53240 |
New Model Good Quality Low Price Dongfeng 4x2 vacuum pavement cleaning truck Chassis,sub frame,body,2 sweeping brushes, stainless steel vacuum tank, water tank, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Overall dimensions 6700X2290X2500mm Curb weight 5705kg
Dust tank volume 4500L Water tank volume 1000L
Vehicle parameters | |||
Vehicle Model | DRZ5090TSLE | Vehicle Brand | DRZ |
Overall dimensions | 6700X2290X2500mm | Curb weight | 5705kg |
Dust tank volume | 4500L | Water tank volume | 1000L |
Chassis parameters | |||||
Chassis model | EQ1090T9ADJ3AC | Chassis brand | DONGFENG | ||
Overall dimensions | 6695x2180x2350mm | Wheel base | 3800mm | ||
Front/rear wheel track | 1750/1586mm | Front/rear suspension | 1180/1715mm | ||
Approach/departure angle | 22/13° | Maximum speed | 80km/h | ||
Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||||
Cab | Configuration | Single row cab,air conditioner,allowable 3 passengers,cab can be flipped | |||
Color | White,other color is optional | ||||
Engine | Model | CY4102-E3C | |||
Emission | Euro 3 | ||||
Type | 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 120hp,rated power speed 2800rpm | ||||
Displacement | 3856ml | ||||
Bore x stroke | 102x118mm | ||||
Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||||
Tire | Size | 7.50R16,steel wire tire | |||
Number | 6+1 nos | ||||
Frame | 192mm | ||||
Brake | Air break, electronic flame out, exhaust brake | ||||
Fuel tank | 100L,steel | ||||
Front axle | 2.4T | ||||
Rear axle | 4.2T | ||||
Drive form | 4X2 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 5 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | Air Conditioner, Cummins engine B140 33(140hp) | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Road sweeper structure parameters | ||||
Dust tank volume | 4500L | Water tank volume | 1000L | |
Sweep width | 3000m | Cleaning speed | 3-20km/h | |
Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% | |
Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm | |
Unloading angle | 45° | Unloading height | 970mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | |||
Selective configuration | surveillance system,rolling brush. | |||
Road sweeper truck
Here the price is for standard configuration.Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system,hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.
DRZ5060TSLE 4x2, 4x4 Sweeping Truck with various specification to meet your needs, please contact us for more details of Sweeping Trucks.
Parts | Technical Parameter | |
Overall | Chassis Model | EQ1060TJ20D3 |
Curb Weight | 5300kg | |
Rated Loading Weight | 2000kg | |
Overall Size (L*W*H) | 5995×2050×2400mm | |
Engine | Type of Fuel | Diesel |
Brand/Model | YC/YC4F90-30 | |
Horse Power | 90HP | |
Chassis | Brand | Dongfeng |
Wheelbase | 3300mm | |
Cabin | Left-hand driving, Air conditioner, Flat headed, One sleeping berth | |
Transmission | Dongfeng 6-speed | |
Brake System | Pneumatic brake | |
Tyre | Specification | 7.00-16 |
Number of Tyre | 6+1 Spare tire | |
Function | Sweeping width | 》2.8-3m |
Water Tank Volume | 0.8m3 | |
Dust Tank Volume | 3.5m3 | |
Working Speed | 3-15KM/H | |
Note | Some components are optional according to your requirements. |
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | ||
Dust | Water | mm | mm | USD | |||||||
DRZ5160TSLD | DONGFENG | DFL1160BX | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 45560 | |
DRZ5060TSLE | DONGFENG | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 23450 | |
DRZ5090TSLE | DONGFENG | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 29490 | |
DRZ5108TSLE | DONGFENG | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 37900 | |
DRZ5126TSLE | DONGFENG | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 41150 | |
DRZ5141TSLE | DONGFENG | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 40110 | |
DRZ5073TSLB | FOTON | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 21980 | |
DRZ5163TSLB | FOTON | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 44090 | |
DRZ5070TSLQ | ISUZU | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 37610 | |
DRZ511009TSLQ | ISUZU | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 48740 | |
DRZ51609TSLQ | ISUZU | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 59280 | |
DRZ5161TSLH | JAC | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 49700 | |
DRZ5165TSLS | SHACMAN | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 53240 |
