FOB: | |
---|---|
Availability: | |
Quantity: | |
| |
5040TSLK5
KAMA
8705909990

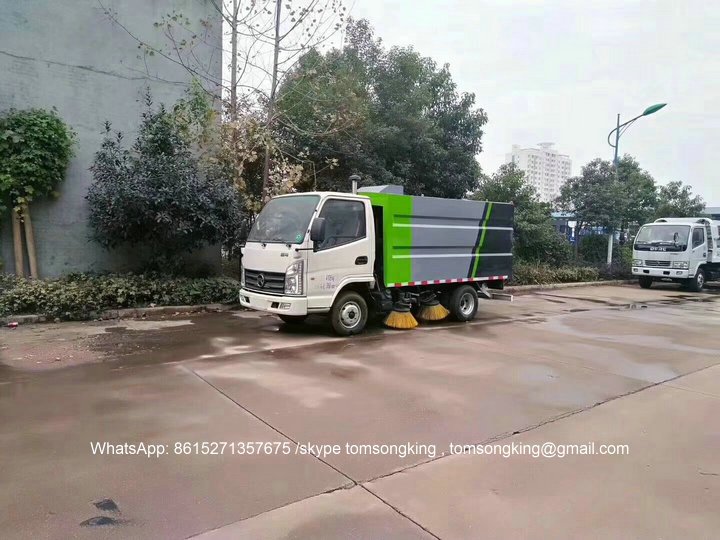

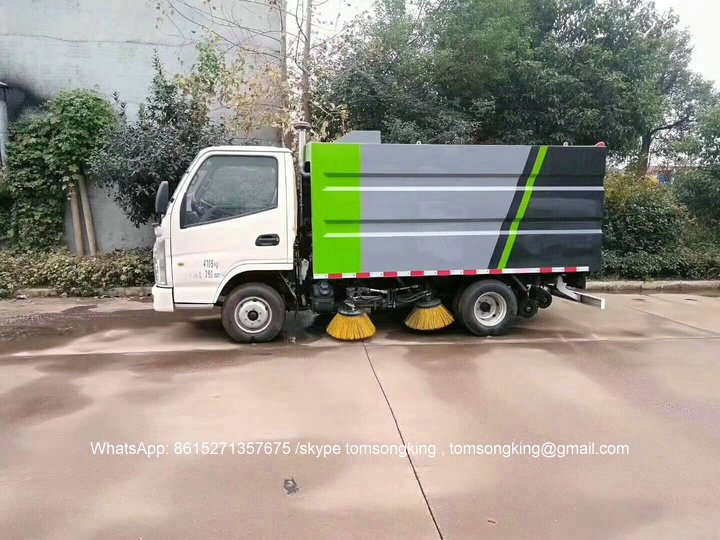

KAMA MINI Road Sweeper Truck 4x2 / 4x4
EURO 5 / vacuum road sweeper truck
2500l dust tank and 1000l water tank
Technical specifications
# Engine model Engine displacement Engine power Engine manufacturer
1 WP2.1Q82E50 2 088 cc 2.1 L 127 cu in 60 kW 82 hp Weichai Power Yangzhou Diesel Engine Co., Ltd.
2 D19TCIE1 1 910 cc 1.9 L 117 cu in 75 kW 102 hp Kunming Yunnei Power Co., Ltd.
3 SD4D25R-65 2 433 cc 2.4 L 148 cu in 65 kW 88 hp Jiangsu Sida Power Machinery Group Co., Ltd.
Performance Fuel diesel fuel
Environmental standard GB17691-2005 National V / Euro 5, GB3847-2005
Maximum speed 95 km/h 60 mph ABS have
Capacity
Rated load capacity 1495 kg,1560 kg 1.5 t,1.6 t 3,296 lbs,3,439 lbs
Weights and Ground pressure
Curb weight 2750 kg 2.8 t 6,063 lbs
Gross vehicle weight rating 4440 kg 4.4 t 9,789 lbs
Axle load distribution 1600 kg / 2840 kg 1.6 t / 2.8 t 3,500 lbs / 6,261 lbs
Dimensions
Overall length 5080 mm / 4880 mm 16′8″ / 16′1″
Overall width 1770 mm 5′10″
Overall height 2270 mm 7′6″
Undercarriage and Suspension
Number of axles 2
Wheelbase 2600 mm,2800 mm
Front track 1395 mm,1420 mm
Rear track 1340 mm,1375 mm
Front overhang 1060 mm 3′6″
Rear overhang 1220 mm 4′1″
Angle of approach 18°
Angle of departure 20°
Leaf springs 9 / 8+4
Tyres and Wheels
Number of tyres 6
Tyres dimension 6.00-14LT, 6.00-15LT
Miscellaneous
Seating capacity 3, 2
Steering control steering wheel
Here the price is for standard configuration.Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.
Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, | ||||||||||
hydraulic system and electrical system. | |||||||||||
Selective configuration | surveillance system,rolling brush. | ||||||||||
Vehicle model | Chassis brand | Chassis model | Load (L) | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | ||
Dust | Water | mm | mm | RMB | USD | ||||||
DRZ5160TSLD | DONGFENG | DFL1160BX | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 309800 | |
DRZ5060TSLE | DONGFENG | EQ1060TJ20D3 | 3500 | 800 | 5970X2000X2400 | 3300 | CY4102-C3F | 95/Euro 3 | 11.00R20 | 159400 | |
DRZ5090TSLE | DONGFENG | EQ1090T9ADJ3AC | 4500 | 1000 | 6700X2290X2500 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 200500 | |
DRZ5108TSLE | DONGFENG | EQ1108KJ | 5000 | 3000 | 7000X2480X3000 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 257700 | |
DRZ5126TSLE | DONGFENG | EQ1126KJ1 | 6000 | 4000 | 8090X2470X3050 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 279800 | |
DRZ5141TSLE | DONGFENG | EQ1141KJ | 6000 | 4000 | 7650X2480X3000 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 272700 | |
DRZ5073TSLB | FOTON | BJ1073VEJEA-A | 3500 | 800 | 5995X1900X2680 | 3360 | 4DW91-63NG2 | 98/Euro 2 | 6.50-16 | 149400 | |
DRZ5163TSLB | FOTON | BJ1163VKPGG-1 | 6000 | 4000 | 7810X2495X3160 | 5000 | Phaser160Ti-33 | 160/Euro 3 | 9.00R20 | 299800 | |
DRZ5070TSLQ | ISUZU | QL1070A1KAY | 4500 | 1000 | 6465X1980X2435 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-15 | 255700 | |
DRZ511009TSLQ | ISUZU | QL11009LARY | 5000 | 3000 | 6910X2200X2640 | 4175 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | 331400 | |
DRZ51609TSLQ | ISUZU | QL11609MFRY | 6000 | 4000 | 7705X2500X3060 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 403100 | |
DRZ5161TSLH | JAC | HFC1161P3K2A47F | 6000 | 4000 | 8155X2495X3070 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | 337900 | |
DRZ5165TSLS | SHACMAN | SX1165UN461 | 6000 | 4000 | 8040X2490X3270 | 4600 | WP10.270E32 | 270/Euro 3 | 12.00R20 | 362000 |
