Changan Mini Vacuum Sweeper Truck

Changan Mini Vacuum Sweeper Truck
FOB:
Availability:
Quantity:
  • DRZ5030TSL

  • DRZ

  • 8705309000

 Mini Vacuum Sweeper Truck ,   street sweeper truck

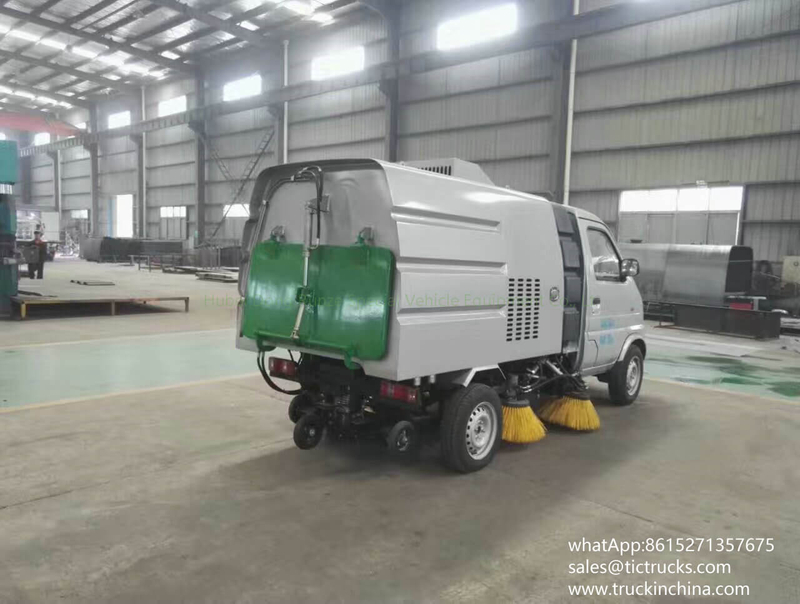

 Working width: 2.2m, inhaled particle size: φ 80mm, water tank volume: 0.4m , volume of trash: 1.5M ³, maximum operation capacity: 11000 sqm/h/h-44000 square meters.Changan mini sweeper vehicle-01T- road sweeper trucks_1

mini street sweeper truck changan

Changan mini sweeper vehicle-02T- road sweeper trucks_1Changan mini sweeper vehicle-03T- road sweeper trucks_1Changan mini sweeper vehicle-04T- road sweeper trucks_1Changan mini sweeper vehicle-05T- road sweeper trucks_1

4x2 Mini Vacuum Sweeper Truck Manufacturers LOW Price SaleMini Vacuum Sweeper Truck-04T- street sweeper truck_1.jpgMini Vacuum Sweeper Truck-01T- street sweeper truck_1.jpg

Road Sweeper Truck

mini changan road sweeping vehicles china for sales

Working width: 2.2m, inhaled particle size: φ 80mm,

 water tank volume: 0.4m m³, volume of trash: 1.5M ³,

 maximum operation capacity: 11000 sqm/h/h-44000 square meters.


Compared with common road sweeper, this model has more functions:Road sweeping, road flushing, multi-angle slush flushing, separation zone cleaning, freeway guard rail flushing,spraying, moistening and dust containing, high pressure water gun for car cleaning/low flat flushing with strong water flow, road sprinkling and flower watering from both sides and so on.


1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive.
2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function (by national patent)
3. "Mid four brush - rear nozzle" structure layout with sweeping wide, clean and efficient features, and facilitate the cleaning device and nozzle adjustment and maintenance.
4.Pneumatic conveying system with digestion and absorption of foreign advanced technology and efficient sweepers dedicated fans and can auto-leveling with the road the whole floating nozzle.
5.Sweeper combined with trochar disc, it can work excellently and can automotically choose work type according to waste condition on the ground and speed of the truck. ;

6.Trash and water tank large, continuous cleaning operation a long time.
7. Left, right front linkage scan can work independently or can choose to use the right front or left front sweep sweep to work independently.
8.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance;
9. Control switch installed in the driver focused interior, all electronic control can be found in cab ,Beautiful appearance designed via computer.

Model Name

Changan sweeper truck

Driving Type

 4×2,left hand drive

Engine model

SC1022DB4N

Weights

Rated payload weight(kg)

100

Curb weight(kg)

1645

Axle loading9(kg)

925/885

Dimensions

Wheelbase(mm)

4500

Overall Dimension(mm)

4100×1500×1900

Box dimension (mm)

××

 Max speed(km/h)

98

Engine

 Engine model

JL466Q4

Engine type

4 stroke water-cooled,inter-cooling

No. of cylinders

straight-4 cylinders

Displacement(L)

1.012 L

Max. output (kw)

39kw

 Drive Line

Transmission

5 forwards,1 reverse gear,manual operation

Cab

Air container

Optional

Standard configuration

Sound,,

Tire specification

Tire specification

10.00-20 standard tire,6 tires+1 spare tire

item
Overall dimension 4100*1500*1900
Max cleaning width (mm)2000
(PM 10)Cleaning efficiency>90%
Max cleaning speed (km/h)3-5
Max suction granularity (mm)50
Water tank capacity (M3)1.5
Garbage tank capacity (L)300
suction diameter Φ50


4x2, 4x4 Cleaning Truck with various specification to meet your needs, please contact us for more details of Cleaning Trucks.


       Parts       Technical Parameter
       Overall       Chassis Model       EQ1090G9ADJ3AC
       Curb Weight       5705kg
       Rated Loading Weight       3500kg
       Overall Size (L*W*H)       6700×2290×2500mm
       Engine       Type of Fuel       Diesel
       Brand/Model       CY/CY4102-C3C
       Horse Power       120HP
       Chassis       Brand       Dongfeng
       Wheelbase       3800mm
       Cabin       Left-hand driving, Air conditioner, Flat headed, One sleeping berth
       Transmission       Dongfeng 6-speed
       Brake System       Pneumatic brake
       Tyre       Specification       7.50-16
       Number of Tyre       6+1 Spare tire
       Function       Sweeping width       2.8-3m
       Water Tank Volume       1m3
       Dust Tank Volume       4.5m3
       Working Speed       3-15KM/H
       Note       Some components are optional according to your requirements.


Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

  Our factory products line:
 Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.

    Sweeper Truck  Euro 4 -5 4.3m3 90HP Sweeping Truck 4_2 DongFeng for sale
