King Run Road Cleaning Truck Street Sweeper Truck for Sale 170hp /190hp

King Runroad Cleaning Truck Street Sweeper Truck for Sale 170hp /190hp ,4x2/4x4,LHD/RHD
7. Sweeping speed (km / h):3-20
8. Sweeping capacity(㎡/h):9000- 60000
9. Maximum Grain size and quality (mm):100mm\±1.5kg
FOB Price: US $44,000 - 46,000 / Unit
Availability:
Quantity:
  • DRZ

  • King run

  • 8705909990

 King Runroad Cleaning Truck Street Sweeper Truck for Sale 170hp /190hp ,4x2/4x4,LHD/RHD

JMC 6 Wheel 4cbm Dust Cleaner Road Sweeper Truck draw_1Dongfeng KingRun 4x2 road sweeper truck_1.jpgtruck mounted sweeper.jpgtruck mounted sweeper 2.jpgking run sweeper Trucks -21_1_1.jpg

king run sweeper Trucks -15_1.jpgking run sweeper Trucks -23_1.jpgroad sweper -45_1.jpgroad sweper -47_1.jpgdongfeng sweeper Trucks -20with snow sweep removal_1.jpg

road sweper -48_1.jpg

 King Run road Cleaning Truck Street Sweeper Truck for Sale 170hp /190hp ,4x2/4x4,LHD/RHD

 Trash tank volume (m³):7

 Water tank volume (m³):3.5

Case 6:

King Run road Cleaning Truck Street Sweeper Truck for Sale 190hp 4x4/RHD Euro 3

FOB Price: US $53,000 - 55,000 / Unit

Case 5:

King Run road Cleaning Truck Street Sweeper Truck for Sale 190hp 4x2/RHD Euro 3

FOB Price: US $48,000 - 51,000 / Unit

Case 4:

King Run road Cleaning Truck Street Sweeper Truck for Sale 190hp 4x4/LHD Euro 3

FOB Price: US $50,000 - 54,000 / Unit

Case 3:

King Run road Cleaning Truck Street Sweeper Truck for Sale 190hp 4x2/LHD Euro 3

FOB Price: US $44,000 - 46,000 / Unit


Case 2:DongFeng TianJin 4x2 170hp /180HP road cleaning truck street sweeper truck for sale Euro IV

FOB Price: US $46,000 - 48,000 / Unit

1. Product model、name:DRZ5160TXSBX5  Road Sweeper Truck

2. Overall dimension (mm):8650 x 2500 x 3000

3. Trash tank volume (m³):7

4. Water tank volume (m³):3.5

5. Material of trash tank/water tank: Stainless steel

6. Max sweeping width(mm): 3200

7. Sweeping speed (km / h):3-20

8. Sweeping capacity(㎡/h):9000- 60000

9. Maximum Grain size and quality (mm):100mm\±1.5kg

Main specifications

Product model、name

DRZ5160TXSBX5  Road Sweeper Vehicles

Gross weight(Kg)

16000

Drive type

4 × 2

Payload (Kg)

4500

Overall dimension (mm)

8650 x 2500 x 3000

Curb weight(Kg)

11305

cab seats (man)

3

Approach / departure angle(°)

20/13

Front/rear hang(mm)

1430/2220

Number of axles

2

Wheelbase(mm)

4700

Axle load

6000/10000

Max speed(Km/h)

90

Chassis specifications

Chassis model

DFL1160BX5

Manufacturer

DFAC

Brand name

DongFeng

Overall dimension(mm)

8290×2370×2760

Tire specification

9.00-20

Tires No.

6

Steel spring number

8/10+8,7/9+6

Front track(mm)

1880

 Fuel type

Diesel

Rear track(mm)

1860

Emission standard

Euro IV

Transmission

6  forward gear

Cabin

Luxury interior and Instrument bar, with air conditioning and sleeper.

Main engine model

Engine manufacture

Displacement(ml)

Power(Kw)

ISB180 40

Dongfeng Cummins Engine Co., Ltd.

5900

132

Road Sweeper Performance

Trash tank volume (m³)

7

Water tank volume (m³)

3.5

Material of trash tank

Stainless steel

Material of water tank

Stainless steel

Model of auxiliary engine

EQB140-20

Power of auxiliary engine(Kw)

103KW

Manufacturers of auxiliary engine

Dongfeng Cummins Engine Co., Ltd.

Max sweeping width(mm)

3200

Sweeping speed (km / h)

3-20

Sweeping capacity(㎡/h)

9000- 60000

Maximum Grain size and quality (mm)

100mm\±1.5kg

Cleaning Rate

96%

Road Sweeper Features

1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate!

2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance

protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles!

3.Both of side of the scan disk can be working altogether, or unilateral work independently.

4.The core components of hydraulic systems adopts the original import!

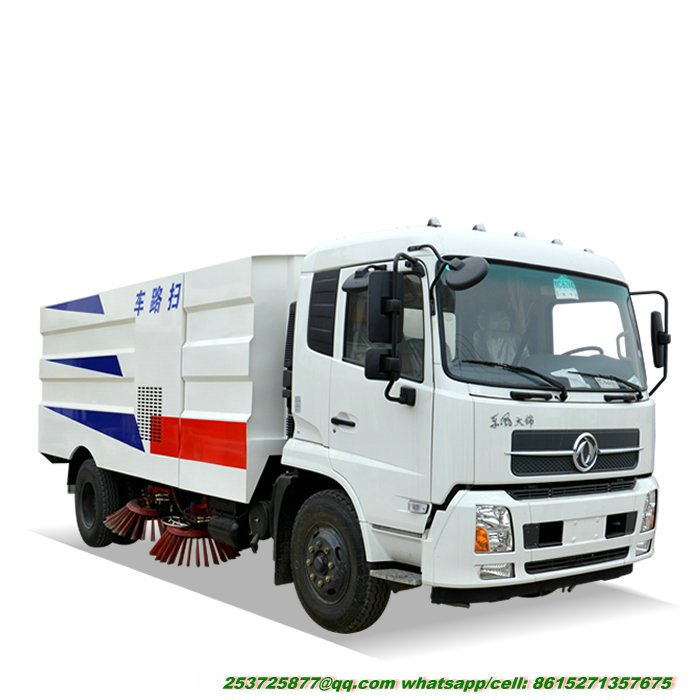

Dongfeng KingRun 4x2 road washing sweeper truck

Trash tank volume (m³):7

Water tank volume (m³):9

 case 1-1 :190hp Left Hand Drive 4X2 /4X4 Airport Runway Sweeper Truck LHD/RHD Euro III

FOB Price: US $60,000 - 66,000 / Unit

Truck Specification

Chassis model

DongFeng

Cab

DFAC king cab, with power steering. Electronic flameout,without a/c

Driving Type

4*2 Left hand driving

Max Speed (km/h)

95

Maximum climbing angle

30%

Overall dimension(mm)

8580*2490*3100

GVW( kg)

16000

Mass in working order ( kg)

11000

Wheelbase(mm)

4500

F/R track base (mm)

1880/1860

F/R overhang (mm)

1430/2150

Approach/Departure Angel

20/13

Tire

10.00-20 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

6-speed

Bridge

Front axle

6T

Rear axle

10T

Enging

Model

B190

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

5900

Max output power/rotate speed (hp /rpm )

190/2500

Max torque/rotate speed(N.m/rpm)

800/1400-1600

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v


 case 1-2 :210hp Left Hand Drive 4X2 /4X4 Airport Runway Sweeper Truck LHD/RHD Euro III

FOB Price: US $63,000 - 68,000 / Unit

Overall Dimension(mm)

8580x2490x3100

G.V.W(Kg)

16000

Curb Weight(Kg)

11350

Rated loading Weight(Kg)

4455

Wheel Base(mm)

5000,4700,4500

Front/rear wheelbase(mm)

1880/1860

Front /rear overhang(mm)

1430/2050

Approach/Departure Angle

20 / 11

Axles Load(Kg)

3600/9000

Fuel type

Diesel

Tire

10.00-20,10.00R20

Emission Standard

Euro III

Chassis Model

DFL1160BX5

Engine

ISDe210 30

Displacement(ML)/Power(Kw)

6700/155

Multifunction Sweeper Configuration

Assistant Engine

ISDe 140

Engine Power

140 hp

Cleaning width(m)

≥2.8-3.5 m

water tank volume (stainless steel tank)

±4CBM, ±9CBM

garbage tank volumn(stainless steel tank)

±7 CBM

Operation Speed(km/h)

3~20

Max suction particle size/quality

100 mm / ±1.5kg

Cleaning efficiency(%)

≥96


Chassis Model

DFL1160BX5

Engine

ISDe210 30

Displacement(ML)/Power(Kw)

6700/155

Multifunction Sweeper Configuration

Assistant Engine

ISDe 170

Engine Power

170 hp

Cleaning width(m)

≥2.8-3.5 m

water tank volume (stainless steel tank)

±9CBM

garbage tank volumn(stainless steel tank)

±7 CBM

Operation Speed(km/h)

3~20

Max suction particle size/quality

100 mm / ±1.5kg

Cleaning efficiency(%)

≥96

Overall Dimension(mm)

8580x2490x3100

G.V.W(Kg)

16000

Curb Weight(Kg)

11350

Rated loading Weight(Kg)

4455

Wheel Base(mm)

5000,4700,4500

Front/rear wheelbase(mm)

1880/1860

Front /rear overhang(mm)

1430/2050

Approach/Departure Angle

20 / 11

Axles Load(Kg)

3600/9000

Fuel type

Diesel

Tire

10.00-20,10.00R20

case 1-3

King Run Sweeper Truck LHD/RHD Euro III 170HP

FOB Price: US $63,000 - 68,000 / Unit

Truck Specification

Chassis model

EQ1165GJAC

Driving Type

4*2 Left hand driving/Right hand driving

Max Speed (km/h)

85

Maximum climbing angle

30%

Overall dimension(mm)

8150x2470x3100

GVW( kg)

14490

Mass in working order ( kg)

5900

Wheelbase(mm)

4200,4500,4700

F/R track base (mm)

1920/1860

F/R overhang (mm)

1180/1715

Approach/Departure Angel

23/26

Tire

9.00-20,9.00R0,10.00-20,10.00R20

Engine

Model

B170 33(Euro 3)

Fuel Type

Diesel fuel

Exhaust(ml)

5900

Max output power/rotate speed (hp /rpm )

170hp

Upper-Body  specification

Vice generator Model

B140 33

Cleaning speed (km/h)

3-20

Cleaning width(m)

3.5

Cleaning efficiency

≥95%

The maximum diameter of the suction body(mm)

120

Maximum cleaning power (m²/h)

70000

Working speed (km/h)

3-20

Water tank capacity (m³)

4

Garbage tank capacity(m³)

8

Discharge door opening angle

≥45
