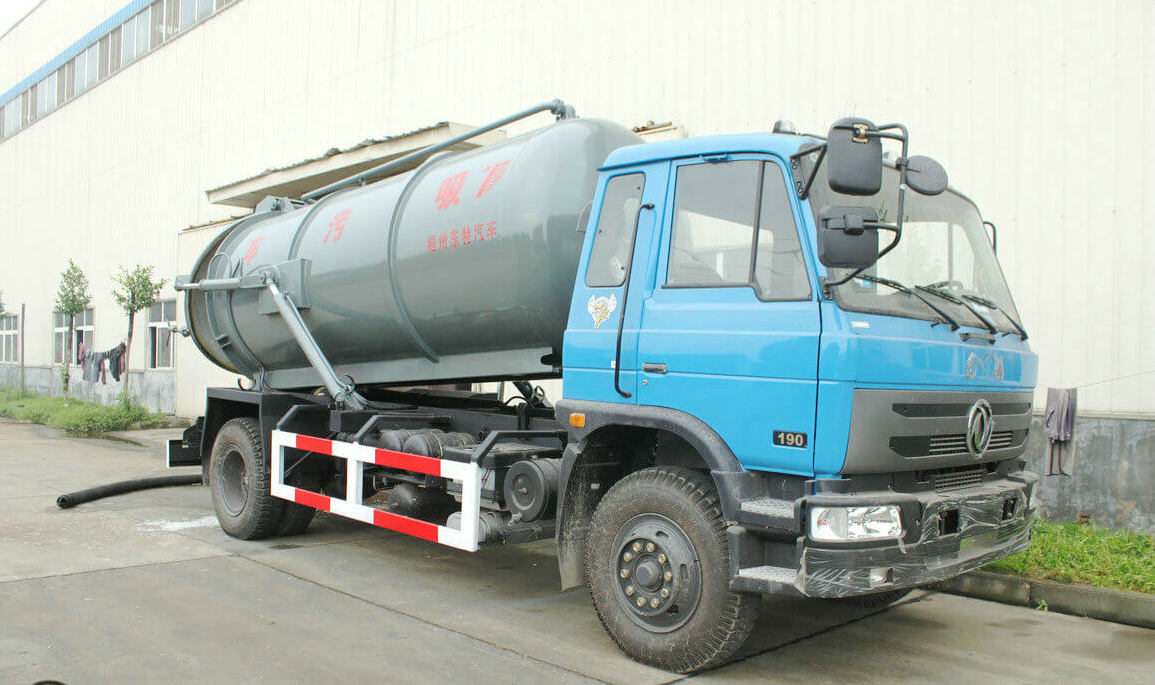

Vacuum Tank Truck 10000L-12000 Liter For Sucking chemical acid Waste


 Vacuum Tank Truck 10000L-12000 Liter For Sucking chemical acid Waste

with vacuum pump for non-potable water,  chemical sewage  suction and transport
optional inner lined PE for chemical wast acid

  Vaccum tanker vacuum sewage suction truck

Dongfeng EQ Vacuum tanker truck 10000L Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 Vacuum tanker  septik truck  sewage tanker ,CAPACITY 8000 UPTO 12000  Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck  ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier

         Minimum Order Quantity:          1 set
         Price:          USD 32000-38000 / Set
         Packaging Details:          bulk,ro-ro,container
         Delivery Time:          25 days after receiving deposits
         Supply Ability:          50 sets per month
   Detailed Product Description
           Tank Capacity:             10000L ~12000 L            Tank Material:            Q235
           Tank Shape:            Cylinder-shaped            Whole Tank Dimension:            5200*1800 Mm
           Whole Truck Dimension:            8150*2500*3350 Mm            F/R Axle Load:            1800/2695 Kg
           Wheel Base:            4500 Mm            Engine Power:            180 Hp
   The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
   Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
   Competitive Advantage:
   1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
   2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
   3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
   4. The diesel engine ( air compressor unit ), providing compressed air.
           Truck chassis specification
           Vehicle model

           TIC 5160GQW4
           Chassis model

           Overall dimensions
           Mass in working order
           Wheel base
           Max speed
           Tire specification
           Engine type
           ISDe180 40
           Traction system
           Number of Tires
           Number of axles
           Electric system
           Operation control system
           Electrically hydraulic control
           Allowable passengers in cab
           F/R Axle load (kg)
           The truck, diesel engine, water cooled, direct injection,180 horse power
           Special function
           Tank Capacity(L)
           Tank Dimension(mm)
           Equipped with high-power vacuum suction sewage pump.
           Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve.
           Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment.

    acuum  tanks-19T- Vacuum -septic tank-truck
 with two Vacuum pumps

 optional inner lined PE for chemical wast acid


 with twin vacuum pump for non-potable water, sewage suction and transport



       Commodity        Dongfeng EQ1162GKJ 160HP 8Tons High Pressure Vacuum Suction Truck
       Chassis        EQ1162GKJ
       Cubage (T)        10000Litres to 128000Litres
       Vehicle        Overall dimension(length/width/height)mm        7250,7400&times;2480&times;3280
       G V W(kg)        16930
       Payload (kg)        7500
       Kerb mass(kg)        8705
       Fuel Type        Diesel
       Fuel consumption(L/100km)        22
       Top speed         90
       Engine        Model        YC4E160-33
       Exhaust/Power(kw)        4260cc/105kw
       Manufacturer        GUANGXI YUCHAI
       Type        6-in-line water cool Turbo Charge engine
       Chassis        Drive type        4x2
       Wheelbase (mm)        3,950
       Front Bridge        3.6T FRONT AXLE
       Rear Bridge         9T rear axle
       Transmission        Double spoke wheel, with power steering
       Gear box        6Forwards, mechanical transmission
       Tire specification        8.25-20,9.00-20,8.25R20,9.00R20
       Air condition        with
       suction system        suction pump        Single Stage Rotary Oil Seal Vacuum Pump
       special parameter        Vertical suction heihgt        &ge;8
       working pressure        8500Pa
       rotation speed        500
       suction speed        98L/S
       power        5.5kw
       inlet diatmeter        50mm
       filling time        Less Than 5s
       discharge time        Less Than 5s



 Steel Vacuum Trailers Stainless Steel Vacuum Tanks

   septik truck  sewage tanker
         Vacuum tanker
         Material          Q235, 6mm    optional Aluminum  / midd Steel   Stainless Steel Vaccum
         Capacity(L)          6000~10000L
         Tank dimensions(mm)           6600*1850*1850
         Vacuum pump
         Model          Dual 50QZXDG-45/400
         flux(L/S)          45
         Min pressure          400 P

   Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
