Truck Mounted Dust Suppression Unit EURO 5 Emission Standard

Truck Mounted Dust Suppression Unit EURO 5 Emission standard
Chassis: EQ1250GLJ Dongfeng 6*4
210HP-245Hp Cummins Engine or 240HP-270Hp Yuchai Engine
10.00-20 Radial Tire
Water Tank capacity: 15000Liters / 15Tons
Standard Air assisted sparyer spray range: 80-100m
Sprayer power:45kw. Motor power: 120kw diesel engine .
optional: 50m, 60-70m, 80-85m, 100m sprayer.
Availability:
Quantity:
Inquire Add to Basket

  • 5250GLJ

  • DRZ

  • 8705909990

Truck Mounted Dust Suppression Unit EURO 5 Emission Standard

Truck Mounted Dust Suppression Unit EURO 5 Emission standard

Chassis: EQ1250GLJ  Dongfeng 6*4

210HP-245Hp Cummins Engine.  240HP-270Hp  Yuchai Engine

Euro 5 displacement

10.00-20 Radial Tire

Water Tank capacity: 15000Liters / 15Tons

Standard Air assisted sparyer spray range: 80-100m

Sprayer power:45kw. Motor power: 120kw diesel engine .

optional:   50m, 60-70m, 80-85m, 100m sprayer.

water tank Dust control -00Truck Mounted Dust Suppression_1.jpgwater tank Dust control -01Truck Mounted Dust Suppression_1.jpgwater tank Dust control -02Truck Mounted Dust Suppression_1.jpgwater tank Dust control -03Truck Mounted Dust Suppression_1.jpgwater tank Dust control -04Truck Mounted Dust Suppression_1.jpgwater tank Dust control -05Truck Mounted Dust Suppression_1.jpgwater tank Dust control -06Truck Mounted Dust Suppression_1.jpgwater tank Dust control -07Truck Mounted Dust Suppression_1.jpgwater tank Dust control -08Truck Mounted Dust Suppression_1.jpg

Capacity of tank body

15,000Litres

Material of tank body

Carbon steel

Install water pump

Side outlet and inlet, can fill water into tank body by water pump

With rear water spraying monitor.

Multifunction pesticide sprayer truck

With one manhole on the top of tank body.

Sprayer Machine:

valid distance

80-90 meters, no wind condition.

Operation mode

Manual and remote control

Fan motor parameter

Fan motor quantity

1

Rotation(r/min)

1440

Power

45KW

Reducer quantity

1

Reducer power

0.55kw


Sprinkler nozzle material

316# stainless steel

Spraying nozzle qualitity

90

Highr presure pump power

7.5Kw


Generator

120KW


Painting: three layer painting, anit-rust, bottom painting. Outside painting.

Customized color and logo.

 6×4 pesticides sprayer Truck 80m to 10m Spraying range with 15000Liters Water Tank

Dongfeng 6*4 Chassis, 210HP Cummins Engine.



6×4 pesticides sprayer Truck 80m to 10m Spraying range with 15000Liters Water Tank, Good Performance, Best Price.



6×4 pesticides sprayer Truck 80m to 10m Spraying range with 15000Liters Water Tank, equip 80-100m spray machine, remote control. fog cannon.



with water monitor, can clean street, road, green spray for gardon.



Dongfeng pesticides sprayer Truck with water fog cannon, Power master switch of Generator， Tank heating switch


Dongfeng pesticide spraying truck with water fog cannon ， Generator, fan control box

Dongfeng pesticide spraying truck with water fog cannon, manufactuer by Hubei Runli Company, good price, good performance, new design. fast delivery.

Dongfeng Dust removal truck with water fog cannon :

air -assisted sprayer range: 40m -100m

Fog Cannon misty sprayer trucks 80000Liters Water Tank Truck , mulitifunction water tank truck for :

1. environmental protection. city pm2.5/10 dust control, disinfection epidemic prevention, city demolition, outdoor control at waste disposal and landfill sites, humiditying, cooling and dust control on contruction site. ect.

2. industry dust suppression: open pit mining blasting digging load and transport dust, port material storage yard dust, bulk ship loading and unloading dust, Iron and steel plant stockpile and slag disposal dust.

3. agriculture protection: the sprayer can used for pest control in agriculture, orchard, garden areas, farmland, forest, road greening, grassland, pasture. etc.


Categories: Water Bowser Trucks, Pesticide Sprayer Trucks, Water Spray Trucks Tags: 100m pesticides Sprayer Trucks, 10wheels Dongfeng anti-dust sprayer, 10wheels Dongfeng anti-dust sprayer dust suppression truck, 10wheels Dongfeng ash suppression truck, 10wheels Dongfeng Dust Control Truck, 10wheels Dongfeng Dust control truck dust suppression truck mounted with water cannon, 10wheels Dongfeng Dust removal truck with water fog cannon for mining and quarry, 10wheels Dongfeng Dust sprayer Truck, 10wheels Dongfeng Dust suppression mist spray fog cannon truck for quarry mining, 10wheels Dongfeng Dust suppression sprayer truck, 10wheels Dongfeng dust suppression Truck, 10wheels Dongfeng Dust suppression vehicle, 10wheels Dongfeng Duty Dust Suppression Spray Cannon Truck, 10wheels Dongfeng Fog Spray Truck, 10wheels Dongfeng Forestry pest control spraying vehicle, 10wheels Dongfeng Forestry pest kill Trucks, 10wheels Dongfeng Mining Dust Control Sprayer Truck, 10wheels Dongfeng Mist Spray Dust Fall Truck, 10wheels Dongfeng mist spray truck, 10wheels Dongfeng pesticide spraying truck, 10wheels Dongfeng Pesticide spraying vehicle, 10wheels Dongfeng suppressing dust truck, 15000Liters anti-dust sprayer, 15000Liters anti-dust sprayer dust suppression truck, 15000Liters ash suppression truck, 15000Liters Dust Control Truck, 15000Liters Dust control truck dust suppression truck mounted with water cannon, 15000Liters Dust removal truck with water fog cannon for mining and quarry, 15000Liters Dust sprayer Truck, 15000Liters Dust suppression mist spray fog cannon truck for quarry mining, 15000Liters Dust suppression sprayer truck, 15000Liters dust suppression Truck, 15000Liters Dust suppression vehicle, 15000Liters Duty Dust Suppression Spray Cannon Truck, 15000Liters Fog Spray Truck, 15000Liters Forestry pest control spraying vehicle, 15000Liters Forestry pest kill Trucks, 15000Liters Mining Dust Control Sprayer Truck, 15000Liters Mist Spray Dust


Multi-purpose dust suppression machine (truck)

 Truck Mounted Dust Suppression Unit EURO 5 Emission Standard


Chassis 1: EQ1250GLJ  Fuel type: diesel fuel

Engine: YC6A240-50; ISD245 50;... Rated capacity (kg): 9970, 9905

Displacement (cc): 7520; 6700; 6700; 7520 Wheelbase (mm): 4350+1300, 4750+1300,...

Power (kW): 177; 180; 155; 199 Dimensions (mm): 11170/11370/11570/11770...


Chassis 2: DFL1250A13 Fuel type: diesel fuel

Engine: ISD245 50; ISD270 50 Rated capacity (kg): 9190, 9125

Displacement (cc): 6700; 6700 Wheelbase (mm): 4350+1350, 5350+1350,...

Power (kW): 180; 198 Dimensions (mm): 9750/11450 × 2500 × 3800/3...

#Engine modelEngine displacementEngine powerEngine manufacturer
1YC6A240-507 520 cc7.5 L459 cu in177 kW241 hpGuangxi Yuchai Machinery Co., Ltd.
2ISD245 506 700 cc6.7 L409 cu in180 kW245 hpDongfeng Cummins Engine Co., Ltd.
3ISD210 506 700 cc6.7 L409 cu in155 kW211 hpDongfeng Cummins Engine Co., Ltd.
4YC6A270-507 520 cc7.5 L459 cu in199 kW271 hpGuangxi Yuchai Machinery Co., Ltd.
Capacity
Rated load capacity11305 kg11.3 t24,923 lbs
Weights and Ground pressure
Curb weight13500 kg13.5 t29,800 lbs
Gross vehicle weight rating25000 kg25 t55,000 lbs
Axle load distribution7000 kg / 18000 kg  (tandem axle)
7 t / 18 t  (tandem axle)
15,000 lbs / 40,000 lbs  (tandem axle)
Dimensions
Overall length10580 mm34′9″
Overall width2500 mm8′3″
Overall height3850 mm12′8″
Undercarriage and Suspension
Number of axles3
Wheelbase4350+1300 mm,
4750+1300 mm,
5350+1350 mm,
5850+1350 mm		14′4″+4′4″,
15′8″+4′4″,
17′7″+4′6″,
19′3″+4′6″
Front track1960 mm,
2045 mm,
1940 mm		6′6″,
6′9″,
6′5″
Rear track1860 mm / 1860 mm,
1900 mm / 1900 mm		6′2″ / 6′2″,
6′3″ / 6′3″
Front overhang1450 mm4′10″
Rear overhang3480 mm11′6″
Angle of approach12°
Angle of departure8°
Leaf springs9 / 10, 9 / 13
Tyres and Wheels
Number of tyres10
Tyres dimension11.00-20, 11.00R20 16PR, 10.00-20, 10.00R20
Miscellaneous
Seating capacity3
Steering controlsteering wheel

6*4 15000 Liters 15 ton 15cbm 4000 gallon DFAC Water Tank Truck

Overall
Product name6*4 15000 Liters 15 ton 15cbm 4000 gallon DFAC Water Tank Truck
Product modelDRZ5250GSS
Overall size10300×2500×2970mm
Overall G.W.25000(Kg)
Curb weight10000(Kg)
Fact load15000(Kg)
Tank shapeOval
Tank materialCarbon steel
Tank thickness4mm
Tank colorAny color customer like
Springs9/10,9/13
Approach/departure angle22/9,22/8(°)
Overhang F/R1450/3200,1450/3480(mm)
Tread F/R1960/1860(mm)
Axis load6000/9990kg
Chassis
Chassis brandDFAC
Chassis modelEQ1250GLJ
Drive typeManual, left hand drive or RHD
Drive wheel4*2
Tyre11.00R20;10+1PCS
Springs number9/10,9/13
Control systemElectrically hydraulic system
TransmissionSix speed levers,6 speed forward with 1 reverse
Wheel base4350+1300mm
Axis number3 pieces
Cab passengers3 passengers
ABS model3631010-C2000
Engine
EngineYC6A240
Horse power237 Hp / 177Kw
Exhaust7520ml
Emission standardEuro 4
Max speed90 Km/h
FuelDiesel
Tank
Medium Water
Tank capacity15m3
Other equipmentFire valve,water valve,and filter gauze
Pumpwater pump(suction lift>6m)
Rear working platformRear working platform with water cannon(range>28m)
Sprinkler widthFront(rear,side)sprinkler(sprinkling width>14m)
Protective rail materialQ235-A; 400*50mm; Height:500mm
Warrenty1 year
CertificationCCC, ISO...
Production cycle7 -15 days



6*4 15000 Liters 15 ton 15cbm 4000 gallon DFAC Water Tank Truck


Previous:
Next:

Related Products

ISUZU 4000L To 6000L Water Tank Fire Fighting Vehicle
ISUZU 4000L To 6000L Water Tank Fire Fighting Vehicle
ISUZU Fire Truck / Fire Engine With Stainless Steel Water Tank PTO Sandwich Type For Fire Pump Sprinkler 50L/s Cannon PS10/50W-D
ISUZU Fire Truck / Fire Engine With Stainless Steel Water Tank PTO Sandwich Type For Fire Pump Sprinkler 50L/s Cannon PS10/50W-D
ISUZU 6x4 Water Bowser Truck GIGA 20,000Liters
ISUZU 6x4 Water Bowser Truck GIGA 20,000Liters
ISUZU 6x4 Water Bowser Truck with Fire Engine Pump
ISUZU 6x4 Water Bowser Truck with Fire Engine Pump
DAYUAN 6x4 Water Bowser Truck
DAYUAN 6x4 Water Bowser Truck
FAW J5M Manufacturer 6x4 Water Bowser Truck
FAW J5M Manufacturer 6x4 Water Bowser Truck
Dongfeng Offroad 4x4 Water Bowser 8000Liters -10000Liters Drinking Water Tank
Dongfeng Offroad 4x4 Water Bowser 8000Liters -10000Liters Drinking Water Tank
Dongfeng Offroad 4x4 Water Bowser 6000Liters -8000Liters
Dongfeng Offroad 4x4 Water Bowser 6000Liters -8000Liters
Offroad 4x4 Water Bowser 5000Liters
Offroad 4x4 Water Bowser 5000Liters
Mobile Power & Water Supply Vehicle Customizing
Mobile Power & Water Supply Vehicle Customizing
Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L - 6000L Euro 5
Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L - 6000L Euro 5

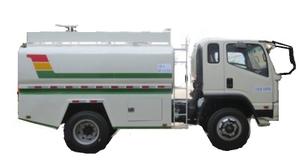

KAMA All Wheel Drive 4x4 Fire Spraying Truck with Fire Pump Water Tank 4900 L
