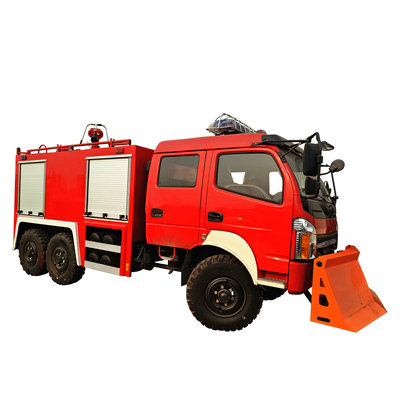

Off Road 6x6 AWD Water Tanker Fire Truck 4000L ( 1000 Gallons) For Forest Fire Fighting

Off Road 6x6 AWD Water Tanker Fire Truck 7000L ( 1849 Gallons) For Forest Fire Fighting
LHD / RHD Optional Engine: Cummins 190HP
Price: $ 60000  -  62000
Discount Price: $ 52000  -  54000
FOB:
Availability:
Quantity:

  • DRZ5271

  • DRZ

  • 8705309000

Off Road 6x6  AWD Water Tanker  Fire Truck 4000L ( 1000 Gallons) For  Forest Fire Fighting

LHD / RHD Optional  Engine:Cummins  190HP

   Off Road 6x6 Water Tanker Fire Truck

Superstructure

Water Tank Capacity

4,000 litres

Tank Material

Carbon steel

Fire Pump

Flow speed

30 L/s

Pressure

1.0 MPa

Fire Cannon

Flow speed

30 L/s

Shot

55 m

Suction Head

6 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…

Optional

Ladders, floodlights...


Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle


Off Road 6x6  AWD Water Tanker  Fire Truck 7000L  All wheel Drive fire fighting truck


Dimension Parameters

Overall dimension (mm)

6340*2050*2650

Wheelbase (mm)

3350+1100

Front / Rear Suspension (mm)

1280 / 1450

Wheel Tread (mm)

1886 / 1846 / 1846

Approach / Departure angle (°)

35 / 23

Allowable person capacity

3+2



Weight Parameters

Curb Weight (kg)

4200

Max. authorized total mass of chassis (kg)

9100

Max. authorized load weight (kg)

Front Axle: 2700

Rear Axle: 3200+3200



Performance

Engine Rated Power (kw / r/min)

140 / 2800

Engine Max Torque (N.m / r/min)

640 / 1400-1600

Engine Displacement (L)

5.9

Max Speed (km/h)

85

Min Steady Speed (km/h)

3.5

0-60km/h Acceleration Time (s)

≤30

Max.Gradability (%)

60

Slope Retaining Capacity (%)

40

Min Ground Clearance (mm)

286

Min Turningradius (m)

≤8

Max Vertical Obstacle Height (mm)

≤600

Max Crossing Width (mm)

≤600

Max Fording Depth (mm)

≤1000

100km fuel consumption

under limited conditions (L)

<18

Braking Distance When Full

Load Initial Speed 30km/h (m)

≤8

Fuel Tank Capacity (L)

220

Max Endurance Mileage (m)

800

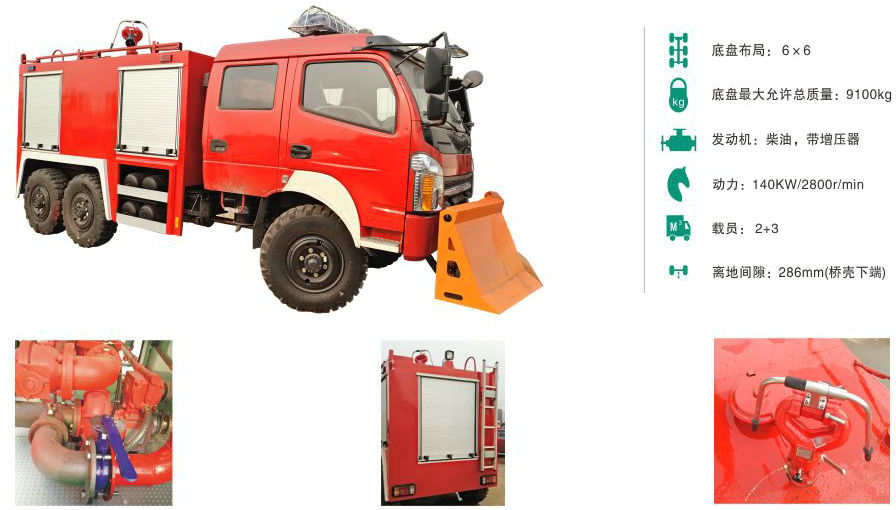

Driving Type

6x6

Environmental Adaptabilityrequirements

Working Temperature:-41℃~+55℃;

Storage Temperature:-55℃~+70℃;

Altitude 5000m (Allowthe power to decrease accordingly);

Relative Humidity:95%(30℃)。



Basic Technical Parameters

Engine

190hp, in-line, 6 cylinders,

turbocharged intercooler dieselengine, 140kw

Transmission

Manual 5-speed Transmission

Transfer Case

with high and low gear,

electronic control pneumaticoperation

Front Axle

2.7 ton integral axle ,hub reduction

Rear Axle

3.5 ton integral axle, hub reduction

Suspension

front suspension is leaf spring,

with twobidirectional cylinder type shock absorber.

Rear suspensionis leaf spring balance suspension,

with Stabilizer bar.

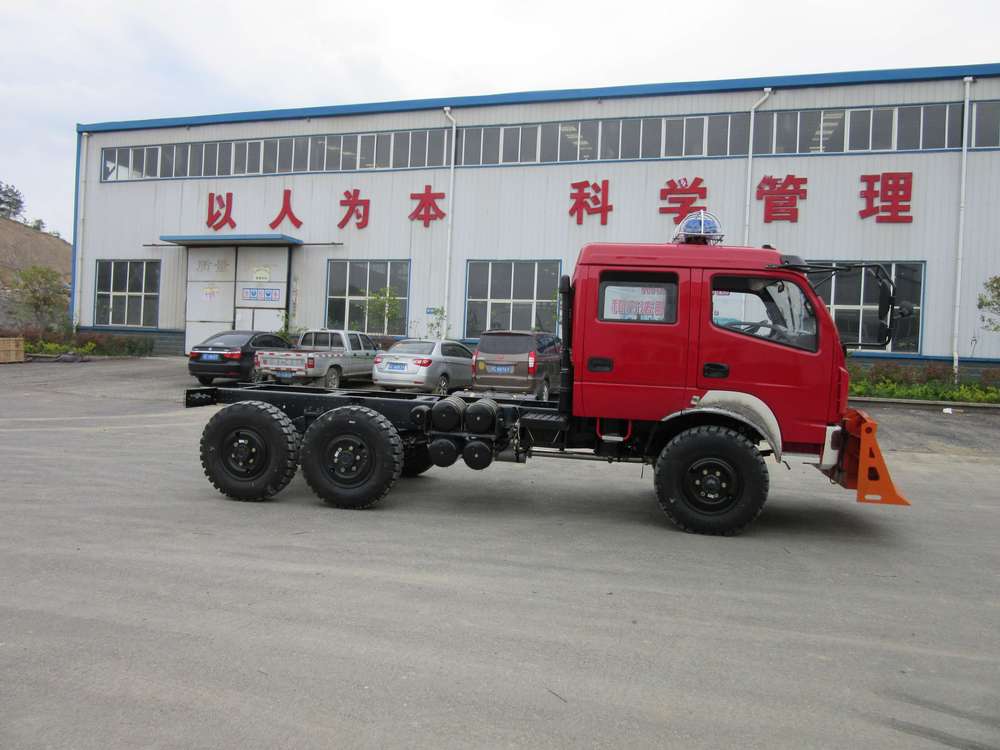

Frame

stampingriveted frame structure,

frame max outer width 860mm,

Stringer max cross-sectionalsize is 280 x 75 x 8mm.

Tire

6 off road military tires 305/80, with one spare tire

Electric System

24V circuit system, 12V,100ah, two sets,

Maintenance-free.

Other

Hydraulic clutch assistance,

hydraulic power steering, exhaust brake,

four circuit pressure brake.



Special Specification:

1. Front located 4 ton wrecker shovel, equipped with highpower lifter,

   can easily adjust the height of the wrecker shovel, convenient for

   switching between driving and operation state of wrecker.

2. double row cab,exclude driver, also can take 2+3 person.

3. the top of the cab is equipped with professional fire warning lights.

4. available to install a full power disconnected power takeoff between

   the gearbox and engine.

5. water tank volume is 4 cubic meters.

6. high-power water pumps which can spout 40-50 meters of water column.

7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.

8. can be equipped with fire extinguishers, fire hammer,

   fire shovel, fire hose, fire fighting racket and other professional

   fire fighting equipments
