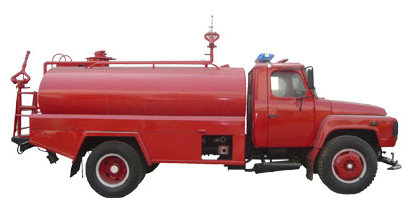

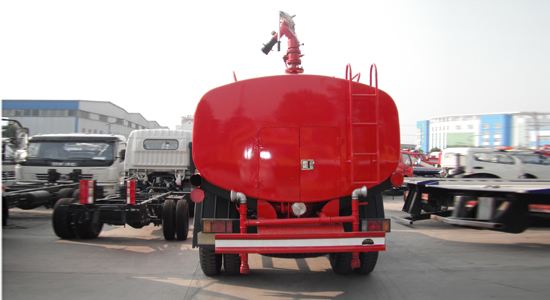

Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L - 6000L Euro 5
Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L -6000L EURO 3/4/ 5
Pump Water Tank 5000 L- 6000L
Fire pump: CB10/30 Low pressure: 30L/s@1.0MPa
Model: SP30 (fire water cannon)
Flow: 30L/s effective range: >55m/ 1.0mpa.
Pump Water Tank 5000 L- 6000L
Fire pump: CB10/30 Low pressure: 30L/s@1.0MPa
Model: SP30 (fire water cannon)
Flow: 30L/s effective range: >55m/ 1.0mpa.
Price: $ 44000
Discount Price: $ 41200
| Quantity: | |
|---|---|
|
| |
-
DRZ5110GPSEQ5
-
DFAC
-
8705309000
Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L -6000L EURO 3/4/ 5
Pump Water Tank 5000 L- 6000L
Fire pump: CB10/30 Low pressure: 30L/s@1.0MPa
Model: SP30 (fire water cannon)
Flow: 30L/s effective range: > 55m/ 1.0mpa.
DFAC 4x4 All Wheel Drive EQ2110HD5DJ Euro 5 Chassis
Technical specification s
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISB170 50 | 5 900 cc | 5.9 L | 360 cu in | 125 kW | 170 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | YC4E160-56 | 4 260 cc | 4.3 L | 260 cu in | 118 kW | 160 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 3 | YC4E140-56 | 4 260 cc | 4.3 L | 260 cu in | 103 kW | 140 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 4 | YC4E140-56A | 4 260 cc | 4.3 L | 260 cu in | 103 kW | 140 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 5 | ISD160 50 | 4 500 cc | 4.5 L | 275 cu in | 118 kW | 160 hp | Dongfeng Cummins Engine Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 85 km/h | 53 mph | ||
| ABS | have | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 9210 kg | 9.2 t | 20,305 lbs | |
| Gross vehicle weight rating | 9600 kg | 9.6 t | 21,200 lbs | |
| Axle load distribution | 2615 kg / 6985 kg 2.6 t / 7 t 5,765 lbs / 15,399 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 6935 mm | 22′10″ | ||
| Overall width | 2440 mm | 8′1″ | ||
| Overall height | 3540 mm | 11′8″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 4700 mm, 3950 mm | 15′6″, 13′0″ | ||
| Front track | 1810 mm | 6′0″ | ||
| Rear track | 1800 mm | 5′11″ | ||
| Front overhang | 1065 mm | 3′6″ | ||
| Rear overhang | 1920 mm | 6′4″ | ||
| Angle of approach | 34° | |||
| Angle of departure | 16° | |||
| Leaf springs | 9 / 11+8 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 9.00-20 12PR, 9.00R20 12PR | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 3+3 | |||
| Steering control | steering wheel | |||
Dongfeng Water Tanker All Wheel Drive 4x4 with Fire Pump Water Tank 5000 L -6000L EURO 3/4/ 5
Pump Water Tank 5000 L- 6000L
Fire pump: CB10/30 Low pressure: 30L/s@1.0MPa
Model: SP30 (fire water cannon)
Flow: 30L/s effective range: > 55m/ 1.0mpa.
DFAC 4x4 All Wheel Drive EQ2110HD5DJ Euro 5 Chassis
Technical specification s
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISB170 50 | 5 900 cc | 5.9 L | 360 cu in | 125 kW | 170 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | YC4E160-56 | 4 260 cc | 4.3 L | 260 cu in | 118 kW | 160 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 3 | YC4E140-56 | 4 260 cc | 4.3 L | 260 cu in | 103 kW | 140 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 4 | YC4E140-56A | 4 260 cc | 4.3 L | 260 cu in | 103 kW | 140 hp | Guangxi Yuchai Machinery Co., Ltd. |
| 5 | ISD160 50 | 4 500 cc | 4.5 L | 275 cu in | 118 kW | 160 hp | Dongfeng Cummins Engine Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 85 km/h | 53 mph | ||
| ABS | have | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 9210 kg | 9.2 t | 20,305 lbs | |
| Gross vehicle weight rating | 9600 kg | 9.6 t | 21,200 lbs | |
| Axle load distribution | 2615 kg / 6985 kg 2.6 t / 7 t 5,765 lbs / 15,399 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 6935 mm | 22′10″ | ||
| Overall width | 2440 mm | 8′1″ | ||
| Overall height | 3540 mm | 11′8″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 4700 mm, 3950 mm | 15′6″, 13′0″ | ||
| Front track | 1810 mm | 6′0″ | ||
| Rear track | 1800 mm | 5′11″ | ||
| Front overhang | 1065 mm | 3′6″ | ||
| Rear overhang | 1920 mm | 6′4″ | ||
| Angle of approach | 34° | |||
| Angle of departure | 16° | |||
| Leaf springs | 9 / 11+8 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 9.00-20 12PR, 9.00R20 12PR | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 3+3 | |||
| Steering control | steering wheel | |||
