Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale
call:+86-152 -7135-7675
Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale
call:+86-152 -7135-7675
Brand | Dongfeng | Drive type |
|
Total mass | 16000kg | Tank capacity | 8000Liter (Cleaning Tank3cbm ,Sewage Tank 5cbm) |
Rated load | 7600kg | Tank material | carbon steel Q235 |
Curb weight | 8400kg | Overall dimension | 8050×2500×3300mm |
Wheel base | 4500mm | F/R axle load | 5950/9950kg |
Quantity of leaf spring | 9/10+8 | Quantity of tires | 6 |
Tyre type | 10.00-20,10.00R20 | Approach/Departure angle | 23/17° |
F/R suspension | 1450/2350mm | Front track | 1960mm |
Rear track | 1860mm | Max.vehicle speed | 80km/h |
Passengers in cab | 3 | Chassis model | EQ1160GFJ |
Engine | Model | ISDe190 40 | |
Max.power | 140kw/190HP | ||
Max.torque | 700N.m | ||
Displacement | 5900ml | ||
Emission level | Euro 4 | ||
Description | In line ,4 cylinders,4 strokes,water cooled,inter cooled, turbo charged,electronic control,high pressure common rail | ||
Gearbox | Description | Manual,6 forward gears&1 reverse gear | |
Cabin | Description | D913 flat cab, tiltable luxurious interior trim, seat, and sleeper. with power steering, air condition can be equiped if customer requires. |
WhatApp:+86-152 -7135-7675

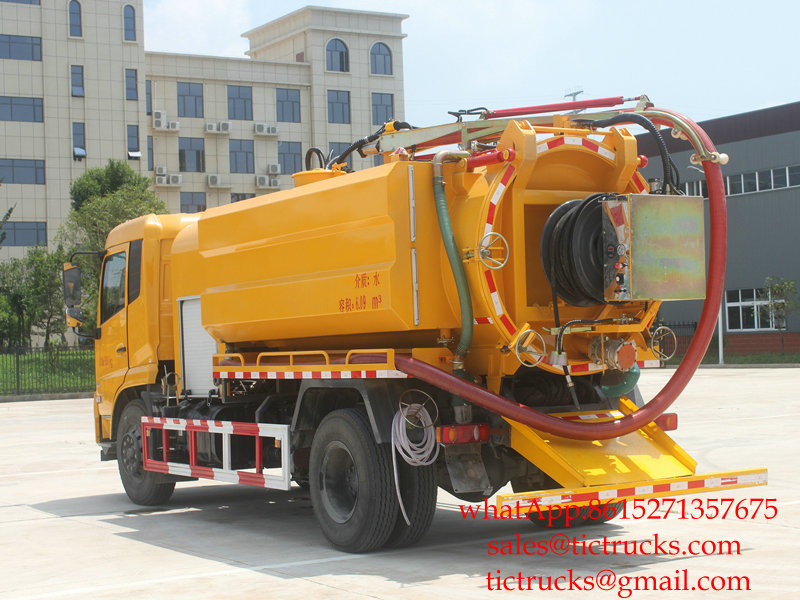

Combined High pressure Water cleaning and Jetting Sewage suction Truck 4x2 Vacuum road washing truck sale
The vacuum sewage pump truck is also called sewage suction truck, sewage suction tanker truck,vacuum sewage suction truck, sewage truck, sewage pump truck, etc. It is with sewage tank, sewage pump, sewage pipe, sewage check valve, multi-way control valve,etc. The vacuum pump get the power from power take off from the original truck engine. The tank can be lifted about 45 and the rear door of the tank can be opened by hydraulic to discharge the sewage. It is perfect sanitation truck for Municipal Environmental Sanitation Department.
Technical parameters of Euro4 190hp 10 tons dongfeng sewage truck
Items | Descriptions | Specifications and Types |
General | Truck Name | Sewage tanker truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 14490 | |
Curb Weight (kg) | 6695 | |
Overall Dimensions L*W*H(mm) | 7500×2470×3200 | |
Engine | Engine Model | ISB190 40 |
Fuel Type | Diesel | |
Power | 140kw/190HP | |
Emission Standard | Euro 4/5 | |
Displacement(ml) | 5900 | |
Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Front/Rear Axle Load(KG) | 5450/9040 | |
Tire No. | 6 | |
Tire Specification | 10.00-20 Steel tire | |
Wheelbase (mm) | 4700 | |
Axle No. | 2 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Steering Wheel | left hand drive | |
Brake | Air brake | |
Radiator | Suitable for tropical climate | |
Sucking System | Tank Volume(L) | 8000 |
Tank shape | Cylindrical | |
Tank Material | 5mm thick carbon steel | |
Vacuum Pump | Double Weilong pump | |
Suction Depth(m) | More than 6 meter | |
Tank Tipping angle(°) | More than 45 | |
Rear door | Open and closed by hydraulic cylinders |
Note: Above parameters of 10m3 sewage suction truck is just for reference. If you are interested in any of our vacuum sewage suction truck and more information needed, please don't hesitate to let me
Euro2, Euro 3, Euro 4, Euro5 and Euro 6 are available
4x2, 6x2, 6x4 and 8x4 aravailable.
Depends on customer request. All chassis types are available
Specially for suck, transport, and transfer sludge and sewage in sewer lines, rainwater wells, and sedimentary wells. It can help to reduce the labor intensity of work in sewer as well as to keep poisonous gases away from workers.
This sewer vacuum truck mainly consists of chassis, tank, vacuum system, high pressure system, driving system, water recycling system, hydraulic system, and electrical system.
Customize | Major sewerage jetting tanker |
Tank Volume | 10.000 lt. – 20.000 lt. |
Dirty water Tank Material | Q235-A |
Clean Water Tank material | SS304 |
Dirty water suction valve | 4 ″ - 6″ |
Dirty water discharge valve | 4 ″ - 6″ |
Bom (Tap Suction System) Hose system | 4 ″ - 6″( optional ) |
Tail Gate | Full hydraulic |
Vacuum pump capacity | 1.500 m3/h - 9.000 m3/h |
Vacuum pump stimulation | PTO/ Middle transmission box/ auxiliary engine |
Water pump | 100 bar – 250 bar |
Pump Flowrate | 150 lt/dk. – 425 lt/dk. |
Pressure regulator | Pneumatic |
Hose Reel | Hydraulic -80 mt. 120 mt. ( hose length) |
Jetting Reel | 20 mt. – 60 mt. |
Logar tap lifting crane | 250 & 400 kg. capacity |
Cell: 0086 152 7 135 7635 ; 0086 152 7 135 7675 WhatsApp: 8615271357675 tictrucks#gmail.com | |
