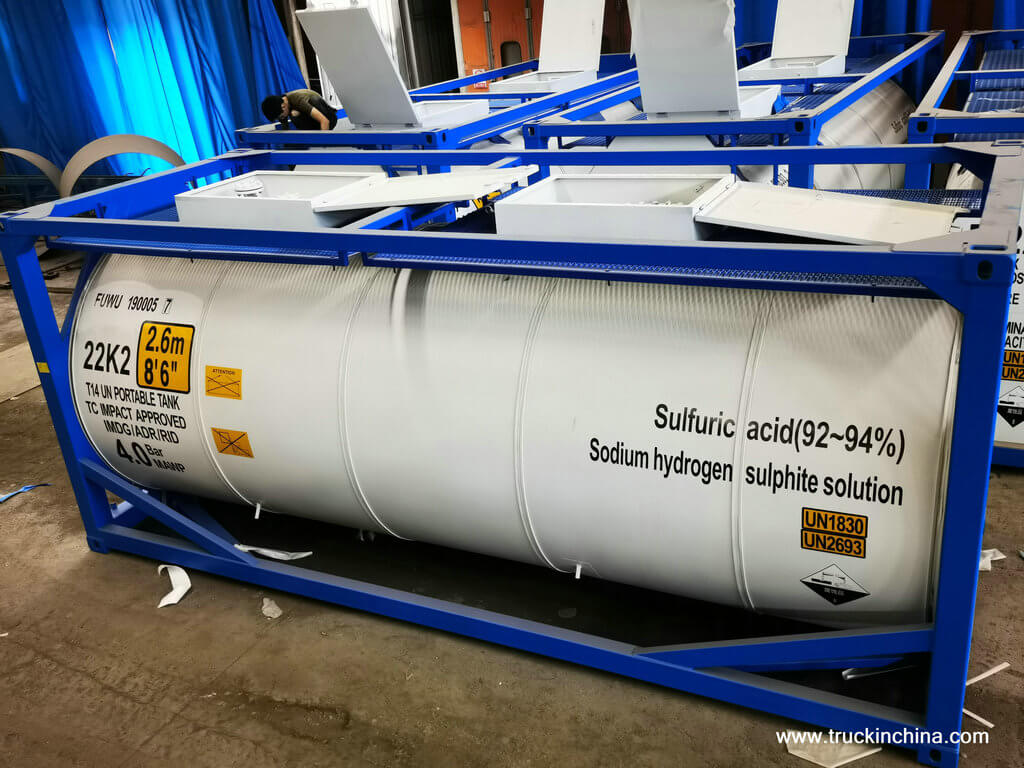

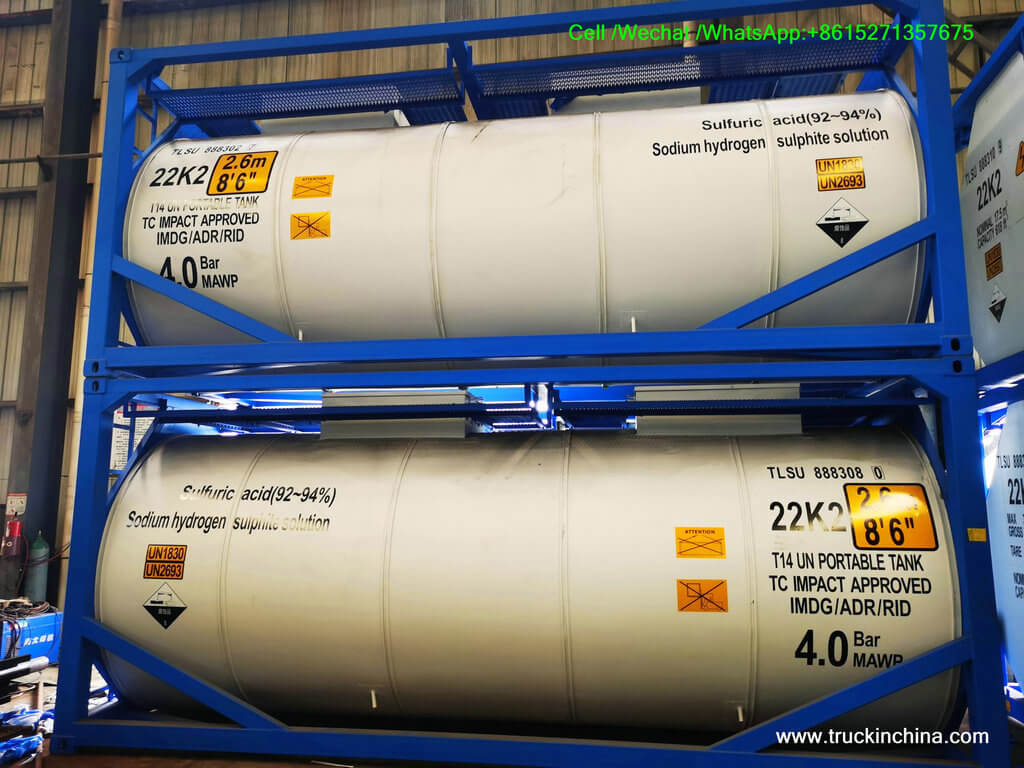

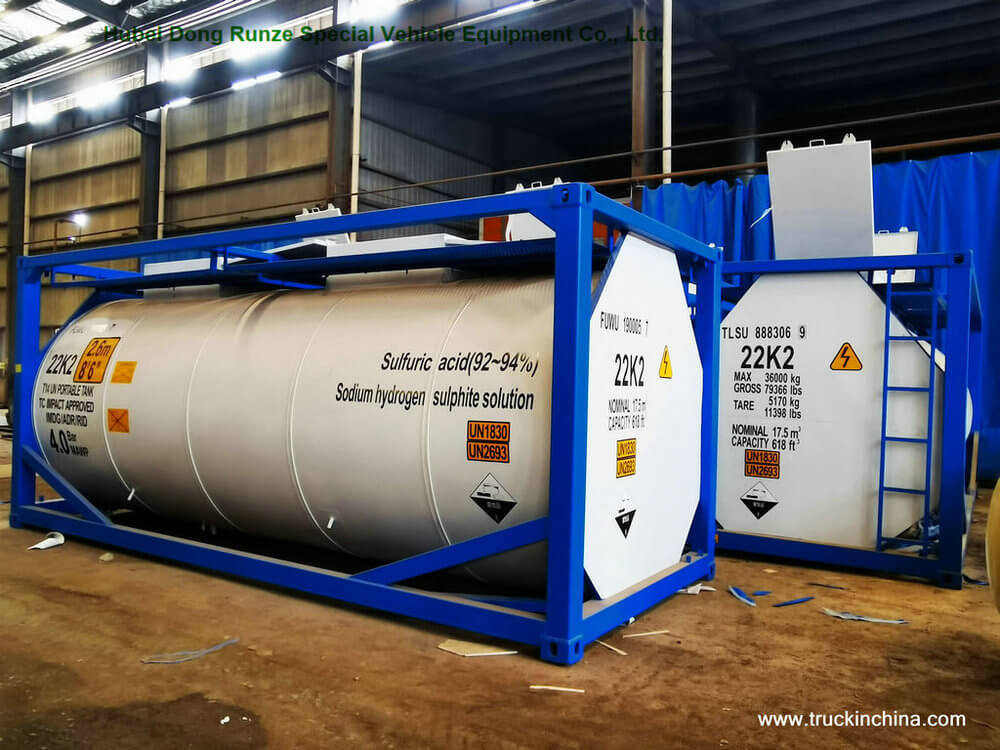

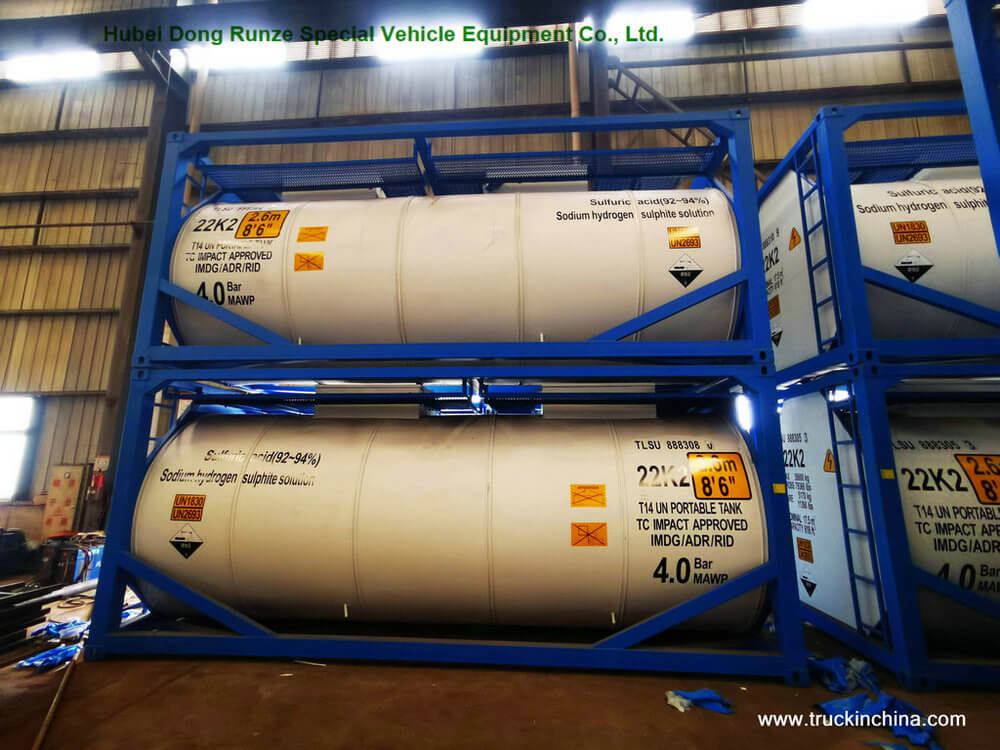

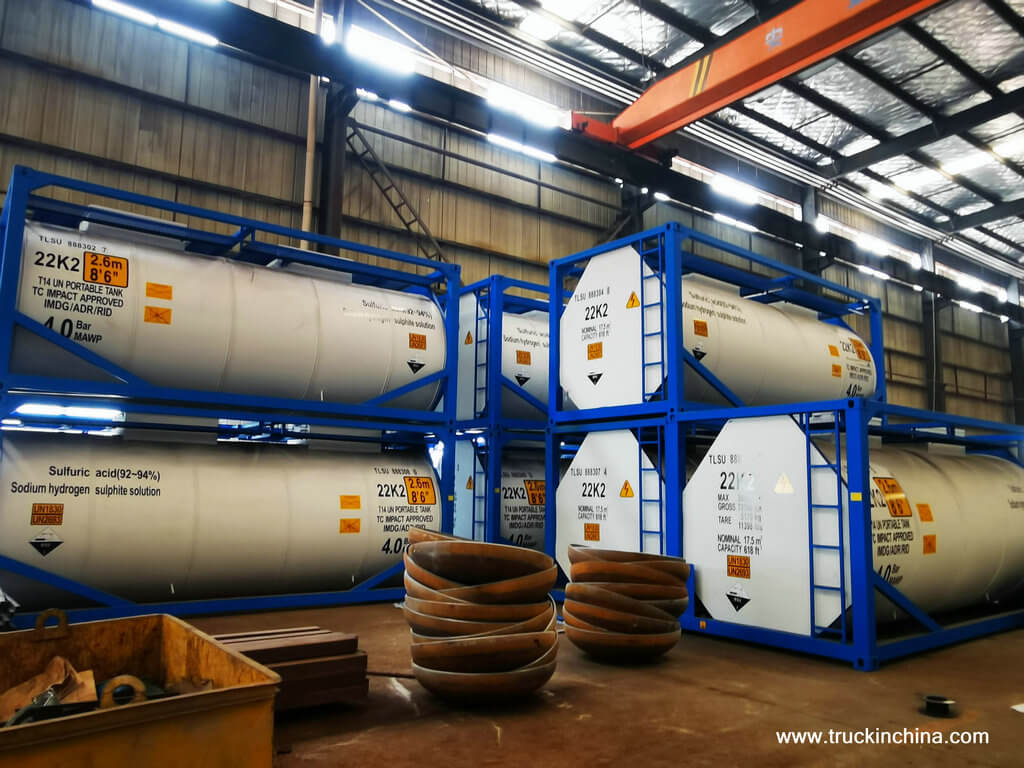

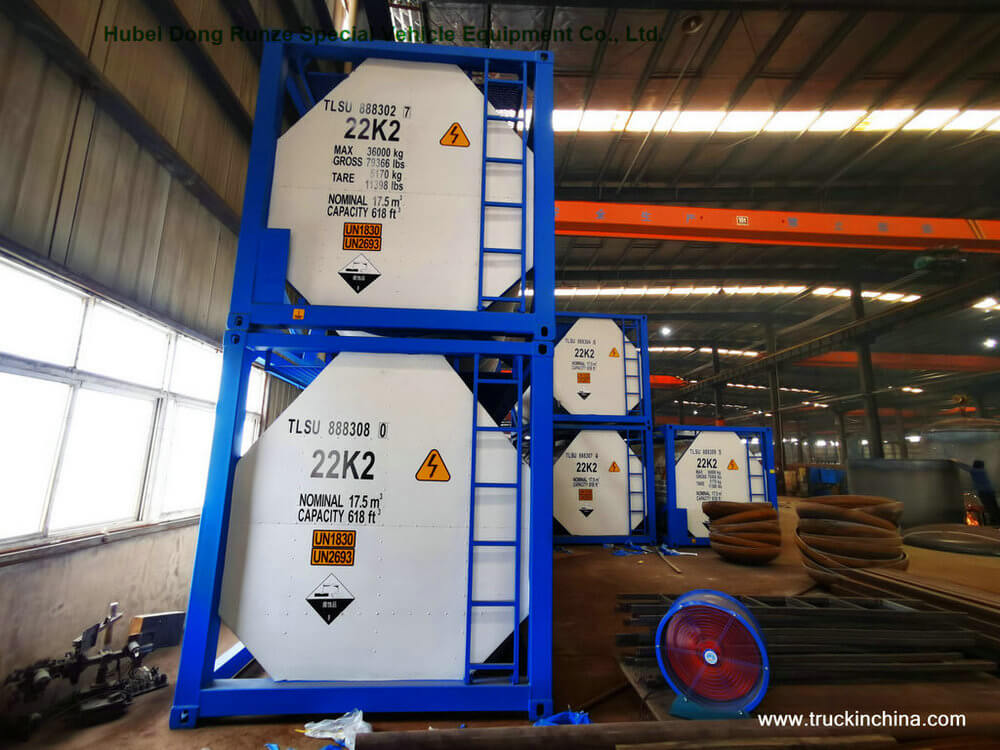

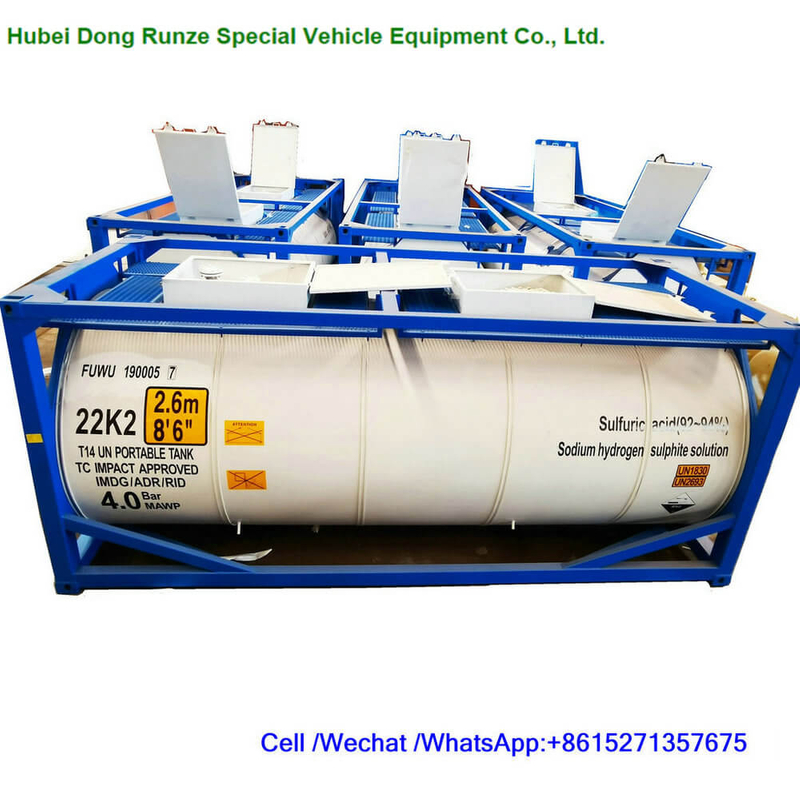

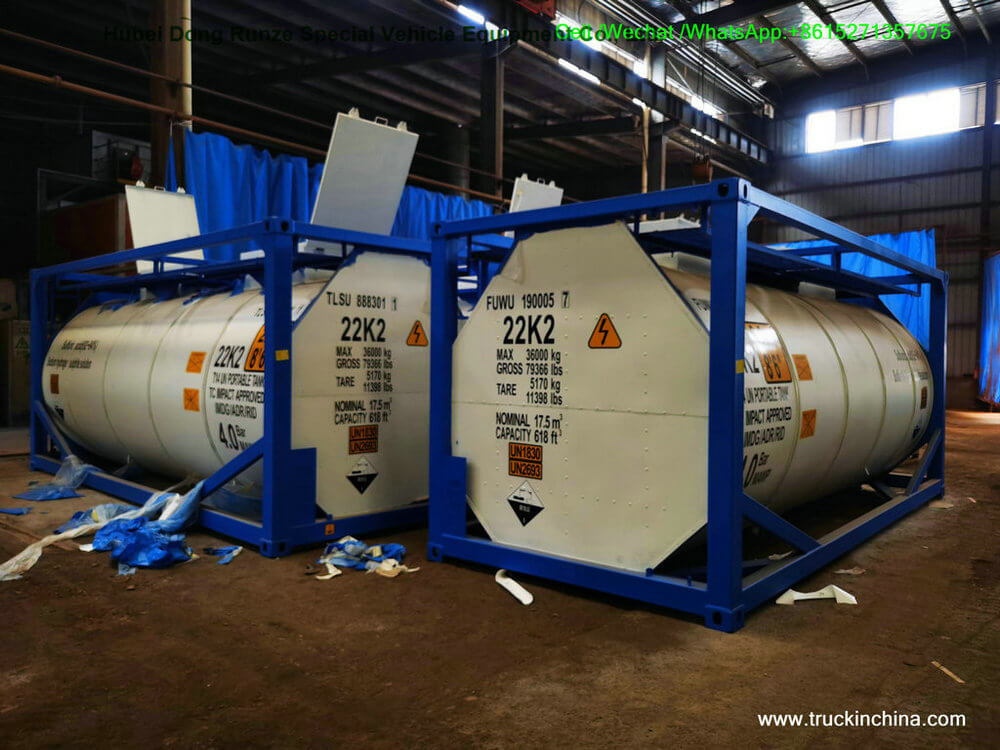

T14 Sulfuric Acid Tank Container Steel Lined LDPE
20 Feet T14 Chemical ISO Tank steel lined LLDPE
for UN1830 Sulfuric Acid 92-94%
and UN2693 Sodium hydrogen sulphite solution tank
https://youtu.be/KT0Juh691b0
| Quantity: | |
|---|---|
-
T14
-
DongTE
-
8609001200
-
Shanghai, China
-
3000
-
T/T
T14 Sulfuric Acid Tank Container Steel Lined LDPE
ISO Tank Container 20 FT For Hazardous Liquids
T14 Sulfuric Acid Tank Container
China T14 Sulfuric Acid Tank Container
T14 ISO Tank
| racteristics | Specification |
| model | T14 |
| appointment | UN1830 Sulfuric acid with 92~94% acid |
| volume | 17.5 |
| external dimensions | 6058*2438*2438 |
| maximum loading capacity | 36000 |
| operating pressure | Normal |
| design pressure | 0.4 |
| pressure at test | 0.6 |
| design temperature | -40~ +50 ºC |
| tank material | Carbon steel SA-516M |
| the shell materat cases | 6 |
| eead material thickness | 8 |

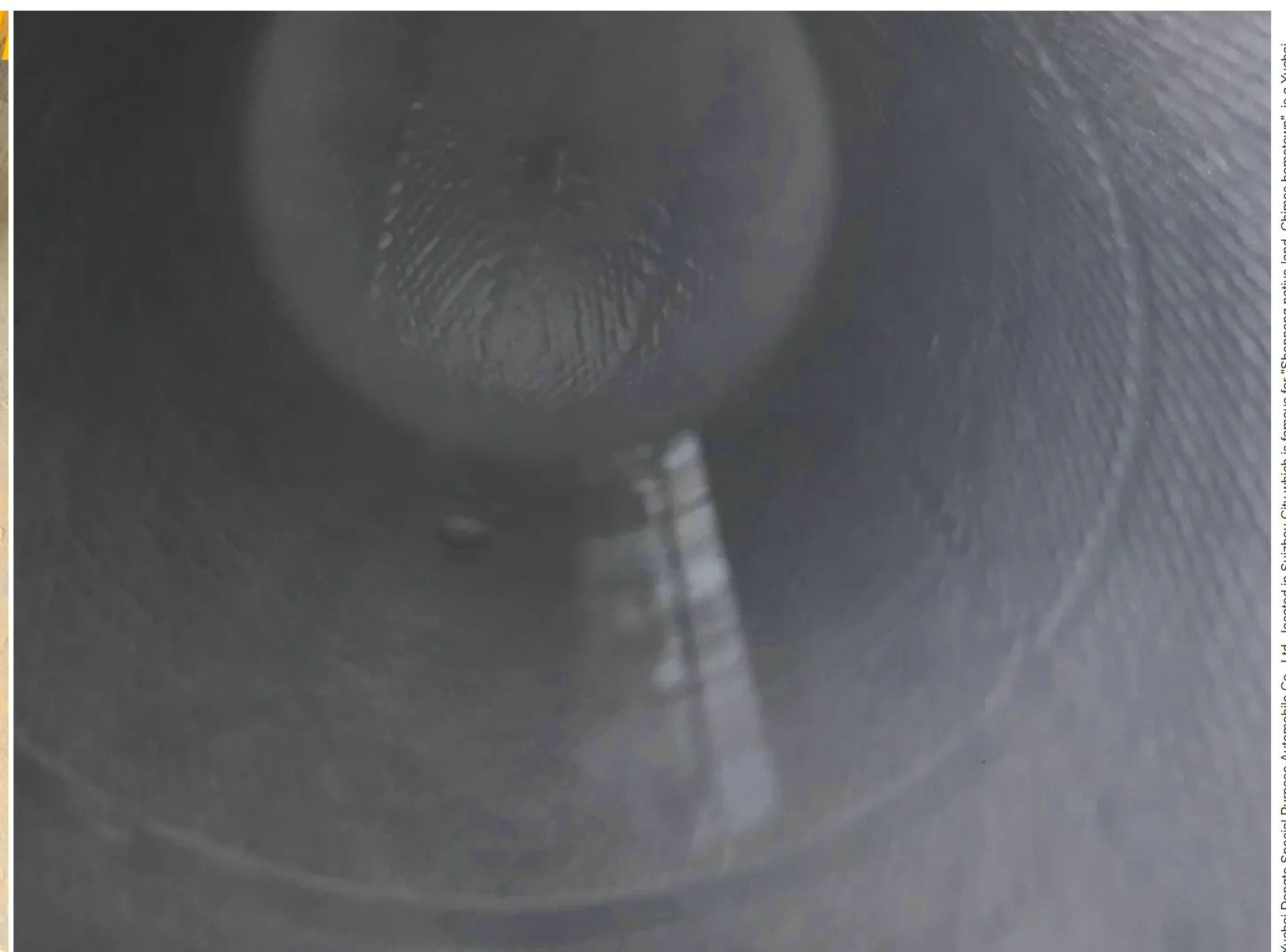

| internal protective insert | LLDPE7042 16mm |
| frame material | Q345D |
| Baffle | None |
| heat-insulating material | 50mm thick mineral wool covered 1.0 carbon steel plate clading. |
| heating | None |

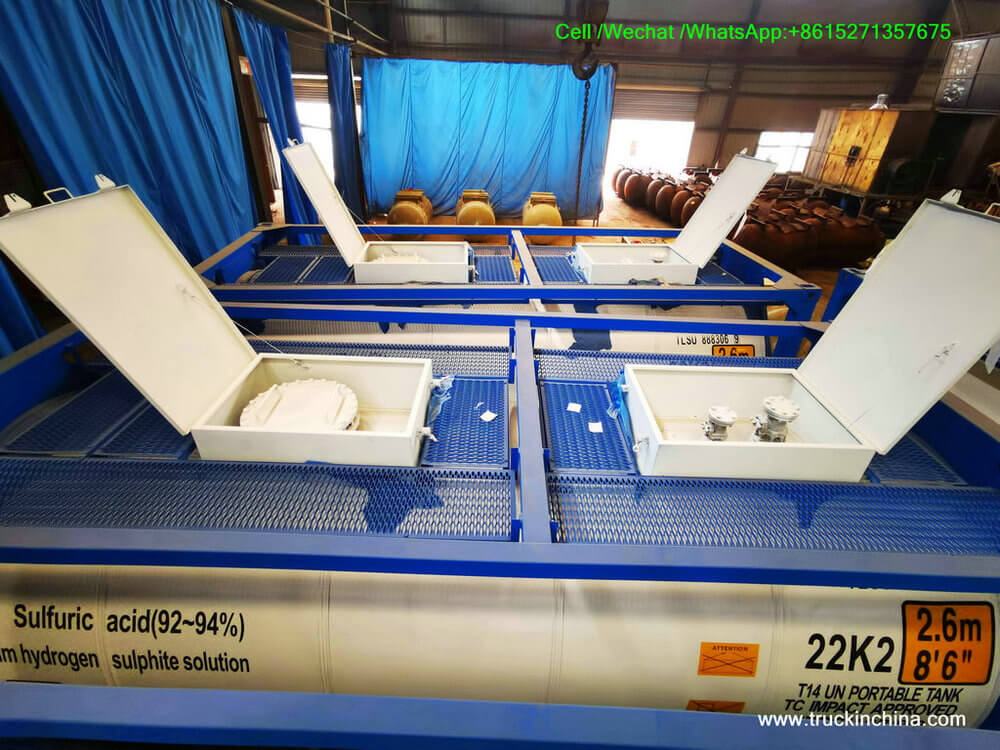

| walkway | one |
| loading type | top outlet and top loading .Загрузка и выгрузка через верхний люк. |

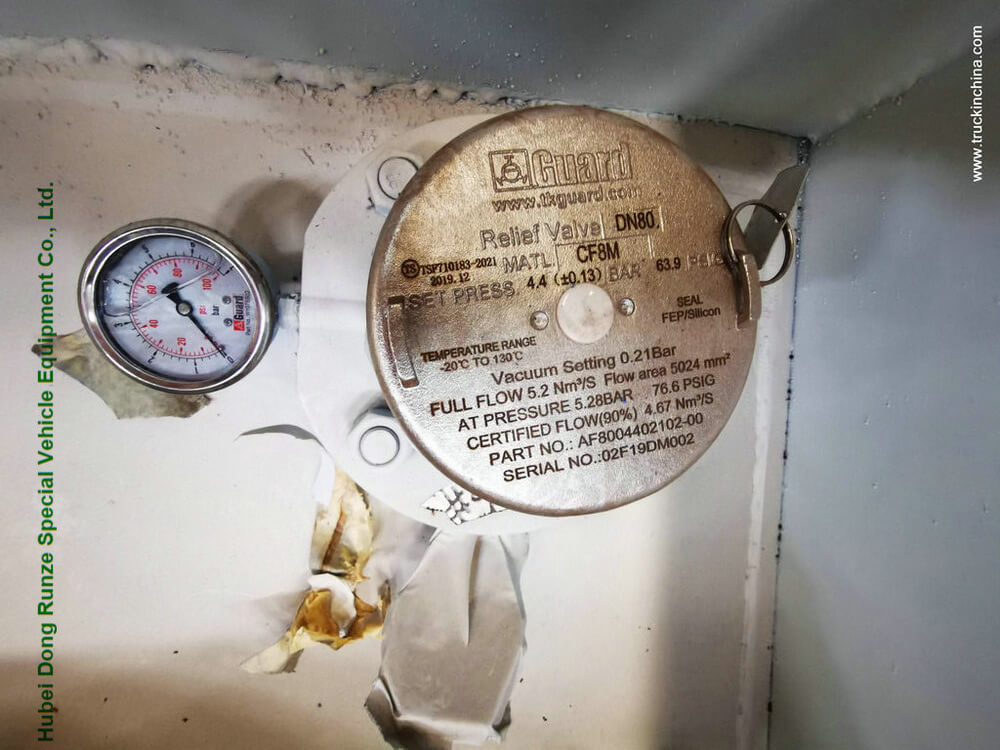

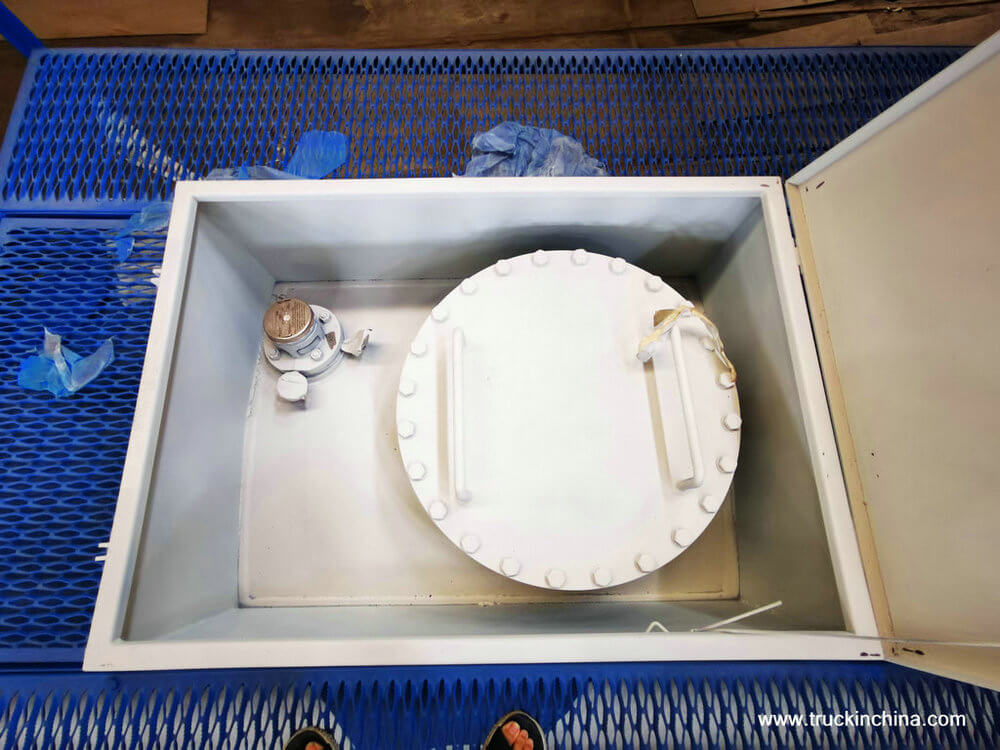

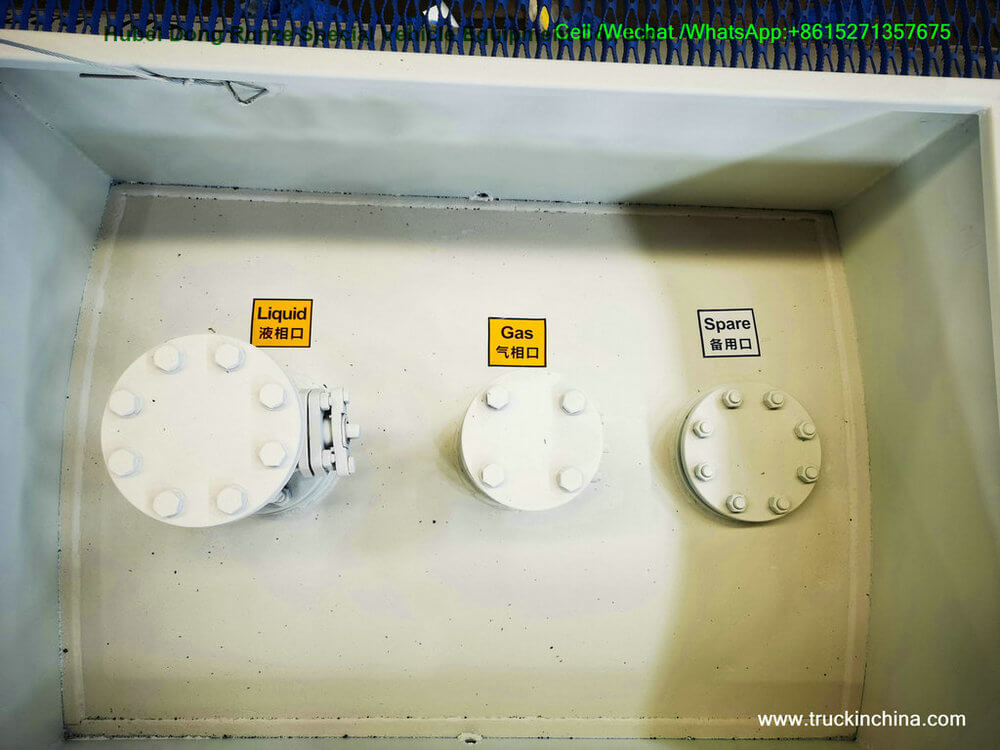

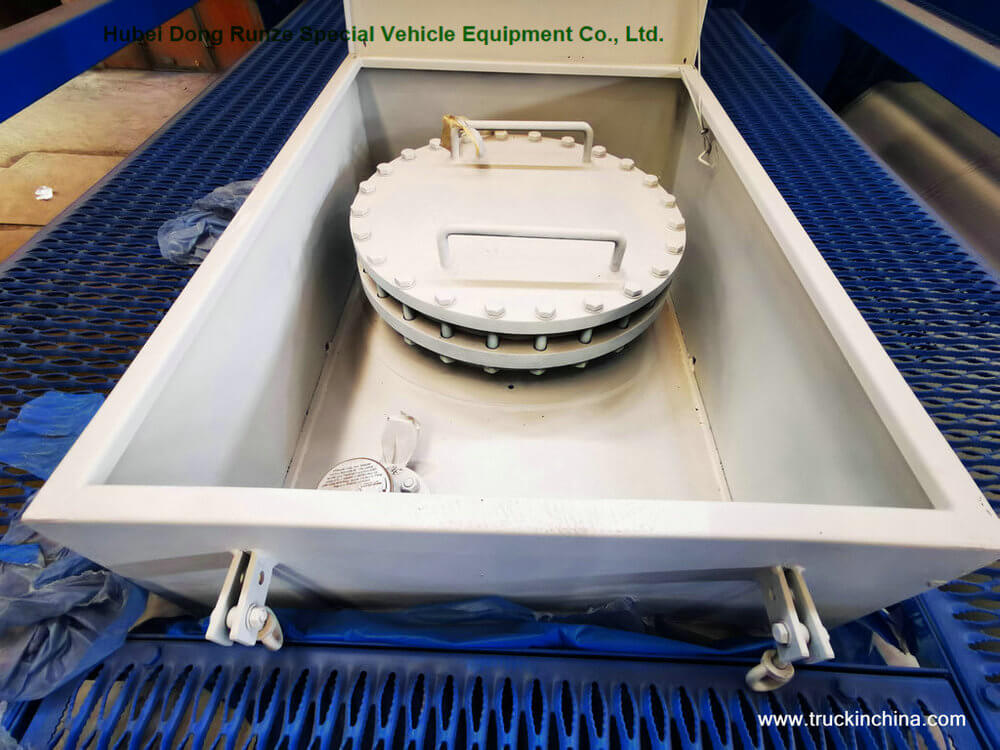

| Fittings | 1 * DN500 lined with PE bolted manhole,1* relief valve with adaptor and bursting disc ,1* DN25 PTFE lined ball valve for air inlet ,1*DN50 PTFE lined ball valve for liquid discharge, 1*DN50 spare provision with blind flange. 1 * DN500, |
| Others | |
| Painting | Acrylic acid and alkali resistant paint, total paint color 120um, color can be specified |
| Design code | ASME VIII Div.1 where applicable and IMDG UN T8 CSC ISO RID/ADR TIR /Customs UIC |
| Classification Society | BV |
The UN numbers range from UN1801 to UN1900
| UN Number | Class | Proper Shipping Name |
| UN 1801 | 8 | Octyltrichlorosilane |
| UN 1802 | 8 | Perchloric acid with not more than 50 percent acid by mass |
| UN 1803 | 8 | Phenolsulfonic acid, liquid |
| UN 1804 | 8 | Phenyltrichlorosilane |
| UN 1805 | 8 | Phosphoric acid |
| UN 1805 | 8 | Phosphorsäure, fest |
| UN 1806 | 8 | Phosphorus pentachloride |
| UN 1807 | 8 | Phosphorus pentoxide |
| UN 1808 | 8 | Phosphorus tribromide |
| UN 1809 | 6.1 | Phosphorus trichloride |
| UN 1810 | 8 | Phosphorus oxychloride |
| UN 1811 | 8 | Potassium hydrogendifluoride, solid or Potassium hydrogendifluoride, solution |
| UN 1812 | 8 | Potassium fluoride |
| UN 1813 | 8 | Potassium hydroxide, solid |
| UN 1814 | 8 | Potassium hydroxide, solution |
| UN 1815 | 3 | Propionyl chloride |
| UN 1816 | 8 | Propyltrichlorosilane |
| UN 1817 | 8 | Pyrosulfuryl chloride |
| UN 1818 | 8 | Silicon tetrachloride |
| UN 1819 | 8 | Sodium aluminate, solution |
| UN 1823 | 8 | Sodium hydroxide, solid |
| UN 1824 | 8 | Sodium hydroxide solution |
| UN 1825 | 8 | Sodium monoxide |
| UN 1826 | 8 | Nitrating acid mixtures, spent with more than 50 percent nitric acid or Nitrating acid mixtures, spent with not more than 50 percent nitric acid |
| UN 1827 | 8 | Stannic chloride, anhydrous |
| UN 1828 | 8 | Sulfur chlorides |
| UN 1829 | 8 | Sulfur trioxide, inhibited or Sulfur trioxide, stabilized |
| UN 1830 | 8 | Sulfuric acid with more than 51 percent acid |
| UN 1831 | 8 | Sulfuric acid, fuming with 30 percent or more free sulfur trioxide or Sulfuric acid, fuming with less than 30 percent free sulfur trioxide |
| UN 1832 | 8 | Sulfuric acid, spent |
| UN 1833 | 8 | Sulfurous acid |
| UN 1834 | 8 | Sulfuryl chloride |
| UN 1835 | 8 | Tetramethylammonium hydroxide |
| UN 1836 | 8 | Thionyl chloride |
| UN 1837 | 8 | Thiophosphoryl chloride |
| UN 1838 | 8 | Titanium tetrachloride |
| UN 1839 | 8 | Trichloroacetic acid |
| UN 1840 | 8 | Zinc chloride, solution |
| UN 1841 | 9 | Acetaldehyde ammonia |
| UN 1843 | 6.1 | Ammonium dintro-o-cresolate |
| UN 1845 | 9 | Carbon dioxide, solid, also called Dry ice |
| UN 1846 | 8 | Carbon tetrachloride |
| UN 1847 | 8 | Potassium sulfide, hydrated with not less than 30 percent water of crystallization |
| UN 1848 | 8 | Propionic acid |
| UN 1849 | 6.1 | Sodium sulfide, hydrated with not less than 30 percent water |
| UN 1851 | 4.2 | Medicine, liquid, toxic, n.o.s. |
| UN 1854 | 4.2 | Barium alloys, pyrophoric |
| UN 1855 | 2 | Calcium, pyrophoric or Calcium alloys, pyrophoric |
| UN 1858 | 2 | Hexafluoropropylene, compressed or Refrigerant gas R 1216 |
| UN 1859 | 2 | Silicon tetrafluoride, compressed |
| UN 1860 | 3 | Vinyl fluoride, inhibited |
| UN 1862 | 3 | Ethyl crotonate |
| UN 1863 | 3 | Fuel, aviation, turbine engine |
| UN 1865 | 3 | n-Propyl nitrate |
| UN 1866 | 3 | Resin solution, flammable |
| UN 1868 | 4.1 | Decaborane |
| UN 1869 | 4.3 | Magnesium or Magnesium alloys with more than 50 percent magnesium in pellets, turnings, or ribbons |
| UN 1870 | 4.1 | Potassium borohydride |
| UN 1871 | 5.1 | Titanium hydride |
| UN 1872 | 5.1 | Lead dioxide |
| UN 1873 | 6.1 | Perchloric acid with more than 50 percent but not more than 72 percent acid, by mass |
| UN 1884 | 6.1 | Barium oxide |
| UN 1885 | 6.1 | Benzidine |
| UN 1886 | 6.1 | Benzylidene chloride |
| UN 1887 | 6.1 | Bromochloromethane |
| UN 1888 | 6.1 | Chloroform |
| UN 1889 | 6.1 | Cyanogen bromide |
| UN 1891 | 6.1 | Ethyl bromide |
| UN 1892 | 6.1 | Ethyldichloroarsine |
| UN 1894 | 6.1 | Phenylmercuric hydroxide |
| UN 1895 | 6.1 | Phenylmercuric nitrate |
| UN 1897 | 6.1 | Tetrachloroethylene |
| UN 1898 | 8 | Acetyl iodide |
Steel Lined LDPE aslo for HCL(max 35%)NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
Compounds, cleaning liquid, UN1760,
Corrosive liquid, acidic, inorganic, n.o.s., UN3264,
Corrosive liquid, acidic, organic, n.o.s., UN3265,
Corrosive liquid, basic, inorganic, n.o.s., UN3266,
Hypochlorite solutions, UN1791,
Hydrochloric acid solution, UN1789,
Sulfuric acid, UN2796,
BATTERY FLUID, ALKALI UN 2797,
