Sprinkler Water Pump
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
OEM
-
DRZ
-
8413810090 8414100090
Sprinkler Accessories
Sprinkler water pump:
It is widely used in Dongfeng,Beiben , FAW , SHACMAN , JAC ,JMC ,ISUZU ,HINO,CAMC,KAMA , FOTON sprinklers

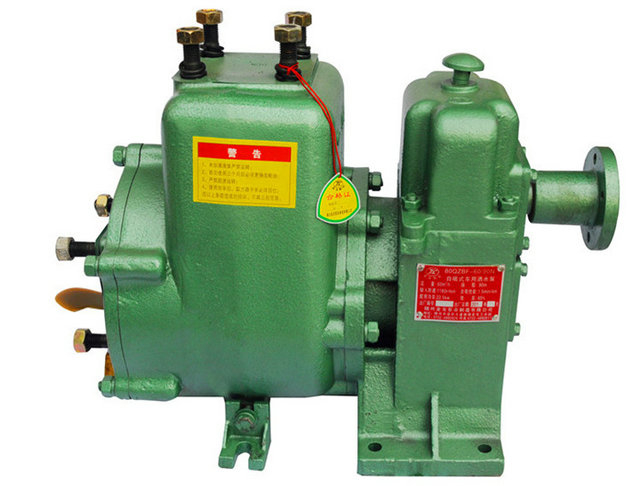

Sprinkler Water Pump for Sprinkler water truck
King Long Water pump series:
Product name: 65 QZBF - 40/45 n water sprayer pump product name: 65 QZBF - 50/50 water sprayer pump product name: n 80 QZBF - 60/90 water sprayer pump product name: n 65 QZB - 50/110 water sprayer pump product name: n, 80 n QZBF - 70/110 pump product name: 65 n pump QZB - 50/120
Pump type | rate of flow | lift （m） | The input shaft speed （r/min） | Shaft power （kw） | self-priming highly (m) | self-priming time (min/4m) | Input shaft rotation direction | |
m3 | (1/min) | |||||||
80QZ-70/110N | 70 | 900 | 110 | 1480 | 22.5 | 4.5 | 1.5 | Turn left or Turn right |
Pump type | rate of flow | lift （m） | The input shaft speed （r/min） | Shaft power （kw） | self-priming highly (m) | self-priming time (min/4m) | Input shaft rotation direction | |
m3 | (1/min) | |||||||
65QZ-50/120N | 50 | 833 | 120 | 1480 | 24 | 5.5 | 1.5 | Turn left |
Pump type | rate of flow | lift （m） | The input shaft speed （r/min） | Shaft power （kw） | self-priming highly (m) | self-priming time (min/4m) | Input shaft rotation direction | |
m3 | (1/min) | |||||||
80QZ-60/90N | 60 | 667 | 90 | 1480 | 22.5 | 4.5 | 1.5 | Turn left or Turn right |
Pump type | rate of flow | lift （m） | The input shaft speed （r/min） | Shaft power （kw） | self-priming highly (m) | self-priming time (min/4m) | Input shaft rotation direction | |
m3 | (1/min) | |||||||
65QZB-50/110N | 50 | 833 | 110 | 1480 | 24 | 6.5 | 1.5 | Turn left |
Model: 65 qz40/45
Flow m 3 /h: 40
Head m: 45
Input shaft speed r/min: 1450
Shaft power kw: 9.25
The required cavitation allowance m: 4.5
Self-priming time min/4m: 1.5
Efficiency % : 72
Pump model description:
80 represents the pump inlet diameter of 80mm;
QZ represents self-priming water pump for vehicle;
60 represents pump flow 60m cubed per h;
90 represents pump head of 90m;
N/S stands for left (right) rotation facing the input axis
Model no. : 80qz60/90n (S);
Flow m 3 /h: 60
Head m: 90
Input shaft speed r/min: 1180
Shaft power kw: 22.5
The required cavitation allowance m: 4.5
Self-priming time min/4m: 1.5
Efficiency % : 70
