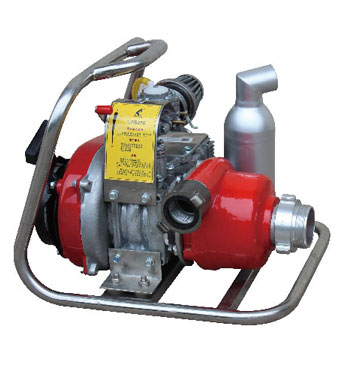

Portable Forest Fire Pump Set SB250 ,VC82ASE ( 65PH) ,WIck-250

Portable Forest Fire Pump Set SB250 ,
VC82ASE ( 65PH), Portable Fire Pumps
WIck-250 Portable Fire Pumps
Price: $ 6000  -  12000
Discount Price: $ 5000  -  11000
FOB:
Availability:
Quantity:

  • SB250 ,VC82ASE ,WIck-250

  • Dong Jin

  • 8413709990

 Portable Forest Fire Pump Set SB250 ,

VC82ASE ( 65PH), Portable Fire Pumps

WIck-250 Portable Fire Pumps

 Portable Forest Fire Pump Set SB250

Engine Brand

 Portable Fire Pump SB250

 Engine way

Air-cooled, two stroke, single cylinder, mixed oil

 Fuel

Diesel

 Rated/  power

8HP



Starting Model

Electric

Hand Startl

Suction Model

Rotary vane vacuum pump

Suction Height

150M

Flow

8L/s

Out Pressure

1.5Mpa

Lift

3m

Inlet Diameter

50mm

Outlet Diameter

38mm

Net Weight

13KG

Dimension

380×350×320mm

WIck-250 Portable Fire Pumps


  Wick-250 pump with its 230 psi rating may be the appropriate choice for fire protection.  it can be easily carried by one person for quick deployment in an appropriate location. The high performance 2 stroke engine operating from the auxiliary fuel tank can pump indefinitely without interruption.



Engine Brand

  Portable Diesel  Fire Pump BJ9-C



Engine way

two-stroke single cylinder air-cooled

 Fuel

Diesel

 Rated/  power

6Kw(8HP)



Starting Model

Electric

Hand Startl

Suction Model

Rotary vane vacuum pump

Suction Height

 150m

Flow

20T/h

Out Pressure

1.5.Mpa

Lift

3M

Inlet Diameter

50mm

Outlet Diameter

40mm

Net Weight

4KG

Dimension

1390*330*300mm

VC82ASE TOHATSU PORTABLE FIRE PUMPS



Model:

VC82ASE


Engine:

Type:

Tohatsu 2-stroke, 2-cylinder, water cooled gasoline engine


Bore & Stroke:

78mm x 78mm (3.07 x 3.07 inch)


Piston displacement:

746cc (45.5 cu in)


Authorized output:

38.2 kW / 52PS


Fuel tank:

18 liters


Fuel consumption:

20liters/h


Ignition:

Flywheel magneto (C.D.Ignition)


Starting system:

Starter motor and automatic recoil system


Lubrication:

Auto mixing (Separate oil tank)


Choke system:

Auto choke


Spark plug:

NGK BPR7HS-10


Light bulb:

12V-35W


Battery:

12V-16Ah/5h


Pump:

Type:

Single suction, single stage, high pressure turbine pump


Discharge Thread and Dia. :

JIS fire thread (B-9912), 2-1/2″ (65mm) male


BSP 65mm (G 2-1/2″) male


Suction Thread and Dia. :

JIS fire thread (B-9912), 3-1/2″ (90mm) male


BSP 100mm (G 4″) male


Priming:

Rotary-vane vacuum pump (oilless type)


Pump performance:
(Suction height: 3m)

1,920 liter/min. at 0.6 MPa


1,660 liter/min. at 0.8 MPa


1,410 liter/min. at 1.0 MPa


Dimensions:

Length: 742mm x Width: 682mm x Height:760mm


Mass:

Dry:

94kg

Wet:

110kg

Max. suction height:

Approx. 9m (29.5 feet)




Dong Jin Portable Petrol Fire Pump 13HP - 25HP Honda  / LIFAN Dong jin Portable Petrol Fire Pump
