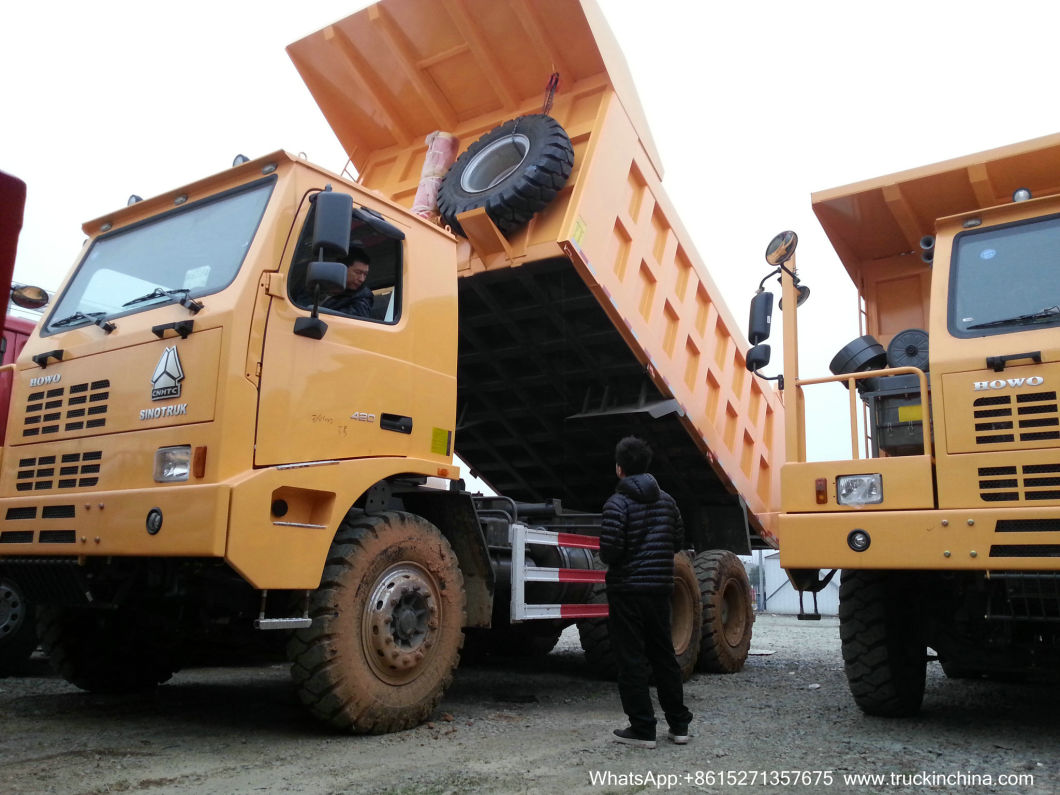

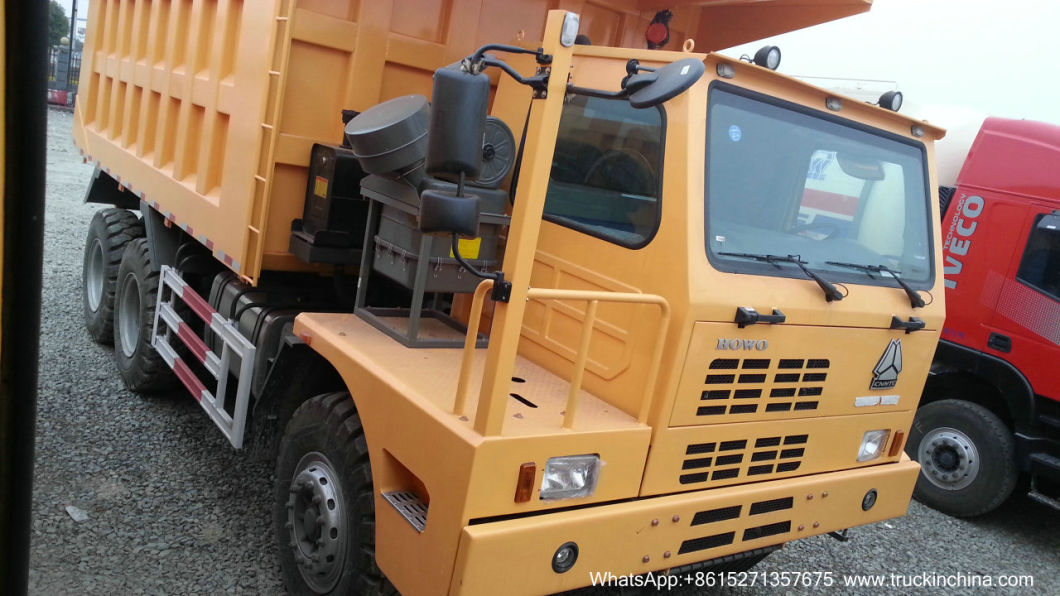

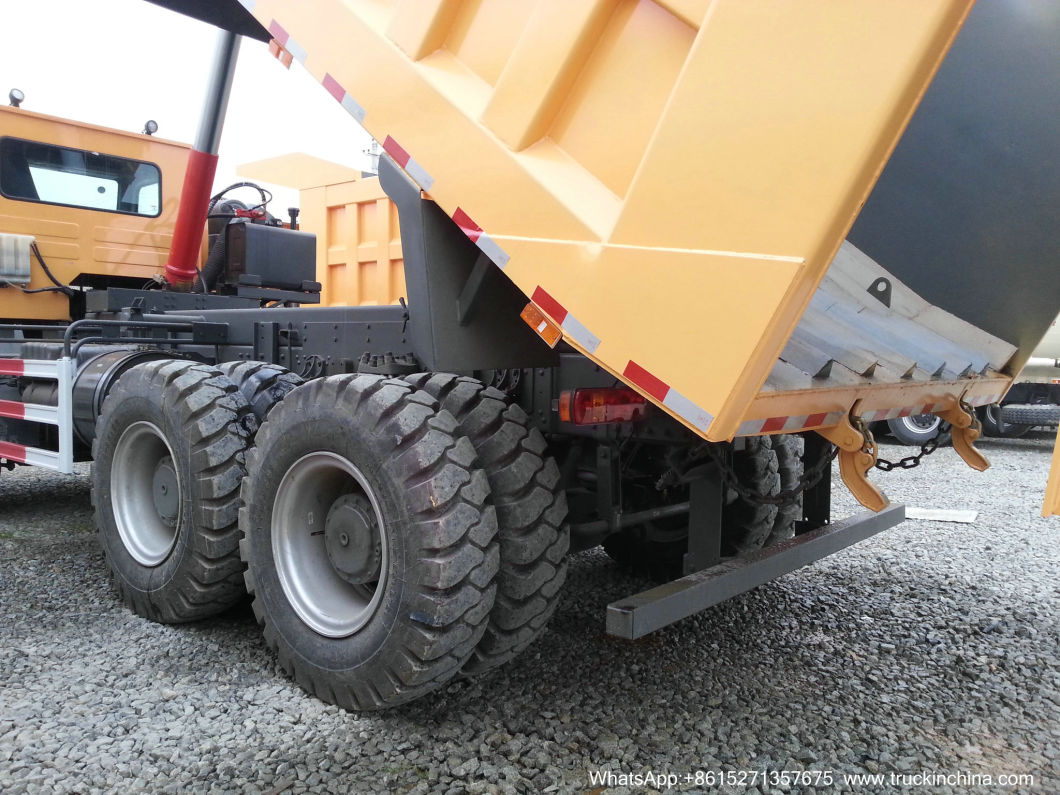

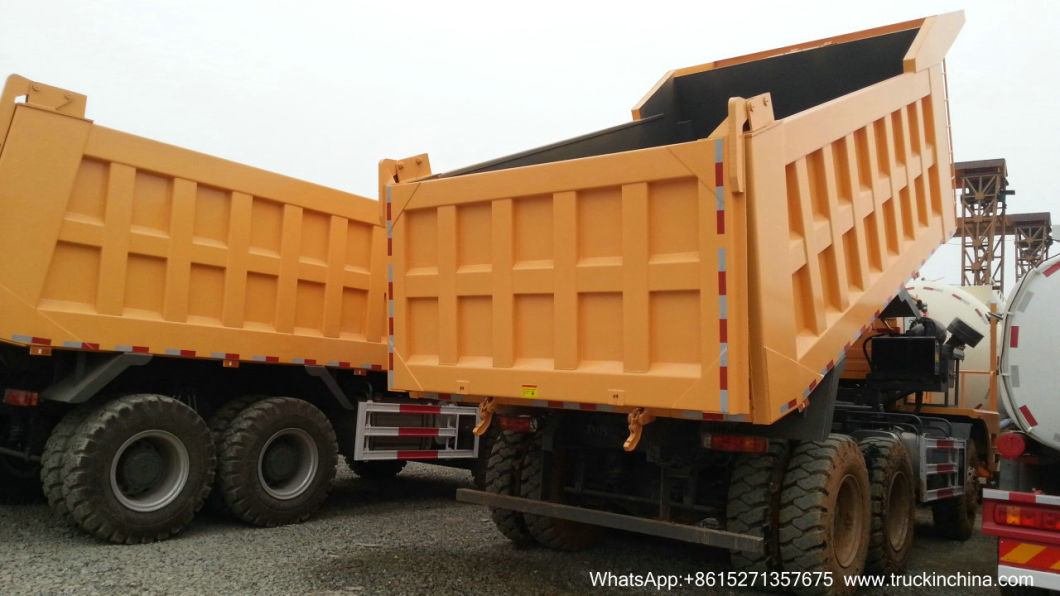

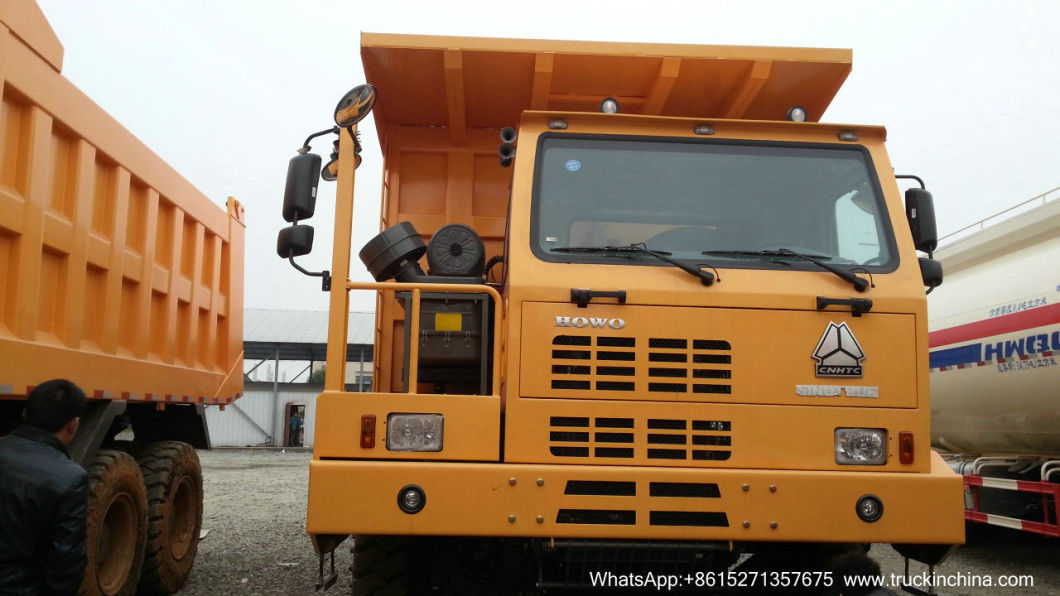

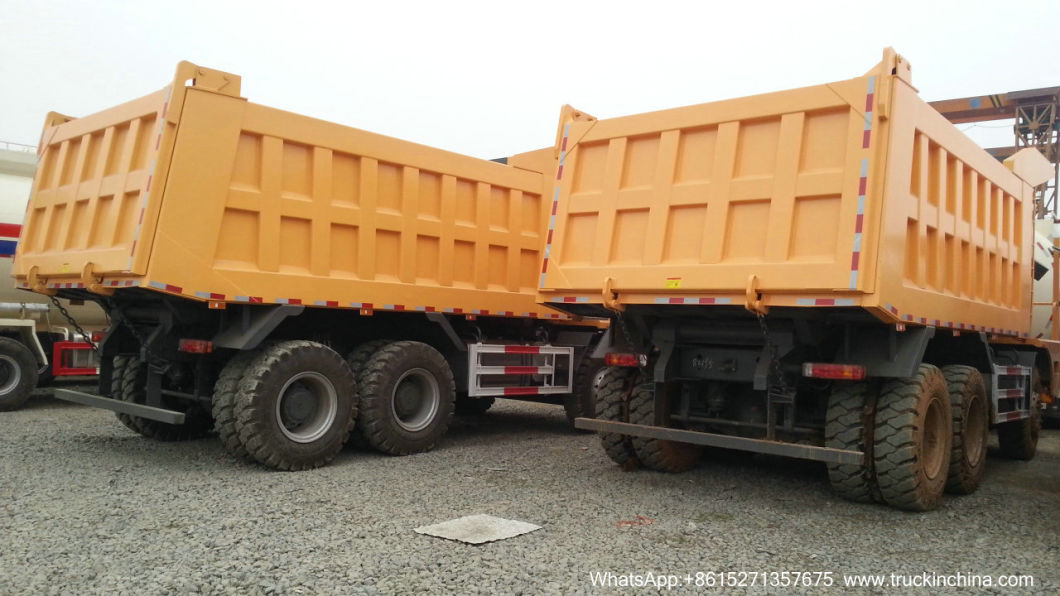

SINOTRUCK HOWO Mining Tipper Truck 50-80 Ton ZZ5707V3842CJ Win You Commission
HOWO mine tipper truck 10 wheeler dumper
SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES
70tons HOWO 6X4 Mining Dump Truck Specifications :
Truck Type | 70TON Mining King Dump Truck | ||||
Truck Model | ZZ5707V3842CJ | ||||
Truck Brand | SINOTRUK-HOWO | ||||
Driving Type | Left Hand Driving | ||||
Dimension(Lx W x H)(unloaded)(mm) | 9045x3200x3770 | ||||
Cargo body size (L*W*H, mm) | 5800*3100*1700 30.56m3 | ||||
Cargo body Thickness (mm) | bottom:12mm, side:10mm, | ||||
Cargo material | Manganese plate | ||||
Lifting System | HYVA front side lifting | ||||
Approaching angle/Departure angle(°) | 32/40 | ||||
Overhang(front/rear) (mm) | 1500/1800 | ||||
Wheel base (m | 3800+1500 | ||||
Max speed(km/h)(km/h) | 50 | ||||
Min. ground Clearance(mm) | 340 | ||||
Max. gardeability(%) | 42 | ||||
Min. turning Radius(e) | 22 | ||||
Curb weight(kg) | 23000 | ||||
Loading Weight(kg) | 70000 | ||||
Engine | Brand | SINOTRUK | |||
Model | D12.42, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection | ||||
Fuel type | Diesel | ||||
Horse Power, max(kw/rpm) | 420HP | ||||
Emission | EURO III | ||||
Fuel tanker capacity(L) | 500 | ||||
Clutch | CH430-21(2100N.m) Rumsfeld diaphragm clutch. | ||||
Front suspension | 1500mm; Half the elliptical leaf spring with shock absorber cavitation | ||||
Rear suspension | 1000mm; The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt | ||||
Transmission | Model | HW21712 | |||
Brand | SINOTRUK | ||||
Brake system | Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | ||||
Auxilary brake | engine exhaust valve brake | ||||
Steering system | Model | 8118 hydraulic steering with power assistance | |||
Brand | Germany brand | ||||
Front axle | HF12 , Steering with double T-cross section beam | ||||
Rear axle | AC26, (cast steel 2×26ton hub-reduction axle) | ||||
Color | Optional | ||||
Tire | 14.00-25 36 level 10PCS with one spare tire | ||||
Electrical system | Battery | 2X12V/165Ah | |||
Alternator | 28V-1500kw | ||||
Starter | 7.5Kw/24V | ||||

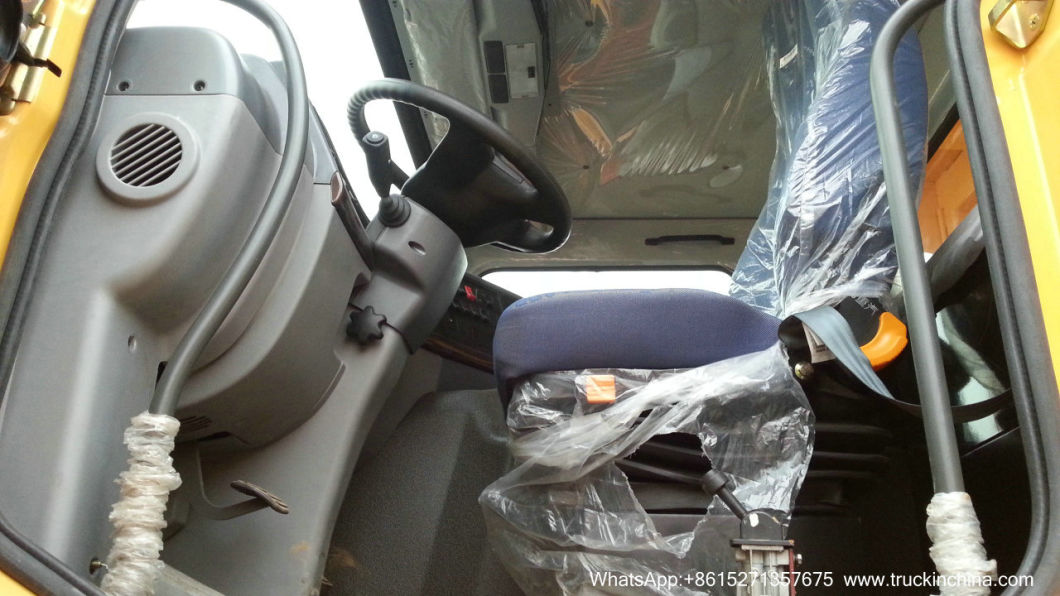

Cab | HW7D cab, (with air-condition), Unilateral cab |
Driving Type: 6X4
Rated Loading Capacity: 70t
Engine: EuroII 371PS; EuroIII 375PS, 380PS, 420PS
Transmission: Manul 10 forward & 2 reverse
Front Axle: 12t cast steel I-shaped front axle
Rear Axles: 26t double reduction tandem axles with differential locks between wheels and axles, ratio: 10.47, option 8.51
Steering: ZF8098 hydraulic steering with power assistance
Tyres: 14.00-25
Cab: Half cab with framework covering, hydraulically tiltable to front, air conditioner
Wheelbase (mm): 3600, 3800
Internal Dimensions (LxWxH) (mm): 5600X3100X1800, 5900X3100X1800
The configurations can be changed, just let we know your needs (working condition, loading capacity, etc.),we will design the type according to your need.
SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES
SINOTRUK HOWO 6X4 Mine overlord dump truck
Pictures are only for reference
Model:ZZ5707S3840AJ
Manufacturer of chassis:SINOTRUK
Drive aheel:6x4
Wheel base:3800+1500mm
Overall dimension:8630*3360*4100mm
GVW:70000kg
Kerb weight:29000kg
Max speed:50km/h
Engine:
Model:WD615.47
Emission standard:GB17691-2001,THE SECOND GRADATION,GB3847-2005
Rated power/speed:273/2200(371HP)
Chassis:
Cabin :HW7D cabin,ari-conditioner,white color
Gear box:HW19710
Steering wheel:ZF8118
Clutch:430
Front axle/rear axle:HF12/AC26
Size&number of tyre:14.00-25Nylon tyre:11pieces
Cargo body:
Lifting system: HYVA196,front lifting
Carriage dimensions:5800*3100*1700mmm,bottom:14 mm,side:12mm.
Description of SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES
1.Technical Assurance
Advanced means of production technology and perfect testing equipment to protect the product overall structure is reasonable, reliable performance. Well-known brand axles, suspension systems, high performance, and reliable to use, ensure the good performance of HOWO 70t Mining Dump Truck.
2.Supply Capacity
We produce the truck as soon as your order puts. Production of 50000 units/year insures your needs.HOWO 70t Mining Dump Truck fully comply with relevant national standard, at the same time to meet the individual needs of customers.
3. After-sale Service
Any question will be solved at the prompt time. We also offer relative technical support. Our spare parts will be available at any time.

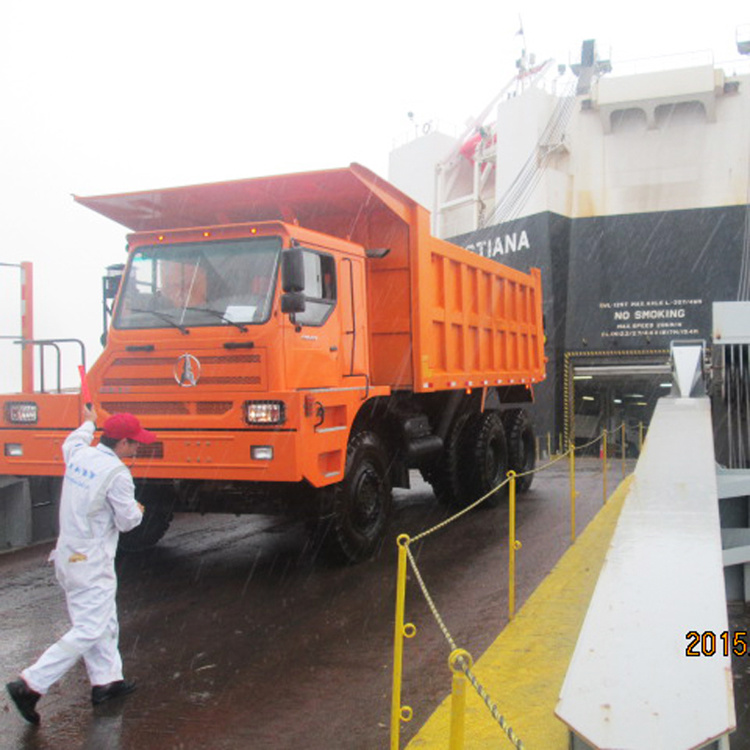

Beiben | mining dump truck | ||
/ Vehicle code number | ND37000B38 | ||
/ Sales code number | 7042KK | ||
/Outlook size(mm) | 8420*3450*3650,5800*3300*1700 | ||
/ Spread of axies | 3775+1700 | ||
/ Axis number | 3 | ||
/ Chassis axle load quality | / Before, | 25 | |
, | 40 | ||
/ Complete bikes permission biggest axle load quality(kg) | / Before, | 25000 | |
, | 40000 | ||
/ Tyre size | 14.00--25 | ||
/ Wheel felloe specification | 10.0V | ||
/ Tire number | 10 | ||
/ Cab pattern | ,/ Sets flatly, may pour out | ||
/ Air-conditioner | / Built-in air conditioning | ||
/ The cab rides the population() | 1 | ||
/ Acoustics | MP3(SD,USP) | ||
/ Engine | / Engine model | WD12.420 | |
(kw/r/min) | 305/2200 | ||
(nm/r/min) | 1250/1400-1600 | ||
/ Engine Production enterprise | / Wei River firewood | ||
/ Fuel grade | Diesel oil | ||
/ Emission standard | Country two | ||
/ Average fuel oil consumption | 52L/100km | ||
/ Fuel tank volume | 400L | ||
567000 |
