Availability: | |
---|---|
Quantity: | |
Shanghai, China
200sets Per Month
T/T

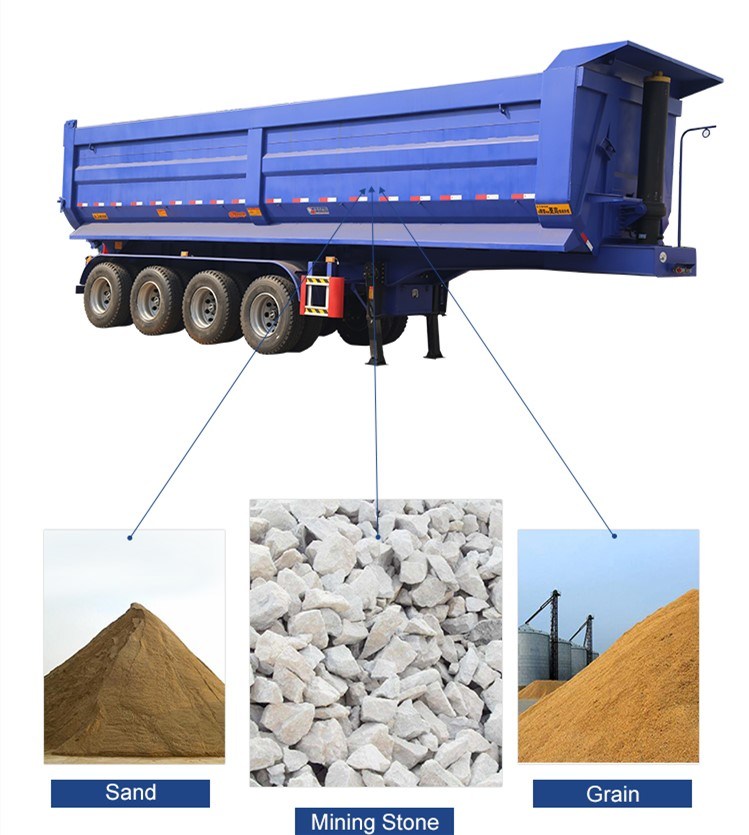

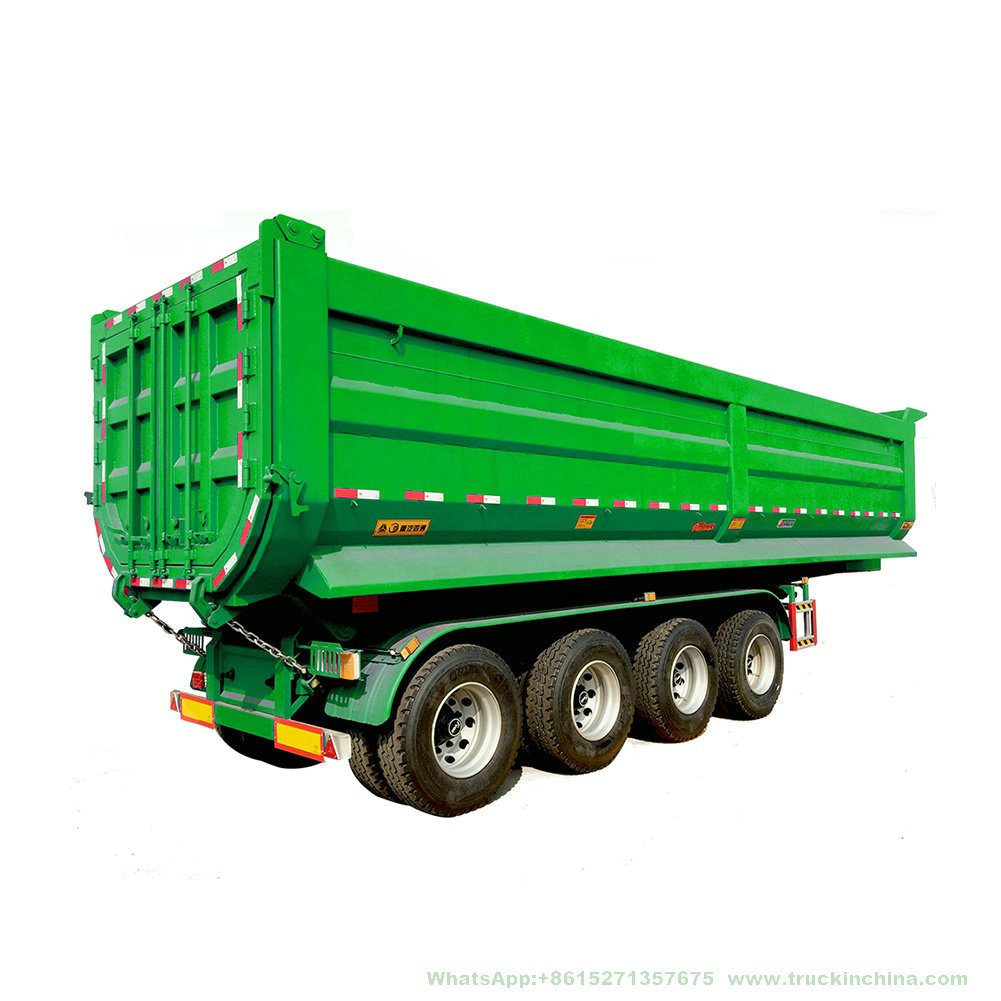

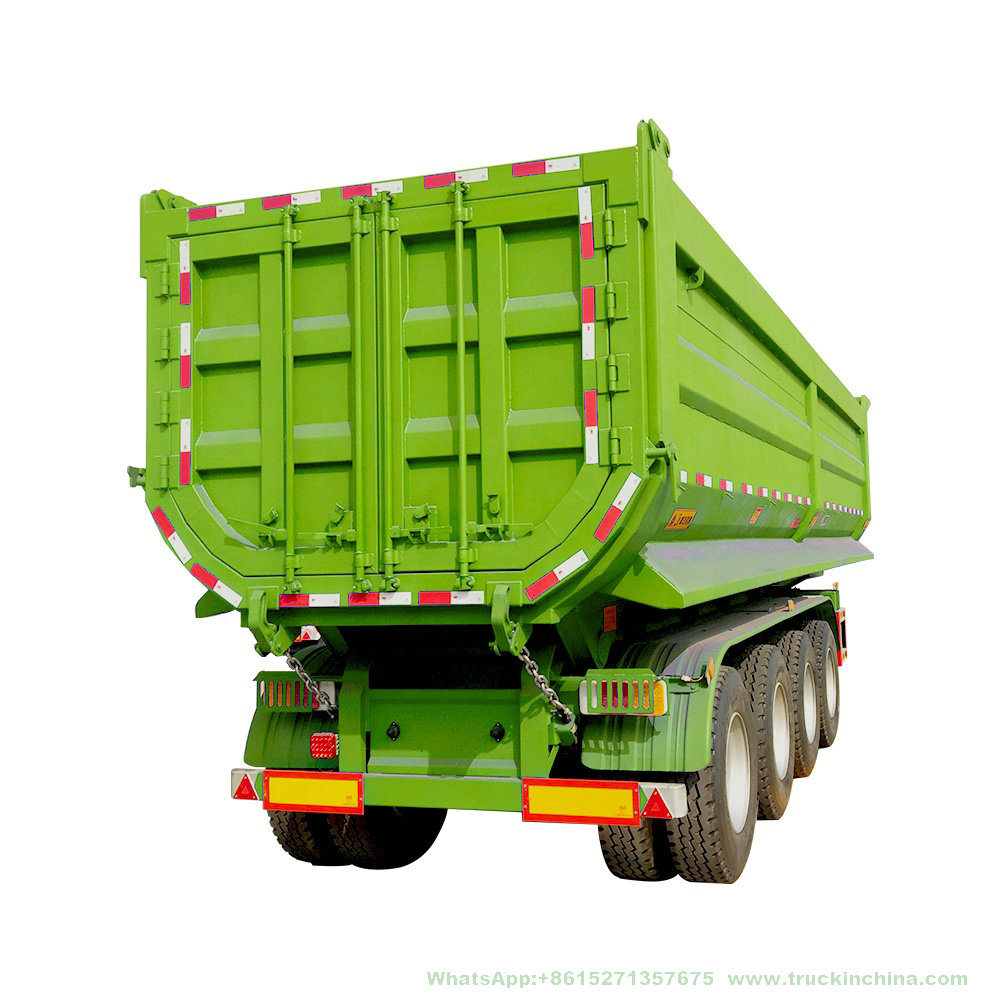

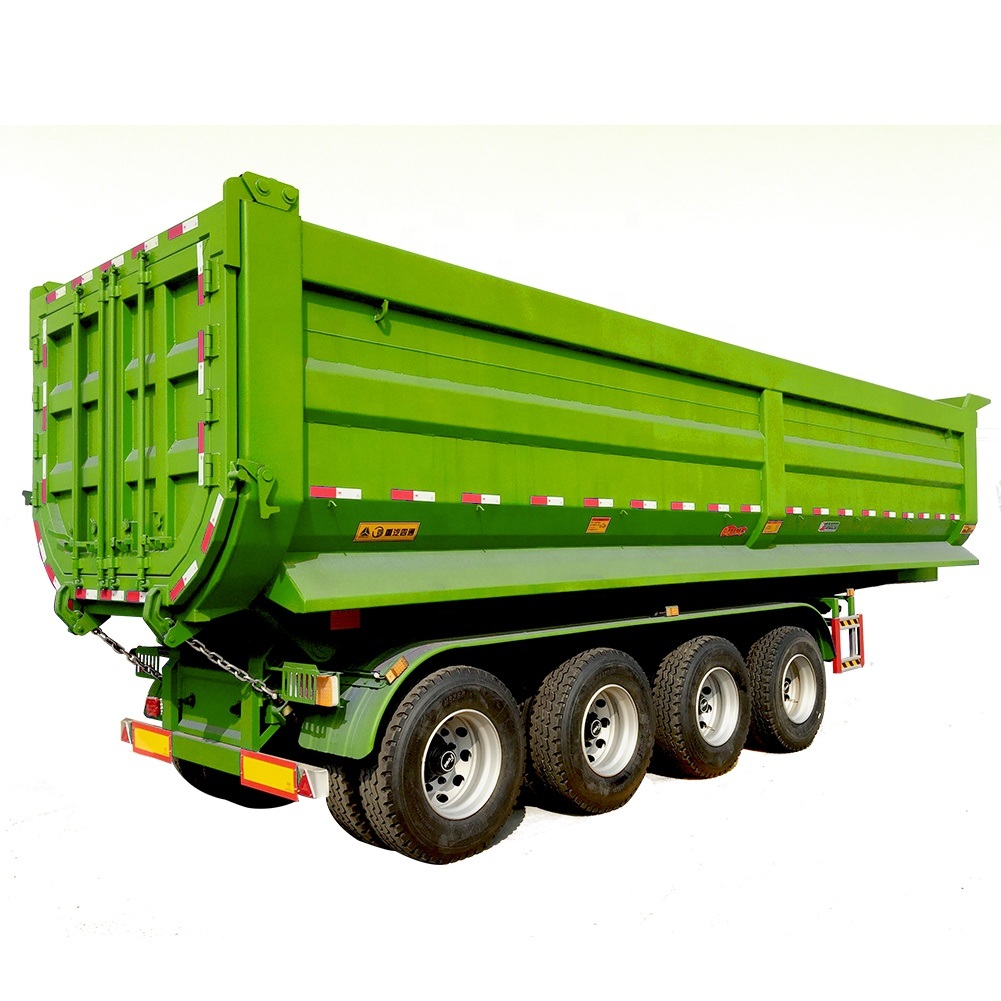

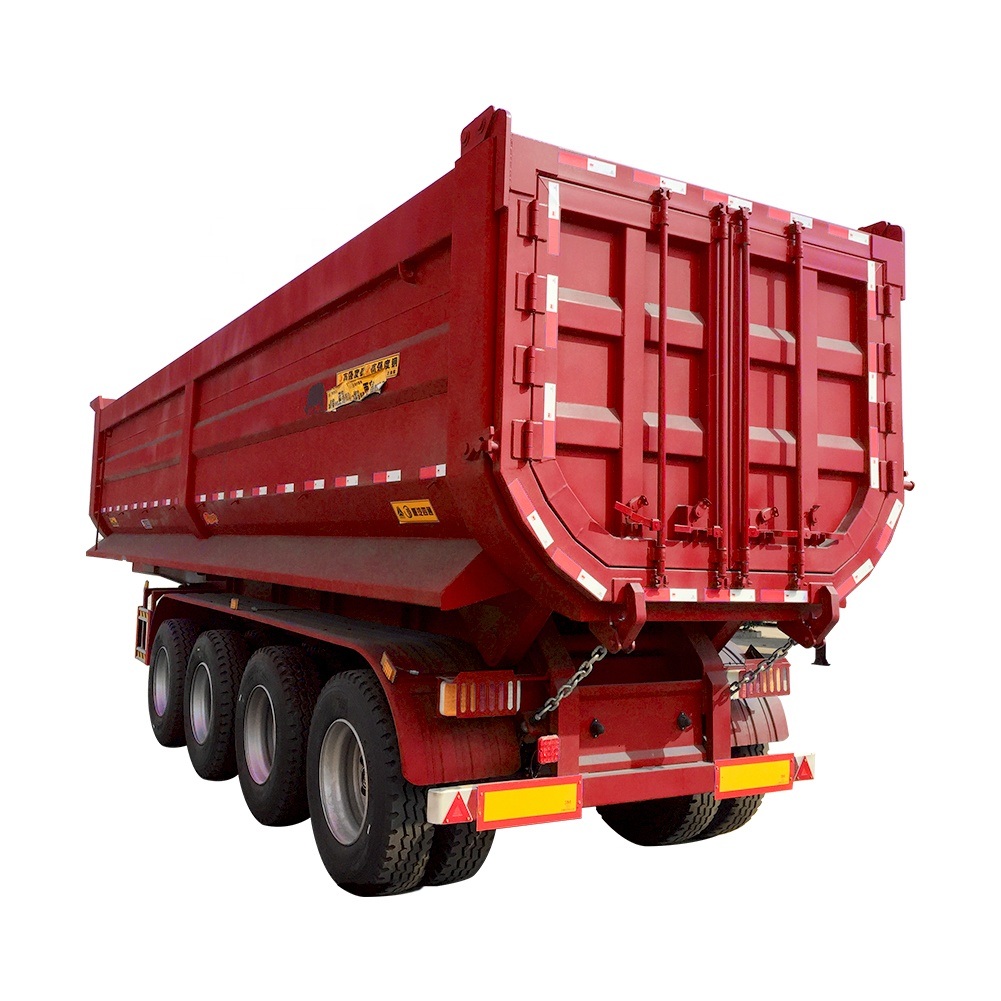

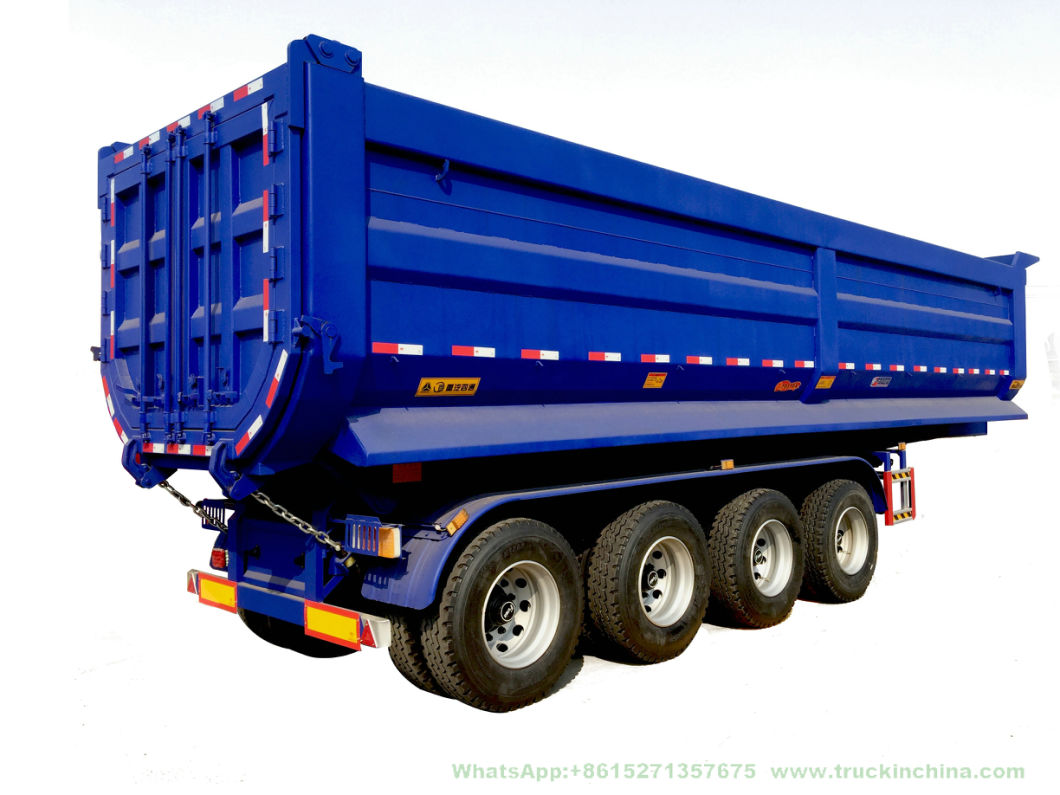

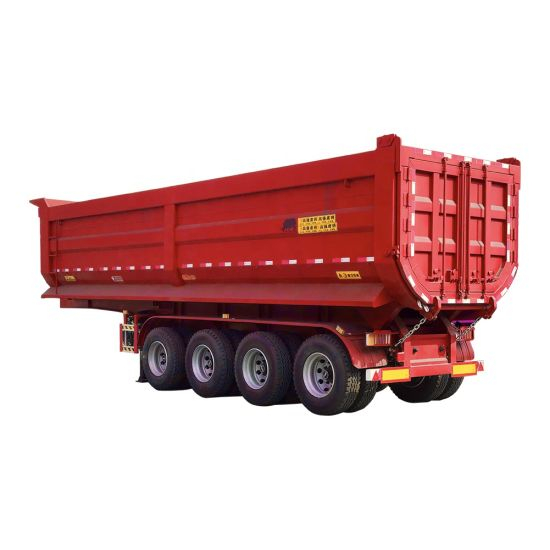

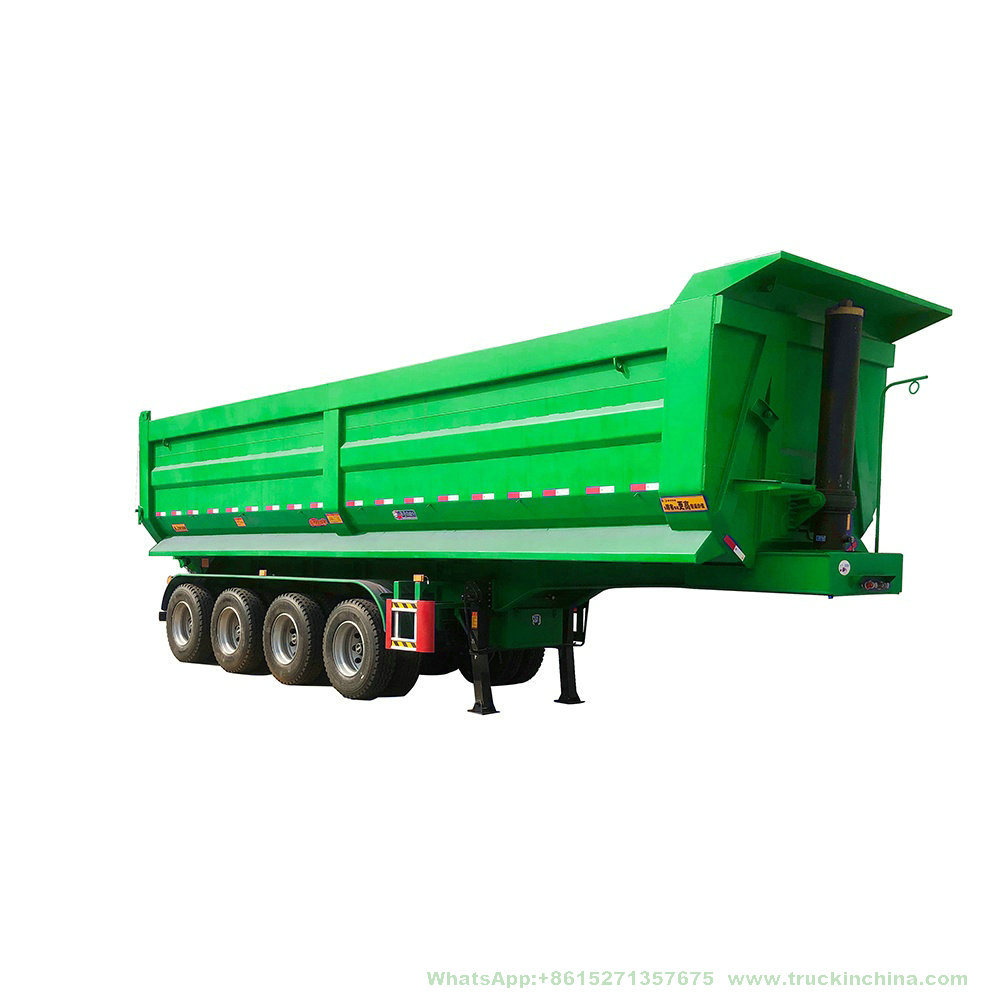

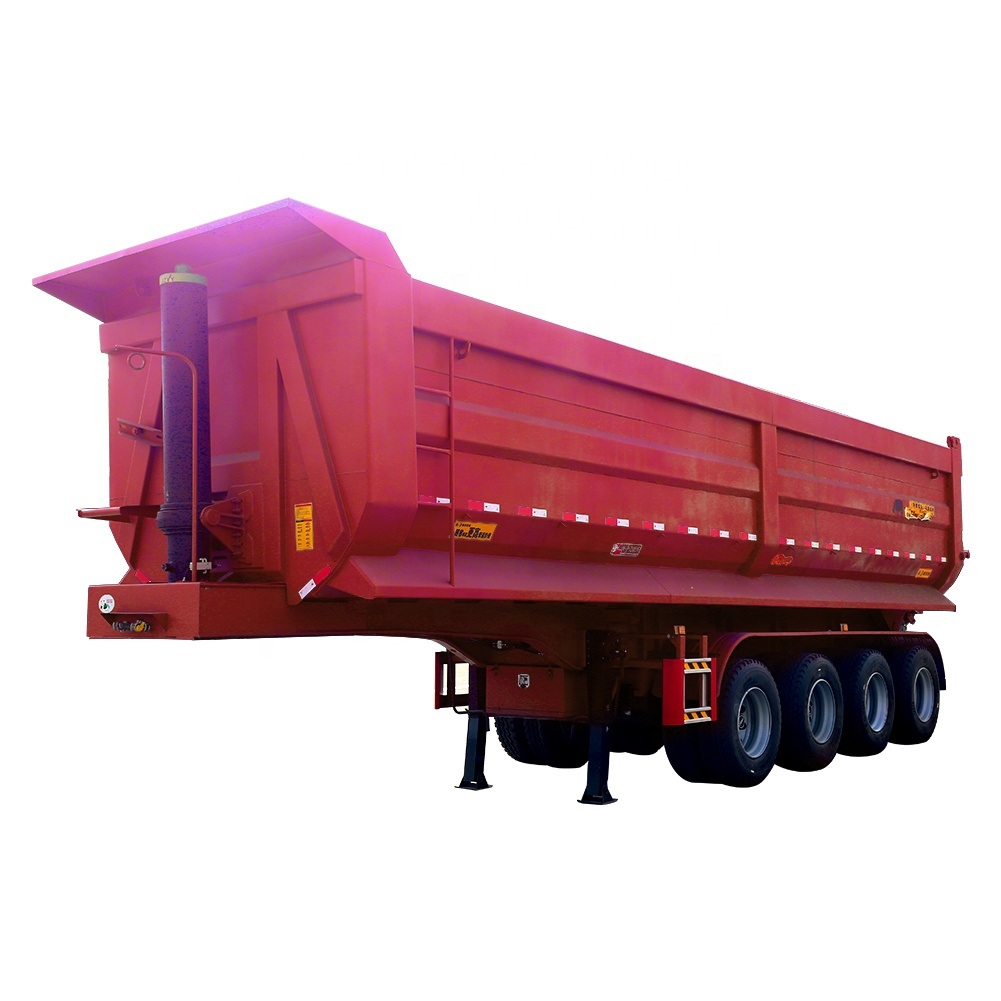

4 Axle 45 Cubic Meters Clinker and Gravel Tipper Trailer 60T~90T for Africa
5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20
6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm;
+1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
6 Axles Tipper Trailer For 100 Ton Mangenese And Bauxite Ores Transport
5-axle 45 CBM tipper semi trailer
DIMENSIONS | ||||
Tare Weight | 19000 kgs | |||
Payload | 120000 kgs | |||
Overall Size | 11800x2780x3700 mm | |||
Dump body size | 11000x2600x1700 mm | |||
DUMPER BODY | ||||
Volume | 45 m3 | |||
Side Wall | 4 mm thickness 700 high tensile steel | |||
Front Wall and floor | 6 mm thickness 700 high tensile steel | |||

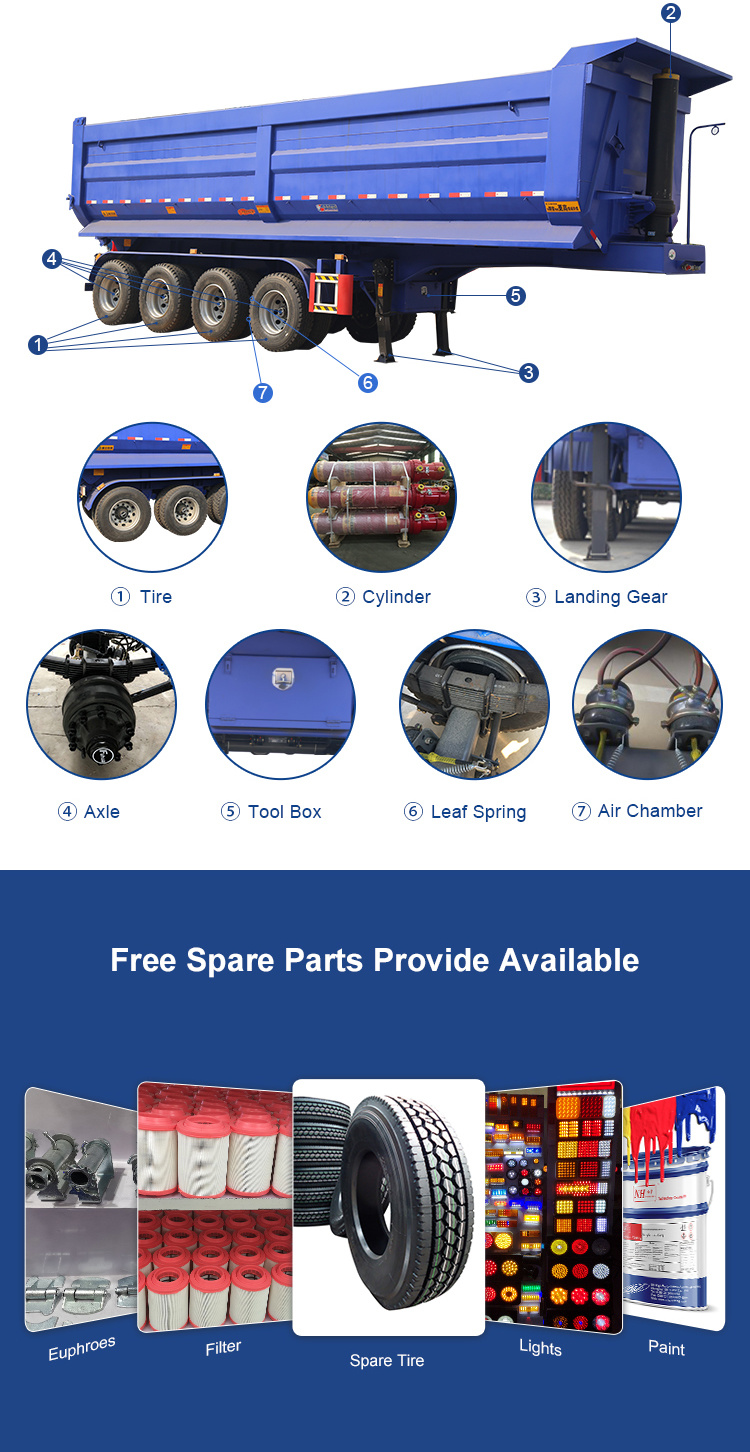

SPECIFICATION | ||||
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel700, welded by automatic Submerged-Arc processes. Top Flange 18 mm; Double Middle Flange 10+ 5 mm ; Bottom Flange 18 mm | |||
Axle | 5 axles | |||
HJ brand 20 Ton | ||||
Hydraulic System | One set of HYVA cylinder, diameter 191 mm, with hydraulic oil pump and oil tank | |||
Heavy duty mechanical suspension with 10-leaf spring(20 mm thick) | ||||
King Pin | JOST brand 3.5" Bolt-in King Pin | |||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
Tyres | Triangle Brand 315/80R22.5 tubeless tyres | |||
Spare Tire | One set of spare tire 315/80R22.5 with two tyre carriers | |||
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
Accessories | One standard tool box |
Customization, Cost and Control Built How You Want it,
Website: www.truckinchina.com
