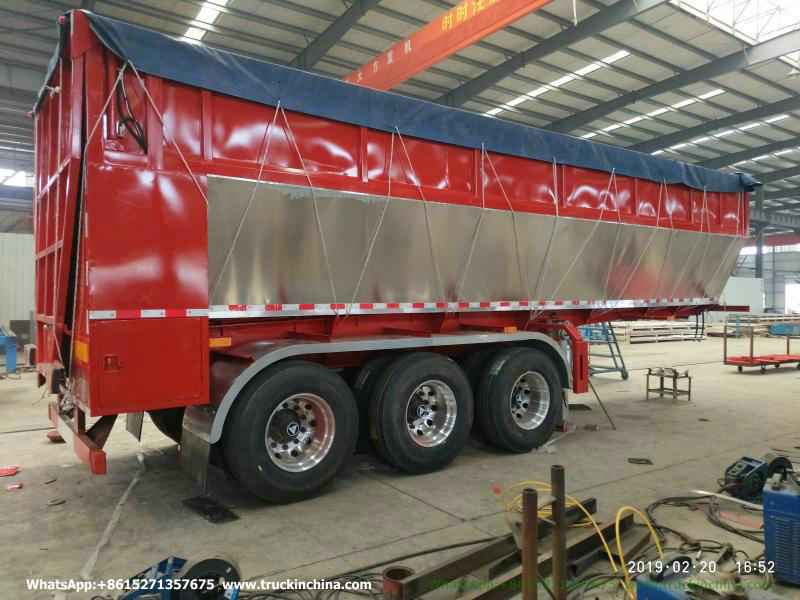

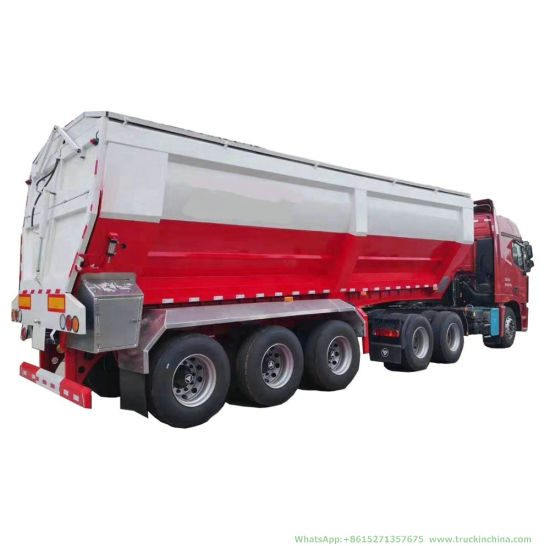

Customizing 3 Axle Conveyor Belt Trailer (Self-unloading Trailers Stainless Steel - Aluminum Optional 30m3)
Conveyor belt dual directional. CONVEYOR BELT & REMOTES Heavy-duty specific to hot asphalt, resistant to heat, chemical and abrasion Dual seal belt design Chain self-oiling bio-degradable system Low maintenance, low friction belt drive slat system Rear station of trailer roller conveyor cleaning scrub/brush Full remote control belt operation
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T
self unloading belt trailer
Stainless Steel Radius Panels, Swing Gate, Front And Rear Ladders, Front Catwalk, Electric Roll Tarp, Spring Suspension,
About Belt Trailers
Also referred to as "self-unloading trailers," belt trailers are designed to haul commodities and have a conveyor belt or chain-and-flap assembly built into the floor to quickly unload their cargo
Related searches
belt trailers for sale
used belt trailers for hauling farm commodity
belt trailer
belt trailers for rent
belt trailers for lease
belt trailers for sale
Tri-Axle Aluminum Belt Trailer
western belt trailer
3 Axle Conveyor Belt Trailer

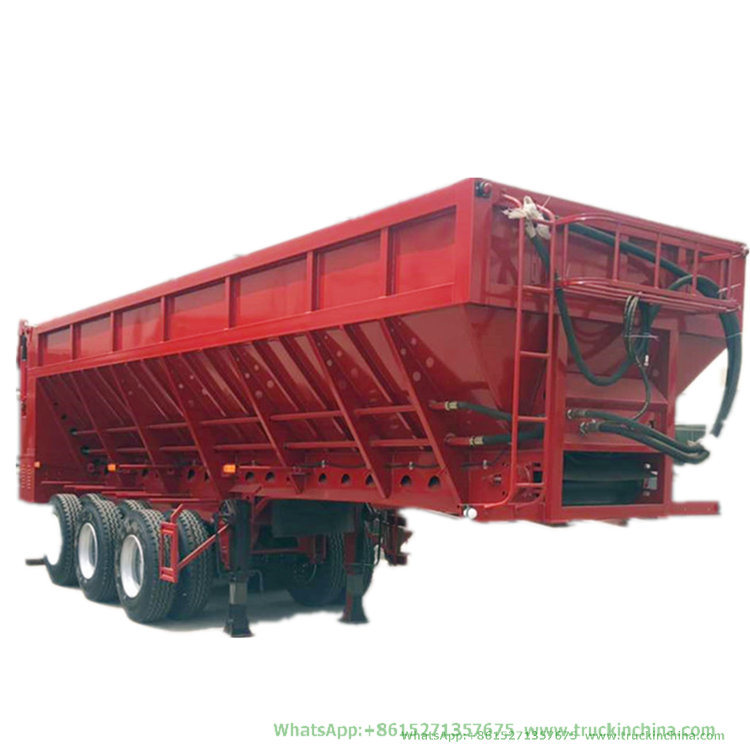

Description of Conveyor Belt Trailer
The conveyor belt trailer is a kind of belt driven horizontal discharge dump trailer. It is also named as belt trailer, live bottom trailer, conveyor belt dump trailer, walking floor conveyor trailer etc. It is the latest and updated version of tipper trailer. It is especial suitable for small and middle size particle transport, like wheat, corn, sand, coal, small stone, clinker etc.
Structure of Conveyor Belt Trailer
The conveyor belt trailer is consists of the trailer chassis, V shape box and the conveyor belt system. The conveyor belt is suitable for 4 season usage and durable, wear resistance. The conveyor belt system is controlled by hydraulic system. The hydraulic system is tested for thousands of times during usage and proved to be reliable and stable performance.
Advantages of Conveyor Belt Trailer
1. The best advantage is the non-tipping system, avoid the dangerous of turnover which is no. 1 dangerous during the tipper trailer usage.
2. The tare weight is only 7.5 tons, at least 3 tons less than traditional front tipping trailer. That means it could load more weight and less fuel cost.
3. The discharge time is only about 2 minutes and 30 seconds, much more efficient than traditional tipper trailer.
Specifications:
| Dimensions | |
| Tare Weight | 7500KGS |
| Payload | 40000KGS |
| Overall Length | 9500mm |
| Overall Width | 2500mm |
| Dumper Body | |
| Volume | 30m3 |
| Body Sheet | High tensile steel T700, side 1.5mm, floor 2mm |
| Main Parameters | |
| Chassis | Special designed I beam. Top Flange 5mm,width 140mm; Double Middle Flange 5mm ; Bottom Flange 8mm,width 140mm. |
| Axle | 3 axles |
| FUWA brand, 3x13Ton capacity | |
| Suspension | German design heavy duty mechanical suspension |
| Spring | Leaf spring |
| King Pin | JOST brand 2" Bolt-in King Pin |
| Landing Gear | JOST brand two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 9.0R22.5 steel wheel rim, 12pcs |
| Tyre | 12R22.5 tubeless tire, 12pcs |
| Spare Tire | One set of spare tire including a carrier |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
Customization, Cost and Control Built How You Want it,
CONTACT US
Website: www.truckinchina.com
| DIMENSION | |||
| Tare Weight | 7900kg | Payload | 40000kg |
| Overall Width | 2500mm | Overall Length | 9300mm |
| Volume | 35 m3 | ||
| Chasis | Special designed I beam. top flange 5mm, width 140mm; double middle flange 5mm; bottom flange 8mm; width 140mm. | ||
| Axle | FUWA brand, 3x13Ton capacity | ||
| Suspension | German design heavy duty mechanical suspension | ||
| Leaf Spring | Leaf spring | ||
| King PIn | JOST brand 2" Bolt-in King Pin | ||
| Landing Gear | JOST brand two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 9.0R22.5 steel wheel rim, 12pcs | ||
| Tire | 12R22.5 tubeless tire, 12pcs | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
| Dimension | 9.3X2.5X2 M | ||
| Material and thickness | High tensile steel T700, side 1.5mm, floor 2mm. | ||
| One set of hydraulic system | One set of hydraulic system | ||
2. The conveyor belt trailer is made by high tensile steel, low tare weight and mord loading make more profit for the transporter.
3. Automatic operation by the remote control, less work for he driver.
4. There is monitor screen inside the tractor cabin to monitor the unloading, more safety and control on the discharging.
5. The capacity is from 30CBM to 45CBM, the length and height could be customized.
Tech 1.
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Outside dimension(mm)
Length:13000, width:2500 height:2850
Inside dimension(mm)
Length:12850, width:2320 height:600
Gross weight(kg)40000
Tare weight(kg)8500
Loading capacity(kg)31500
Axles3 pieces,13T/piece, Fuwa brand or BPW brand
Tech 2.
Technical Parameters
| DIMENSIONS&KGS | |
| Tare weight | 12000kg |
| Payload | 45000kg |
| Overall length | 10400mm |
| Overall width | 2550mm |
| Overall height | 2800mm |
| CHASSIS SPECIFICATIONS | |
| Chassis | high tensile steel with light weigth design beam; welded by automatic Submerged-Arc processes. Top Flange 18mm;width 140mm;Middle Flange 6mm;Bottom Flange 20mm,width 140mm |
| Axle | BPW or FUWA or L1 or HJ optional |
| Suspension | Mechanical suspension or air suspension optional upon choice |
| Leaf spring | 8 pieces leaf spring |
| King pin | JOST brand 2'' bolt-in king pin |
| Landing gear | JOST brand two speed manual operation, heavy duty landing gear |
| Wheel rim | 8.5-20, 8.25-22.5, 9.0-22.5 optional |
| Tire | 11.00-20, 8.25R15, 9.0-22.5 optional |
| Spare tire | one set of spare tire including a carrier |
| Braking system | WABCO 6 relay valve, T30/30 spring brake chamber; 40L air tank |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| side tipping | one side or both sides tipping optional groups of cylinders optional |
| dump box shap | square shape or U shap optional |
Tech 3.
3 axle tipping semi trailer truck 80ton
Loading capacity: 80Tons
Tipper body bucket: 35CBM
No.of axle: 3 axle BPW,FUWA optional
Hydraulic cylinder: HYVA or China brand
Tire specification: 12.00R22.5,Total 12 tires
Trailer suspension: Strengthen leaf spring suspension
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 35CBM
Rated loading weight(kg): 80,000kgs
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer
Tipper load capacity: 60Ton
No of axle: 3 axle BPW,FUWA
Dump body volume: 30CBM
Hydraulic cylinder: HYVA or China brand are option
Suspension: Air suspension
Tire: 315/60R22.5,total 12 units
Tipper bucket(Tipper body) specification
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tech 3.
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tech 4.
3 axles U-shape Rear Dump Semi-trailer 24 cbm
Type | 3 axles U-shape Rear Dump Semi-trailer |
Overall dimension | 8600 * 2490 * 3370 mm |
Inside cargo box dimension | 7399*2480*1400mm |
Capacity of cargo box | 24m3 |
Main beam | Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm |
Platform thickness | 6mm |
Side wall thickness | 4mm |
Material | High-tensile Steel, T700 |
Gross vehicle weight | Approximately 8500 kgs |
Total weight | 45000 kg |
Lifting system | HYVA brand |
King pin | 90# (3,5 inch) |
Support leg | Standard 30T, SAF Holland |
Axle | FUWA brand, 3*13T |
Suspension | mechanical suspension 10pcs leaf spring |
Tire | Triangle brand, 11.00R-20, 13pcs |
Rim | 8.0-20, 13 pcs |
Brake System | 30/30 type on each axle |
Spare wheel carrier | 01 pcs |
Tool box | 01 pcs |
Electrical System | Chinese standard 24V lighting system |
Side Maker Lamp | LED lamp |
Painting | Polyurethane Paint |

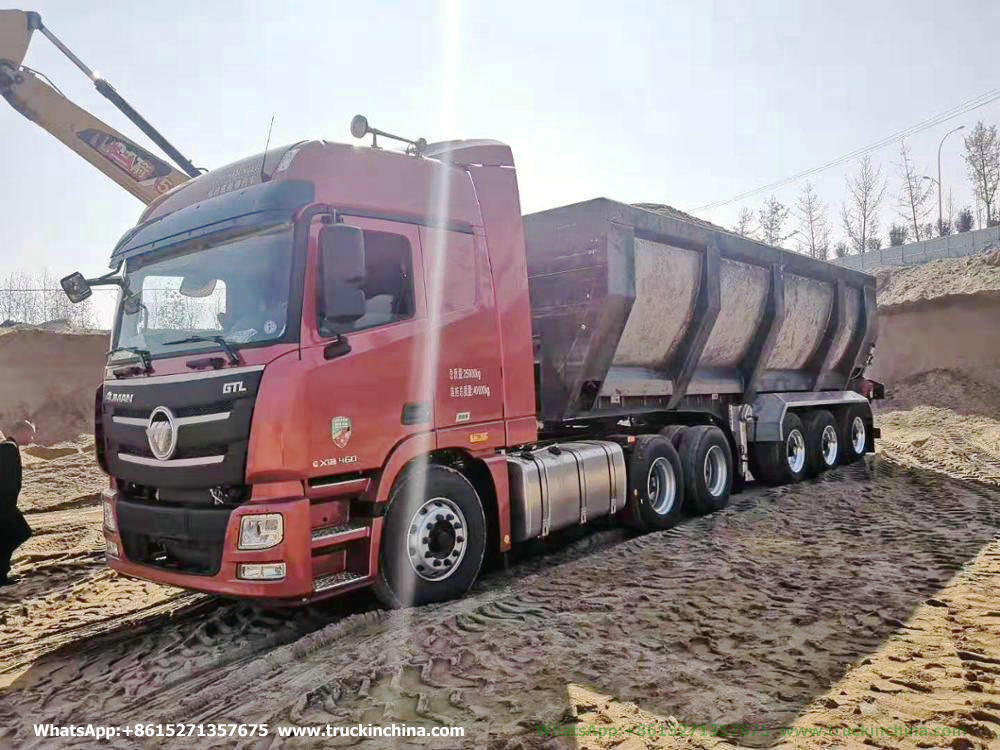

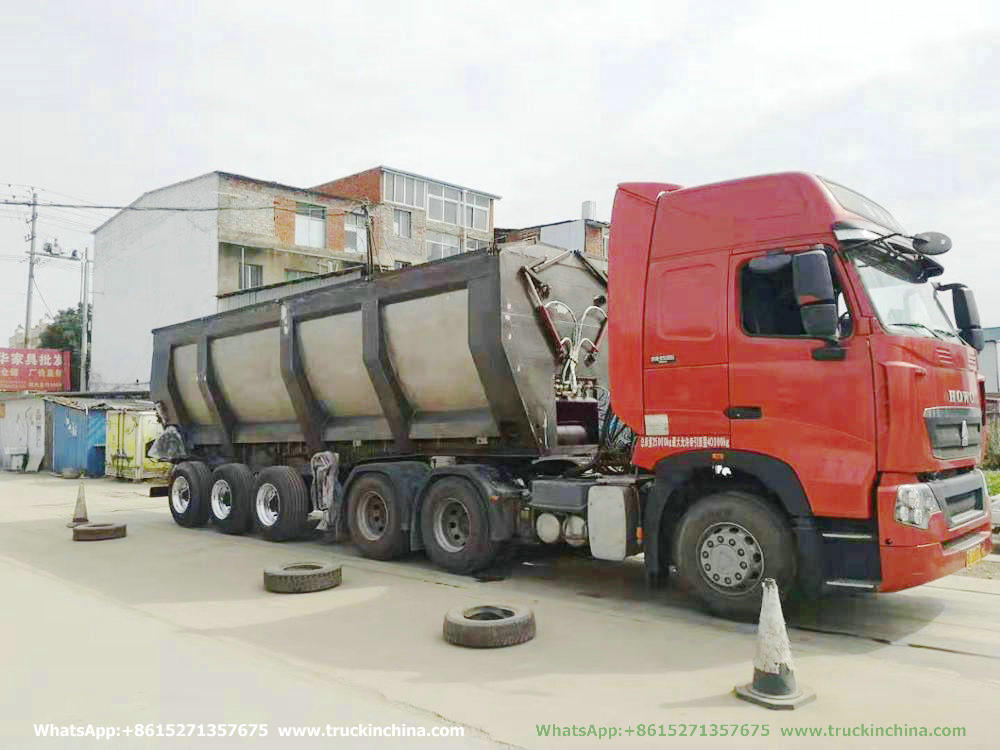

60Ton U shape tipper semi-trailer 35cbm
U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.
It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.
It can combined work with different tractor head, so it improve the working efficiency than tipper truck.
U shape tipper semi-trailer specifications
Tipper body material | Carbon steel -Q235 or Q345 for tipper body 16Mn for tipper trailer chassis(frame and girden) |
Body volume(CBM) | About 35CBM |
Trailer curb weight(kg) | 11,800kgs |
Max.loading weight(kg) | 80,000kgs |
Overall dimensions(mm) | 10500×2500×3950 |
Tipper body size (mm) | 9800x2350x1800 |
Axle description | 3 axle BPW brand,each axle 16Ton load capacity |
Tire specification | Triangle brand tire,12.00R22.5,total 12 tires |
Suspension type | Strengthen leaf spring suspension |
Landing gear | JOST double action landing gear |
Kingpin specification | JOST, 2 inch(50mm) |
Electric circuit | Chinese standard 24V |
Tipper body components | |
Main frame description | Heavy duty extra durability design,high tensile steel 16Mn |
Hydraulic system | One set of HYVA hydraulic cylinder |
Tipper body volume(M3) | 35M3 |
Body thickness (mm) | Side floor:8mm,end floor:10mm,carbon steel plate |
ACCESSORIES | |
Climb Ladder | High tensive steel,ladder located at the front side |
Spare tire carrier | 1 unit |
Tools box | 1 unit tool box fixed |
TRAILER CONSTRUCTION &FIXTURE | |
Lighting | 24 Volt electrical in accordance to Chinese standard complete with Chinese's made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ''3M'' reflective tape at sides and rear |
Rear Bumper | Made of Steel,manufacture Standard |
3 axle 60Ton dumper semi trailer
Tech 5.
Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump
bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.
Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to
ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tipper bucket(Tipper body) specification
3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.
3 Axle Tipping Semi Trailer 45T Capacity Load
1. Model: DRZ9570
2. Whole Truck Dimension: 8200x2496x3300mm
3. Body Size: 7000x2300x1700mm
4. Steel Thickness of Carriage: Floor:8mm, Side:6mm
5. Axle: 3Axles, 16T
6. Tyre: 12.00R20
7. Coupling Seat Size: 3.5 inch, 90#
8. Dead Weight: 13000kg
9. Loading Capacity: 45000kg
10. Color: optional
11. One Tool Box
12. Two Spare Tires Supports
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
sale call:+86-152 -7135-7675
MODEL:DUMP Side SEMI-TRAILER
YEAR: NEW
LOAD CAPACITY: 40T, 50T, 60T,80T,100T
BUCKET VOLUME: 30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;
AXLE: FUWA AXLE 13T (16T, 20T) OPTIONP BPW AXLE (12T, 13T), ABS 2axles Bogie type trailer
TIRE: 12.00-20 TIRE OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length: 8,500mm
Overall Width: 2,500mm
Overall height: 3,900mm
RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake :Dual line pneumatic brake system
Axle: BPW axle 13,000 kg capacity. X 3PCS
Wheel: 9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire: 12R22.5 Bridgestone tyre 13 pcs
King Pin : 3 " king pin,
LANDING LEG: Jost 28T
Main beam : 500/16/10/20 Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier
Customizing 3 Axle Conveyor Belt Trailer (Self-unloading Trailers Stainless Steel - Aluminum Optional 30m3)
Conveyor belt dual directional. CONVEYOR BELT & REMOTES Heavy-duty specific to hot asphalt, resistant to heat, chemical and abrasion Dual seal belt design Chain self-oiling bio-degradable system Low maintenance, low friction belt drive slat system Rear station of trailer roller conveyor cleaning scrub/brush Full remote control belt operation
self unloading belt trailer
Stainless Steel Radius Panels, Swing Gate, Front And Rear Ladders, Front Catwalk, Electric Roll Tarp, Spring Suspension,
About Belt Trailers
Also referred to as "self-unloading trailers," belt trailers are designed to haul commodities and have a conveyor belt or chain-and-flap assembly built into the floor to quickly unload their cargo
Related searches
belt trailers for sale
used belt trailers for hauling farm commodity
belt trailer
belt trailers for rent
belt trailers for lease
belt trailers for sale
Tri-Axle Aluminum Belt Trailer
western belt trailer
3 Axle Conveyor Belt Trailer
Description of Conveyor Belt Trailer
The conveyor belt trailer is a kind of belt driven horizontal discharge dump trailer. It is also named as belt trailer, live bottom trailer, conveyor belt dump trailer, walking floor conveyor trailer etc. It is the latest and updated version of tipper trailer. It is especial suitable for small and middle size particle transport, like wheat, corn, sand, coal, small stone, clinker etc.
Structure of Conveyor Belt Trailer
The conveyor belt trailer is consists of the trailer chassis, V shape box and the conveyor belt system. The conveyor belt is suitable for 4 season usage and durable, wear resistance. The conveyor belt system is controlled by hydraulic system. The hydraulic system is tested for thousands of times during usage and proved to be reliable and stable performance.
Advantages of Conveyor Belt Trailer
1. The best advantage is the non-tipping system, avoid the dangerous of turnover which is no. 1 dangerous during the tipper trailer usage.
2. The tare weight is only 7.5 tons, at least 3 tons less than traditional front tipping trailer. That means it could load more weight and less fuel cost.
3. The discharge time is only about 2 minutes and 30 seconds, much more efficient than traditional tipper trailer.
Specifications:
| Dimensions | |
| Tare Weight | 7500KGS |
| Payload | 40000KGS |
| Overall Length | 9500mm |
| Overall Width | 2500mm |
| Dumper Body | |
| Volume | 30m3 |
| Body Sheet | High tensile steel T700, side 1.5mm, floor 2mm |
| Main Parameters | |
| Chassis | Special designed I beam. Top Flange 5mm,width 140mm; Double Middle Flange 5mm ; Bottom Flange 8mm,width 140mm. |
| Axle | 3 axles |
| FUWA brand, 3x13Ton capacity | |
| Suspension | German design heavy duty mechanical suspension |
| Spring | Leaf spring |
| King Pin | JOST brand 2" Bolt-in King Pin |
| Landing Gear | JOST brand two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 9.0R22.5 steel wheel rim, 12pcs |
| Tyre | 12R22.5 tubeless tire, 12pcs |
| Spare Tire | One set of spare tire including a carrier |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
Customization, Cost and Control Built How You Want it,
CONTACT US
Website: www.truckinchina.com
| DIMENSION | |||
| Tare Weight | 7900kg | Payload | 40000kg |
| Overall Width | 2500mm | Overall Length | 9300mm |
| Volume | 35 m3 | ||
| Chasis | Special designed I beam. top flange 5mm, width 140mm; double middle flange 5mm; bottom flange 8mm; width 140mm. | ||
| Axle | FUWA brand, 3x13Ton capacity | ||
| Suspension | German design heavy duty mechanical suspension | ||
| Leaf Spring | Leaf spring | ||
| King PIn | JOST brand 2" Bolt-in King Pin | ||
| Landing Gear | JOST brand two-speed, manual operating, heavy duty landing gear | ||
| Wheel Rim | 9.0R22.5 steel wheel rim, 12pcs | ||
| Tire | 12R22.5 tubeless tire, 12pcs | ||
| Spare Tire | One set of spare tire including a carrier | ||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
| Accessories | One standard tool box | ||
| Dimension | 9.3X2.5X2 M | ||
| Material and thickness | High tensile steel T700, side 1.5mm, floor 2mm. | ||
| One set of hydraulic system | One set of hydraulic system | ||
2. The conveyor belt trailer is made by high tensile steel, low tare weight and mord loading make more profit for the transporter.
3. Automatic operation by the remote control, less work for he driver.
4. There is monitor screen inside the tractor cabin to monitor the unloading, more safety and control on the discharging.
5. The capacity is from 30CBM to 45CBM, the length and height could be customized.
Tech 1.
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Outside dimension(mm)
Length:13000, width:2500 height:2850
Inside dimension(mm)
Length:12850, width:2320 height:600
Gross weight(kg)40000
Tare weight(kg)8500
Loading capacity(kg)31500
Axles3 pieces,13T/piece, Fuwa brand or BPW brand
Tech 2.
Technical Parameters
| DIMENSIONS&KGS | |
| Tare weight | 12000kg |
| Payload | 45000kg |
| Overall length | 10400mm |
| Overall width | 2550mm |
| Overall height | 2800mm |
| CHASSIS SPECIFICATIONS | |
| Chassis | high tensile steel with light weigth design beam; welded by automatic Submerged-Arc processes. Top Flange 18mm;width 140mm;Middle Flange 6mm;Bottom Flange 20mm,width 140mm |
| Axle | BPW or FUWA or L1 or HJ optional |
| Suspension | Mechanical suspension or air suspension optional upon choice |
| Leaf spring | 8 pieces leaf spring |
| King pin | JOST brand 2'' bolt-in king pin |
| Landing gear | JOST brand two speed manual operation, heavy duty landing gear |
| Wheel rim | 8.5-20, 8.25-22.5, 9.0-22.5 optional |
| Tire | 11.00-20, 8.25R15, 9.0-22.5 optional |
| Spare tire | one set of spare tire including a carrier |
| Braking system | WABCO 6 relay valve, T30/30 spring brake chamber; 40L air tank |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| side tipping | one side or both sides tipping optional groups of cylinders optional |
| dump box shap | square shape or U shap optional |
Tech 3.
3 axle tipping semi trailer truck 80ton
Loading capacity: 80Tons
Tipper body bucket: 35CBM
No.of axle: 3 axle BPW,FUWA optional
Hydraulic cylinder: HYVA or China brand
Tire specification: 12.00R22.5,Total 12 tires
Trailer suspension: Strengthen leaf spring suspension
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 35CBM
Rated loading weight(kg): 80,000kgs
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer
Tipper load capacity: 60Ton
No of axle: 3 axle BPW,FUWA
Dump body volume: 30CBM
Hydraulic cylinder: HYVA or China brand are option
Suspension: Air suspension
Tire: 315/60R22.5,total 12 units
Tipper bucket(Tipper body) specification
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tech 3.
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tech 4.
3 axles U-shape Rear Dump Semi-trailer 24 cbm
Type | 3 axles U-shape Rear Dump Semi-trailer |
Overall dimension | 8600 * 2490 * 3370 mm |
Inside cargo box dimension | 7399*2480*1400mm |
Capacity of cargo box | 24m3 |
Main beam | Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm |
Platform thickness | 6mm |
Side wall thickness | 4mm |
Material | High-tensile Steel, T700 |
Gross vehicle weight | Approximately 8500 kgs |
Total weight | 45000 kg |
Lifting system | HYVA brand |
King pin | 90# (3,5 inch) |
Support leg | Standard 30T, SAF Holland |
Axle | FUWA brand, 3*13T |
Suspension | mechanical suspension 10pcs leaf spring |
Tire | Triangle brand, 11.00R-20, 13pcs |
Rim | 8.0-20, 13 pcs |
Brake System | 30/30 type on each axle |
Spare wheel carrier | 01 pcs |
Tool box | 01 pcs |
Electrical System | Chinese standard 24V lighting system |
Side Maker Lamp | LED lamp |
Painting | Polyurethane Paint |
60Ton U shape tipper semi-trailer 35cbm
U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.
It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.
It can combined work with different tractor head, so it improve the working efficiency than tipper truck.
U shape tipper semi-trailer specifications
Tipper body material | Carbon steel -Q235 or Q345 for tipper body 16Mn for tipper trailer chassis(frame and girden) |
Body volume(CBM) | About 35CBM |
Trailer curb weight(kg) | 11,800kgs |
Max.loading weight(kg) | 80,000kgs |
Overall dimensions(mm) | 10500×2500×3950 |
Tipper body size (mm) | 9800x2350x1800 |
Axle description | 3 axle BPW brand,each axle 16Ton load capacity |
Tire specification | Triangle brand tire,12.00R22.5,total 12 tires |
Suspension type | Strengthen leaf spring suspension |
Landing gear | JOST double action landing gear |
Kingpin specification | JOST, 2 inch(50mm) |
Electric circuit | Chinese standard 24V |
Tipper body components | |
Main frame description | Heavy duty extra durability design,high tensile steel 16Mn |
Hydraulic system | One set of HYVA hydraulic cylinder |
Tipper body volume(M3) | 35M3 |
Body thickness (mm) | Side floor:8mm,end floor:10mm,carbon steel plate |
ACCESSORIES | |
Climb Ladder | High tensive steel,ladder located at the front side |
Spare tire carrier | 1 unit |
Tools box | 1 unit tool box fixed |
TRAILER CONSTRUCTION &FIXTURE | |
Lighting | 24 Volt electrical in accordance to Chinese standard complete with Chinese's made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ''3M'' reflective tape at sides and rear |
Rear Bumper | Made of Steel,manufacture Standard |
3 axle 60Ton dumper semi trailer
Tech 5.
Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump
bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.
Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to
ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tipper bucket(Tipper body) specification
3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.
3 Axle Tipping Semi Trailer 45T Capacity Load
1. Model: DRZ9570
2. Whole Truck Dimension: 8200x2496x3300mm
3. Body Size: 7000x2300x1700mm
4. Steel Thickness of Carriage: Floor:8mm, Side:6mm
5. Axle: 3Axles, 16T
6. Tyre: 12.00R20
7. Coupling Seat Size: 3.5 inch, 90#
8. Dead Weight: 13000kg
9. Loading Capacity: 45000kg
10. Color: optional
11. One Tool Box
12. Two Spare Tires Supports
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
sale call:+86-152 -7135-7675
MODEL:DUMP Side SEMI-TRAILER
YEAR: NEW
LOAD CAPACITY: 40T, 50T, 60T,80T,100T
BUCKET VOLUME: 30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;
AXLE: FUWA AXLE 13T (16T, 20T) OPTIONP BPW AXLE (12T, 13T), ABS 2axles Bogie type trailer
TIRE: 12.00-20 TIRE OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length: 8,500mm
Overall Width: 2,500mm
Overall height: 3,900mm
RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake :Dual line pneumatic brake system
Axle: BPW axle 13,000 kg capacity. X 3PCS
Wheel: 9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire: 12R22.5 Bridgestone tyre 13 pcs
King Pin : 3 " king pin,
LANDING LEG: Jost 28T
Main beam : 500/16/10/20 Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier
Customizing 3 Axle Conveyor Belt Trailer (Self-unloading Trailers Stainless Steel - Aluminum Optional 30m3)
Conveyor belt dual directional. CONVEYOR BELT & REMOTES Heavy-duty specific to hot asphalt, resistant to heat, chemical and abrasion Dual seal belt design Chain self-oiling bio-degradable system Low maintenance, low friction belt drive slat system Rear station of trailer roller conveyor cleaning scrub/brush Full remote control belt operation
