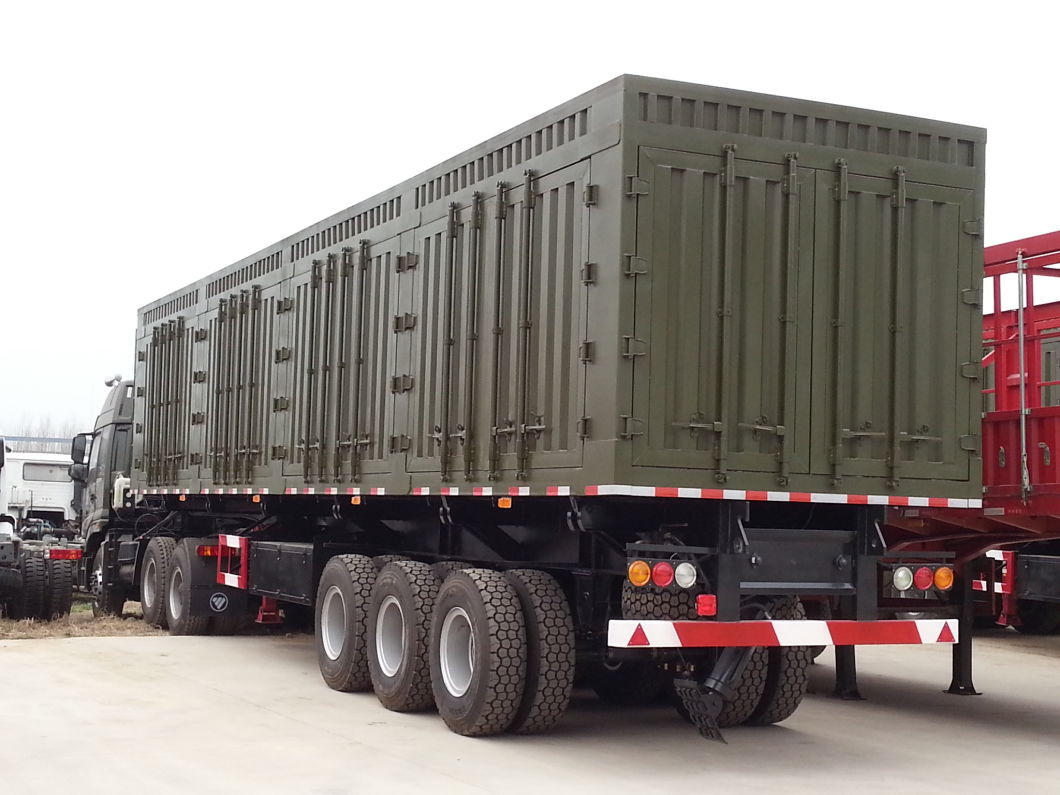

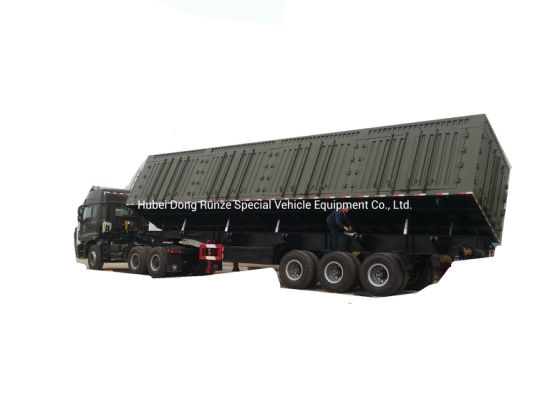

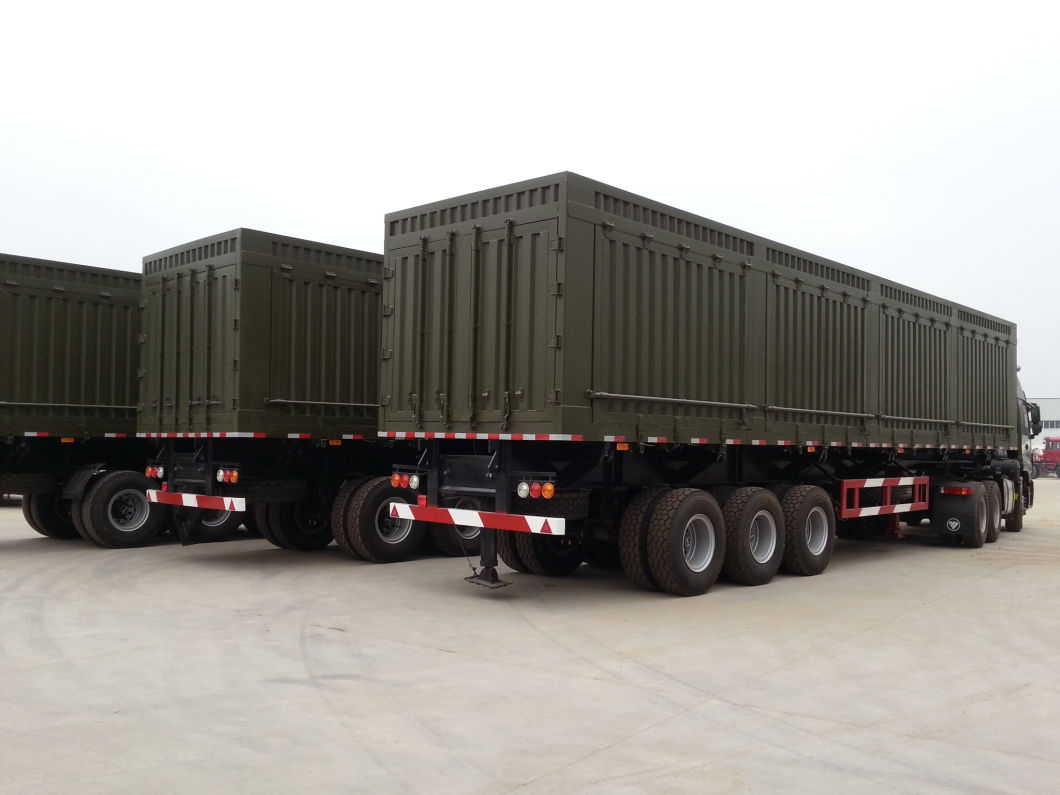

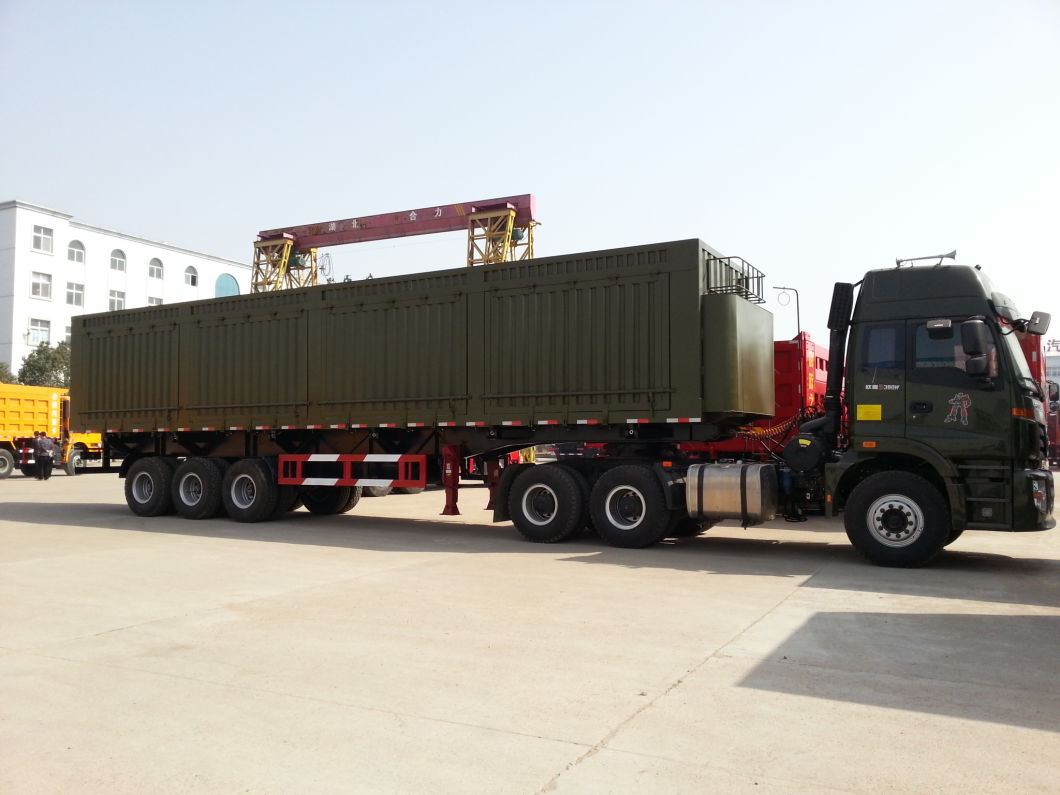

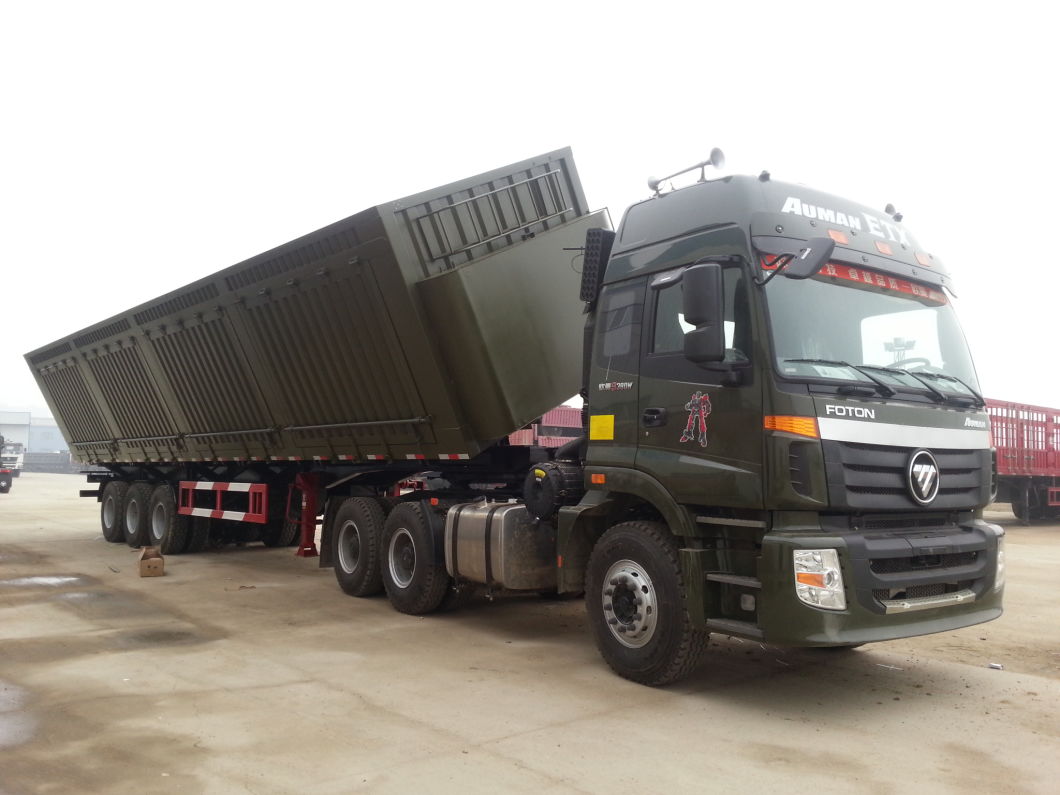

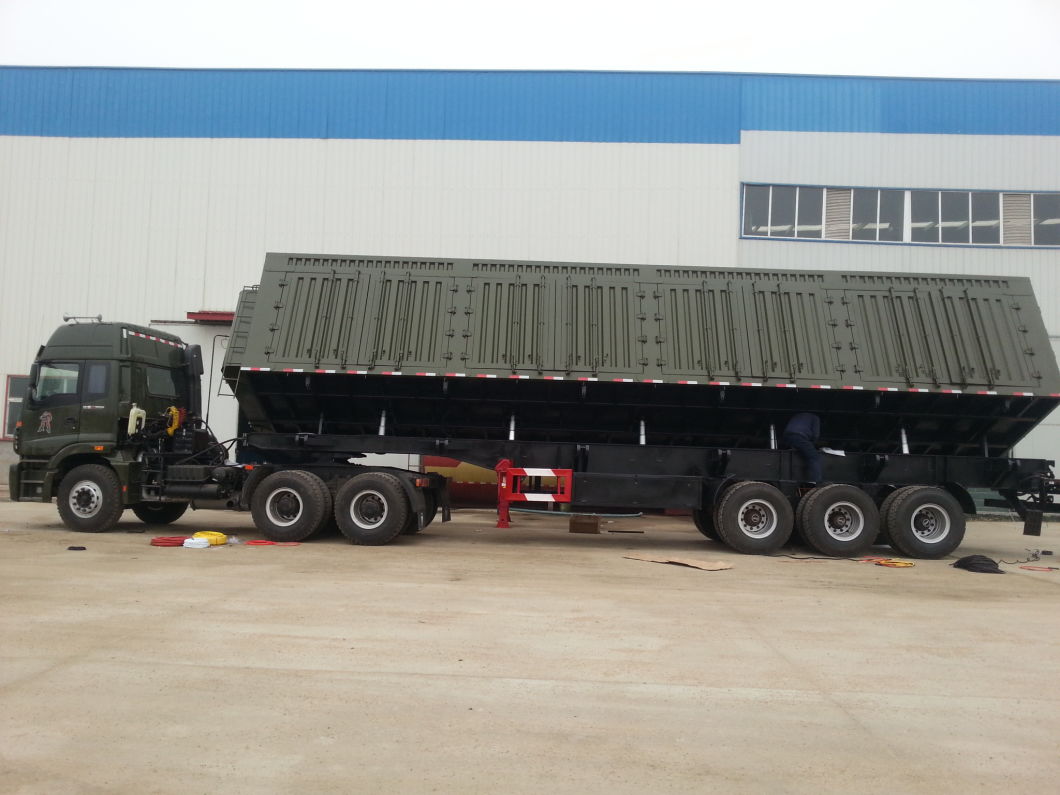

Heavy Duty 3 Axles Tipper Trailer 100ton Side Tipper
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T
Heavy Duty 3 Axles Tipper Trailer 100Ton Side Tipper
5 Axles Tipper Trailer For 90 Ton Mangenese And Bouxite Ores Transport
5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20
6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm;
+1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
6 Axles Tipper Trailer For 100 Ton Mangenese And Bauxite Ores Transport
Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale 5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20 6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm; +1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
CONTACT US
Website: www.truckinchina.com
Tech 1.
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Outside dimension(mm)
Length:13000, width:2500 height:2850
Inside dimension(mm)
Length:12850, width:2320 height:600
Gross weight(kg)40000
Tare weight(kg)8500
Loading capacity(kg)31500
Axles3 pieces,13T/piece, Fuwa brand or BPW brand
Tech 2.
60Ton U shape dumper semi-trailer
Loading capa: 60Ton
No.of axle: 3 axle,2 axle is optional.BPW,FUWA or L1
Tipper trailer Shape: U shape
Tipper body volume: 20-35CBM are available
Hydraulic cylinder: HYVA or China famous brand
3 axle tipping semi trailer truck 80ton
Loading capacity:80Tons
Tipper body bucket:35CBM
No.of axle:3 axle BPW,FUWA optional
Hydraulic cylinder:HYVA or China brand
Tire specification:12.00R22.5,Total 12 tires
Trailer suspension:Strengthen leaf spring suspension
Tech 3.
3 axle tipping semi trailer truck 80ton
Loading capacity: 80Tons
Tipper body bucket: 35CBM
No.of axle: 3 axle BPW,FUWA optional
Hydraulic cylinder: HYVA or China brand
Tire specification: 12.00R22.5,Total 12 tires
Trailer suspension: Strengthen leaf spring suspension
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 35CBM
Rated loading weight(kg): 80,000kgs
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer
Tipper load capacity: 60Ton
No of axle: 3 axle BPW,FUWA
Dump body volume: 30CBM
Hydraulic cylinder: HYVA or China brand are option
Suspension: Air suspension
Tire: 315/60R22.5,total 12 units
Tipper bucket(Tipper body) specification
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tech 3.
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tech 4.
3 axles U-shape Rear Dump Semi-trailer 24 cbm
Type | 3 axles U-shape Rear Dump Semi-trailer |
Overall dimension | 8600 * 2490 * 3370 mm |
Inside cargo box dimension | 7399*2480*1400mm |
Capacity of cargo box | 24m3 |
Main beam | Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm |
Platform thickness | 6mm |
Side wall thickness | 4mm |
Material | High-tensile Steel, T700 |
Gross vehicle weight | Approximately 8500 kgs |
Total weight | 45000 kg |
Lifting system | HYVA brand |
King pin | 90# (3,5 inch) |
Support leg | Standard 30T, SAF Holland |
Axle | FUWA brand, 3*13T |
Suspension | mechanical suspension 10pcs leaf spring |
Tire | Triangle brand, 11.00R-20, 13pcs |
Rim | 8.0-20, 13 pcs |
Brake System | 30/30 type on each axle |
Spare wheel carrier | 01 pcs |
Tool box | 01 pcs |
Electrical System | Chinese standard 24V lighting system |
Side Maker Lamp | LED lamp |
Painting | Polyurethane Paint |
60Ton U shape tipper semi-trailer 35cbm
U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.
It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.
It can combined work with different tractor head, so it improve the working efficiency than tipper truck.
U shape tipper semi-trailer specifications
Tipper body material | Carbon steel -Q235 or Q345 for tipper body 16Mn for tipper trailer chassis(frame and girden) |
Body volume(CBM) | About 35CBM |
Trailer curb weight(kg) | 11,800kgs |
Max.loading weight(kg) | 80,000kgs |
Overall dimensions(mm) | 10500×2500×3950 |
Tipper body size (mm) | 9800x2350x1800 |
Axle description | 3 axle BPW brand,each axle 16Ton load capacity |
Tire specification | Triangle brand tire,12.00R22.5,total 12 tires |
Suspension type | Strengthen leaf spring suspension |
Landing gear | JOST double action landing gear |
Kingpin specification | JOST, 2 inch(50mm) |
Electric circuit | Chinese standard 24V |
Tipper body components | |
Main frame description | Heavy duty extra durability design,high tensile steel 16Mn |
Hydraulic system | One set of HYVA hydraulic cylinder |
Tipper body volume(M3) | 35M3 |
Body thickness (mm) | Side floor:8mm,end floor:10mm,carbon steel plate |
ACCESSORIES | |
Climb Ladder | High tensive steel,ladder located at the front side |
Spare tire carrier | 1 unit |
Tools box | 1 unit tool box fixed |
TRAILER CONSTRUCTION &FIXTURE | |
Lighting | 24 Volt electrical in accordance to Chinese standard complete with Chinese's made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ''3M'' reflective tape at sides and rear |
Rear Bumper | Made of Steel,manufacture Standard |
3 axle 60Ton dumper semi trailer
Tech 5.
Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump
bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.
Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to
ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tipper bucket(Tipper body) specification
3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.
3 Axle Tipping Semi Trailer 45T Capacity Load
1. Model: DRZ9570
2. Whole Truck Dimension: 8200x2496x3300mm
3. Body Size: 7000x2300x1700mm
4. Steel Thickness of Carriage: Floor:8mm, Side:6mm
5. Axle: 3Axles, 16T
6. Tyre: 12.00R20
7. Coupling Seat Size: 3.5 inch, 90#
8. Dead Weight: 13000kg
9. Loading Capacity: 45000kg
10. Color: optional
11. One Tool Box
12. Two Spare Tires Supports
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
MODEL:DUMP Side SEMI-TRAILER
YEAR: NEW
LOAD CAPACITY: 40T, 50T, 60T,80T,100T
BUCKET VOLUME: 30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;
AXLE: FUWA AXLE 13T (16T, 20T) OPTIONP BPW AXLE (12T, 13T), ABS 2axles Bogie type trailer
TIRE: 12.00-20 TIRE OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length: 8,500mm
Overall Width: 2,500mm
Overall height: 3,900mm
RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake :Dual line pneumatic brake system
Axle: BPW axle 13,000 kg capacity. X 3PCS
Wheel: 9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire: 12R22.5 Bridgestone tyre 13 pcs
King Pin : 3 " king pin,
LANDING LEG: Jost 28T
Main beam : 500/16/10/20 Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier
China Trailer Truck Trailer Semi Trailer Tipper Trailer Heavy Duty Lowbed Semi Trailer Lowbed Truck Semi Trailer Gooseneck Lowbed Trailer Gooseneck Lowbed Semi Trailer Lowbed Trailer 3 Axles Ramp Lowbed Semi Trailer
Recommended Suppliers:
China Trailer Manufacturers Truck Trailer Manufacturers Semi Trailer Manufacturers Tipper Trailer Manufacturers Heavy Duty Lowbed Semi Trailer Manufacturers Lowbed Truck Semi Trailer Manufacturers Gooseneck Lowbed Trailer Manufacturers Gooseneck Lowbed Semi Trailer Manufacturers Lowbed Trailer 3 Axles Manufacturers Ramp Lowbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Low Trailer Wholesale Truck Semi Trailer Wholesale Heavy Semi Trailer Wholesale New Semi Trailer Wholesale Semi Trailer Door
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer.
Heavy Duty 3 Axles Tipper Trailer 100Ton Side Tipper
5 Axles Tipper Trailer For 90 Ton Mangenese And Bouxite Ores Transport
5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20
6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm;
+1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
6 Axles Tipper Trailer For 100 Ton Mangenese And Bauxite Ores Transport
Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale 5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20 6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm; +1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
CONTACT US
Website: www.truckinchina.com
Tech 1.
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Outside dimension(mm)
Length:13000, width:2500 height:2850
Inside dimension(mm)
Length:12850, width:2320 height:600
Gross weight(kg)40000
Tare weight(kg)8500
Loading capacity(kg)31500
Axles3 pieces,13T/piece, Fuwa brand or BPW brand
Tech 2.
60Ton U shape dumper semi-trailer
Loading capa: 60Ton
No.of axle: 3 axle,2 axle is optional.BPW,FUWA or L1
Tipper trailer Shape: U shape
Tipper body volume: 20-35CBM are available
Hydraulic cylinder: HYVA or China famous brand
3 axle tipping semi trailer truck 80ton
Loading capacity:80Tons
Tipper body bucket:35CBM
No.of axle:3 axle BPW,FUWA optional
Hydraulic cylinder:HYVA or China brand
Tire specification:12.00R22.5,Total 12 tires
Trailer suspension:Strengthen leaf spring suspension
Tech 3.
3 axle tipping semi trailer truck 80ton
Loading capacity: 80Tons
Tipper body bucket: 35CBM
No.of axle: 3 axle BPW,FUWA optional
Hydraulic cylinder: HYVA or China brand
Tire specification: 12.00R22.5,Total 12 tires
Trailer suspension: Strengthen leaf spring suspension
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 35CBM
Rated loading weight(kg): 80,000kgs
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer
Tipper load capacity: 60Ton
No of axle: 3 axle BPW,FUWA
Dump body volume: 30CBM
Hydraulic cylinder: HYVA or China brand are option
Suspension: Air suspension
Tire: 315/60R22.5,total 12 units
Tipper bucket(Tipper body) specification
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tech 3.
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tech 4.

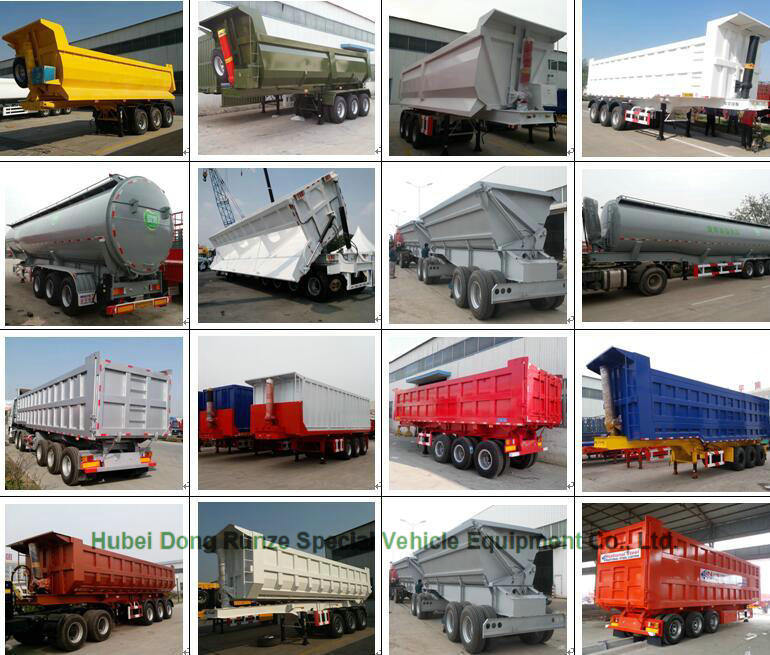

3 axles U-shape Rear Dump Semi-trailer 24 cbm
Type | 3 axles U-shape Rear Dump Semi-trailer |
Overall dimension | 8600 * 2490 * 3370 mm |
Inside cargo box dimension | 7399*2480*1400mm |
Capacity of cargo box | 24m3 |
Main beam | Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm |
Platform thickness | 6mm |
Side wall thickness | 4mm |
Material | High-tensile Steel, T700 |
Gross vehicle weight | Approximately 8500 kgs |
Total weight | 45000 kg |
Lifting system | HYVA brand |
King pin | 90# (3,5 inch) |
Support leg | Standard 30T, SAF Holland |
Axle | FUWA brand, 3*13T |
Suspension | mechanical suspension 10pcs leaf spring |
Tire | Triangle brand, 11.00R-20, 13pcs |
Rim | 8.0-20, 13 pcs |
Brake System | 30/30 type on each axle |
Spare wheel carrier | 01 pcs |
Tool box | 01 pcs |
Electrical System | Chinese standard 24V lighting system |
Side Maker Lamp | LED lamp |
Painting | Polyurethane Paint |

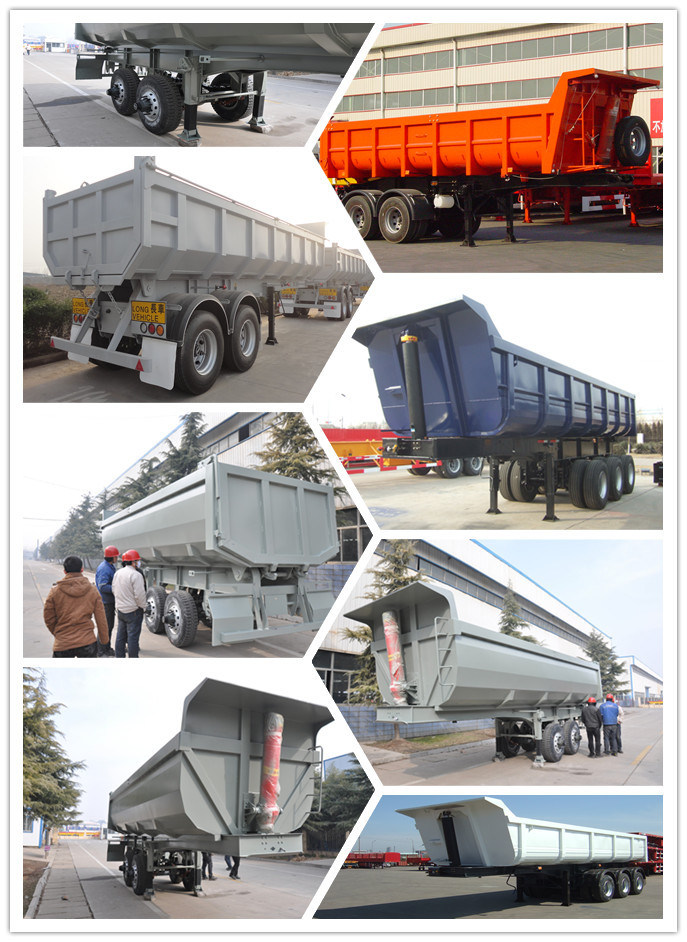

60Ton U shape tipper semi-trailer 35cbm
U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.
It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.
It can combined work with different tractor head, so it improve the working efficiency than tipper truck.
U shape tipper semi-trailer specifications
Tipper body material | Carbon steel -Q235 or Q345 for tipper body 16Mn for tipper trailer chassis(frame and girden) |
Body volume(CBM) | About 35CBM |
Trailer curb weight(kg) | 11,800kgs |
Max.loading weight(kg) | 80,000kgs |
Overall dimensions(mm) | 10500×2500×3950 |
Tipper body size (mm) | 9800x2350x1800 |
Axle description | 3 axle BPW brand,each axle 16Ton load capacity |
Tire specification | Triangle brand tire,12.00R22.5,total 12 tires |
Suspension type | Strengthen leaf spring suspension |
Landing gear | JOST double action landing gear |
Kingpin specification | JOST, 2 inch(50mm) |
Electric circuit | Chinese standard 24V |
Tipper body components | |
Main frame description | Heavy duty extra durability design,high tensile steel 16Mn |
Hydraulic system | One set of HYVA hydraulic cylinder |
Tipper body volume(M3) | 35M3 |
Body thickness (mm) | Side floor:8mm,end floor:10mm,carbon steel plate |
ACCESSORIES | |
Climb Ladder | High tensive steel,ladder located at the front side |
Spare tire carrier | 1 unit |
Tools box | 1 unit tool box fixed |
TRAILER CONSTRUCTION &FIXTURE | |
Lighting | 24 Volt electrical in accordance to Chinese standard complete with Chinese's made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ''3M'' reflective tape at sides and rear |
Rear Bumper | Made of Steel,manufacture Standard |
3 axle 60Ton dumper semi trailer
Tech 5.
Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump
bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.
Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to
ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.
Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis
Tipper body volume(CBM): About 30CBM
Rated loading weight(kg): 60,000kgs
Tipper body dimension(mm): 8800x2350x1800
Tipper body hydraulic lifter: HYVA
Tipper body thickness: Side floor:8mm,end floor:10mm
Tipper trailer chassis specification
Axle: 3 axle FUWA 16Ton
Suspension: Air suspension
Landing gear: JOST double action
Kingpin: JOST 50# or 90#
Tipper bucket(Tipper body) specification
3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.
3 Axle Tipping Semi Trailer 45T Capacity Load
1. Model: DRZ9570
2. Whole Truck Dimension: 8200x2496x3300mm
3. Body Size: 7000x2300x1700mm
4. Steel Thickness of Carriage: Floor:8mm, Side:6mm
5. Axle: 3Axles, 16T
6. Tyre: 12.00R20
7. Coupling Seat Size: 3.5 inch, 90#
8. Dead Weight: 13000kg
9. Loading Capacity: 45000kg
10. Color: optional
11. One Tool Box
12. Two Spare Tires Supports
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

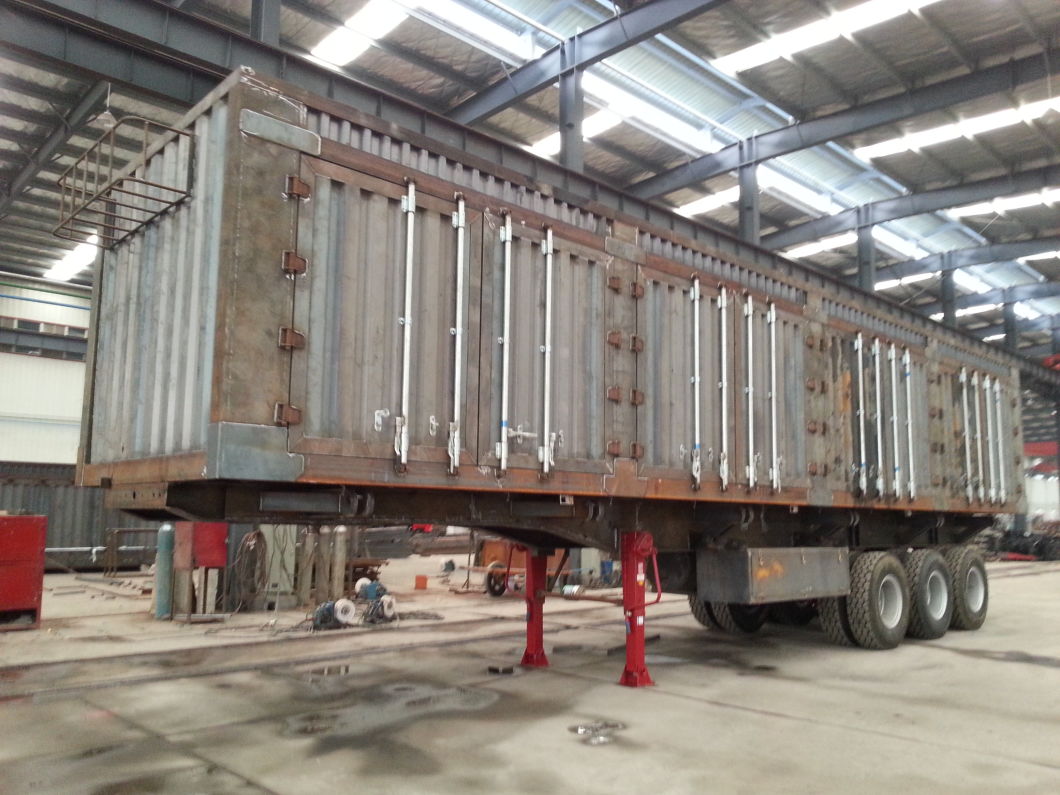

MODEL:DUMP Side SEMI-TRAILER
YEAR: NEW
LOAD CAPACITY: 40T, 50T, 60T,80T,100T
BUCKET VOLUME: 30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;
AXLE: FUWA AXLE 13T (16T, 20T) OPTIONP BPW AXLE (12T, 13T), ABS 2axles Bogie type trailer
TIRE: 12.00-20 TIRE OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length: 8,500mm
Overall Width: 2,500mm
Overall height: 3,900mm
RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake :Dual line pneumatic brake system
Axle: BPW axle 13,000 kg capacity. X 3PCS
Wheel: 9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire: 12R22.5 Bridgestone tyre 13 pcs
King Pin : 3 " king pin,
LANDING LEG: Jost 28T
Main beam : 500/16/10/20 Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier
China Trailer Truck Trailer Semi Trailer Tipper Trailer Heavy Duty Lowbed Semi Trailer Lowbed Truck Semi Trailer Gooseneck Lowbed Trailer Gooseneck Lowbed Semi Trailer Lowbed Trailer 3 Axles Ramp Lowbed Semi Trailer
Recommended Suppliers:
China Trailer Manufacturers Truck Trailer Manufacturers Semi Trailer Manufacturers Tipper Trailer Manufacturers Heavy Duty Lowbed Semi Trailer Manufacturers Lowbed Truck Semi Trailer Manufacturers Gooseneck Lowbed Trailer Manufacturers Gooseneck Lowbed Semi Trailer Manufacturers Lowbed Trailer 3 Axles Manufacturers Ramp Lowbed Semi Trailer Manufacturers
Hot Wholesale Products:
Wholesale Semi Trailer Parts Wholesale Low Trailer Wholesale Truck Semi Trailer Wholesale Heavy Semi Trailer Wholesale New Semi Trailer Wholesale Semi Trailer Door
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4 Wheels Mini Dump Drawbar Full Towing Dolly Trailer.
