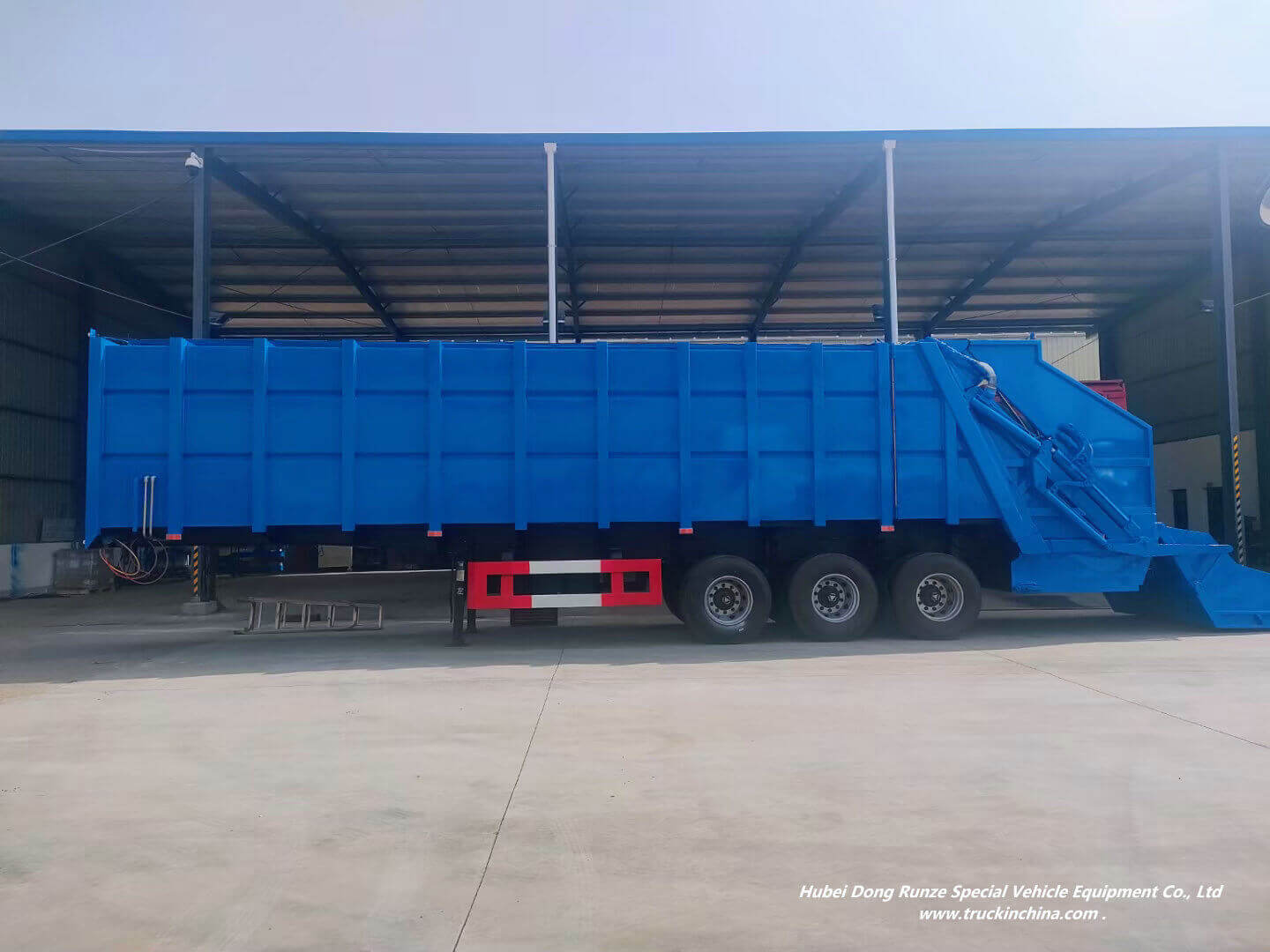

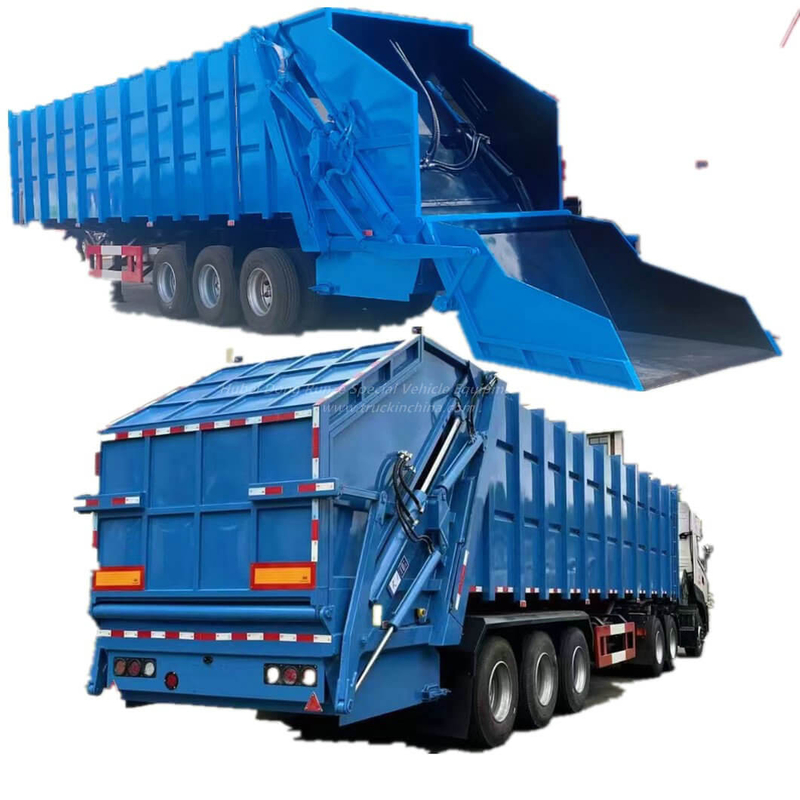

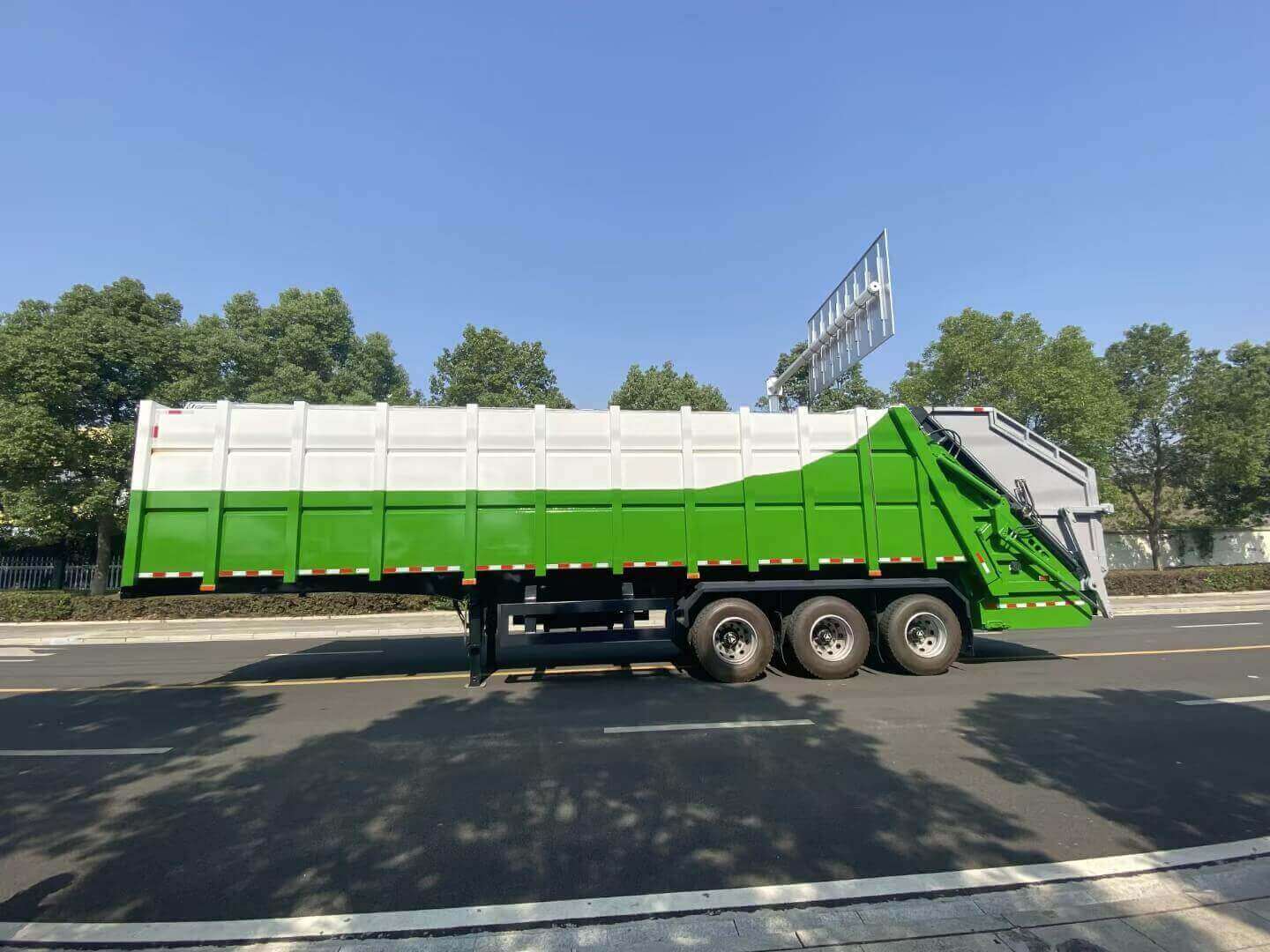

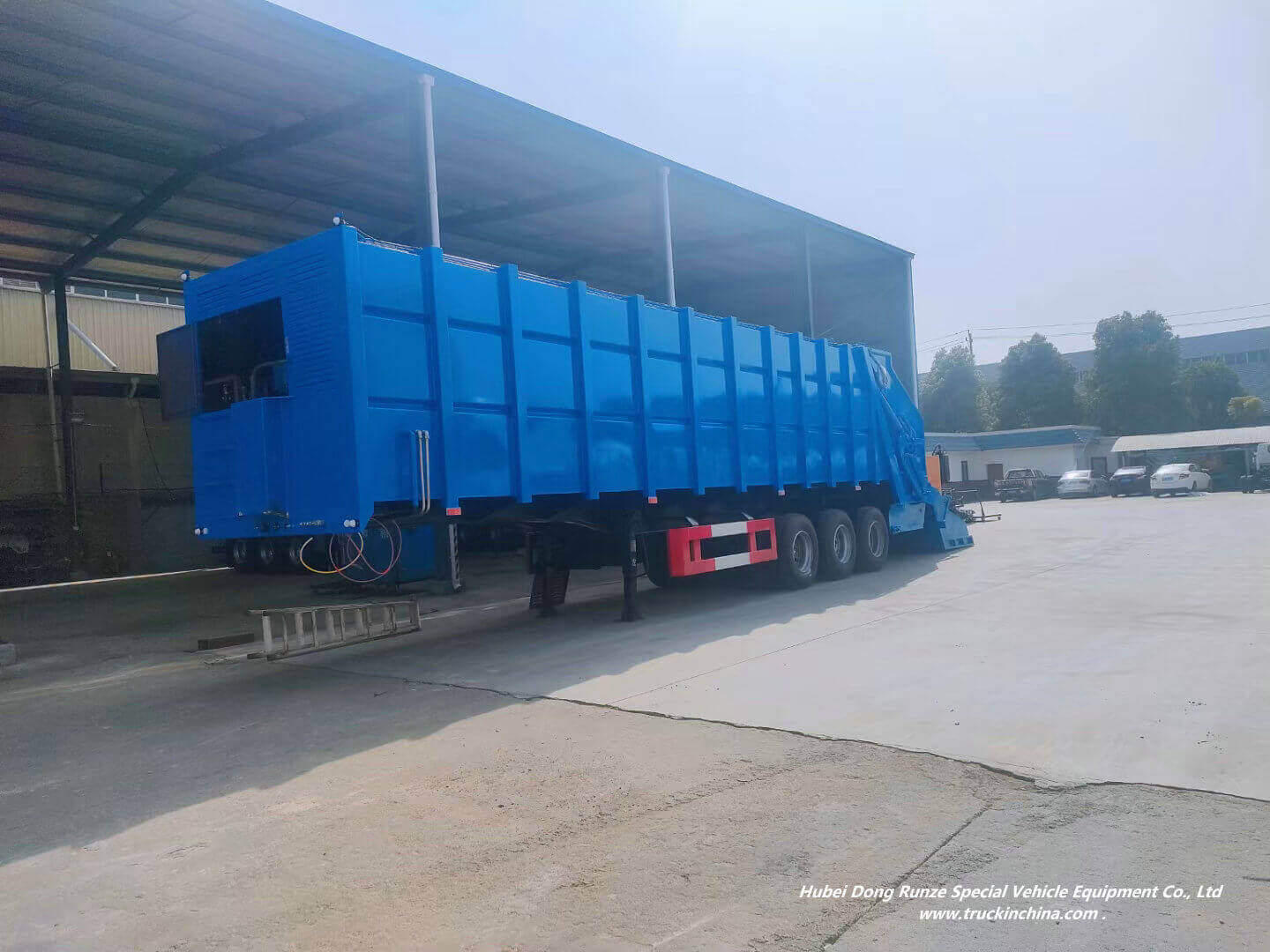

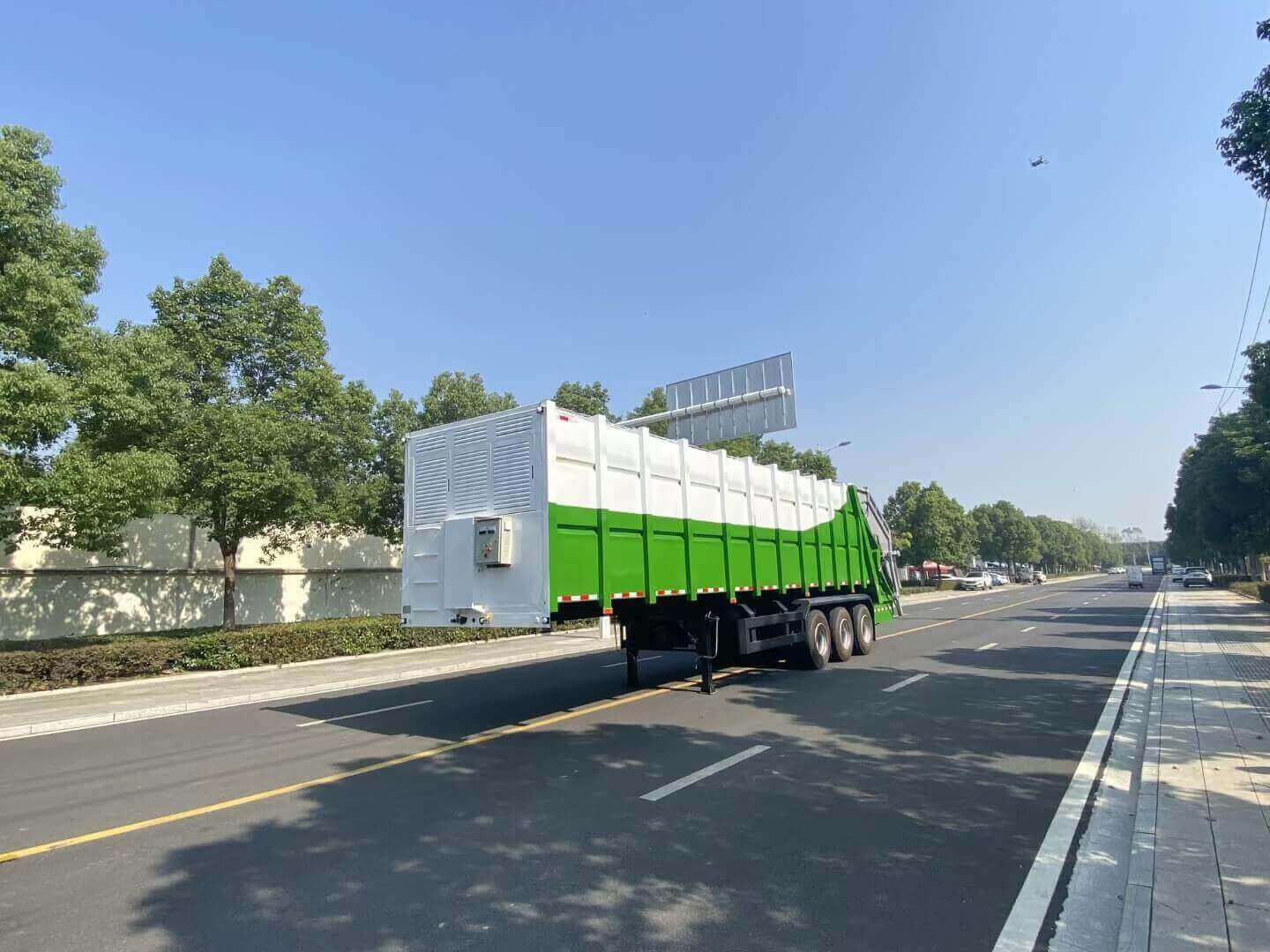

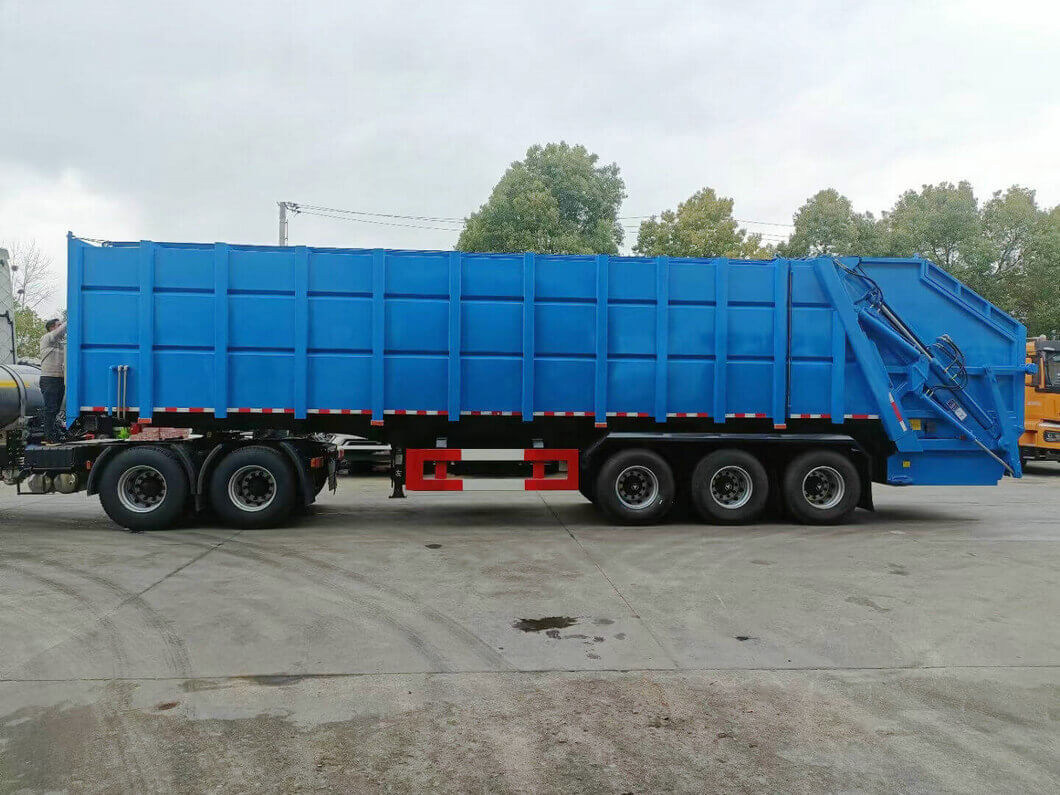

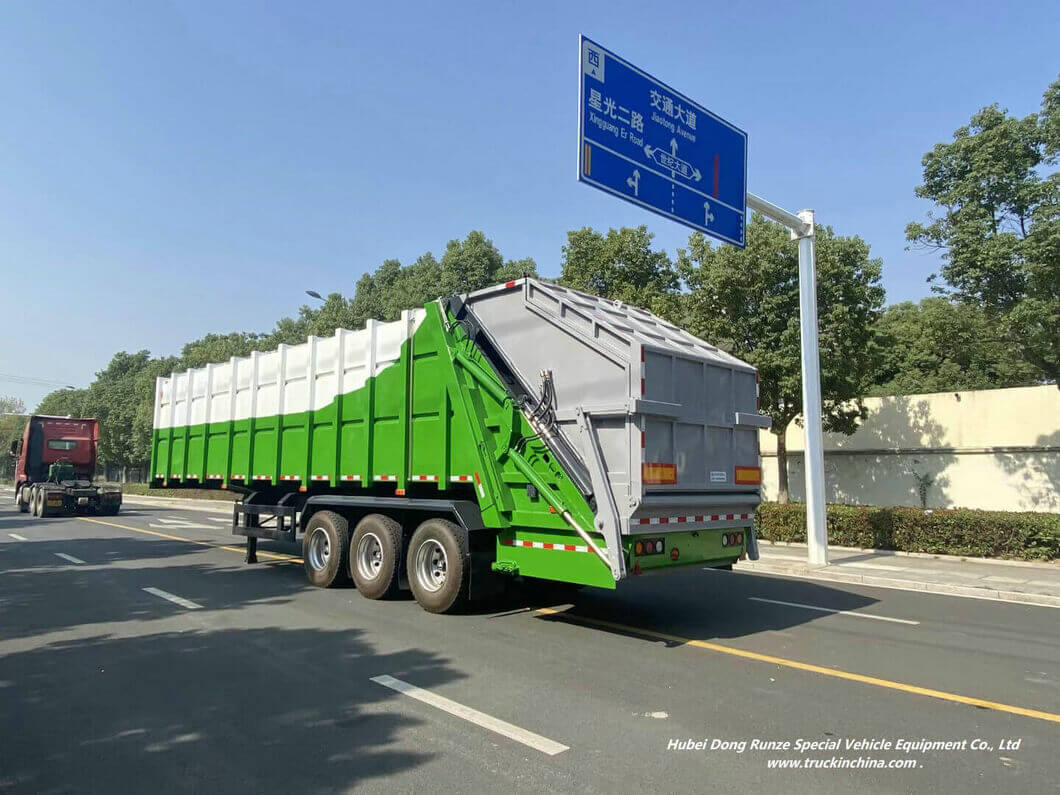

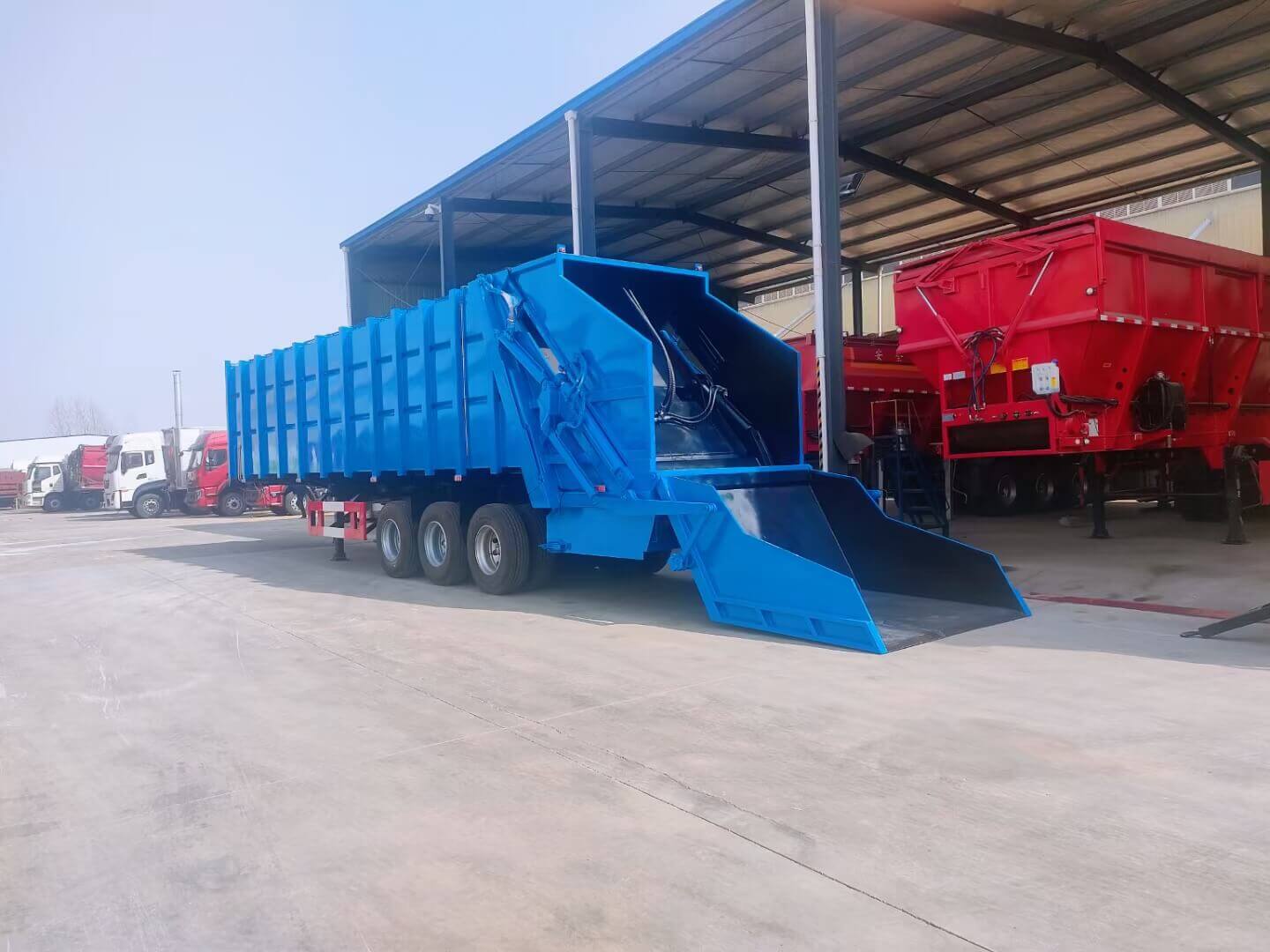

45 CBM Tri-Axles Compressed Garbage Semi Trailer
45 CBM Tri-Axles Compressed Garbage Semi Trailer
Customizing Customizing 32 -40Tonn Compression Discharge Solid Waste / Garbage / Refuse Compress Transfer Semi Trailer 45~50m3 ( 3 FUWA Axles)
With Double Discharge Systerm By PTO or 380V Electric Power
Operation system: PLC or CAN
Customizing Customizing 32 -40Tonn Compression Discharge Solid Waste / Garbage / Refuse Compress Transfer Semi Trailer 45~50m3 ( 3 FUWA Axles)
With Double Discharge Systerm By PTO or 380V Electric Power
Operation system: PLC or CAN
Price: $ 58000
Discount Price: $ 50000
| Quantity: | |
|---|---|
|
| |
- 8716399000
45 CBM Tri-Axles Compressed Garbage Semi Trailer
Customizing Customizing 32 -40Tonn Compression Discharge Solid Waste / Garbage / Refuse Compress Transfer Semi Trailer 45~50m3 ( 3 FUWA Axles)
With Double Discharge Systerm By PTO or 380V Electric Power
| Refuse Trailers For Sale Chassis | Chassis Axles brand | FUWA, BPW,L1... | ||||
| Overall dimension(L*W*H) | 13200/13500x2500/2550x 3680/3850mm | |||||
| Drive modle | 3 Axles | |||||
| Wheel Base | 5880+1310+1310mm | |||||
| Tyre size & number | 12R22.5, with one spare tyre | |||||
| Compressed Garbage (Trash) Transfer Semi Trailer Garbage BIN | Volume | 42~52m3 Solid Waste / Garbage / Refuse | ||||
| Thickness | Side :5mm ; Bottom:5mm | |||||
| Material | Carbon steel,inner epoxy anticorrosive | |||||
| Electric system | CAN electric automatic control | |||||
| Function | This product was designed to reduce fuel costs for a greener environment, the idea is that standard waste managment trucks will collect waste and meet our compressed waste management container in a station where our container will collect the waste and compress it and than continue to the dump sight therefore will reduce number of vehicles and total mileage which in relation will reduce fuel costs and create a greener enviroment. Our trucks are sealed with acid resistant seals for a liquid and solid leak proofing. Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket. The rear bucket can be according to your requests. | |||||
Compression Discharge Solid Waste / Garbage With compressed discharge system, semitrailer capacity could be up to 45- 60 cubic meter. For more volume (up to 90 m3), we could offer with our sliding / moving floor waste /garbage transfer system design
42 -52 cbm compressed garbage semi-trailer
| Parameter of vehicle | GVW | kg | 18500 |
| Maximum loading weight | kg | 40000 | |
| Rated loading weight | kg | 21500 | |
| Dimensions(L×W×H)(without tractor) | mm | 13490,13400×2530×3860,3890 | |
| Dimensions(L×W×H)(including tractor) | mm | 16850×2530×3860 | |
| Minimum ground clearance | mm | 300 | |
| Approach / departure angle | ° | 18/10 | |
| Performance of vehicle | Compression cycle time | s | ≤25 |
| Unloading cycle time | s | ≤140 | |
| System pressure | MPa | 18(big pump),21(small pump) | |
| Effective volume of trash can | m3 | 42 | |
| Filling hopper inlet width | mm | 2300 | |
| External power supply | kW | ≥95 | |
| External power supply voltage | V | 380 | |
| Discharge door height | m | ≥6.2 | |
| Tire and rear wall width when unloading | m | ≥4 | |
| Unloading platform width | m | ≥26 | |
| maximum design speed | km/h | 90 | |
| Maximum climbing gradient | % | 8 | |
| Minimum turning radius | m | 15 | |
| Weigh scale range | t | ≥60 | |
| length | m | ≥13.5 |
