4*4 Oil Diesel Bowser
Dongfeng 4x4 ALL Wheel Drive Diesel Road Tanker Truck for Diesel Transportation With PTO Fuel Pump 10-12CBM 190HP
Vehicle Model | DRZ5162GYYE4X4 | Vehicle Brand | DRZE |
Overall dimensions | 8500X2470X3040mm | Curb weight | 7900kg |
Tank dimensions | 5500×2250×1350mm | Tank volume | 12000L |
Chassis parameters | |||||
Chassis model | EQ5162GLJ | Chassis brand | DONGFENG | ||
Overall dimensions | 8200 x 2470x 2850mm | Wheel base | 4500mm | ||
Front/rear wheel track | 1940/1860mm | Front/rear suspension | 1250/2450 mm | ||
Approach/departure angle | 25/18° | Maximum speed | 88km/h | ||
Chassis Manufacturer | Dongfeng Motor Company | ||||
Cab | Configuration | A row and a half deluxe cab(with sleeping berth),allowable 3 passengers | |||
Color | Blue,other color is optional | ||||
Engine | Model | B190 33 | |||
Emission | Euro 3 | ||||
Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 190hp,rated power speed 2500rpm | ||||
Displacement | 5900ml | ||||
Max.torque | 640N.m | ||||
Bore x stroke | 102x120mm | ||||
Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||||
Tire | Size | 10.00R20 steel wire tire | |||
Number | 6+1 nos | ||||
Frame | 250(7+5)mm, parts are double layers. | ||||
Fuel tank | 200L,steel | ||||
Front axle | 4.5T drive axle | ||||
Rear axle | 10.0T | ||||
Drive form | 4X4 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 8 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | |||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Fuel tank structure parameters | ||||
Tank dimensions | 5500×2250×1350mm | Tank volume | 12000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |

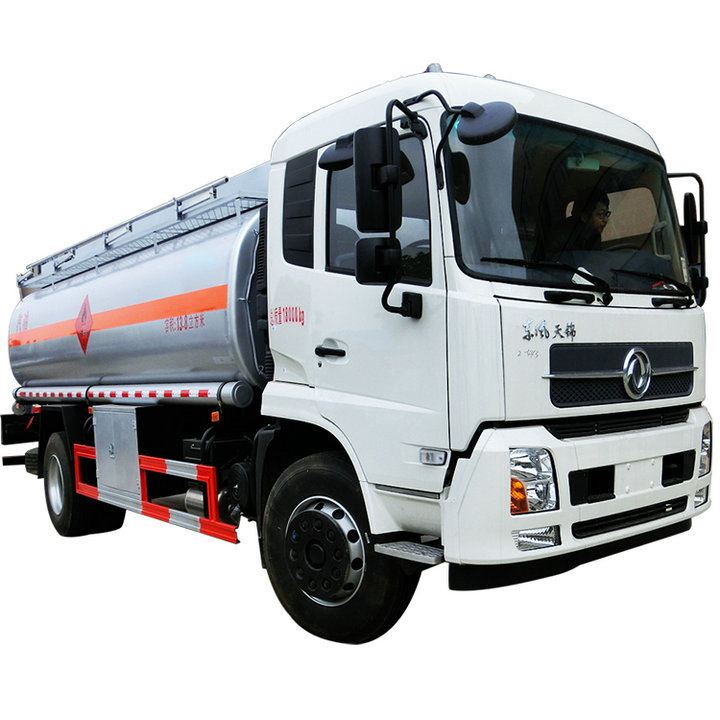

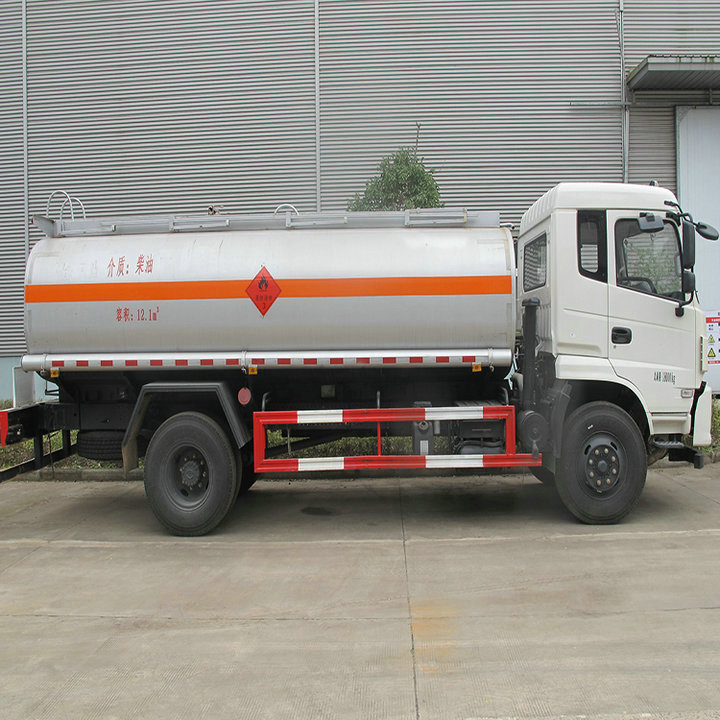

Truck Photo show:
4x4 Full Wheel Drive Oil Tanker Truck Capacity 10CBM 190HP
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
DFAC Aluminium Alloy Oil Liquid Tank Truck 28000 - 32000L Loading Capacity
IVECO 21000 Liters Fuel Delivery Trucks , Petrol Tank Truck With Diesel Engine
Forland Transport Liquid Tank Truck / Mobile Refueling Truck 3000L-4000L
FAW 8X4 Aluminum Road Liquid Tank Truck For Fuel Transportation 30000L
FOTON Petroleum Oil / Gasoline Delivery Truck , Crude Oil Tanker Truck 32000L
4*4 Oil Diesel Bowser
Dongfeng 4x4 ALL Wheel Drive Diesel Road Tanker Truck for Diesel Transportation With PTO Fuel Pump 10-12CBM 190HP
Vehicle Model | DRZ5162GYYE4X4 | Vehicle Brand | DRZE |
Overall dimensions | 8500X2470X3040mm | Curb weight | 7900kg |
Tank dimensions | 5500×2250×1350mm | Tank volume | 12000L |
Chassis parameters | |||||
Chassis model | EQ5162GLJ | Chassis brand | DONGFENG | ||
Overall dimensions | 8200 x 2470x 2850mm | Wheel base | 4500mm | ||
Front/rear wheel track | 1940/1860mm | Front/rear suspension | 1250/2450 mm | ||
Approach/departure angle | 25/18° | Maximum speed | 88km/h | ||
Chassis Manufacturer | Dongfeng Motor Company | ||||
Cab | Configuration | A row and a half deluxe cab(with sleeping berth),allowable 3 passengers | |||
Color | Blue,other color is optional | ||||
Engine | Model | B190 33 | |||
Emission | Euro 3 | ||||
Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
Rated power | 190hp,rated power speed 2500rpm | ||||
Displacement | 5900ml | ||||
Max.torque | 640N.m | ||||
Bore x stroke | 102x120mm | ||||
Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||||
Tire | Size | 10.00R20 steel wire tire | |||
Number | 6+1 nos | ||||
Frame | 250(7+5)mm, parts are double layers. | ||||
Fuel tank | 200L,steel | ||||
Front axle | 4.5T drive axle | ||||
Rear axle | 10.0T | ||||
Drive form | 4X4 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 8 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selective configuration | |||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Fuel tank structure parameters | ||||
Tank dimensions | 5500×2250×1350mm | Tank volume | 12000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |
Truck Photo show:
4x4 Full Wheel Drive Oil Tanker Truck Capacity 10CBM 190HP
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
DFAC Aluminium Alloy Oil Liquid Tank Truck 28000 - 32000L Loading Capacity
IVECO 21000 Liters Fuel Delivery Trucks , Petrol Tank Truck With Diesel Engine
Forland Transport Liquid Tank Truck / Mobile Refueling Truck 3000L-4000L
FAW 8X4 Aluminum Road Liquid Tank Truck For Fuel Transportation 30000L
FOTON Petroleum Oil / Gasoline Delivery Truck , Crude Oil Tanker Truck 32000L
15,000 Litres (4,000 Gallons) Diesel Bowser, Truck Tank Fuel, Petrol Delivery
Fuel Tanker Dongfeng ( 15,000 Litres ) | ||
General | Vehicle Brand | DRZ |
Chassis Brand | Dongfeng | |
Overall Dimension | 8800 * 2480 * 2950 mm | |
GVW / Kerb Weight | 1,600 kg / 6,505 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | Cummins engine | |
Power | 180 Ps (132 KW) | |
Displacement | 4500 ml | |
Emission Standard | Euro III | |
Chassis | Drive Type | 4X2, left or right hand drive |
Transmission | 6-speed front, 1 reverse | |
Wheelbase/No. of axle | 4700 mm / 2 | |
Tyre Specification | 9.00-20 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 15,000 Litres ( About 4,000 gallons) |
Tank Material | Carbon steel | |
Pump | Fuel pump equipped for overhead delivery | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… |
shipping parking
1, attached parts and tools put into standard export box.
2, Oil Tank Truck will be cleaned and covered with wax before delivery.
3, Oil Tank Truck will be covered by waterproof cloth at the departure port.
4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.
5,some small Oil Tank Truck can be put into container according to its overall dimensions.
