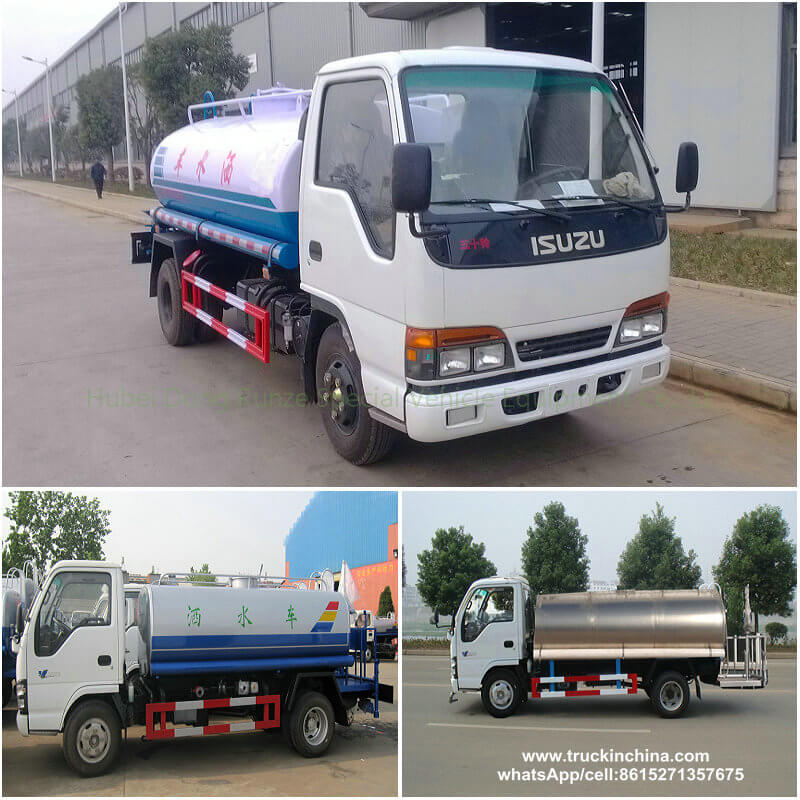

Isuzu 100P 4x2 Water Sprinkler Vehicle 5000L stainless steel tank 98HP

Isuzu 100P 4x2 Water Sprinkler Vehicle 5000L stainless steel tank 98HP
Overall dimensions 5990X1870X2250mm Curb weight 2220kg
Tank dimensions 3300×1750×1140mm Tank volume 5000L
Price: $ 20200  -  99900
Discount Price: $ 18000  -  89000
FOB:
Availability:
Quantity:

  • DRZ5050GSSQ

  • ISUZU

  • 8705909990

Isuzu 100P 4x2 Water Sprinkler Vehicle 5000L stainless steel tank 98HP

Hot sale ISUZU watercart truck 4000L_1.jpg

ISUZU 5000L stainless steel tanker truck 5.jpgWater Truck structure_1

ISUZU 4000L-6000L water tank for sale

Isuzu stainless water Truck 6000L- Isuzu water-Spraying Tru_0001Hot sale ISUZU water trucks_7000L


ISUZU dust control water truck 50-120M

multifunctional dust suppresion truck
Dust control truck water tanker with Fan pump sprinkler pump Range up to ≥ 48 M   mobile dust control solution.
Truck mounted power sprayers for Pest, Weed, Termite Control, Landscape & fertilizer spray rigs

ISUZU dust control water truc-21T ISUZU dust control water_1ISUZU dust control water truc-11T ISUZU dust control water_1ISUZU dust control water truc-25T ISUZU dust control water_1ISUZU dust control water truc-27T ISUZU dust control water_1ISUZU dust control water truc-28T ISUZU dust control water_1ISUZU dust control water truc-29T ISUZU dust control water_1

Isuzu 100P 4x2 Water Sprinkler Vehicle 5000L stainless steel tank 98HP

Overall dimensions 5990X1870X2250mm Curb weight 2220kg
Tank dimensions 3300×1750×1140mm Tank volume 5000L

Chassis parameters
Chassis model QL10503HARY Chassis brand ISUZU
Overall dimensions 5900x1860x2180mm Wheel base 3360mm
Front/rear wheel track 1385/1425mm Front/rear suspension 1015/1525mm
Approach/departure angle 24/16° Maximum speed 98km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd
Cab Configuration 100P ,single row cab, allowable 3 passengers, air conditioner, USB radio interface.
Color White, other color is optional
Engine Model 4JB1CN
Emission Euro 4
Type 4 cylinders, in-line, diesel engine
Rated power 98hp
Displacement 2771ml
Manufacturer Isuzu (ChongQing) Engine Co., LTD
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Frame 172X65(4)mm
Front axle 2.5 tons
Rear axle 3.0-4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire of small tonnage 700-15 and big tonnage 700-16
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 3300×1750×1140mm Tank volume 5000L
Tank material stainless steel Tank thickness 4mm or carbon steel
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

ISUZU 4000L-6000L water tank for sale

Overall dimensions 7250X2300X2350mm Curb weight 3510kg
Tank dimensions 3470×2250×1140mm Tank volume 6000L
Chassis parameters
Chassis model QL1070A1KAY Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 3815mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 600P,single row cab, allowable 2 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White, other color is optional
Engine Model 4KH1-TCG40
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 120hp,rated power speed 3400rpm
Displacement 2999ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 3470×2250×1140mm Tank volume 6000L
Tank material Carbon steel /stainless steelTank thickness 4/5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank, Insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.



Dust control truck water tanker with Fan pump

 4x2, 4x4, 6x4, 6x6, 8x4 Pesticide Truck for your selection, LHD and RHD cabin are both available.


Tanker mobile dust control solution.

Material       Steel

Thickness of shell      4 ,5,6mm

Thickness of dish       5,6mm

Inside baffles         3mm

Compartments         1 compartments

Volume             5000L to 12000L+ 5% expansion

Option:            Water Pump, Sprinkler ,fine water mist /fog pump cannon


ISUZU FVZ

FVZ  EUR 4

25T  6*4

QL1250DPFZ

QL1250DRFZ

QL1250DTFZ QL1250DAFZY  QL1250DNFZY  QL1250DPFZY  QL1250DQFZY  QL1250DRFZY  QL1250DSFZY  QL1250DTFZY

6HK1-TCSG40  300HP



 FVZ   chassis   with 300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission / air conditioning / 7 tons front axle, rear axle 18 tons and mounted biaxial /    optional tire 1000-20,1000R20, 1100-20, 1100R20   / standard direction of power / central locking / electric windows / steam brake / USB Interface audio / cab frame // flip-section: 258 * 85 * 10 + 4mm

4000+1300 4350+1300 4650+1300 4900+1300 5100+1300 5400+1300 5700+1300

 ISUZU FTR

FTR  EUR 4

Rate loading 7-8 T 4*2

QL11409TKFR

4HK1-TCG40 190HP 4strock

FTR  with 190 horsepower Isuzu engine 4HK1-TCG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t /   optional tire 900-20, 900R20 tires,   1000-20,   1000R20 tire / standard direction of power / central locking / electric windows / steam brake / USB audio / spacious cab flip / frame cross-section: 258 * 85 * 10 + 4mm

3900


7-8 T 4*2

QL11409TMFR


4500


7-8 T 4*2

QL11409TAFRY


4700


7-8 T 4*2

QL11409TNFR


5000


7-8 T 4*2

QL11409TQFR


5550


7-8 T 4*2

QL51409TRFR


5800


8-10T  4*2

QL11609KFRY


3900


8-10T  4*2

QL11609MFRY


4500


8-10T  4*2

QL11609AFRY


4700


8-10T  4*2

QL11609NFRY


5000


8-10T  4*2

QL11609QFRY


5550


8-10T  4*2

QL5160XXY9RFRY


5800


ISUZU FVR

FVR  EUR 4

 G.W 15~16T  4*2

Rate loading

9~10T

QL1150AKFR

QL1150AMFR

QL1150AQFR QL1160AKFRY  QL1160AMFRY  QL1160AAFRY  QL1160ANFRY

QL1160AQFRY

QL5160XXYAQFR  QL5160XXYARFR

6HK1-TCNG40 - 240HP  6strock



FVR chassis  with 240-horsepower Isuzu engine 6HK1-TCNG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t /Optional  1000-20 ,1000R20 , 1100-20,1100R20   / standard direction of power / central locking / electric windows / steam brake / USB audio / cab flip / frame cross-section: 258 * 85 * 10 + 4mm

Wheelbase

3900

4500

4700

5000

5550

5800

FVR  EUR 4

19T  G.W 4x2 Rate loading

9~10T

QL5190GXFDMFRY

6HK1-TCSG40  300HP



300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission, 1100R20 tire, the remaining configuration with the above FVR

4500


 Our  water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.

fog cannon option list

100M

80M

60M

50M

110-180 L/min

60-118 L/min

60-85 L/min

42-52 L/min

2.0-4.0 MPa

2.0-3.5 MPa

2.0-3.5 MPa

1.5-3.5 MPa

50-200um

50-200um

50-200um

50-150um

1450 Pa

1300 Pa

1080 Pa

1080 Pa

3050㎡/min

1800㎡/min

990㎡/min

990㎡/min

360°

359°

±320°

-0°~280°

-10°~55°

-10°~55°

-10°~55°

-10°~55°

120KW

100KW

50KW

30KW

 Our water tank series:

 -----water tanker truck

 -----sanitation water tank truck

 -----sprinkler truck

 -----water wagon truck

 -----insulation water tank truck

 -----pesticide sprinkling truck

 -----water spraying truck

 -----Mild steel water tank cart

 -----Stainless steel tank water truck

 -----Aluminum alloy water tanker

 -----RHD watering cart

 -----Water tank semi trailer

 -----Storage water tanker
