HOWO 4x4 4x2 Chassis Off Road Tanker Truck <Custom LHD RHD>
| Quantity: | |
|---|---|
HOWO 4x2 chassis off road tanker <Custom LHD RHD> HOWO 4*4 Off Road tanker truck
HOWO 4x4 4x2 chassis off road tanker <Custom LHD RHD> Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

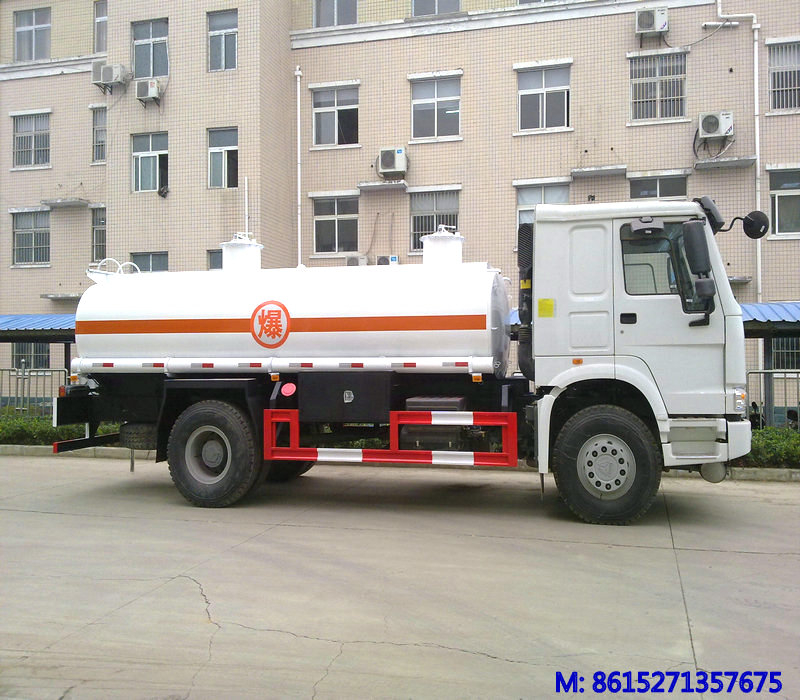

howo 4x2 oil tanker truck
| Sales code | 5161G | |
| Truck name | fuel tanker | |
| Size parameters | Dimension(length×width×height)(mm) | 8270×2470×2880 |
| Wheelbase(mm) | 4700 | |
| Front overhang/rear overhang(mm) | 1250/2320 | |
| Approach angle/departure angle° | 18/16 | |
| Shell of tank dimension(length*width*height)(mm) | 5600×2200×1350 | |
| Effective cubage(m3 ) | 12.8 | |
| Weight parameters | Vehicle weight(kg) | 7670 |
| Chassis and tank weight+ loading capacity (kg) | 16000 | |
| Axle load(kg) | 6000/10000 | |
| Engine | Mode | YC6J190-20 |
| Rated engine power(kw/rpm) | 140/2500(190hp) | |
| Max.torque N.m/(r/min) | 630/1400-1700 | |
| Brake system | Service brake | Dual circuit brake |
| Park brake | Spring energy air cut biake on front shaft and rear axle | |
| other
| Max. speedkm/h | 95 |
| Tire | 10.00-20 nylon | |
| drive form | 4×2 | |
| Max.gradeability(%) | 32 | |
| Remark: the oil pump type belt (F) represents the relief valve. Generally used the tanker with fuel truck nozzle | ||
HOWO 4*4 Off Road tanker truck
| Vehicle model | HOWO 4x4 Off Road Fuel Truck |
| Chassis model | ZZ2167M4327C1, HW7/300/043/4*4W |
| Total weight kg | 16000 |
| Kerb weight kg | 7950 |
| Rated loding weight kg | 4000 |
| Cab | HW76 long cab with one sleeper, air conditioner, with Super-large LCD screen, large area of windshield glass, heating system, adjustable seat, two-speed wiper and glass washer, sun visor, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers with transverse stabilizer. |
| Engine | Make: SINOTRUK Diesel: 4 stroke direct injection diesel engine Engine model: WD615.97C, 300HP Euro III emission standard 6-Cylinder in-line with water cooling, turbo-charger and intercooling Displacement: 9.726L |
| Clutch | Strengthen Φ430 C size imported diaphragm clutch |
| Transmission | HW15710C SINOTRUK 10 forward&2 reverse gearbox, Ratio: first gear: 10.73 |
| Transfer case | Model:1200,16 pulse electromagnetic sensor with differential Ratio: 1/1.75 |
| Driving axle | ST16 rear axle, single axle can load max.16T,highly improve the loading capacity of the truck |
| Front axle | STR steel-cast front steering axle, with strong structure, big loading capacity, long service life, little noise, light weight, high efficiency, low consumption of fuel, easily to get maintenance and have kept pace with the international level. |
| Steering | ZF8098 German hydraulic steering with power assistance |
| Braking system | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: exhaust brake |
| Tire | 12.00-20,No. of Tires:10+1(Spare tire) |
| Wheel base mm | 4300 |
| Maximum speed km/h | 76 |
| Whole dimension mm | 7768*2496*3110 |
| Tank dimension mm | 4700*1500*1100, the volume of the fuel van: 6 M3 |
| FOB CHINA PORT | 56800 USD/unit |
TIC TRUCKS , www.truckinchina.com
