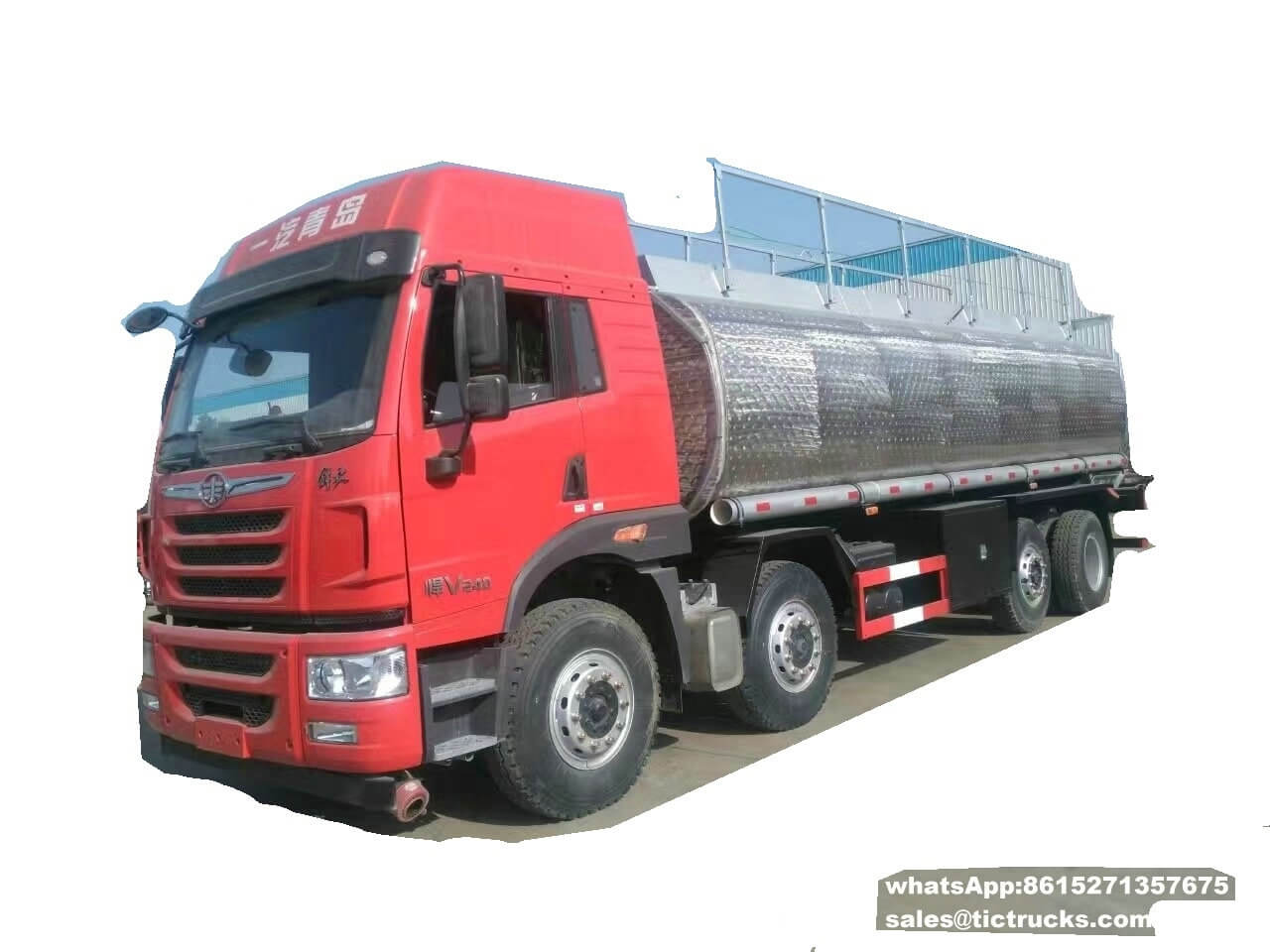

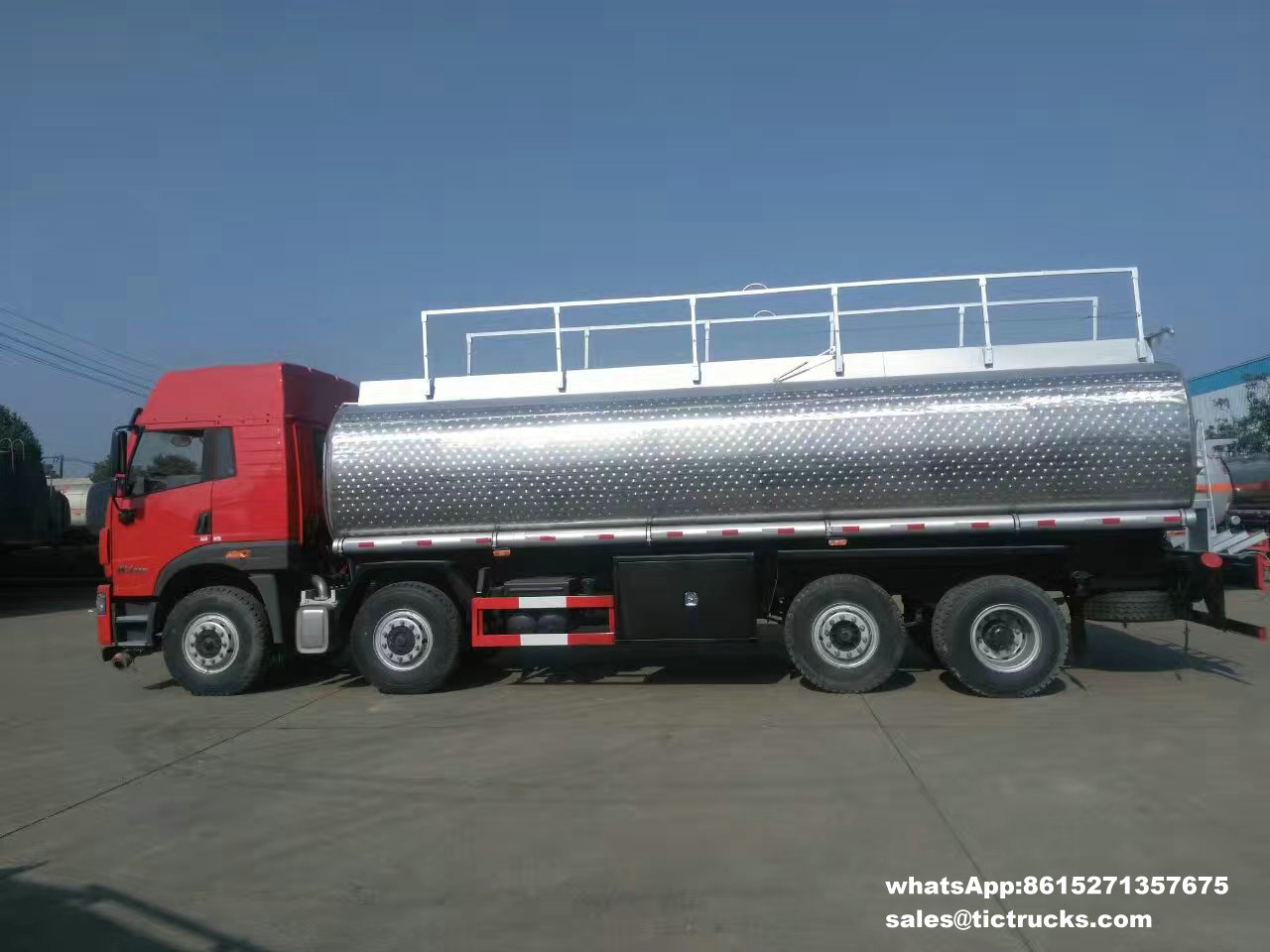

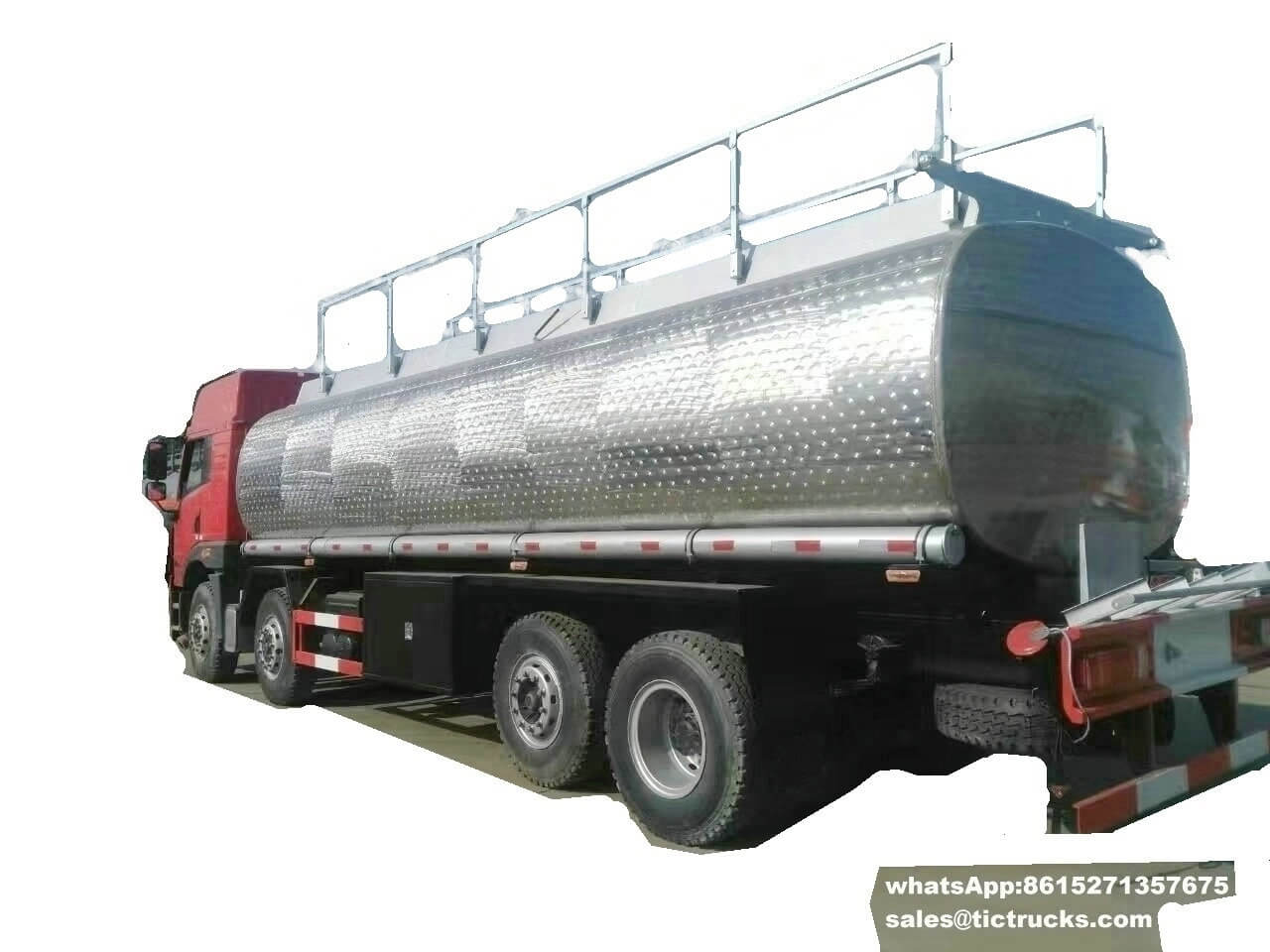

FAW stainless fuel tanker truck 28000L-33000L

Share to:

FAW stainless fuel tanker truck 28000L-33000L

FAW petroleum truck
Medium: gasoline, diesel, crude oil, chemical
6000 GALLONS -8000 GALLONS

Price: $ 70000

Discount Price: $ 64000

FOB:	stainless steel 30000L
Availability:

Quantity:

Model:
DRZ5310GYYJ5
Brand:
FAW
Code:
8705909990

FAW stainless fuel tanker truck 28000L-33000L

FAW petroleum truck

Medium: gasoline, diesel, crude oil, chemical

6000 GALLONS -8000 GALLONS

stainless steel road Tanker -001-FAW_1.jpg

TRUCK CHASSIS PARAMETERS

MANUFACTURER FAW

Oversize 11900x2500x3500mm

GVW 31000kg

CW 14455kg

Max speed 90kw/h

Drive type 8*4

Axle No. 4

Axle capacity 6500/6500/18000(two rear axles) kg

Wheelbase 1950+4550+1350 mm

Tire specification 10.00R20 16PR

Suspension type leaf spring 10/10/11

ENGINE PARAMETER

Manufacturer FAW

Part No. CA6DK1-32E5

Fuel type DIESEL

Displacement 7146ml

Power 239kw, 320hp

Emission standard Euro VI

SUPERSTRUCTURER PARAMETERS

WATER TANKER

Tanker body material Carbon steel, round square shape

Tanker capacity 24500L, 6472 gallons

Tanker size 9100×2380×1630mm

PIPING AND DETECTION SYSTEMS

EURO MANHOLE

Euro manhole, vapor recovery vent, overfill detection probe, brething valve, gage hatch, etc

Vapor recovery system adapters and dust cap

Manifold system

API bottom loading adaptor

Emergency valve

Overfill detection system

6000-8000 GALLONS FAW OIL TANKER TRUCK PARAMETERS

Fuel tank truck chooses FAW truck as truck chassis, oversize 11900×2500×3500mm, 4 axles, wheelbase 1950+4550+1350mm, 12+1 pcs tires, 10.00R20 16PR radial tires. CA6DK1-32E5 FAW engine, high power of 239KW, 320hp, Euro VI emission(Euro III emission optional)

FAW 8*4 stainless steel tanker truck for

Medium: gasoline, diesel, crude oil, chemical, ammonia

Model	DRZ5310GJYJ5
Dimensions	11900X2500X3580
Tank dimensions	9000X2500X1800
Tank capacity	30 cubic meter
Engine model	CA6DL2-35E4
Engine power	261
Engine displacement	8600
Engine manufacturer	First Automotive Works
Fuel type	Diesel
Chassis model	CA5310GYYP66K2L7T4E4
Chassis brand	FAW
Chassis name	fuel tanker truck chassis
Chassis category	middle class
Chassis manufacturer	First Automotive Works
Gross weight(kg)	31000
Curb weight(kg)	12305
Rated passenger (person)	3,2
Max speed (km/h)	79
Approach/departure angle	18/13
Front/rear overhang	1470/2280
Wheelbase(mm)	2100+4700+1350
Axle weight	6500/6500/18000(duel-axle)
Axle number	4
Spring number	10/10/12
Tire number	12
Tire type	11.00-20
Front tread	2020/2020
Rear tread	1847/1847
Chassis standard	GB3847-2005,GB17691-2005 Euro4

FAW stainless fuel tanker truck, fuel tanker 6x4

Item	Unit	Description
Model		FAW Oil Tank Truck
Dimension	mm	1022525003454
Sample Tank Dimension	mm /m3	740024501620 / 21.7 m3
	material	Carbon Steel, 6 mm thick
		Option~ Stainless steel, Aluminum steel
Curb Weight	kg	12005
Wheel Base	mm	4800+1350
F/R track base	mm	1950 / 1860
F/R Loading ability	KG	6700 / 13000 /13000
Approach/Departure angle	.	30/13
Traction system	6*4	Tire Specification /Number	11.00R20 / 10 +1 Unit
Max speed	90 km/h	Number of axles/ability	4
Engine model	BF6M1013-24	Emission/kw	7146 ml / 180 Kw, 240 Hp
	Diesel, 6 Cylinders, Direct line, Turbocharge and water cooling
Engine Manufacturer	FAW Group.
Steering	Power	Transmission	9F&1R
Cab passenger	3	Electric System	24V
Driven system	Left hand Or Right hand
Air Condition	Yes	CD , Radio
Remark:	Designed side tool box, rear ladder, side input and output port. Top human hole. Option~ installing air conditioner. Option design~ installing refueling device. Option design~ API valve, gas oil recycling design. Option design~ Additional top foldable ladder.

FAW Oil Tanker Truck is also called FAW fuel tank truck, FAW gasoline, diesel, crude oil, chemical liquid transport truck. Featuring nice appearance, high power, stable quality, low and easy mainteninces, long lifespans and customizing oil tanker capacity, body material（carbon steel, stainless steel, aluminum alloy optional）, adding refuelling system, vapor recovery systems, bottom loading systems and other detection system.

FAW Group Corporation (First Automotive Works), is the first automotive factory in China, found on July 15, 1953. FAW supply all series truck, light duty, medium duty, heavy duty, sedans, trucks and special purpose vehicles. Products and services are pupolar in China and wordwide.
