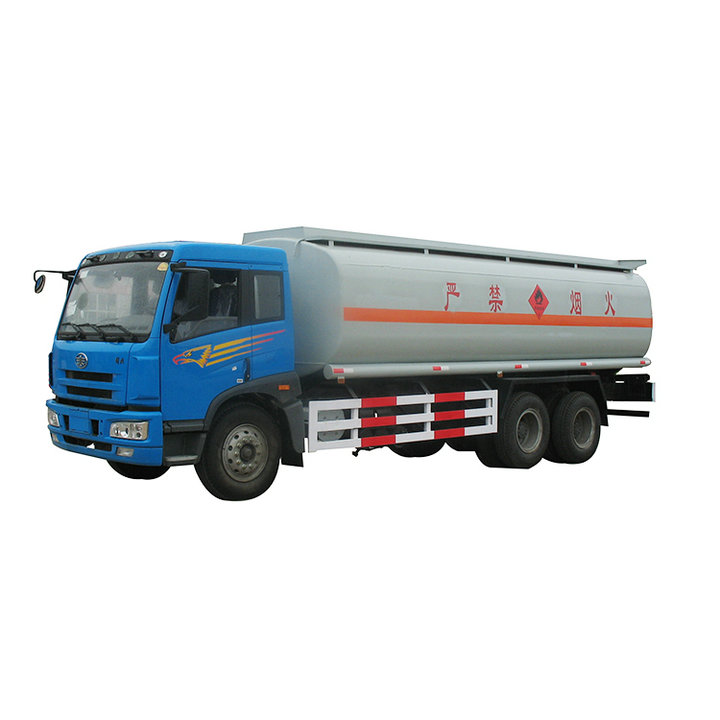

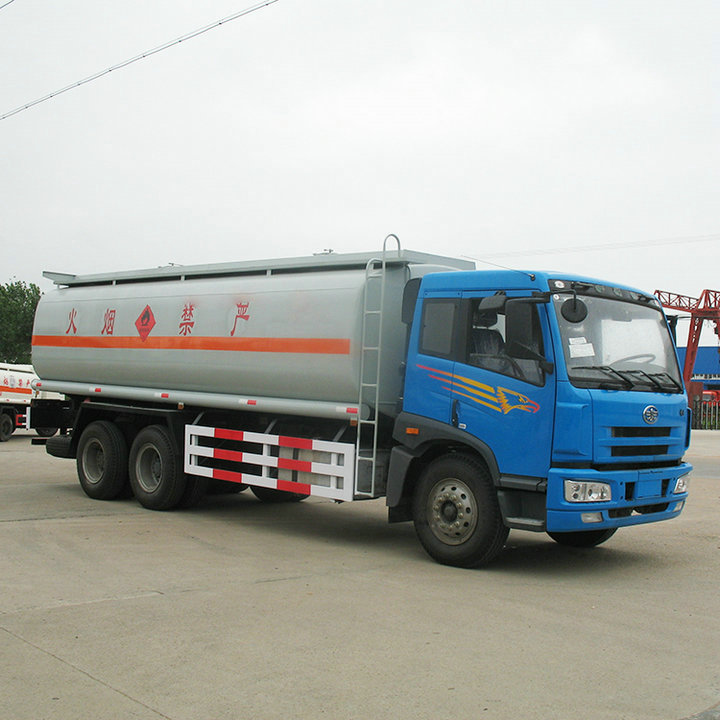

FAW Fuel Tanker Truck For Fuel Door To Door Express Dispensing
1.Tansporting Material: Gasoline, Density:700kg/m³
2.Tank Capacity: 19.4-24m³
3.Tank Dimension(L*W*H)(mm):7300*2400*1600
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5
-
DRZ
-
8705909990
AW 6x4 Diesel Refuelling Oil Tank Truck for Diesel Transportation With PTO Fuel Pump 19 -24CBM
Standard configuration
Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration
Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several compartments.
Refuelling Fuel Tank Truck
| Entire Vehicle | Main Parameter | Gross Weight(kg) | 25000 | ||
| Rated Weight(kg) | 13000 | ||||
| Total Weight(kg) | 11805 | ||||
Overall Dimension (L * W * H)(mm) | 10000*2490*3350 | ||||
| Chassis | Chassis Mode | CA1253P7K2L7T1E | |||
| Engine Parameter | Mode | CA6DE3-22E3, CA6DF3-22E3, BF6M2012-22E3 | |||
| Power(kw) | 162, 162, 162 | ||||
| Displacemint(ml) | 6618, 6740, 6060 | ||||
| Fuel Type | Diesel | ||||
| Functional Parameter | Max Speed(km/h) | 80 | F/R Tread(mm) | 1914/1847/1847, 1950/1847/1847 | |
| Leaf Spring | 4/10,11/11 | F/R Overhang(mm) | 1375/2550 | ||
| Axle Load(kg) | 7000/18000 (Dual Axle) | Approach/Departure Angle(°) | 18/10 | ||
| Tire Size | 9.00R20,9.00-20, 10.00R20,10.00-20 | Number of Tires | 8 | ||
| Wheelbase(mm) | 4725+1350, 4800+1350 | Number of Axles | 3 | ||
| Specialized Device | Tank Parameter | Tank | 1.Tansporting Material: Gasoline, Density:700kg/m³ 2.Tank Capacity: 19.4m³ 3.Tank Dimension(L*W*H)(mm):7300*2400*1600 | ||
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
