DRZ5
DRZ
8705909990

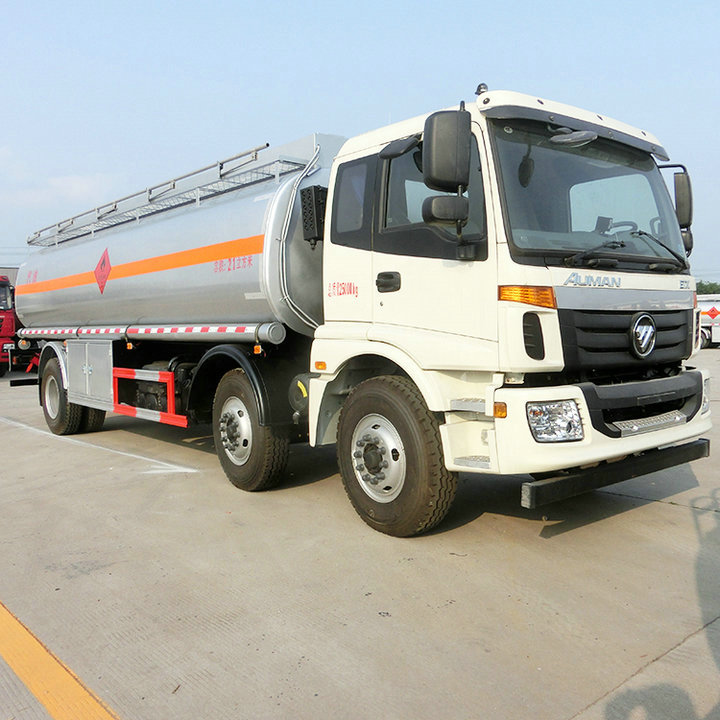

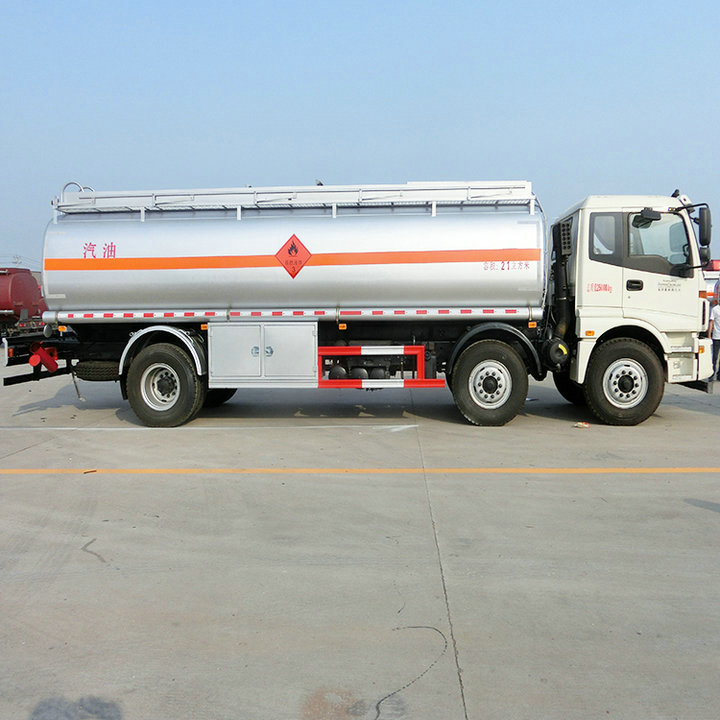

FOTON AUMAN Oil Tanker Truck With Stainless Steel 25,000 Litres ( 6600 Gallons)
For Petroleum Oil Refuel With PTO Oil Pump
25,000 Litres ( 6600 Gallons) Carbon steel or Stainless Steel
FOTON Gasoline Tank, 25000Litres Gas Tanker, gasoline tank on truck
Standard configuration
Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration
Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several compartments.
Fuel tank structure parameters | ||||
Tank dimensions | 7400x2450x1800 mm | Tank volume | 25000L | |
Tank material | Carbon steel Stainless Steel | Tank thickness | 5/6mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several compartments. |
Function:
Gasoline Tank (also called gasoline tank, gasoline tank on truck, gasoline tanker, gasoline truck, gas truck, gas tanker) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Features:
---- Tank material has options of carbon steel, stainless steel, aluminum alloy…
---- Main fuel components available of international brands (ADR standard) - Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....
---- Original American brand Tuthill Fill-rite electrical refueling pump and flow meter(mechanical or digital) available.
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
Specification:
Gasoline Tank FOTON (25,000 litres) | ||
General | Vehicle Brand | DRZ |
Chassis Brand | FOTON | |
Overall Dimension | 10350 x 2500 x 3350 mm | |
GVW / Kerb Weight | 25,000 kg / 8,105 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air Conditioner Equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | Cummins | |
Power | 210 HP (154 KW) | |
Displacement | 5900 ml | |
Emission Standard | Euro III, Euro Ⅳ | |
Chassis | Drive Type | 6X 2, left hand drive |
Transmission | 7 forward gears, 1 reverse | |
Tyre Specification | 10.00R20 18PR | |
Tyre Number | 8 tyres and 1 spare tyre | |
Max Speed | 79 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 25,000 Litres (About 6,600 gallons) |
Tank Material | carbon steel | |
Pump | Fuel pump equipped for overhead delivery | |
Suction Head | 6 m | |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…… | ||
Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… |
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
