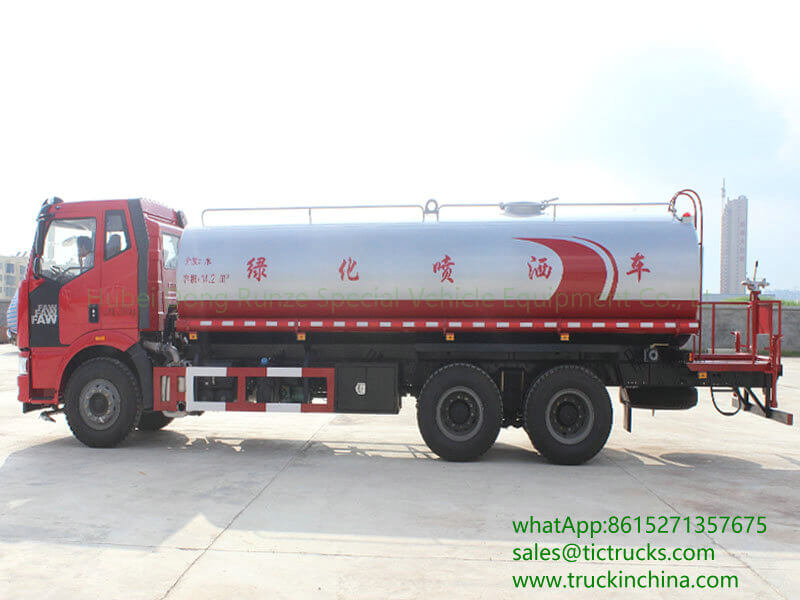

FAW J6 water tank truck 15000L-20000L

FAW J6 water tank truck 15000L-20000L
Price: $ 45500  -  56500
Discount Price: $ 41590  -  51000
FOB:
Availability:
Quantity:

  • DRZ5250GSSC

  • DRZ

  • 8705309000

water trucks,Water sprinkler,Water tanker,water transport truck,water tank truck,water bowser,

FAW water tank vehicle-08T- water tanker trucks_1

Watering Cart,water wagon truck,water tanker truck,FAW water tank vehicle-09T- water tanker trucks_1

insulation water tank truck,pesticide sprinkling truck,FAW water tank vehicle-10T- water tanker trucks_1

water spraying truck,Water tank semi trailer,FAW water tank vehicle-11T- water tanker trucks_1

Watering Vehicle,Water Tanks,Water Truck Parts,water tank lorry

Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc.

 water tank lorry truck 1500L-25000L,

for transport wast water, clean water, Drinking water,Potable water

Water Truck structure_1.jpg

DRZ5250GSSC/280/Euro 4 FAW 6x4 20000L Water Washing Tank Truck

Overall dimensions 10425X2495X3200mm Curb weight 13400kg
Tank dimensions 7200×2400×1600mm Tank volume 20000L
Chassis parameters
Chassis model CA1250P63K1L5T1AE4Z Chassis brand FAW
Overall dimensions 9630x2495x2896mm Wheel base 4800+1350mm
Front/rear wheel track 1950, 1847/1847mm Front/rear suspension 1400/2900mm
Approach/departure angle 21/11° Maximum speed 90km/h
Chassis Manufacturer China FAW Group Corporation
Cab Configuration J6M a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, LCD instruments, electric lift glass, manual mirrors, air damping seats, automatic air conditioner, high efficiency single air filter, manual hydraulic lifting device.
Color Red, other color is optional
Engine Model BF6M1013-28E4
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling
Rated power 280hp, rated power speed 2300rpm
Displacement 7146ml
Max. torque 1100N.m
Bore x stroke 108X130mm
Manufacturer China FAW Group Corporation
Tire Size 11.00R20 steel wire tire
Number 10+1 nos
Clutch Φ 430 diaphragm clutch
Frame 270X75X(7+5)mm
Fuel tank 400L iron oil tank
Front axle 1950 front axle
Rear axle 457 axle, 13tons, casting type, main reduction ratio 4.444
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Shaanxi Fast Gear 9JS119, 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure parameters
Tank dimensions 7200×2400×1600mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

-------------------------------------------------------------------------------------------

DRZ5250GSSC2 /260/Euro3 FAW 6x4 20000L-25000L Spraying Water Tank Truck

Overall dimensions 11200X2495X3200mm Curb weight 13400kg
Tank dimensions 7500×2400×1600mm Tank volume 25000L

Chassis parameters
Chassis model CA5250XXYP63K2L5T1A1E Chassis brand FAW
Overall dimensions 10950x2495x2896mm Wheel base 5800+1350mm
Front/rear wheel track 1950, 1847/1847mm Front/rear suspension 1400/2900mm
Approach/departure angle 21/11° Maximum speed 90km/h
Chassis Manufacturer China FAW Group Corporation
Cab Configuration J6M full-fload high cab,allowable 3 passengers, electric lift glass, manual mirrors, air damping seats, automatic air conditioner, high efficiency single air filter, manual hydraulic lifting device.
Color White, other color is optional
Engine Model CA6DF3-26E3F
Emission Euro 3
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling,electronically controlled common rail, diesel engine
Rated power 260hp, rated power speed 2300rpm
Displacement 7120ml
Max.torque 930N.m
Bore x stroke 110X125mm
Manufacturer China FAW Group Corporation
Tire Size 11.00R20 steel wire tire
Number 10+1 nos
Clutch Φ 430 diaphragm clutch
Frame 270X75X(7+5)mm
Fuel tank 400L aluminum oil tank
Front axle 1950 front axle
Rear axle 457 axle, casting type, main reduction ratio 4.875
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Shaanxi Fast Gear 8JS118, 8 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 7500×2400×1600mm Tank volume 25000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

-----------------------------------------------------

DRZ5250GSSC3 /240/Euro3 FAW 6x4 20000L Spraying Water Tank Truck


Overall dimensions 10425X2495X3200mm Curb weight 13400kg
Tank dimensions 7200×2400×1600mm Tank volume 20000L

Chassis parameters
Chassis model CA1250P63K2L3T1E Chassis brand FAW
Overall dimensions 9630x2495x2896mm Wheel base 4800+1350mm
Front/rear wheel track 1950, 1847/1847mm Front/rear suspension 1400/2900mm
Approach/departure angle 21/11° Maximum speed 90km/h
Chassis Manufacturer China FAW Group Corporation
Cab Configuration J6M a row and a half deluxe cab(with sleeping berth),allowable 3 passengers, LCD instruments, electric lift glass, manual mirrors, air damping seats, automatic air conditioner, high efficiency single air filter, manual hydraulic lifting device.
Color Red, other color is optional
Engine Model CA6DE3-24E3
Emission Euro 3
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling
Rated power 240hp, rated power speed 2300rpm
Displacement 6618ml
Max. torque 890N.m
Bore x stroke 106x125mmmm
Manufacturer China FAW Group Corporation
Tire Size 10.00R20 steel wire tire
Number 10+1 nos
Clutch Φ 430 diaphragm clutch
Frame 270X75X(7+5)mm
Fuel tank 400L iron oil tank
Front axle 1950 front axle
Rear axle 457 axle, 13tons, casting type, main reduction ratio 4.444
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Water tank structure
Tank dimensions 7200×2400×1600mm Tank volume 20000L
Tank material Carbon steel Tank thickness 5mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional

----------------------------------------------------

  FAW chassis optional list

6×4

CA5250GYYP63K1L3T1E4

BF6M1013-24E4

4800+1350

11.00R20

4300+1350

10.00R20


BF6M1013-24E4

4800+1350

10.00R20


5800+1350

BF6M1013-28E4

5800+1350

10.00R20

11.00R20

CA5250GJBP66K2L2T1E4

CA6DL2-35E4

4300+1350

12.00R20

4050+1350

12.00R20

CA1250P66K2L5T1E4Z

CA6DL2-35E4U2

4800+1350

12.00R20

CA1250P63K1L5T1AE4Z

BF6M1013-24E4

4800+1350

11.00-20

BF6M1013-26E4

5300+1350

11.00R20

BF6M1013-24E4

4350+1350

11.00-20

BF6M1013-28E4

11.00R20

CA1250P63K1L5T1E4

BF6M1013-24E4

4800+1350

11.00-20

8×4

CA1310P63K1L6T4A1E4

BF6M1013-26E4

1950+4550+1350

11.00R20

CA5310GYYP63K1L6T4E4

BF6M1013-26E4

11.00R20

BF6M1013-28E4

11.00R20

CA5310GYYP63K2L6T4E4

CA6DL1-28E4

1950+4550+1350

11.00R20

CA6DL1-32E4

11.00R20

11R22.5

8×4

CA5310GYYP66K2L7T4E4

CA6DL2-35E4

2100+4700+1350

12R22.5

11.00R20

CA1310P66K2L7T4E4z

CA3310P66K2L7BT4E4

CA6DL2-35E4

2100+4700+1350

12.00R20

CA3310P66K2L6BT4E4

CA6DL2-35E4U2

2100+4000+1350

11.00R20

2100+4300+1350

CA1310P66K24L7T4E4Z

CA6DM2-37E4

2100+4700+1350

11.00R20

CA6DM2-39E4

12.00R20

CA1310P66K24L7T4E4

CA5310GJBP66K24T4E4

CA6DM2-37E4

2100+3200+1350

12.00R20

CA6DM2-39E4

CA3310P66K24L7BT4E4

CA6DL2-35E4U2

2100+4700+1350

12.00R20

CA6DM2-42E4U2

CA3310P63K2L2BT4E4

CA6DL1-32E4U2

1950+3550+1350

11.00R20

CA6DL1-28E4U2

Faw J6 6X4 16CBM water tank sprinkler truck

Technical parameters

 The totalmass(kg)

 25000

 Curb Weight(kg)

 11680

 Rated the quality
 of(kg)

 13125,13190

 Chassis Model

 CA1250P63K1L5T1AE4Z

 Approach /
 departure angle(°)

 18/10

 Front overhang /
 rear overhang

 1400/2800,1400/2430

 Dimensions(mm)

 10350,9980X2500X3200,3454,3505

 Compartment
 dimension(mm)


 Number of axes

 3

 Maximum speed

 90

 Tire
 Specifications

 11.00-20,11.00R20

 Number of tires

 10

 Front track

 1950

 Rear track

 1847/1847

 Wheelbase

 4350+1350,4800+1350,5300+1350,5800+1350

 Axle load

 7000/18000

 Number of spring

 11/11

 Type of fuel

 Diesel

 Emission
 Standards

 Euro III/Euro IV

Engine parameters

 Engine Model


BF6M1013-26E4

 Engine Manufacturer

 Engine
 Displacement


7146

 Engine power

 Chassis
 Description

1,FAW 6x4 chassis, flat cab with left/right hand drive/AC
2,260 Horsepower with Cyliner diesel engine,Euro III/Euro IV Emission Standard , 9 shift gearbox.

 Modified
 Description

1. The tanker is made by 4-6mm carbon steel plate or corrosion resistant plate.
2. Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle)
3.Equipped with high power water pump, Japan technology:
Sprinkler width≥15m                         Water cannon gunshot≥30m
Vertical suction≤6.5m                       Flush pressure:250-450KPa
Time of drawing water :≥5minutes            Pump capacity:1000 L/minute;

Component

chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray.

Purpose

Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements.

 Product advantage

1.Equipped with Weichai engine,Fuel consumption is small,high performance ;
2.Good driving the line of sight,Space is capacious,Shock absorption performance is good,Low noise

water truck chassis ;HOWO, SHACMAN ,FOTON ,FAW, Dongfeng, North BEN,Beiben ,ISUZU ,NISSAN,UD ,HINO , JMC ,JAC , SAIC IVECO , Hualing,CAMC

Kaywords: water trucks,Water sprinkler,Water tanker,water transport truck,water tank truck,water bowser,Watering Cart,water wagon truck,water tanker truck,insulation water tank truck,pesticide sprinkling truck,water spraying truck,Water tank semi trailer,Watering Vehicle,Water Tanks,Water Truck Parts,water tank lorry




Packaging & Shipping_1.jpg
