Dust Control Truck Water Tanker with Fan Pump

Dust Control Truck Water Tanker with Fan Pump
Availability:
Quantity:

Dust control truck water tanker with Fan pump sprinkler pump Range up to ≥ 48 M   mobile dust control solution.
Truck mounted power sprayers for Pest, Weed, Termite Control, Landscape & fertilizer spray rigs
dust control truck tanks-29T-dust control  -truckdust control truck tanks-36T-dust control  -truck

Dust control truck water tanker with Fan pump
dust control truck tanks-23T-dust control  -truck dust control truck tanks-21T-dust control  -truck
 Description




             Technical parameters




             Total Mass(kg)




             16000




             Curb Weight(kg)




             6305




             Rated quality(kg)




             9500




             Chassis Model




             DFL1160




             Approach/Departure Angle




             24/16(°)




             Front /Rear overhang




             1430/2370




             Dimensions(mm)




             8500x2400x3000




             Number of spring




              7/9+6




             Number of axes




             2




             Maximum speed




             90




             Tire Specifications




             9.00-20,10.00-20




             Number of tires




             6




             Front track




             1880




             Rear track




             1800




             Wheelbase(mm)




             4700




             Axle load(kg)




             6000/10000




             Emission Standards




             Euro3




             Type of fuel




             Diesel




             Engine parameters




             Engine Model




             ISDe180 40




             Engine Manufacturer




             Dongfeng cummins engine co., LTD




             Engine Displacement(ml)




             4500




             Engine power(kw)




             132




             Chassis
             Description




             1. Dongfeng chassis, single row flat cab, left/right hand drive with A/C;
             2. Dongfeng 4 cylinder 180 HP diesel engine, 5 speed gear box, 7.00-16 tire;
             3. Power steering, air brake.




             Modified
             Description




             1.Tank effective volume:5000 liters, made by 4-6mm carbon steel plate or corrosion resistant plate;

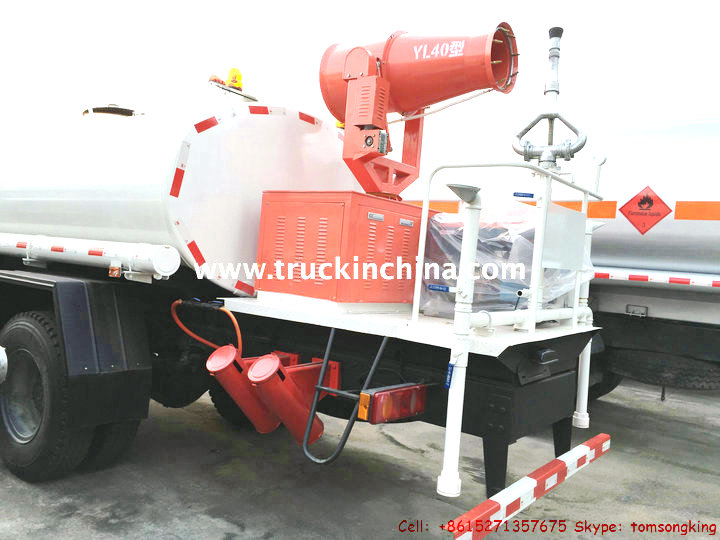

             2.Equipped with front (rear,side)sprinkler, with rear working platform,Greening water cannon, 360°rotatable, adjust water to high or low(spray like columnar,vaporific,drizzle;
             3.Equipped with high power water pump, Japan technology:
               Sprinkler width≥15m                           Water cannon gunshot≥30m
               Vertical suction≤6.5m                         Flush pressure:250-450KPa
               Time of drawing water :≥5minutes        Pump capacity:1000 L/minute



             4.Equipped with self-flow valve,fire hydrant interface,self-priming and self-draining   pump,inhale to tanker directly and inject by fire hydrant.




             Component




             Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray.




             Application




             Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements.




             Product advantage




             reasonable price,multiple functions,easy operation







  mobile dust control solution.


   Material                    Steel

   Thickness of shell      4 ,5,6mm

   Thickness of dish       5,6mm

   Inside baffles            3mm

   Compartments          1 compartments

   Volume                    5000L to 12000L+ 5% expansion

   Option:                   Water Pump, Sprinkler


   Tank Top Accessories
 Ladders fixed on the front and rear; foldable handrail
 Walkway with anti-slip material in the front of reach the manholes
 Not covering the complete length of the tank.

 Painting
 Exterior surface treatment by shot blasting
 Painting by high solid primer directly on the surface
 Painting inside special paint booth with the cargo cabin color or the color chosen by the customer

 Accessories
 Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
 1 Tool box with standard tools,   Heavy duty tail bumper
