Airport Special Equipment Catering Truck (ISUZU Scissors High Loader 4500KG Refrigerated Food Van 7500X2480X2400mm)
| Quantity: | |
|---|---|
-
Shanghai, China
-
T/T
-
Roro

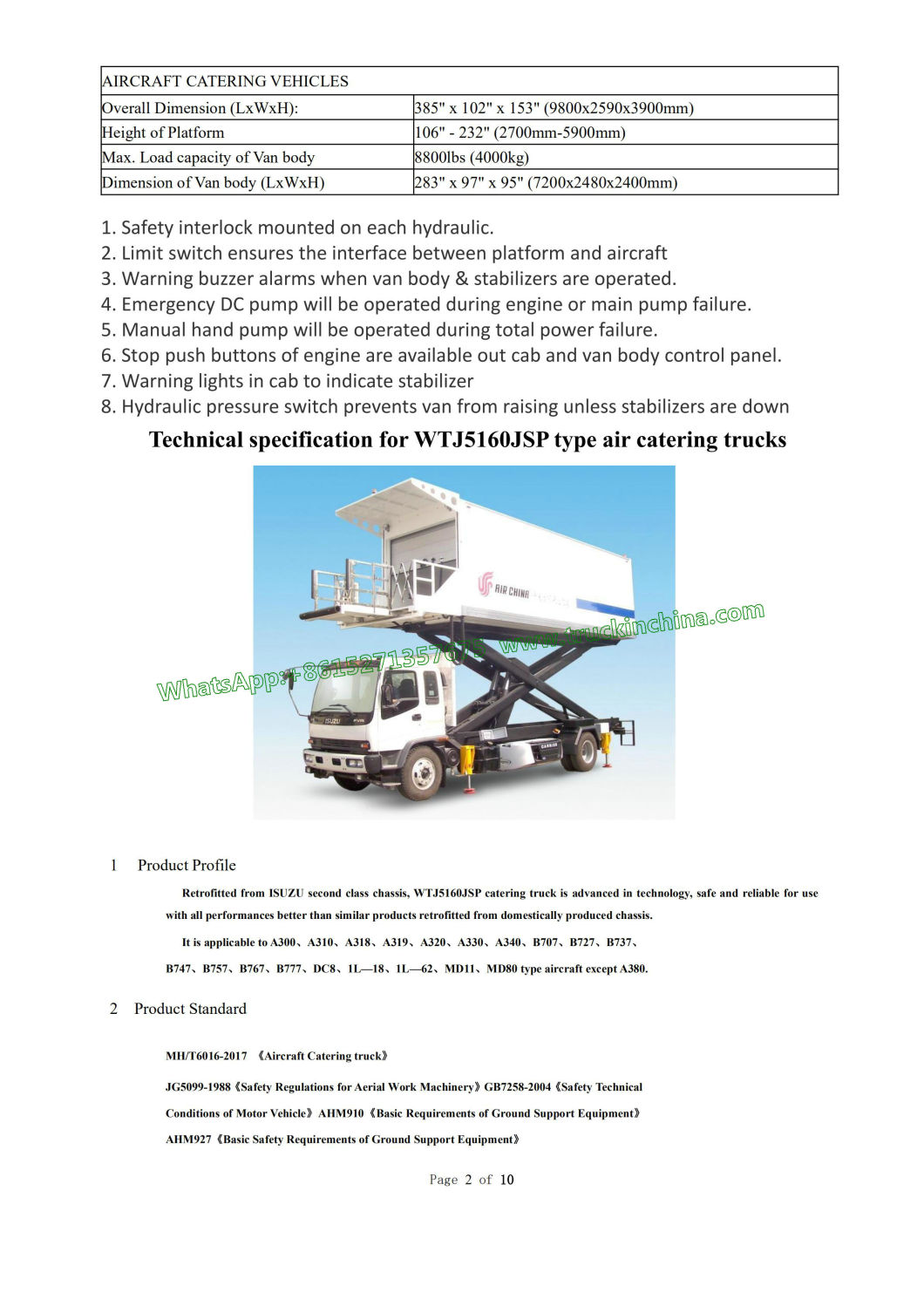

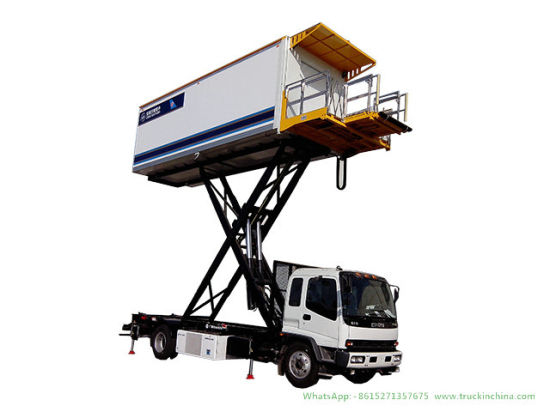

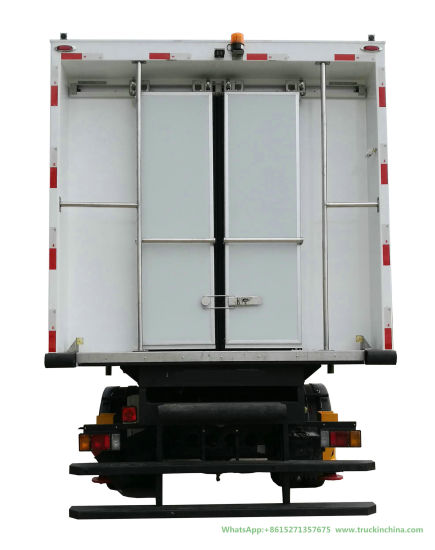

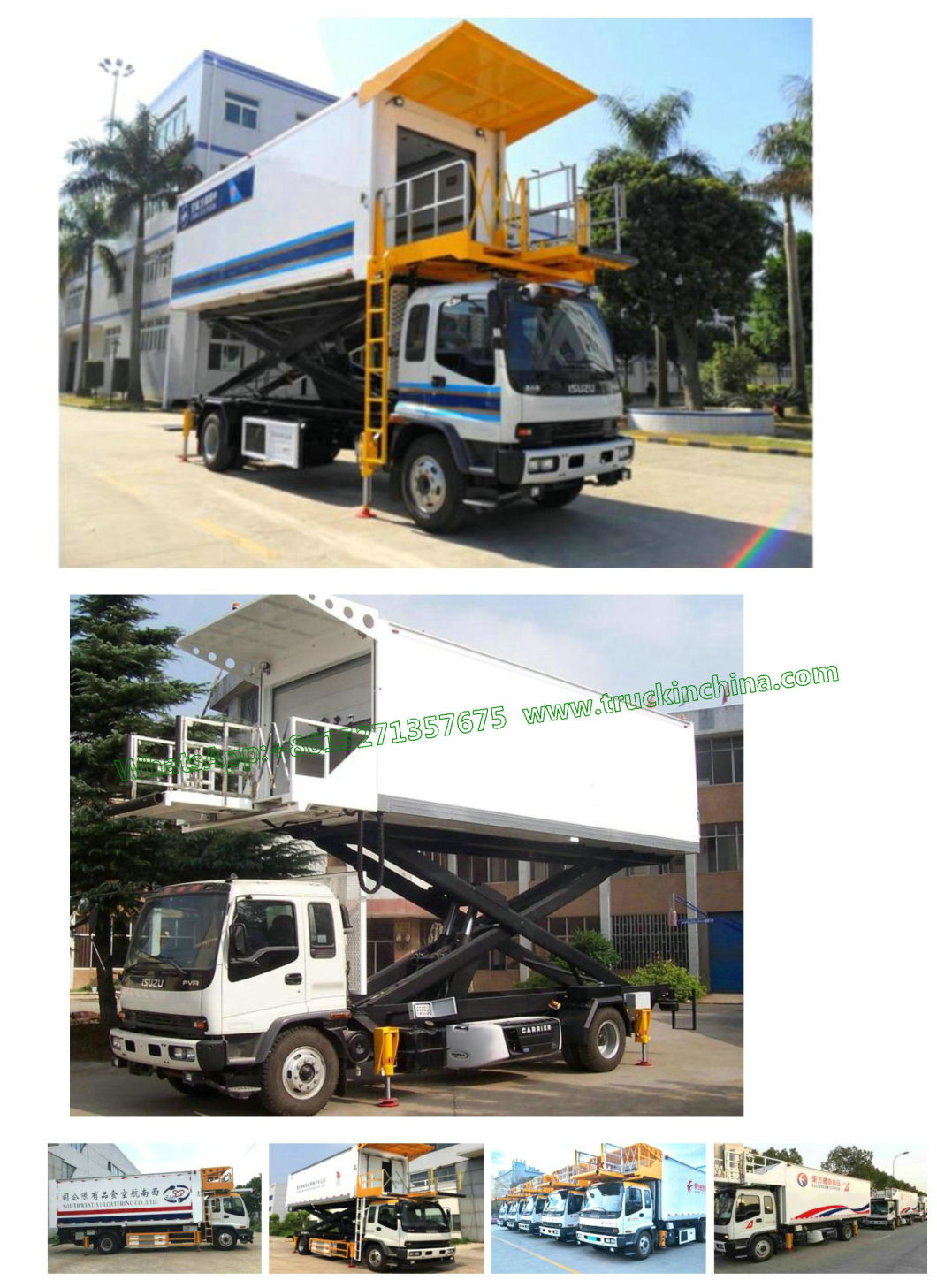

Airport Special Equipment Catering Truck ( ISUZU Scissors High Loader 4500KG Refrigerated Food Van 7500x2480x2400mm
Retrofitted from ISUZU second class chassis, catering truck is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.
It is applicable to A300,A310,A318,A319,A320,A330,A340,B707,B727,B737,
B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,MD80 type aircraft except A380.
WTJ5160JSPA
Catering truck is self-containing unit and be mounted on commercial truck chassis and have the necessary provision for lifting and lowering of the van-body by hydraulically scissor mechanism. During lifting and loading procedure the unit to be stabilized through stabilizer jacks, which are completely welded to the Hi-Lift frame and become part of the Hi-Lift unit. The unit is designed to interface easily and promptly with aircraft galley door, while providing the maximum safety to the personnel and protection to the aircraft structure. There are three types to suit for the aircraft with service door heights between 1400-5800mm, that's TD40SP, TD50SP, TD60SP.
Applicable for aircraft:
A300,A310,A318,A319,A320,A330,A340,A350,A380 (MIDDLE LEVEL),B707,B727,B737,B747,B757,B767,B777,B787,DC8,DC9,1L-18,1L-62,MD11,MD80,and A380.
MH/T6016-2017 Aircraft Catering truck
JG5099-1988Safety Regulations for Aerial Work MachineryGB7258-2004Safety Technical Conditions of Motor VehicleAHM910Basic Requirements of Ground Support EquipmentAHM927Basic Safety Requirements of Ground Support Equipment
Refrigeration system
Equipped with US carrier or thermo king cooling system, it can automatically open/stop and self-inspection.
Refrigeration system form: independence, diesel drive, coupling drive, semi-closed compressor unit, pipe coil evaporator
Monitoring system
The monitoring system is made of mainframe and camera.
Equipped with 500G hard disc.
It also equip with GPS positioning system.

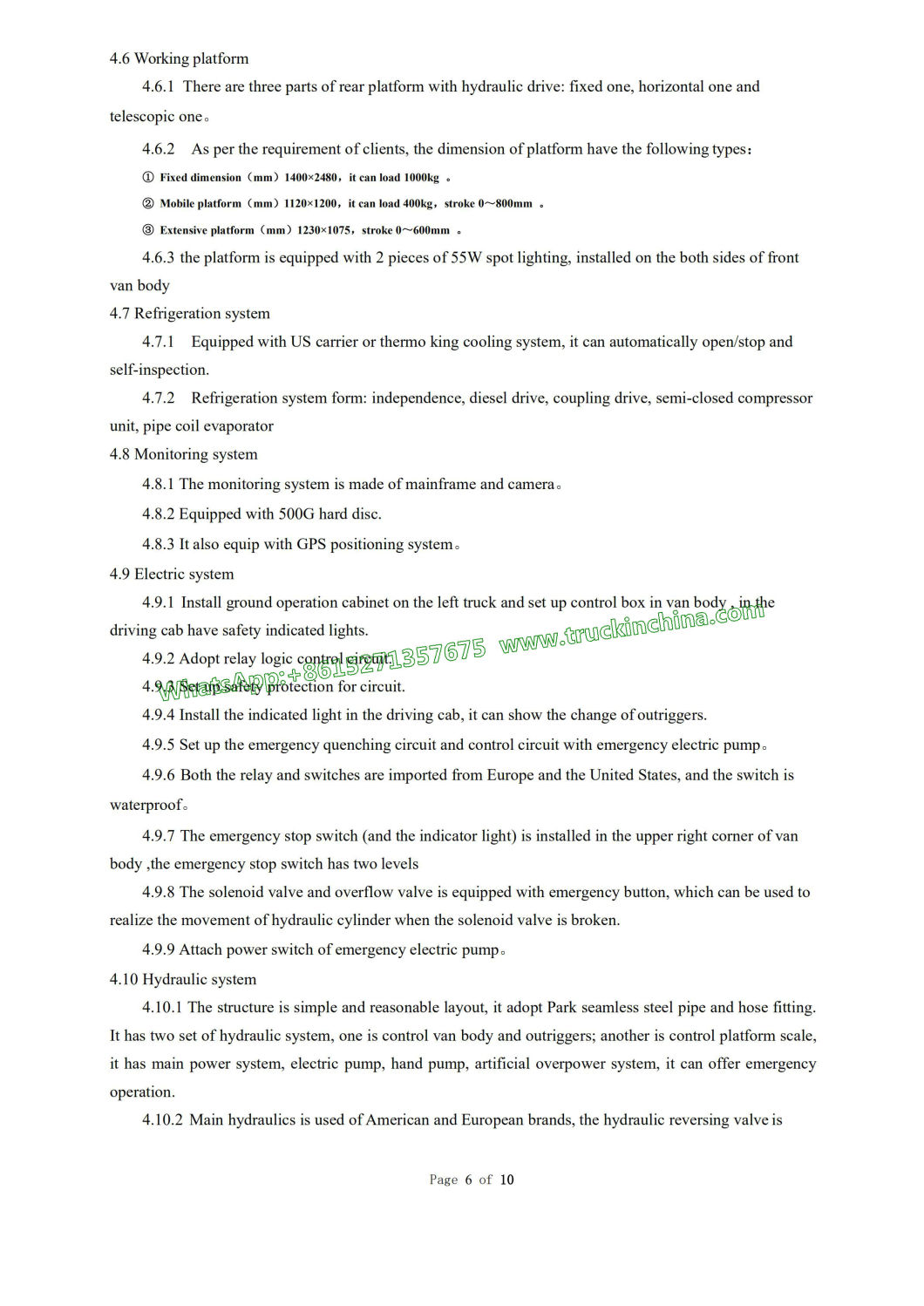

Electric system
Install ground operation cabinet on the left truck and set up control box in van body , in the driving cab have safety indicated lights.
Adopt relay logic control circuit.
Set up safety protection for circuit.
Install the indicated light in the driving cab, it can show the change of outriggers.
Set up the emergency quenching circuit and control circuit with emergency electric pump.
Both the relay and switches are imported from Europe and the United States, and the switch is waterproof.
The emergency stop switch (and the indicator light) is installed in the upper right corner of van body ,the emergency stop switch has two levels
The solenoid valve and overflow valve is equipped with emergency button, which can be used to realize the movement of hydraulic cylinder when the solenoid valve is broken.
Attach power switch of emergency electric pump.
Hydraulic system
The structure is simple and reasonable layout, it adopt Park seamless steel pipe and hose fitting. It has two set of hydraulic system, one is control van body and outriggers; another is control platform scale, it has main power system, electric pump, hand pump, artificial overpower system, it can offer emergency operation.

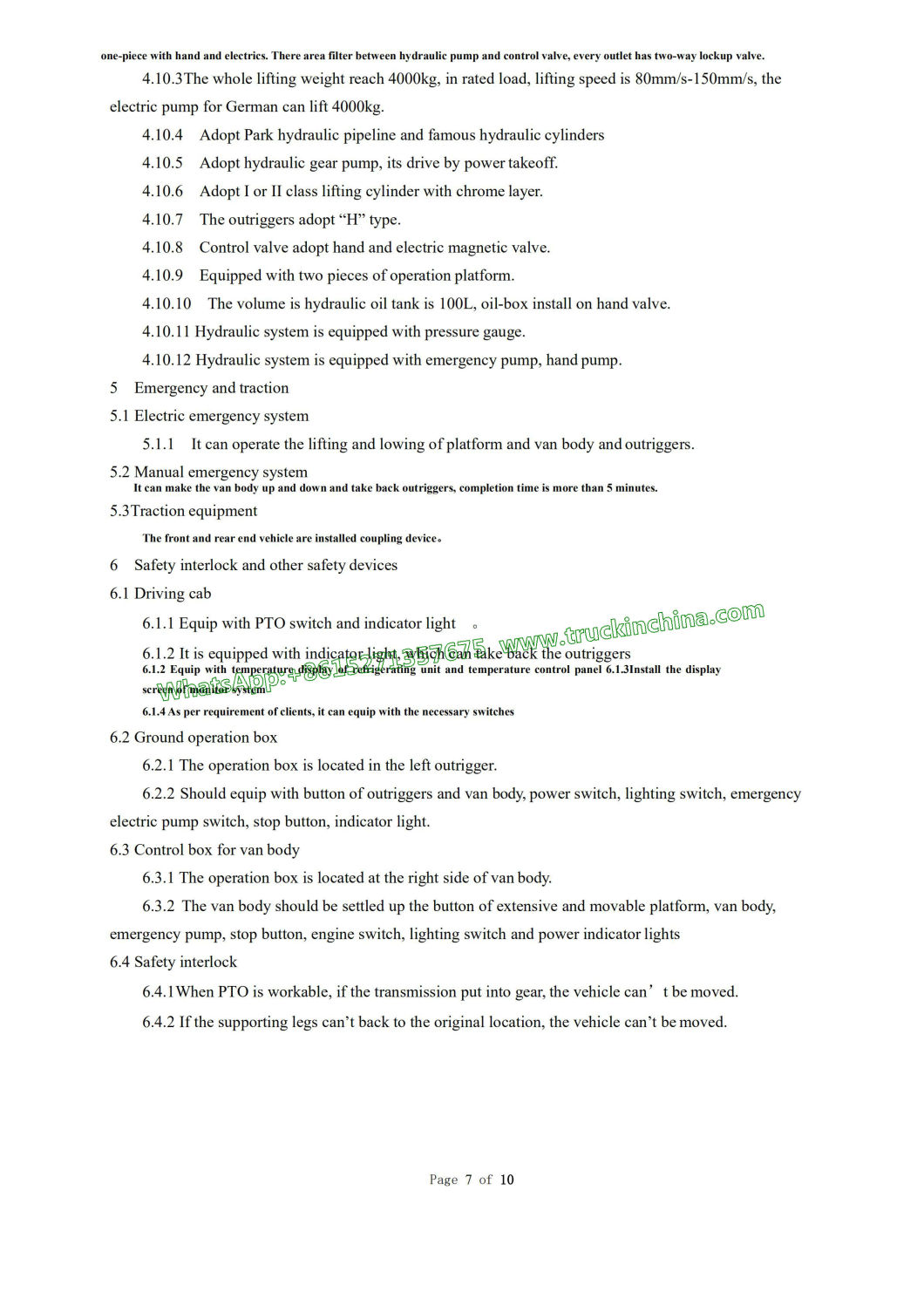

Main hydraulics is used of American and European brands, the hydraulic reversing valve is
one-piece with hand and electrics. There area filter between hydraulic pump and control valve, every outlet has two-way lockup valve.
The whole lifting weight reach 4000kg, in rated load, lifting speed is 80mm/s-150mm/s, the electric pump for German can lift 4000kg.
Adopt Park hydraulic pipeline and famous hydraulic cylinders
Adopt hydraulic gear pump, its drive by power takeoff.
Adopt I or II class lifting cylinder with chrome layer.
The outriggers adopt "H" type.
Control valve adopt hand and electric magnetic valve.
Equipped with two pieces of operation platform.
The volume is hydraulic oil tank is 100L, oil-box install on hand valve.
Hydraulic system is equipped with pressure gauge.
Hydraulic system is equipped with emergency pump, hand pump.
Emergency and traction
It can operate the lifting and lowing of platform and van body and outriggers.
Electric emergency system
Manual emergency system
It can make the van body up and down and take back outriggers, completion time is more than 5 minutes.
Traction equipment
The front and rear end vehicle are installed coupling device.

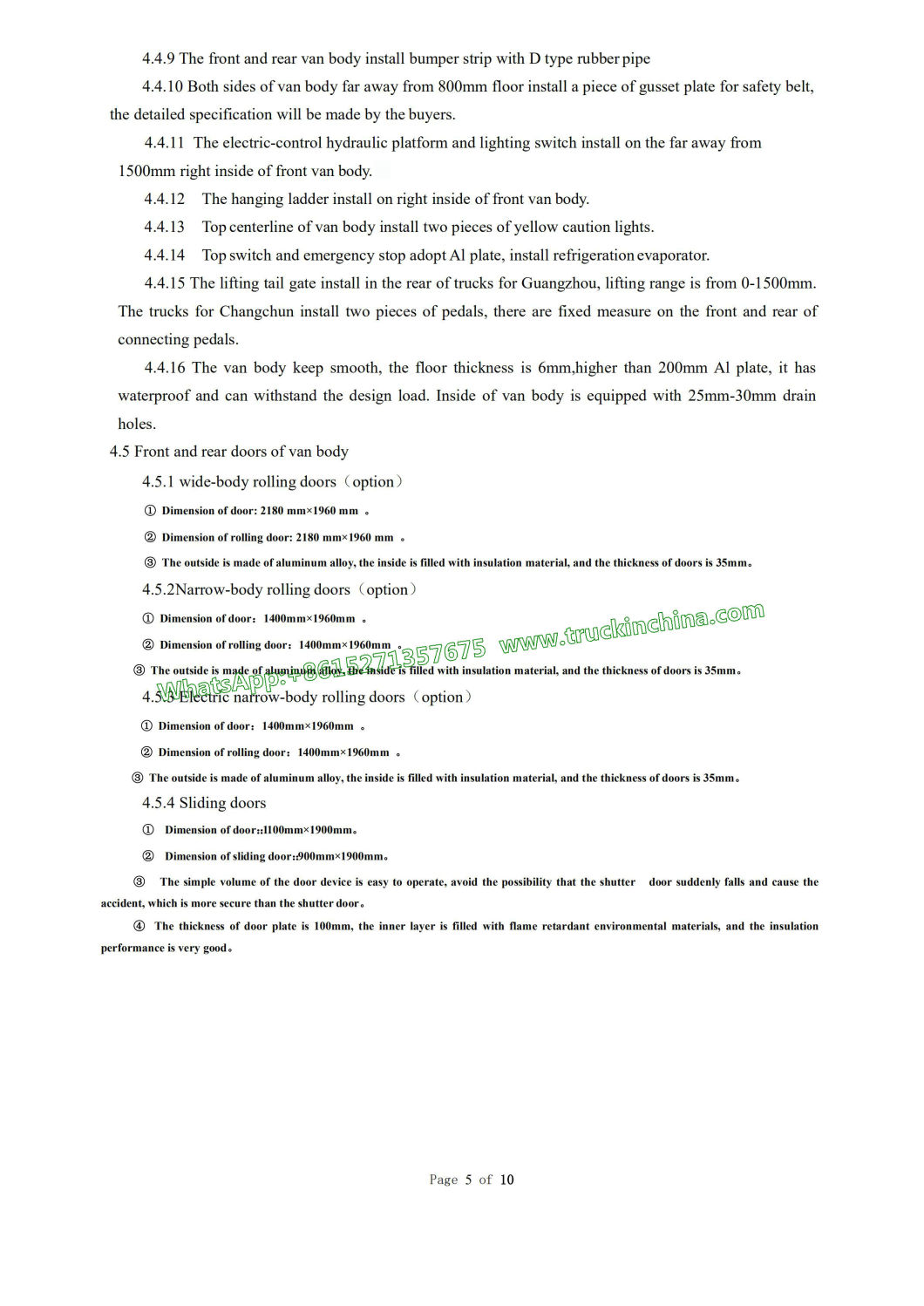

Safety interlock and other safety devices
Equip with PTO switch and indicator light .
It is equipped with indicator light, which can take back the outriggers
Driving cab
6.1.2 Equip with temperature display of refrigerating unit and temperature control panel 6.1.3Install the display screen of monitor system
6.1.4 As per requirement of clients, it can equip with the necessary switches
Ground operation box
The operation box is located in the left outrigger.
Should equip with button of outriggers and van body, power switch, lighting switch, emergency electric pump switch, stop button, indicator light.
Control box for van body
The operation box is located at the right side of van body.
The van body should be settled up the button of extensive and movable platform, van body, emergency pump, stop button, engine switch, lighting switch and power indicator lights

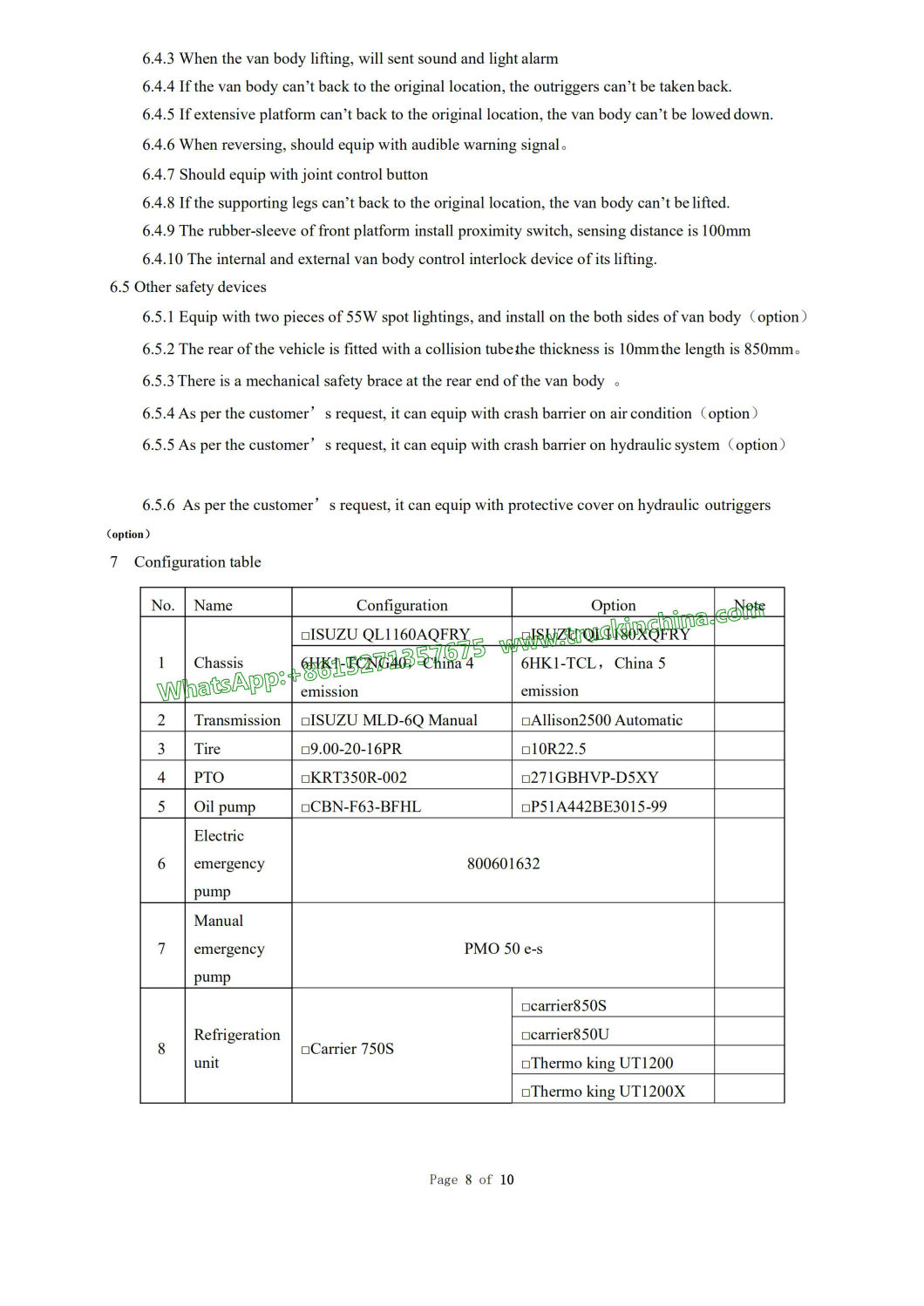

Safety interlock
When PTO is workable, if the transmission put into gear, the vehicle can't be moved.
If the supporting legs can't back to the original location, the vehicle can't be moved.
When the van body lifting, will sent sound and light alarm
If the van body can't back to the original location, the outriggers can't be taken back.
If extensive platform can't back to the original location, the van body can't be lowed down.
When reversing, should equip with audible warning signal.
Should equip with joint control button
If the supporting legs can't back to the original location, the van body can't be lifted.
The rubber-sleeve of front platform install proximity switch, sensing distance is 100mm
The internal and external van body control interlock device of its lifting.

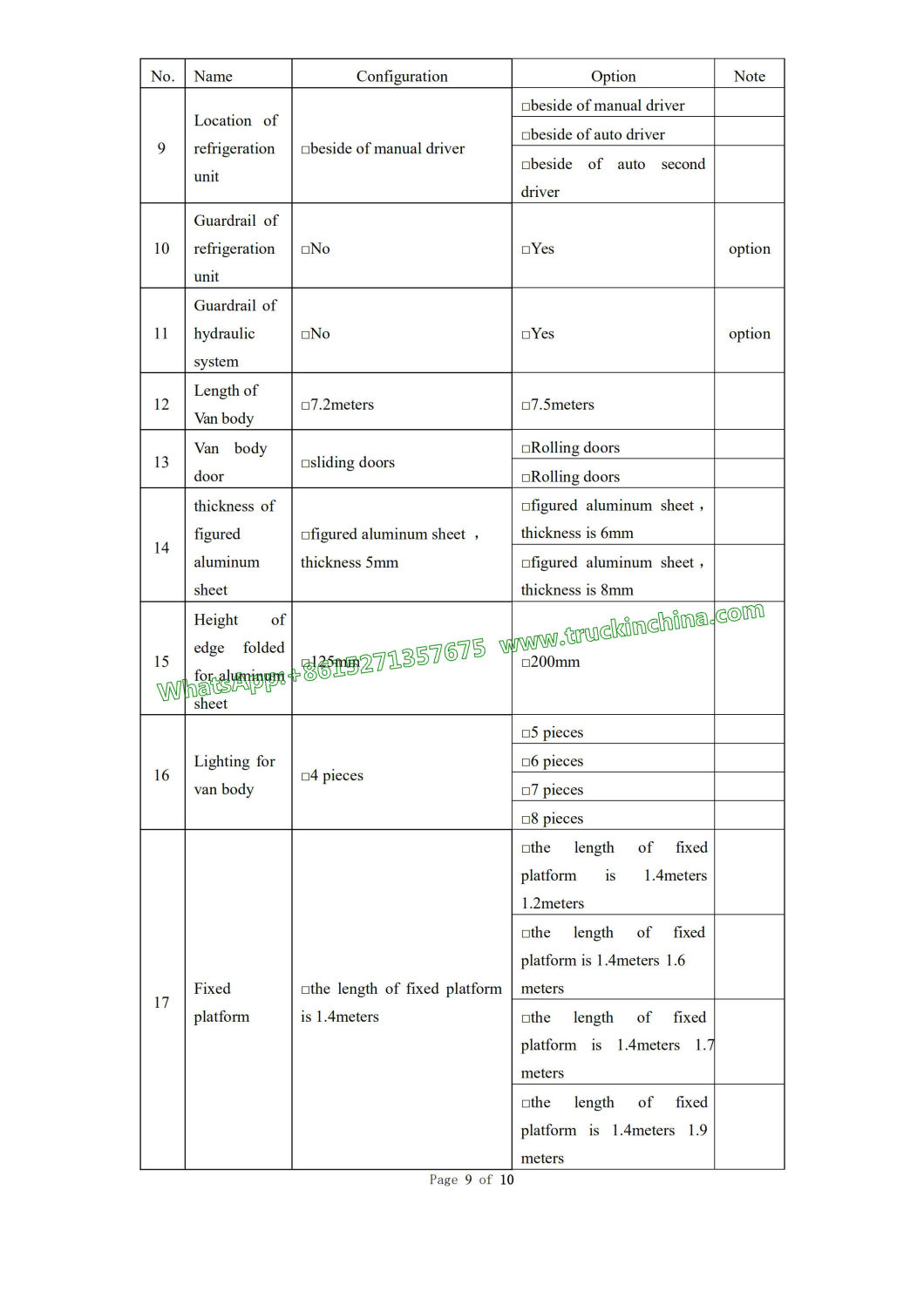

Other safety devices
Equip with two pieces of 55W spot lightings, and install on the both sides of van body(option) 6.5.2 The rear of the vehicle is fitted with a collision tube,the thickness is 10mm,the length is 850mm. 6.5.3 There is a mechanical safety brace at the rear end of the van body .
As per the customer's request, it can equip with crash barrier on air condition(option)
As per the customer's request, it can equip with crash barrier on hydraulic system(option)

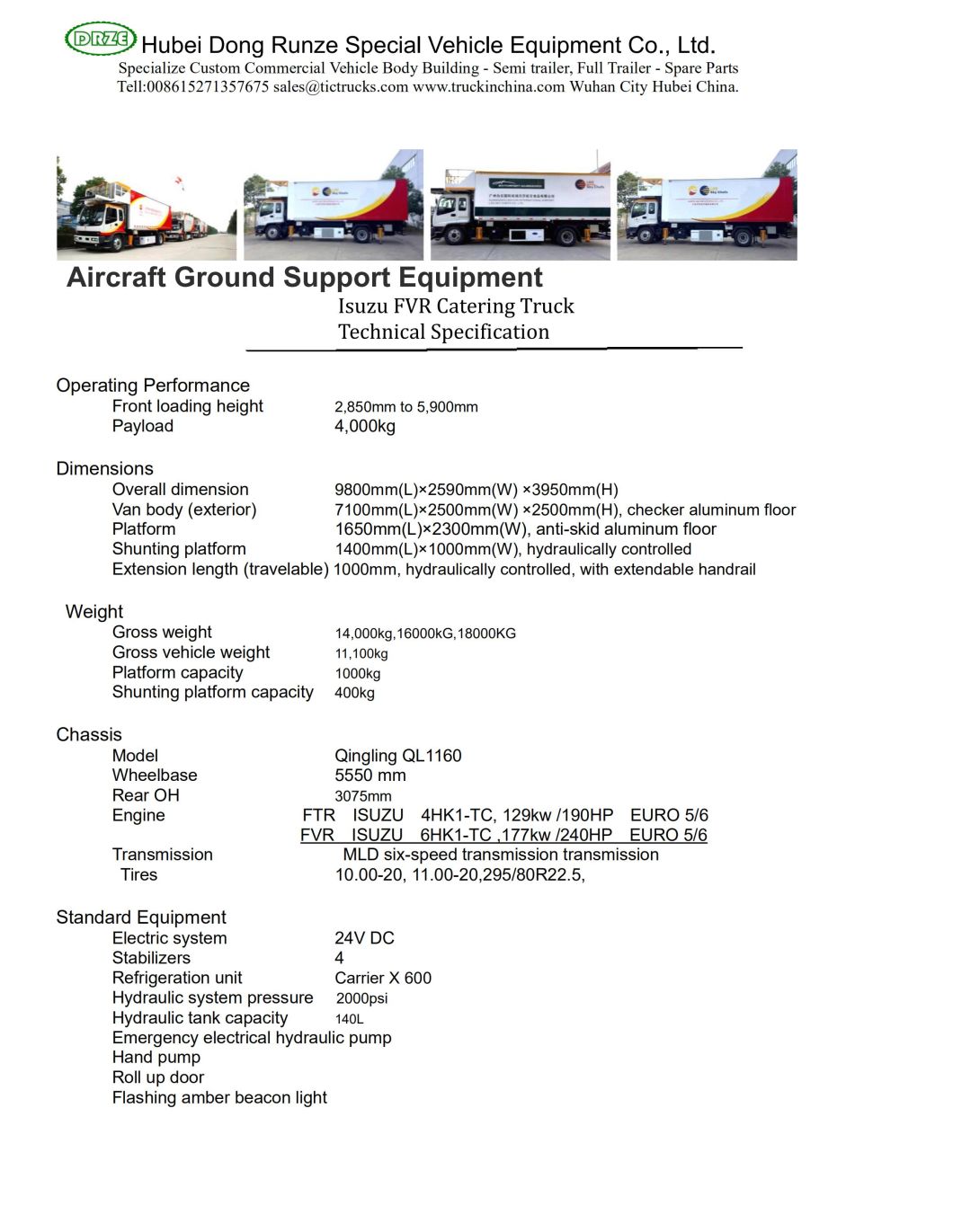

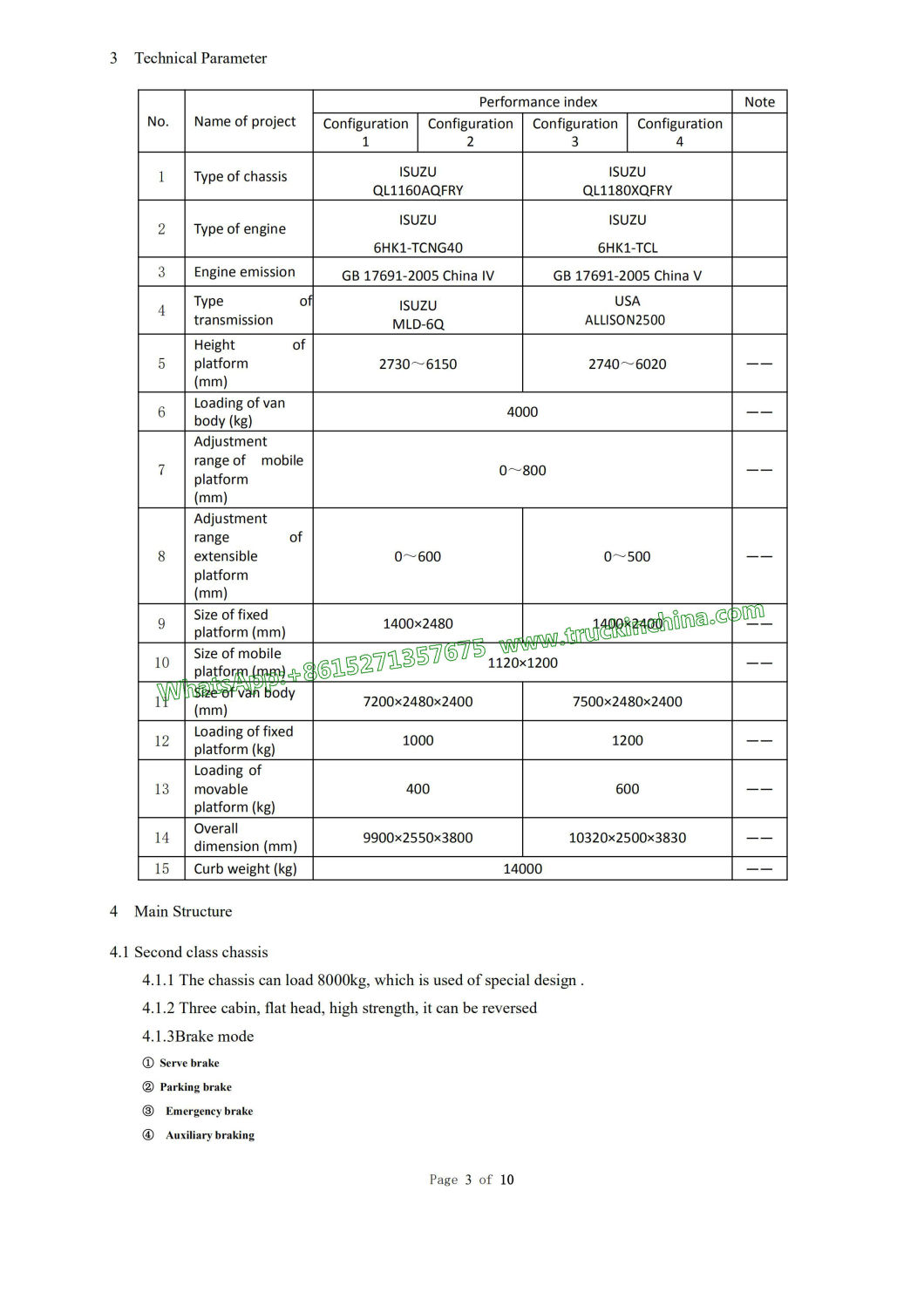

| Project | Performance Index | Performance Index | |
Engine | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd | Isuzu (Chongqing) Engine Co., Ltd |
| Model | 6HK1-TCL | 6HK1-TCL | |
Transmission case | Manufacturer | Qingling Motors Company Limited | Allison Transmission |
| Model | MLD-6Q | Allison 2500 ATM | |
| Working height of platform (mm) | 2650~6000 | 2740~6020 | |
| Rated load of car body (kg) | 4500 | 4000 | |
| Rated load of front platform (kg) | 1550 | 1800 | |
| Rated load of movable part of front platform (kg) | 600 | 600 | |
| Left and right adjustment range of front platform moving part (mm) | 0~600 | 0~800 | |
| Expansion and adjustment range of movable part of front platform (mm) | 0~500 | 0~500 | |
| Fixed part size of front platform (L × w) (mm) | 1200×2190 | 1400×2400 | |
| Front platform movable part size (L × w) (mm) | 1130×1200 | 1120×1200 | |
| Curb weight (kg) | 14000 | 14000 | |
| Boundary dimension (L × w × h) (mm) | 10115×2500×3830 | 10320×2500×3830 | |
| Other properties | -- | ||
| Chassis | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd | Qingling Isuzu (Chongqing) Engine Co., Ltd |
| Model | QL1180XQFRY | QL1180XQFRY | |
| External dimension of car body (L × w × h) (mm) | 7500×2480×2400 | 7500×2480×2400 | |
| Engine emissions | GB17691-2005 GB 3847-2005 EURO 5 | GB17691-2005 GB 3847-2005 EURO 5 | |
| Rated load of fixed part of front platform (kg) | 950 | 1200 | |
