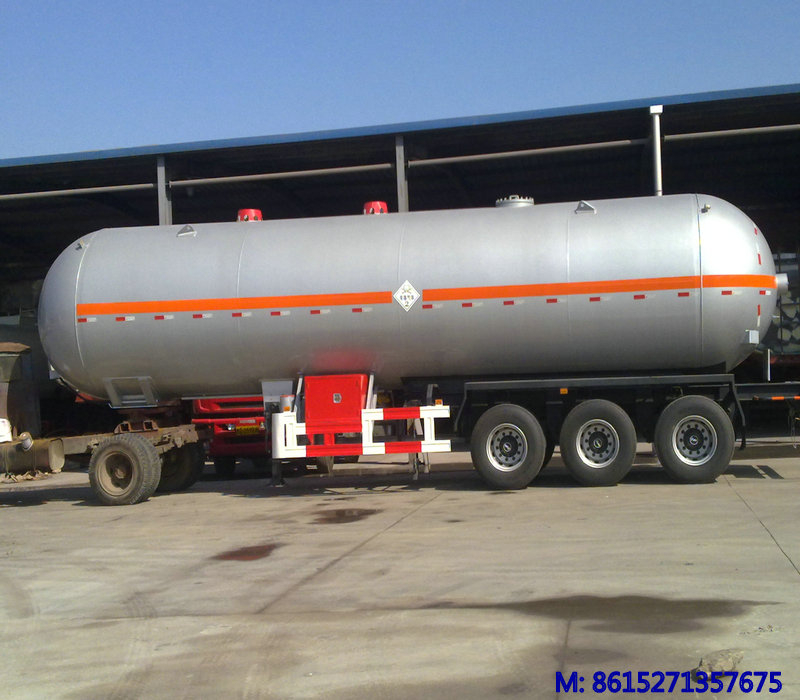

59.05 Cbm LPG Tank Truck Trailer

59.05 Cbm LPG Tank Truck Trailer
Availability:
Quantity:

59.05 cbm LPG tank truck trailer
Lpg Tank Trailer Manufacturers

 59.05 cbm LPG tank truck trailer

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675











         Model




         9400GYQ1




         Name




         Liquefied Petroleum Gas Semi-trailer




         Picture No.




         BYCE59A





         Items




         Data




         Transport           Semi-trailer




         Curb Weight     kg




         15200




         Rated Loading Weight   kg




         24800




         Maximum Gross Weight   kg




         40000




         Front fitting radius      mm




         1170




         Interstice radius        mm




         2420




         Wheel base            mm




         2040




         Minimum Ground Clearance    mm




         320




         Airtight test pressure    Mpa




         1.61




         Stroke of support unit    mm




         483




         King pin diameter      mm




         φ50.8




         Dimension (L×W×H)  mm




         12965×2500×3990




         Tank           Body




         Maximum Work Pressure     Mpa




         1.6




         Design Pressure          Mpa




         1.61




         Design Temperature          ℃




         -40~50




         Loading weight per unit capacity   kg/L




         0.42




         Capacity              m3




         59.05




         Loading medium




         liquefied petroleum gas (LPG)




         Medium characteristics




         Moderate Harm




         Body material




         shell      mm




         Q370R




         head      mm




         Q370R




         Corrosion allowance




         shell      mm




         1




         head      mm




         1




         Negative deviation of thickness




         shell      mm




         0




         head      mm




         0.3




         Welded joint coefficient




         1




         hydraulic test pressure    Mpa




         2.1




         Design service life




         15 years




         Heating method




         Integrally annealing




         Safety Valve




         Type




         Built-in spring full-open type




         Specification




         PN4.0   DN50




         Set pressure       Mpa




         2.13




         Liquid Level Meter




         Type




         Level 1.6




         Range       m




         0~2.38




         Nominal presure       Mpa





         Pressure Gauge




         Dial diameter            mm




         ≥100




         Accuracy




         Level 1.6




         Range            Mpa




         0~4.0
