4000L-6000L Vacuum Tanker Truck Septik Truck LHD/RHD

Share to:

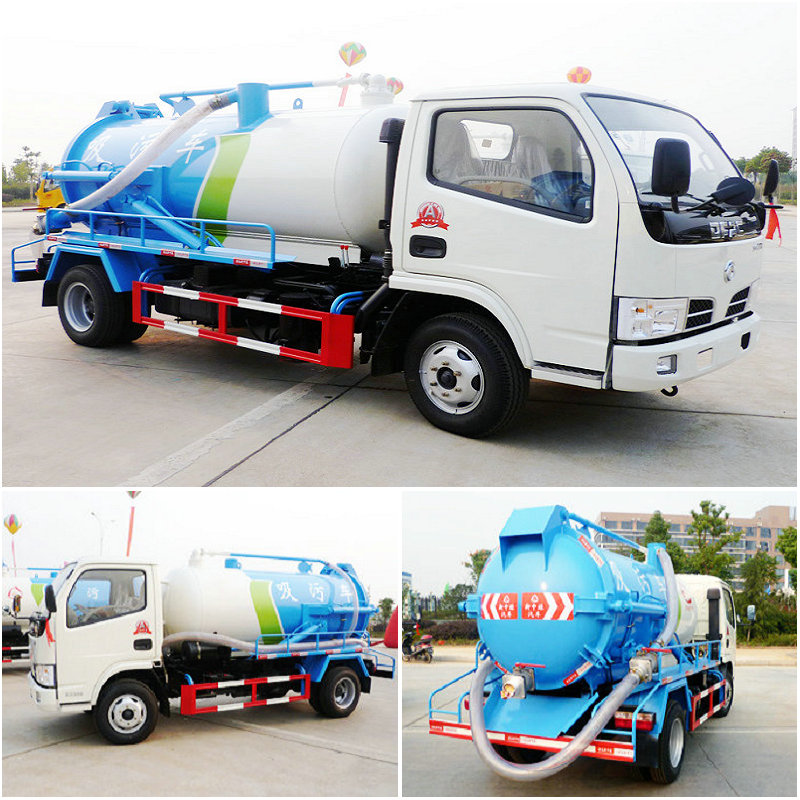

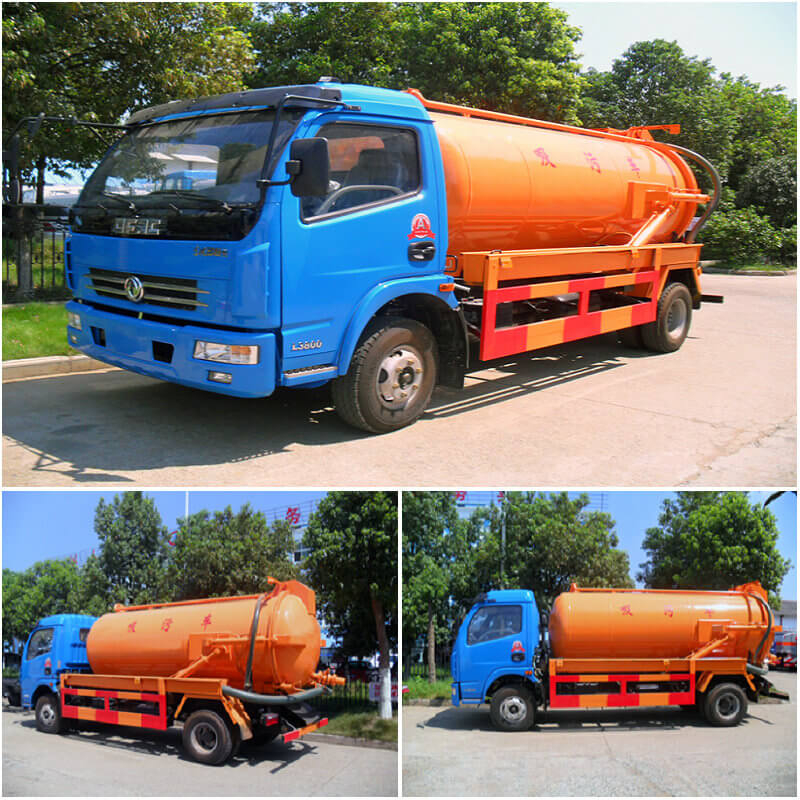

4000L-6000L Vacuum Tanker Truck Septik Truck LHD/RHD

Availability:

Quantity:



Inquire Add to Basket

4000L；6000L vacuum tanker truck septik truck sewage tanker Cesspool Emptying Truck

Description

Technical Parameters
Total Mass(kg)	6495	Curb Weight(Kg)	3700
Rated Quality(kg)	2600	Chassis Model	EQ1090
Approach/ Departure Angle	19/15	Front /Rear Overhang	1032/1658
Dimensions(mm)	599019502550	compression volume	6CBM
Number of axes	2	Maximum speed(km/h)	95
Tire Specifications	8.25-20	Number of Tires	6
Front track(mm)	1506	Rear track(mm)	1466
Wheelbase(mm)	3800	Number of spring	8/9+5
Emission standards	Euro 3	Type of fuel	Diesel
Engine Parameters
Engine Model	CY4102-E3C	Engine Manufacturer	Dongfeng chaoyang power co., LTD
Engine displacement	3856ml	Engine Power	70(kw)
Brief Description	1.Volume: 6m³,round tanker,made by 5-6mm special plate.
	2.Equipped with high-power vacuum suction sewage pump.single pump/double pump（out and in）
	3.Tanker with lifting founction,with double hydraulic cylinder,rear cover can hydraulic open,with self-flowing valve.

Description

Technical Parameters
Total Mass(kg)	6495	Curb Weight(Kg)	3700
Rated Quality(kg)	2600	Chassis Model	EQ1060
Approach/ Departure Angle	19/15	Front /Rear Overhang	1032/1658
Dimensions(mm)	599019502550	compression volume	4CBM
Number of axes	2	Maximum speed(km/h)	95
Tire Specifications	7.00-16	Number of Tires	6
Front track(mm)	1506	Rear track(mm)	1466
Wheelbase(mm)	3300	Number of spring	8/9+5
Emission standards	Euro 3	Type of fuel	Diesel
Engine Parameters
Engine Model	CY4102-C3F	Engine Manufacturer	Dongfeng chaoyang power co., LTD
Engine displacement	3856ml	Engine Power	70(kw)
Brief Description	1.Volume: 4m³,round tanker,made by 5-6mm special plate.
	2.Equipped with high-power vacuum suction sewage pump.single pump/double pump（out and in）
	3.Tanker with lifting founction,with double hydraulic cylinder,rear cover can hydraulic open,with self-flowing valve.

EQ1060TJ20D3 Vacuum Tanker-00- T truck EQ1060TJ20D3 Vacuum Tanker-02- T truck

4000L-6000L septik truck sewage tanker

Vacuum tanker
Material	Q235, 6、8mm optional Aluminum / midd Steel Stainless Steel Vaccum
Capacity(L)	4000~68000L
Tank dimensions(mm)	660018501850
Vacuum pump
Model	Dual 50QZXDG-45/400
flux(L/S)	45
Min pressure	400 P

Description

Tank Capacity:	4000 L	Tank Material:	Q235
Tank Shape:	Cylinder-shaped	Whole Tank Dimension:	3000*1300 Mm
Whole Truck Dimension:	590020002500 Mm	F/R Axle Load:	2920/4380 Kg
Wheel Base:	3300 Mm	Engine Power:	100 Hp

4000L DongFeng 100 hp 4x2 Suction Sewage Vacuum Tank Truck

Description:

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.

Applications:

Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.

Competitive Advantage:

1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min

2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.

4. The diesel engine ( air compressor unit ), providing compressed air.

Specifications:

Truck chassis specification	Item		unit	parameter
	Vehicle model			TIC5070GZX4
	Chassis model			DFA1070SJ35D6
	Overall dimensions		mm	5900x2000x2500
	GVW		kg	Appro×7300
	Mass in working order			Appro×4105
	Wheel base		mm	3300
	Exhaust / hp		ml/ hp	3856/ 100
	Max speed		km/ h	95
	Tire specification		7.00-16 14PR	Engine type	CY4102-4E4F
	Traction system		4 × 2	Number of Tires	6
	Number of axles		2	Electric system	24 V
	Operation control system		Electrically hydraulic control	Allowable passengers in cab	3
	F/R Axle load ( kg )		2920/ 4380
	Engine		The truck, diesel engine, water cooled, direct injection,100 horse power
Special function Specification	Tank Capacity ( L )	4000
	Tank Dimension ( mm )	3000 x Φ1300
	Equipped with high-power vacuum suction sewage pump. Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve. Equipped with power take off, transmission shaft,pipe network, sewage pipe for observing and cleanout equipment.

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
