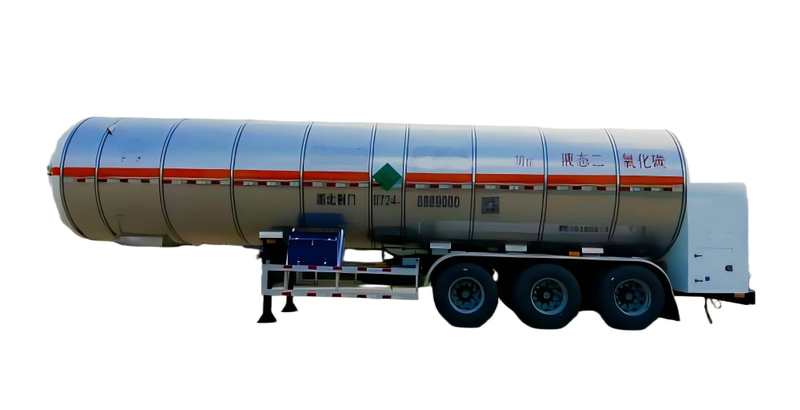

3 Axles 30M3 27T LCO2 Trailer Liquid Carbon Dioxide Tank Semi Trailer

3 Axles 30M3 27T LCO2 Trailer Liquid Carbon Dioxide Tank Semi Trailer
9400GYU1HT LCO2 Transport Semi-trailer UN2187
Price for refer only. Final Price Offer Discount.
Price: $ 78800
Discount Price: $ 66800
Availability:
Quantity:

  • 9400GYU1HT

  • 8716319000

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • 1 Ask for discount

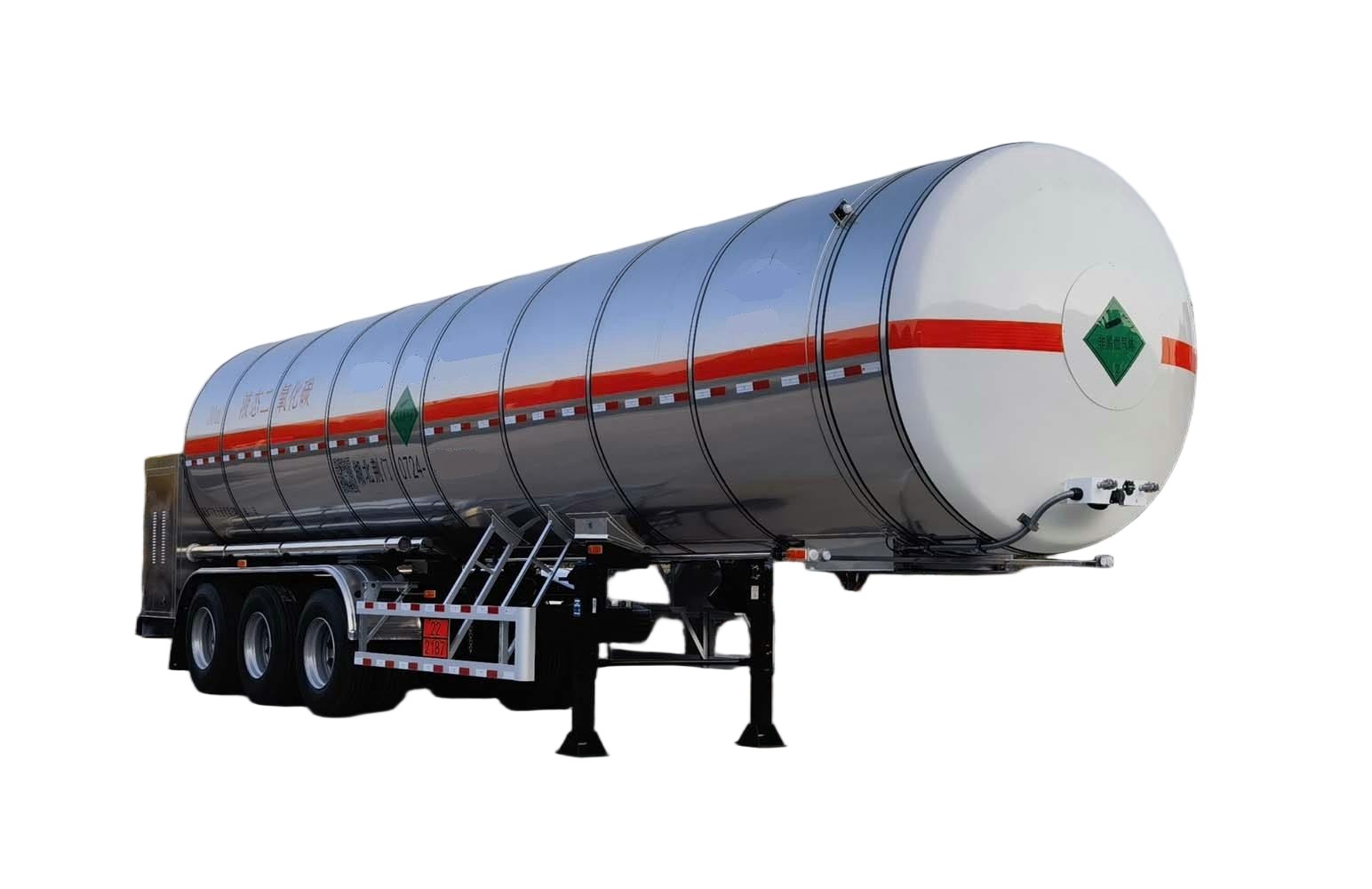

 3 Axles 30M3 27T LCO2 Trailer Liquid Carbon Dioxide Tank Semi Trailer

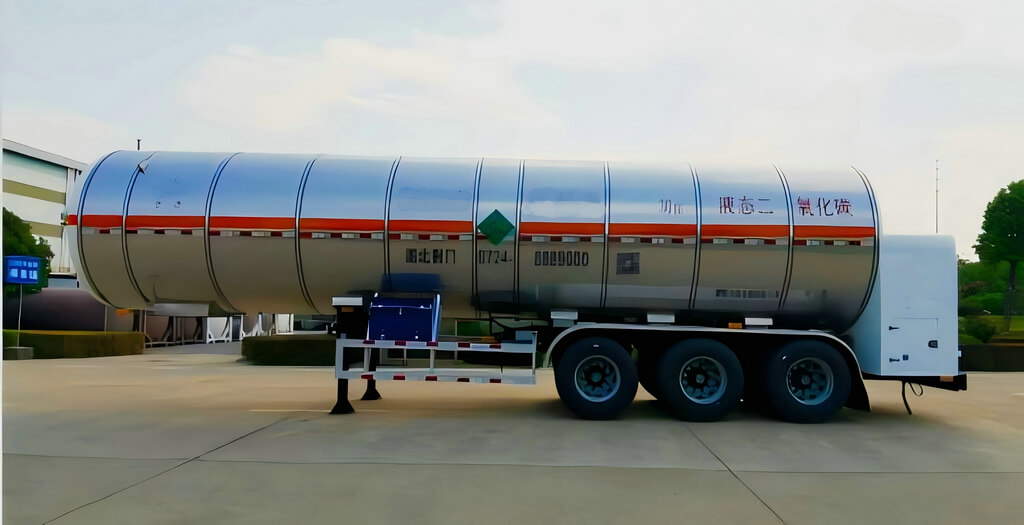

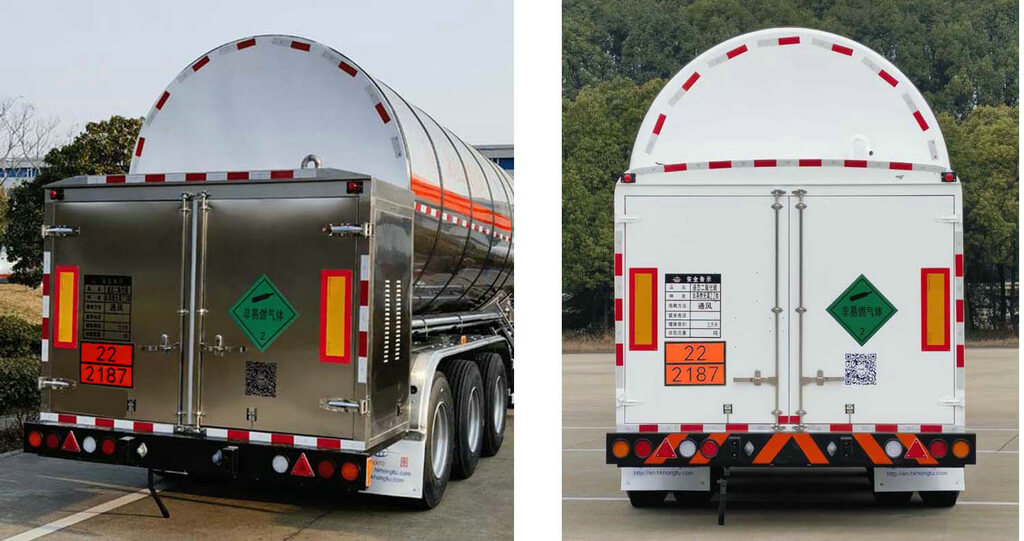

_LCO2 Trailer Liquid Carbon Dioxide Tank semi trailer (1)_1_LCO2 Trailer Liquid Carbon Dioxide Tank semi trailer (6)_1_LCO2 Trailer Liquid Carbon Dioxide Tank semi trailer (3)_1

Specification Item

Parameter

Specification Item

Parameter

  Model

9400GYU1HT

Type

Liquefied Carbon Dioxide LCO2 Transport Semi-trailer

Rated Mass (Kg)

27820

Total Mass (Kg)

40000

Curb Weight (kg)

12180

Axle Number

3

Wheelbase (mm)

5830+1320+1320

Axle Load (Kg)

-/24000 (Tri-axle Group)

Number of Spring Leaves

-/-/-/-

Number of Tires

12

Tire Specification

12R22.5 12PR

Approach/Departure Angle (°)

-/16

Overall Length (mm)

12250

Overall Width (mm)

2550

Overall Height (mm)

3750, 3700

Maximum Load Capacity of Semi-trailer Fifth Wheel (Kg)

16000

The total volume of the tank is 30.052 cubic meters LCO2, the hazardous vehicle type is AT-type, and the hazard class and item number is 2.2. UN2187

The overall dimensions of the tank (diameter × length) are Φ2360×11073 (mm). The thickness of the insulation layer (front head/straight section/rear head) is 200/193/148 (mm).

Optional tank overall dimensions (diameter × length) are Φ2310×10998 (mm), with the corresponding insulation layer thickness (front head/straight section/rear head) being 170/168/100 (mm).

The dimensions of the inner container tank (diameter × length) are Φ1973×10720 (mm).
