ZF WLY 9G50 ATM PTO SDQ211/100PQ1 Power Takeoff

QD40E FAST 10JS90A-B Power Takeoff PTO
10JS90/10JS90A/10JS90A-B
Price: $ 680
Discount Price: $ 380
Availability:
Quantity:

  • SDQ211/100PQ1

  • Shanghai, China

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

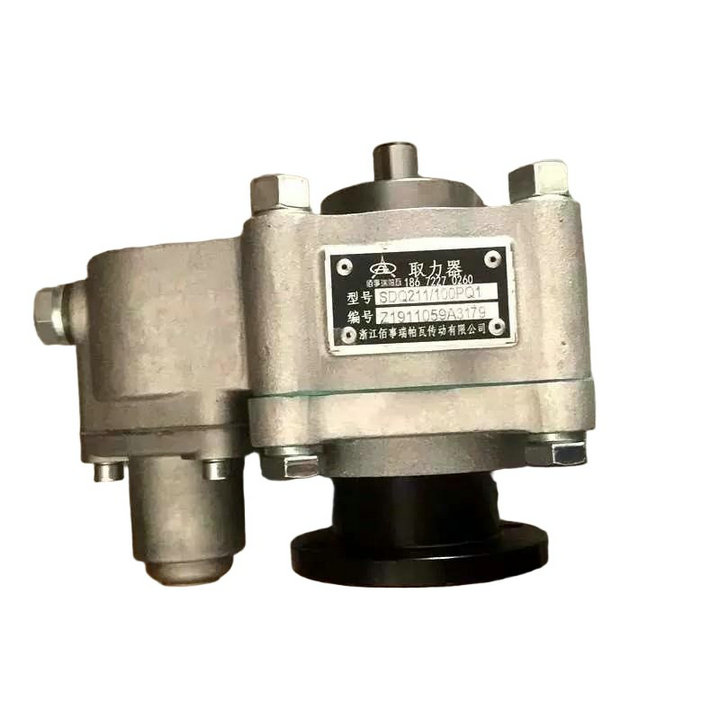

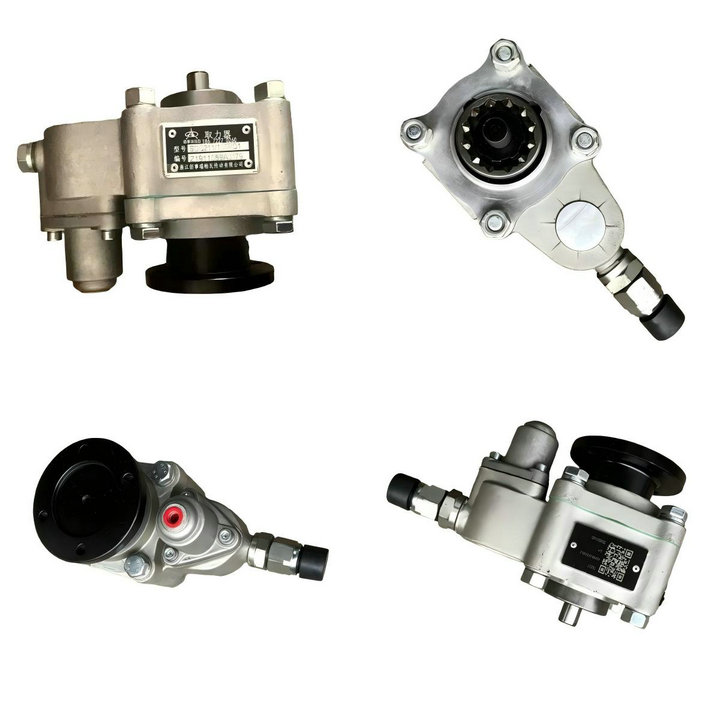

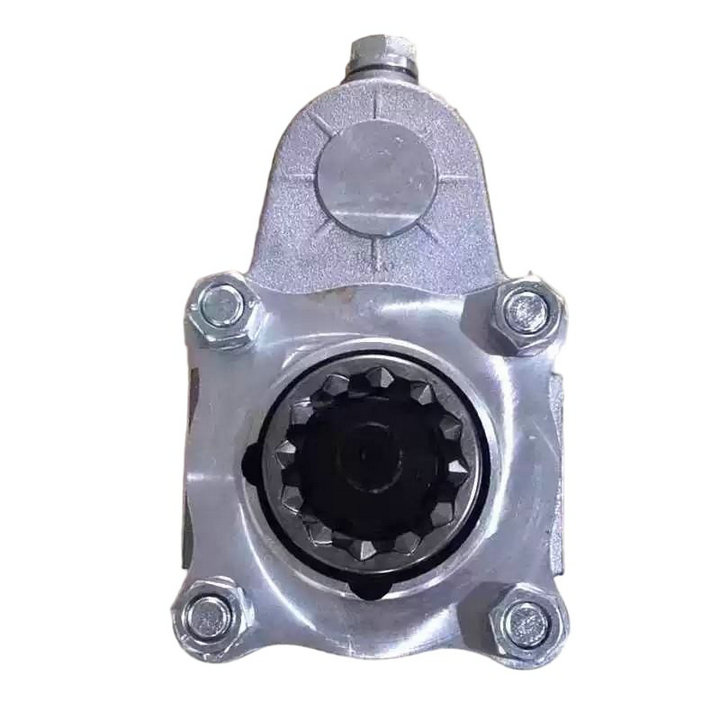

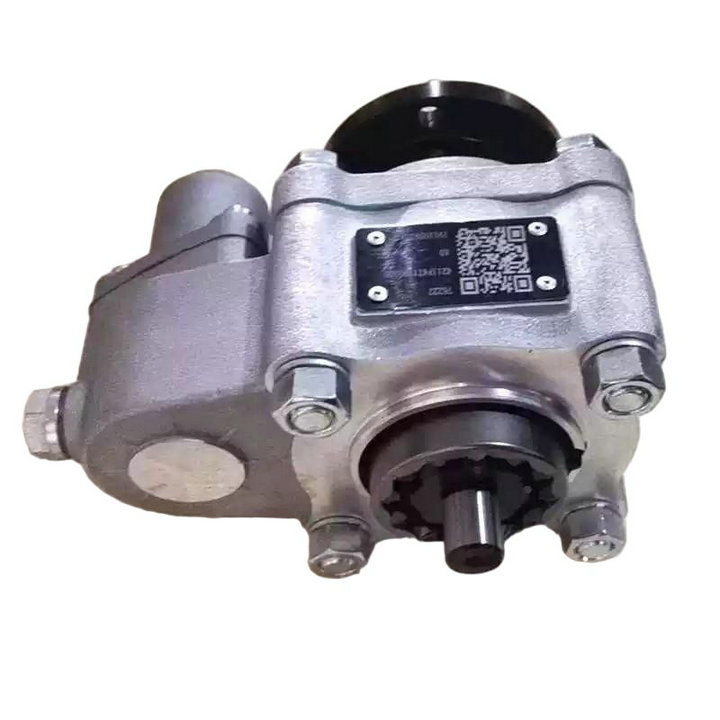

  ZF WLY 9G50 ATM PTO SDQ211/100PQ1 Power Takeoff

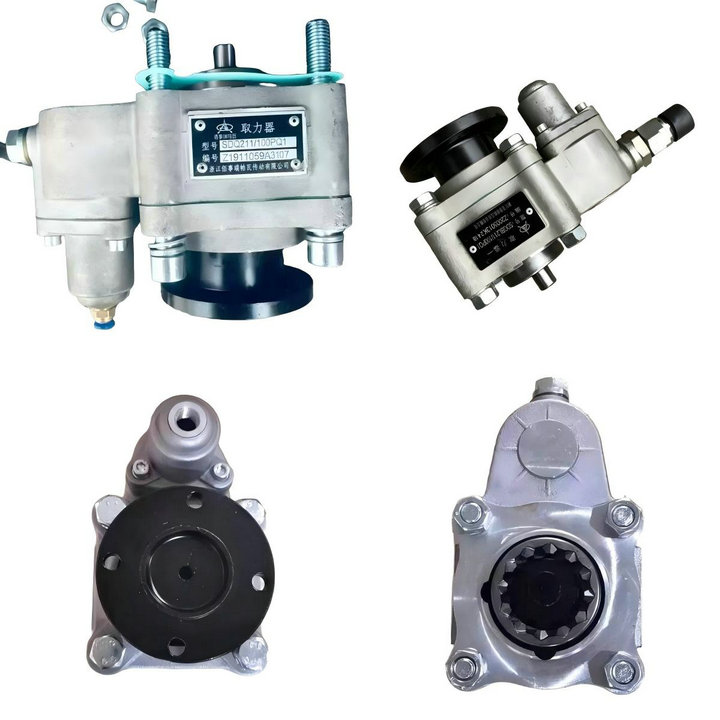

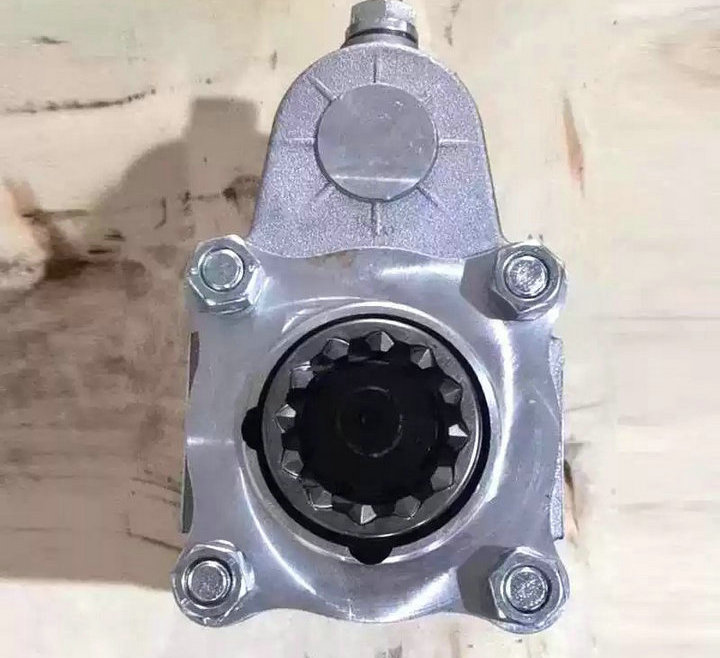

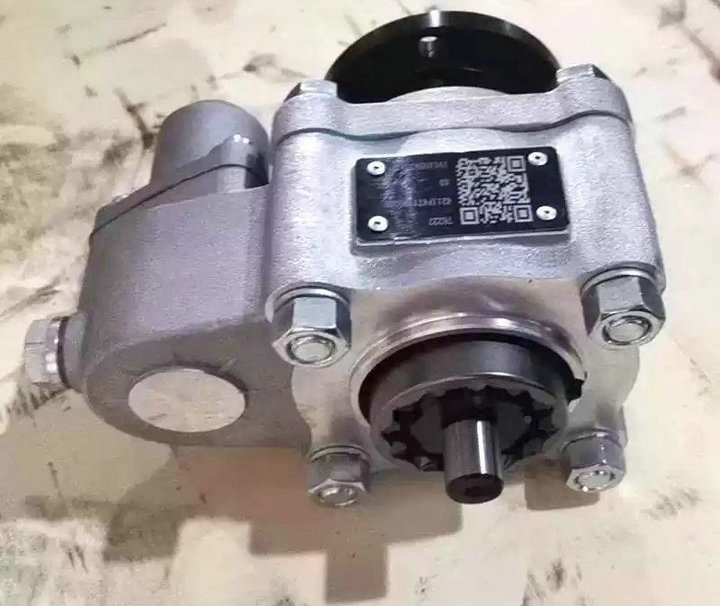

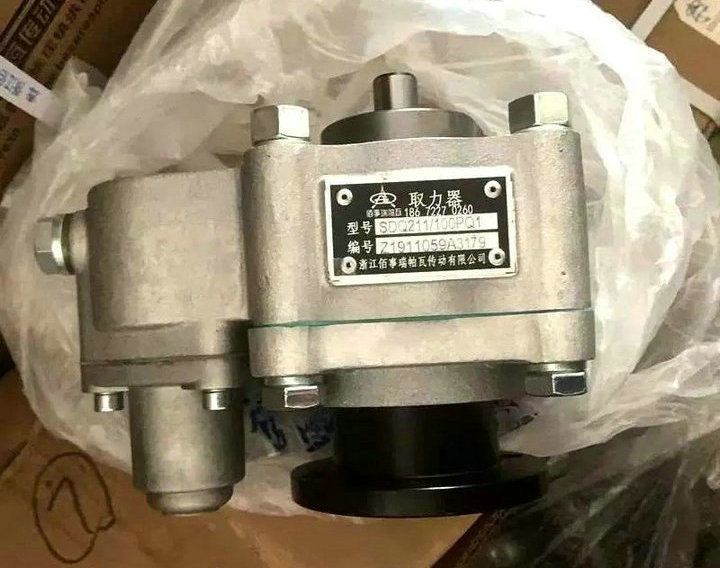

ZFWLY 9G50 Automatic Transmission PTO SDQ211100PQ1 (2)ZFWLY 9G50 Automatic Transmission PTO SDQ211100PQ1 (4)ZFWLY 9G50 Automatic Transmission PTO SDQ211100PQ1 (6)

ZF/WLY 9G50 Automatic Transmission PTO SDQ211/100PQ1

The SDQ211/100PQ1 is a side-mounted pneumatic power take-off (PTO) compatible with ZF/WLY 9G50 automatic transmission. It is widely used in special vehicles such as sanitation trucks, engineering vehicles and mixer trucks to supply power to upper-mounted equipment like hydraulic pumps.

1. Core Parameters

  • Model: SDQ211/100PQ1 (PQ1 = Pneumatic Control)

  • Matched Transmission: ZF/WLY 9G50 Automatic Transmission (9-speed, max input torque: approx. 500N·m)

  • Output Torque: 400–500N·m

  • Gear Ratio: 1.00 (Direct Drive)

  • Control Mode: Pneumatic (Cab control switch + Solenoid Valve)

  • Output Interface: Internal Spline / ISO Flange (Compatible with hydraulic pumps)

  • Rotation Direction: Same as engine

  • Weight & Dimension: Approx. 25kg, side mounting

2. Adaptation & Installation Specifications

Transmission Adaptation

WLY 9G50 (WLY9D50) 9-speed automatic transmission; center distance of main gearbox: 108mm; max input torque: 450–500N·m.
ZF 9G50 automatic transmission of the same platform with compatible interface.

Installation Requirements

  • Engage PTO only when the vehicle is stationary, in Neutral (N) gear with parking brake applied.

  • After PTO engagement, start only in 1st/3rd/5th gear; gear shifting while driving is prohibited to avoid transmission damage.

  • Side mounting design; reserved ports for pneumatic connection and control switch are required.

3. Model Code Interpretation (SDQ211/100PQ1)

  • SDQ: PTO series code

  • 211: Housing / mounting specification

  • 100: Matched transmission torque grade (100×10=1000N·m, suitable for 500N·m class)

  • PQ1: P=Pneumatic, Q=Side Take-off, 1=Standard Version
