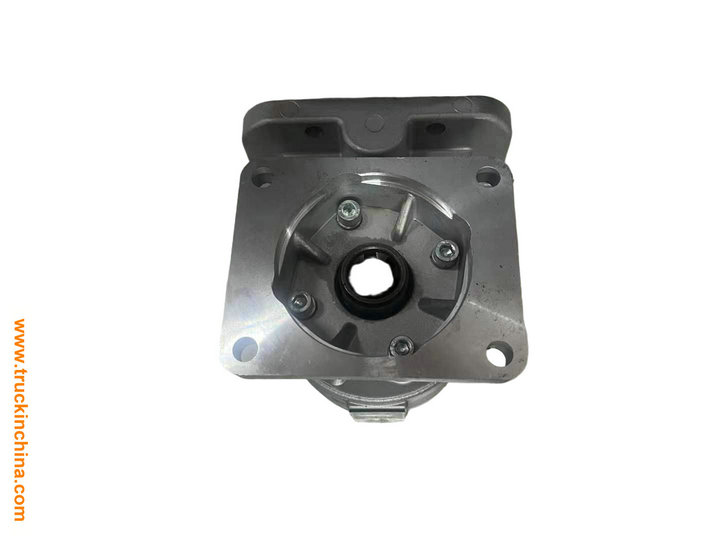

WLY 8GS46B Transmission Power Take-Offs (PTOs)

WLY 8GS46B Transmission Power Take-Offs (PTOs)
Price: $ 450
Discount Price: $ 330
Availability:
Quantity:

  • FZ8GS460 QH

  • FZ

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

 WLY  8GS46B Transmission Power Take-Offs (PTOs)

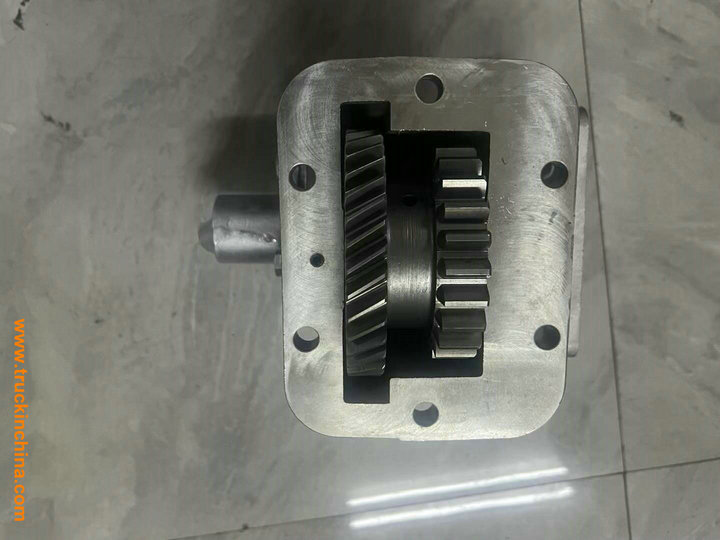

WLY 8GS46B Transmission Power Take-Offs (PTOs) (5)

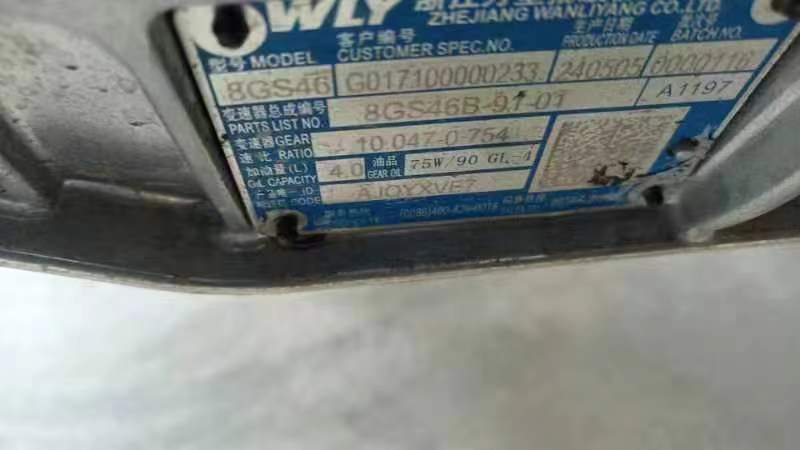

WLY ZHEJIANG WANLIYANG CO., LTD.

MODEL: 8GS46

CUSTOMER SPEC. NO.: G017100000233

PARTS LIST NO. (TRANSMISSION ASSEMBLY NO.): 8GS46B-91-01

FACTORY SERIAL NO.: A1197

GEAR RATIO: 10.047-0.754

OIL CAPACITY: 4.0 L

GEAR OIL: 75W/90 GL-4

PRODUCT CODE: AIQY XVE7

 8GS46 Model Definition

8: 8 forward speeds, 2 reverse speeds

G: Manual mechanical transmission for commercial vehicles

S: Twin-countershaft design, for enhanced load-bearing capacity and reduced wear

46: Maximum input torque rating of 450N·m, suitable for 140-170HP light-duty truck engines

Product Overview

The WLY 8GS46 is a high-end 8-speed manual twin-countershaft transmission for light commercial vehicles, developed by Zhejiang Wanliyang. It features a full synchronizer design for smooth shifting, a patented planetary gear mechanism, and a lightweight high-strength structure, with a B10 service life of 400,000 km.

Application & Maintenance

Applicable Vehicles: Light-duty trucks, special vehicles, and engineering vehicles with 140-170HP engines

Oil Change Interval: Replace 75W/90 GL-4 gear oil every 60,000 km under normal operating conditions, or every 40,000 km under heavy-load conditions

Critical Note: Strictly use GL-4 grade gear oil; GL-5 grade is prohibited as its sulfur-phosphorus additives will corrode the synchronizers. The standard oil filling volume is 4.0L.

Truck PTO  Power take off Accessories Parts

WLY 6‑Speed Transmission Series

(All models are 6‑speed manual; price available upon inquiry)WLY6TS55(6.16), WLY6G40(5.32), WLY653H(6.52), WLY646, WLY6G40(6.14), WLY6TS40(6.14), WLY6G55, WLY6T150, WLY6TS55(6.32), 6TS55B, WLY653, WLY653H(7.64), WLY6T120, WLY6G120, WLY6T46, WLY6G70, WLY6TS40(5.32), WLY6T90, WLY670H, WLY670, WLY6TS55(5.52), WLY6H75M(7.35), WLY6GS40, WLY6G45, WLY6G60, WLY6AG150, WLY6G100, WLY6T85, WLY6T100, WLY651, WLY6T75M, WLY6T53, WLY6V40, WLY6AG70, WLY6G90, WLY6H75M(6.50), WLY6AG40

PTO matching models available

WanLiYang series power takeoff (WLY)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-WL24/37

1.176

250

10H30 PTO

Internal spline / flange

Pneumatics

2

SDQ-WL24/38

1.077

300

6G55 PTO

Internal spline / flange

Pneumatics

3

SDQ-WL24/40

1.333

300

6G40A PTO

Internal spline / flange

Pneumatics

4

SDQ-WL31/39

1.1

300

6G40A PTO

Internal spline / flange

Pneumatics

5

SDQ-WL24/43

1.087

300

5G40 PTO

Internal spline / flange

Pneumatic / manual / vacuum

6

SDQ-WL24/44

1.043

300

6G40B PTO

Internal spline / flange

Pneumatics

7

SDQ-WL24/59

1.094

300

6G120/6G70 PTO

Internal spline / flange

Pneumatics

8

SDQ-WL24/60

1.3

300

6TS40 PTO

Internal spline / flange

Pneumatics

9

SDQ-WL24/63

1.39

180

5TS32 PTO

Internal spline / flange

Pneumatic / manual

10

SDQ-WL 24/63-B

1.39

180

5G32A PTO

Internal spline / flange

Pneumatic / manual

11

SDQ-WL 24/66

1.359

180

5TS32-C PTO

Internal spline / flange

Pneumatic / manual

12

SDQ-WL 24/66-B

1.146

180

5G32B/5G32C PTO

Internal spline / flange

Pneumatic / manual

13

SDQ-WL 24/67

SDQ-WL 25/67

1.147

300

6T120/6S46/6S51 PTO

Internal spline / flange

Pneumatics

14

SDQ-WL 24/70

1.15

200

6S46B (2015-4-25  stop produce)

Internal spline / flange

Pneumatic / manual

15

SDQ-WL 24/71

SDQ-WL 25/71

1.11

300

6S51B/6S46B PTO

Internal spline / flange

Pneumatic / manual

16

SDQ-WL 24/72

1.133

300

6TS55E/6TS60 PTO

Internal spline / flange

Pneumatic / manual

17

SDQ-WL23/63

1.35

350

10H46 PTO

Internal spline / flange

Pneumatics

18

SDQ-WL23/71

1.15

400

7TS60 PTO

Internal spline / flange

Pneumatics

19

SDQ-WL24/75

1

400

7TS60B  PTO

Internal spline / flange

Pneumatics

20

SDQ-WL25/70

1.244

400

7TS60C PTO

Internal flange / spline

Pneumatics

21

SDQ-WL24/73

1.07

400

7TS60D  PTO

Internal spline / flange

Pneumatics

22

SDQ-WL25/33

1.228

350

10h46 (right) PTO

Internal spline / flange

Pneumatics

23

SDQ-WL27/70

1.08

150

5TS40 PTO

Internal spline / flange

Pneumatics

24

SDQ-WL31/46

1.2

180

5TS40 PTO

Internal spline / flange

Pneumatics

25

SDQ-WL211/100

1

1000

9G90 PTO

Internal spline / flange

Pneumatics

WLY 5TS40 Transmission Power Take-Off PTO SDQ-WL31/46LGQ1 for Dongfeng Truck
