Sinotruk Transmissions Power Take-Offs Pto for HW15710ACL

Sinotruk Transmissions Power Take-Offs Pto for HW15710ACL
G.W.23 KG
Price: $ 360
Discount Price: $ 280
Availability:
Quantity:

  • HW15710ACL

  • FZ

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

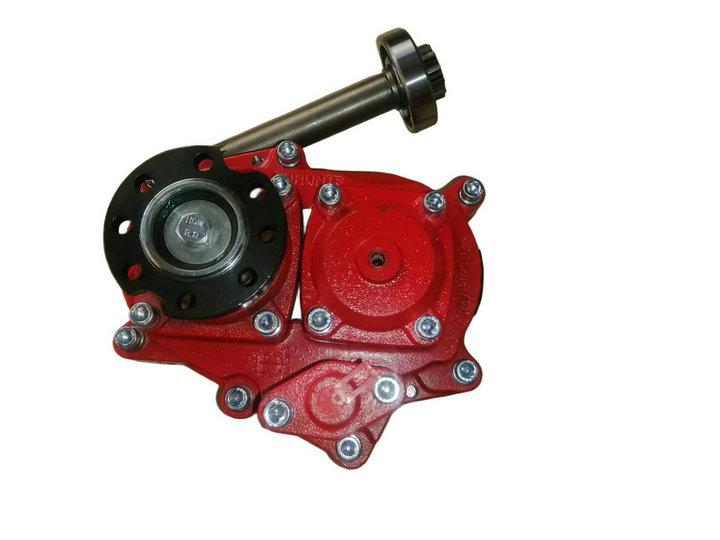

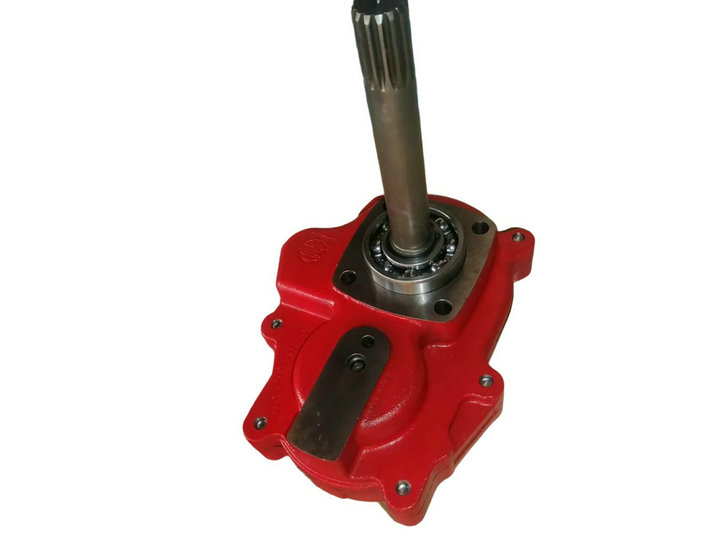

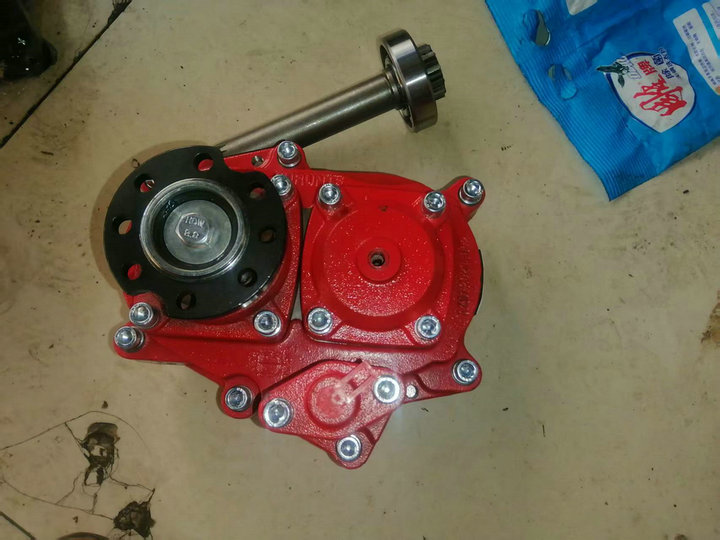

Sinotruck Transmissions Power Take-Offs Pto for  HW15710ACL

Truck PTO  Power take off Accessories Parts

PTO for HW15710ACL

1. Basic Information

  • Transmission Model: HW15710ACL (Sinotruk 10-speed AMT, all-aluminum housing)

  • Matching PTO Models: HW50 (standard), HW70 (high-torque)

  • Control Mode: Pneumatic

  • Power Take-off Location: Countershaft of transmission (rear / left side)

2. HW50 PTO (Standard Configuration)

  • Ratio: 0.739 (0.74)

  • Rated output torque: 500 N·m

  • Max input speed: 2600 rpm

  • Operating air pressure: 0.5–0.8 MPa

  • Output type: Internal spline / flange

  • Rotation direction: Same as engine

3. HW70 PTO (High-Torque Option)

  • Ratio: 0.793

  • Rated output torque: 700 N·m

  • Applicable transmissions: HW15710 / HW19710 series

  • Output type: Internal spline / flange

4. Key Specifications of HW15710ACL Transmission

  • Gears: 10 forward + 2 reverse

  • Max input torque: 1650 N·m

  • 1st gear ratio: 10.73

  • Transmission weight: 342 kg

  • Oil capacity: 12 L

5. Selection Guide

  • HW50: Suitable for standard applications such as dump trucks, water trucks, wreckers.

  • HW70: Suitable for high-torque, continuous-duty applications (e.g. concrete mixers, heavy-duty hydraulic oil pumps).

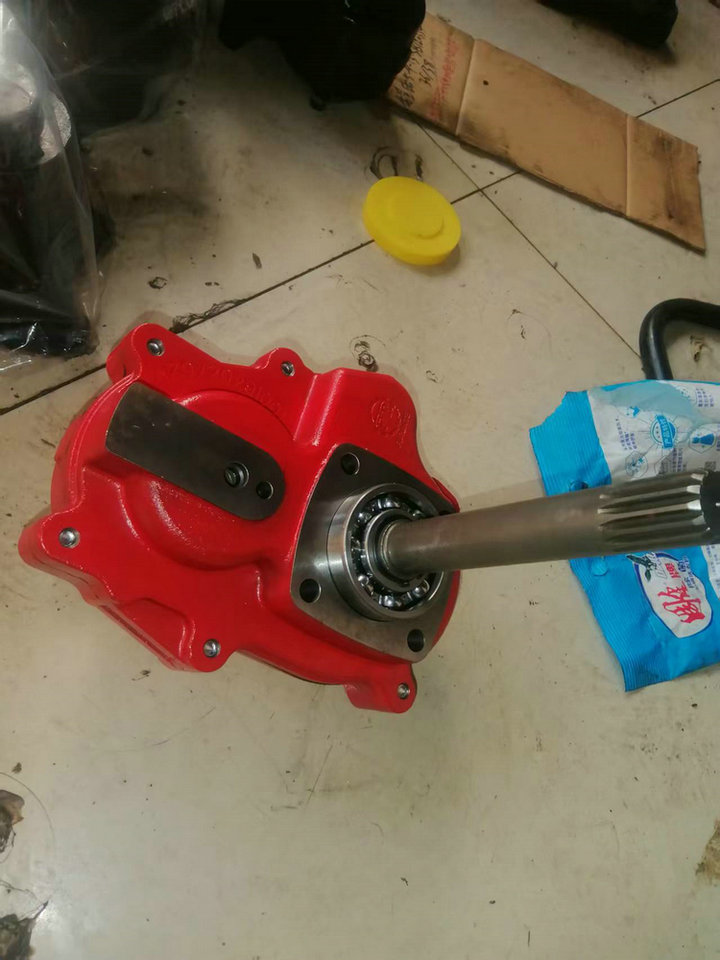

Sinotruk Transmissions Power Take-Offs HW15710ACL PTO (4)PTO FOR HW15710ACL CARDAN AIRE 22KG/23 KG

WLY 5TS40 Transmission Power Take-Off PTO SDQ-WL31/46LGQ1 for Dongfeng Truck

PTO Gearbox Power Take off Pto (5)PTO Gearbox Power Take off Pto
