QHG50 Slow Speed Ratio 0.95 FAST12JSD PTO for Crane Truck

QHG50 Slow Speed Ratio 0.95 FAST12JSD PTO for Crane Truck
Price: $ 680
Discount Price: $ 380
Availability:
Quantity:

  • QHG50

  • FZ

  • Shanghai, China

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

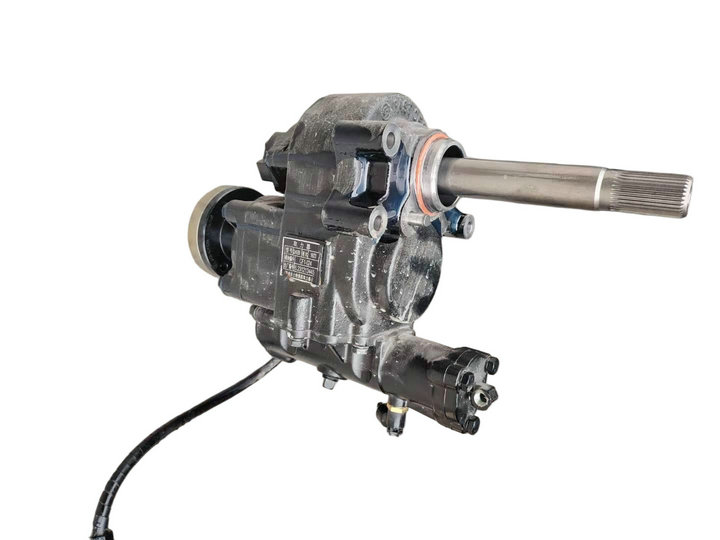

 QHG50 Slow Speed Ratio 0.95 FAST12JSD PTO for Crane Truck

     The integrated shaft type power take-off device, with a slow speed ratio of 0.95, solves the problem of the vehicle-mounted crane's pressurized liquid pump getting stuck when towing heavy loads, and extends the service life of the pump valves.

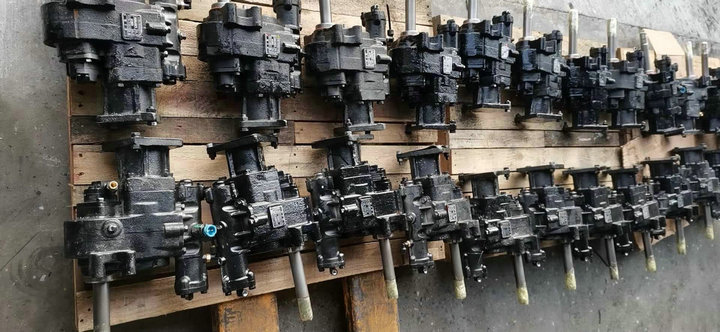

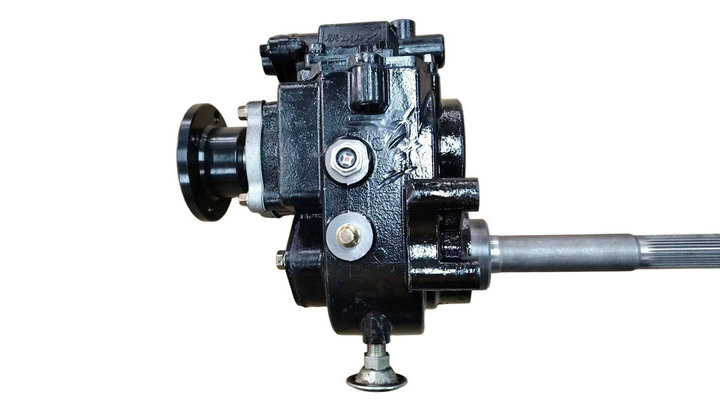

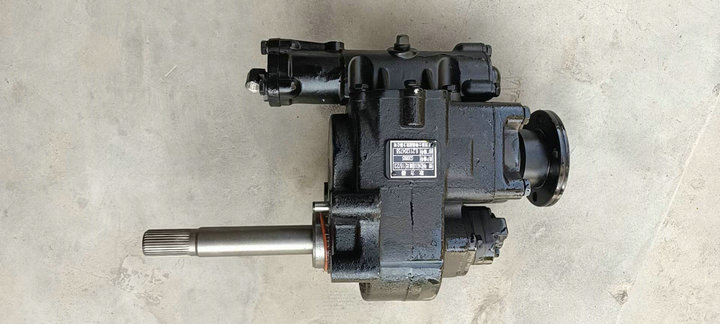

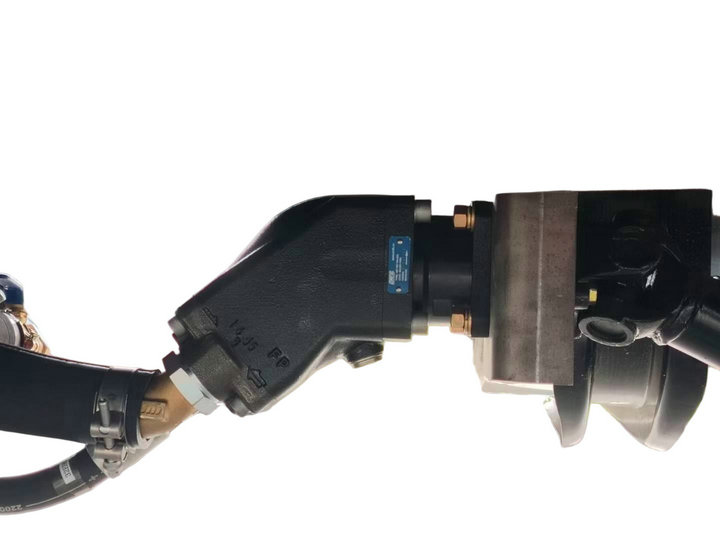

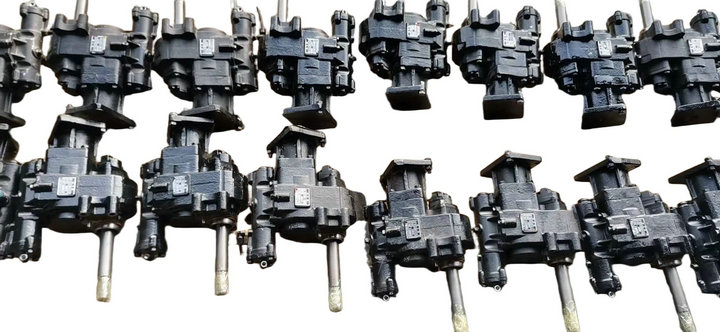

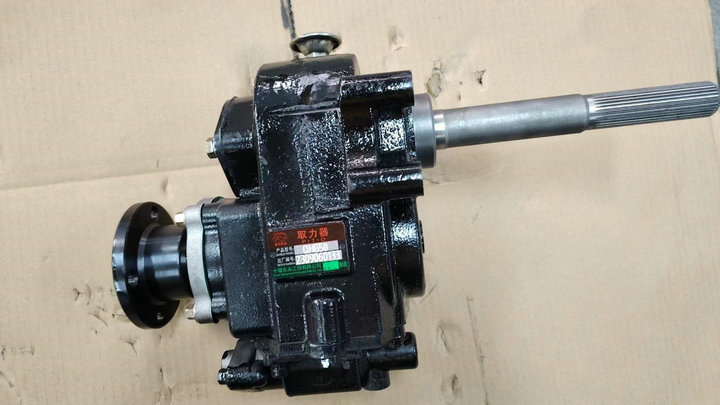

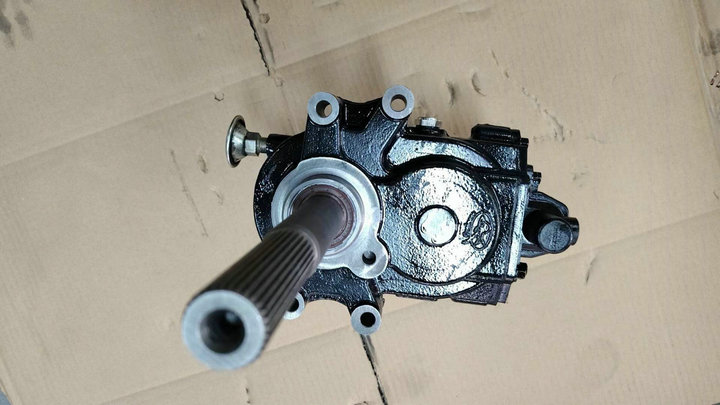

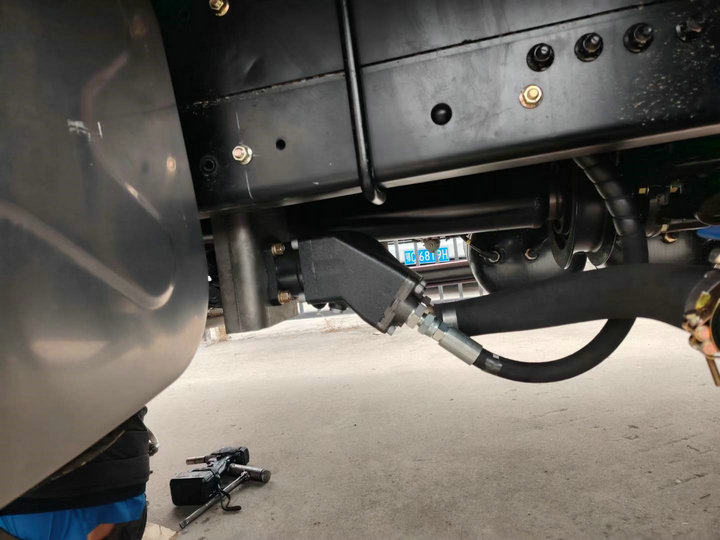

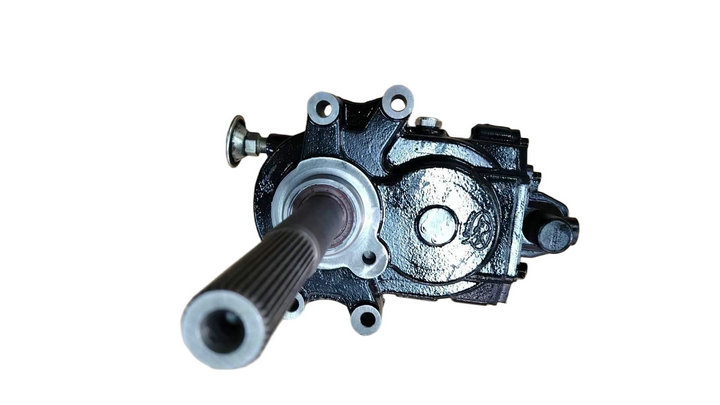

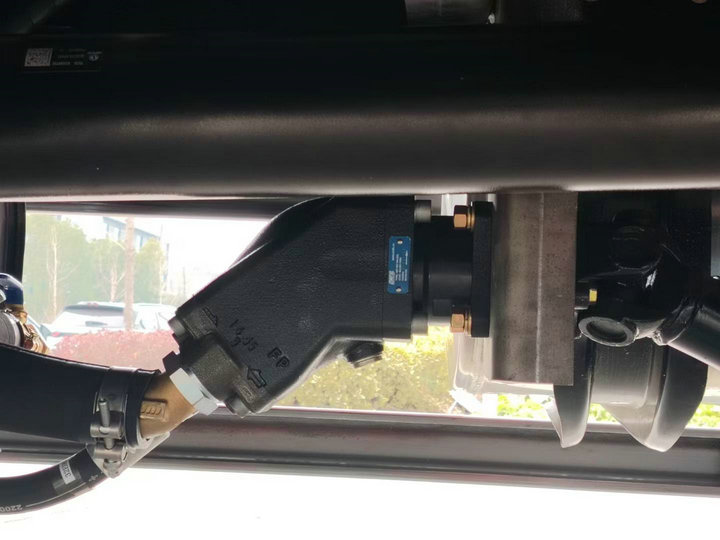

QHG50 Slow speed PTO for crane truck (6)QHG50 Slow speed 0.95 PTO for crane truck 3QHG50 Slow speed 0.9 PTO for crane truckQHG50 PTO (1)QHG50 Slow speed 0.95 PTO for crane truck 2QHG50 Slow speed PTO for crane truck (5)

The QHG50 is a rear-mounted power take-off (PTO) matched with Fast Gear / Weichai power units. It is compatible with Fast Gear 12-speed countershaft transmissions, widely used in special vehicles such as dump trucks, cranes and fire trucks, with a rated output torque of 500N·m.

Parameter Definition

  • QHG50: Model designation

    QH = Power Take-off;

    G = Rear-mounted / High-speed type;

    50 = 500N·m torque rating.

  • Slow speed 0.95: Low-speed gear with a gear ratio of 0.95.

    Output speed ≈ Engine speed × 0.95, slightly lower than the engine speed.

  • PTO: Power Take-Off, a device that takes power from the transmission to drive hydraulic pumps or other auxiliary equipment.

Core Specifications

  • Gear ratio: 0.95 (low speed); high-speed gear with ratio 1.25 is optional.

  • Control mode: Single-action pneumatic engagement, automatic disengagement upon air cut-off.

  • Rotation direction: Same as engine rotation.

  • Compatibility: Suitable for Fast Gear 12JSD series and other countershaft transmissions.

PTO Gearbox Power Take off Pto (5)PTO Gearbox Power Take off Pto
