WLY 5GS Transmission Power Take-Offs (PTOs)

WLY 5GS Transmission Power Take-Offs (PTOs)
Email us for Discount Price
Price: $ 360
Discount Price: $ 260
Availability:
Quantity:

  • 5GS

  • FZ

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

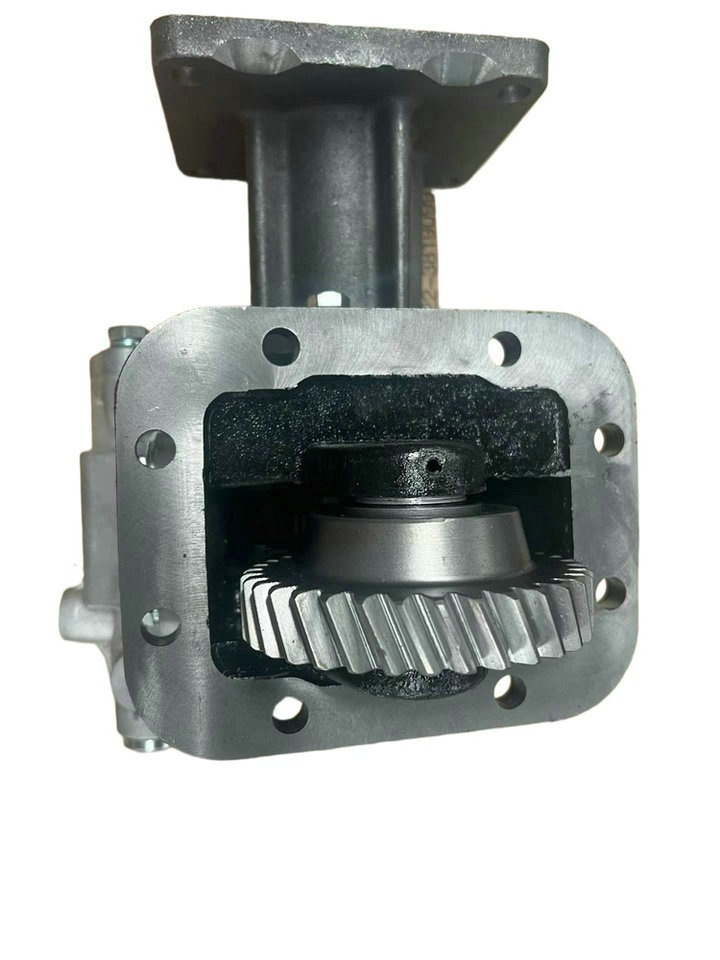

WLY 5GS Transmission Power Take-Offs (PTOs)

 Pneunmatic

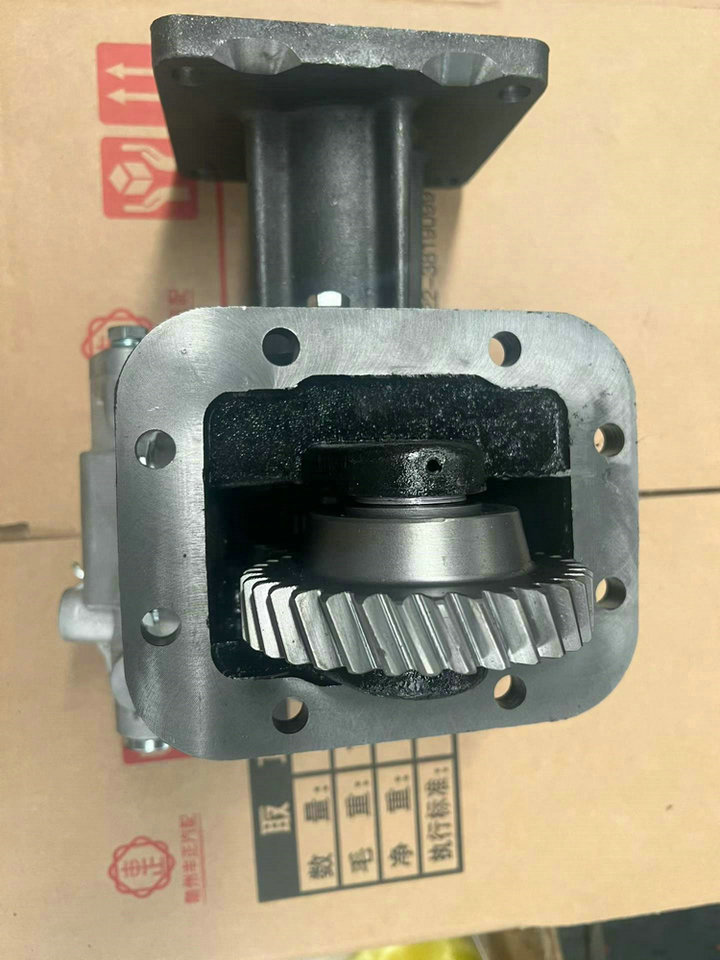

WLY 5GS Power Take-Offs (PTOs) (5)

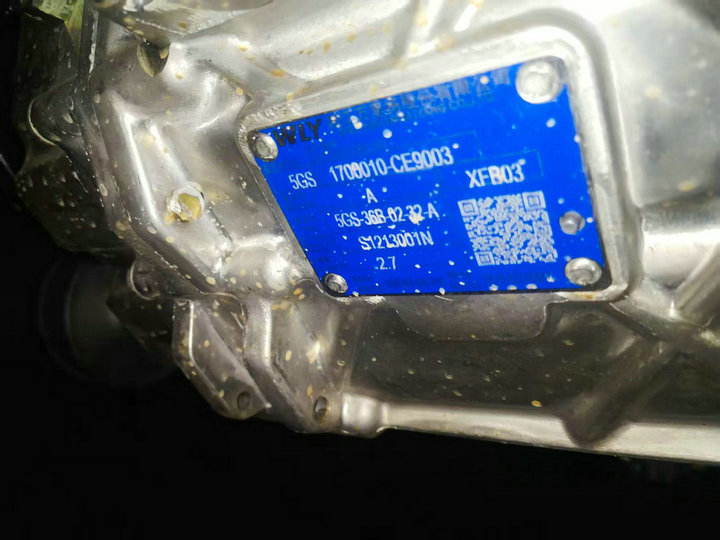

PTO WLY 5GS Nameplate Parameter Interpretation

Item Content Description
Brand WLY Zhejiang Wanliyang Transmission Co., Ltd. (WLY), a leading domestic transmission manufacturer
Model Series 5GS 5-Speed Manual (MT) Transmission Series, a dedicated 5-speed product for light trucks and mini trucks by Wanliyang
OEM Part Number 1700010-CE9003 Transmission assembly part number for OEM (Dongfeng Group) matching
Internal Model XFB03 Wanliyang internal production model, corresponding to the 5-speed transmission for Dongfeng Automobile Co., Ltd.
Version Mark -A / 5GS-36B-02-32-A Transmission structure/gear ratio version number, representing the specific gear set configuration
Production Serial Number S1213001N Unique production traceability number for a single transmission unit
Gear Ratio Mark 2.7 Final drive ratio / key gear ratio (for this 5-speed manual model, 2.7 is generally the rear axle/final drive related ratio)

II. Core Product Information

1. Product Positioning

This is the WLY 5GS Series 5-Speed Manual Transmission, specially designed for light commercial vehicles such as light trucks and mini trucks. It is an OEM matching transmission model for Dongfeng Automobile Co., Ltd. (for models like Dongfeng Dolica, Captain, etc.), with XFB03 being the exclusive internal model for Dongfeng matching.

2. Core Technical Features

  • Structural Design: Full aluminum alloy housing, ensuring strength while achieving lightweight; three-section modular structure for convenient maintenance

  • Shifting Performance: Shift fork shafts equipped with linear bearings, new self-locking and interlocking mechanism, delivering smooth shifting and preventing misoperation

  • Transmission Efficiency: Optimized fine high-tooth design, high transmission efficiency, reducing fuel consumption, suitable for both urban and long-distance driving scenarios

  • Reliability: B10 design life up to 2 million km, shifting life exceeding 6 million times, with a long oil change interval

3. Application Scenarios

Mainly suitable for light commercial vehicles with around 120 horsepower (such as mini/light truck models like Dongfeng Shidai Linghang S1, Dolica D5/D6), used for urban distribution, short-haul freight and other scenarios.

III. Supplementary Notes

  • The QR code on the nameplate can be used for product traceability, parts inquiry and after-sales warranty by Wanliyang and the OEM.

  • This model is a 5-speed manual transmission, requiring regular replacement of transmission oil (Wanliyang special gear oil is recommended), with a conventional oil change interval of 50,000 to 80,000 km.

  • For maintenance or parts replacement, the original factory parts can be accurately matched through the part number 1700010-CE9003 or the internal model XFB03.


Truck PTO  Power take off Accessories Parts

WanLiYang series power takeoff (WLY)

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-WL24/37

1.176

250

10H30 PTO

Internal spline / flange

Pneumatics

2

SDQ-WL24/38

1.077

300

6G55 PTO

Internal spline / flange

Pneumatics

3

SDQ-WL24/40

1.333

300

6G40A PTO

Internal spline / flange

Pneumatics

4

SDQ-WL31/39

1.1

300

6G40A PTO

Internal spline / flange

Pneumatics

5

SDQ-WL24/43

1.087

300

5G40 PTO

Internal spline / flange

Pneumatic / manual / vacuum

6

SDQ-WL24/44

1.043

300

6G40B PTO

Internal spline / flange

Pneumatics

7

SDQ-WL24/59

1.094

300

6G120/6G70 PTO

Internal spline / flange

Pneumatics

8

SDQ-WL24/60

1.3

300

6TS40 PTO

Internal spline / flange

Pneumatics

9

SDQ-WL24/63

1.39

180

5TS32 PTO

Internal spline / flange

Pneumatic / manual

10

SDQ-WL 24/63-B

1.39

180

5G32A PTO

Internal spline / flange

Pneumatic / manual

11

SDQ-WL 24/66

1.359

180

5TS32-C PTO

Internal spline / flange

Pneumatic / manual

12

SDQ-WL 24/66-B

1.146

180

5G32B/5G32C PTO

Internal spline / flange

Pneumatic / manual

13

SDQ-WL 24/67

SDQ-WL 25/67

1.147

300

6T120/6S46/6S51 PTO

Internal spline / flange

Pneumatics

14

SDQ-WL 24/70

1.15

200

6S46B (2015-4-25  stop produce)

Internal spline / flange

Pneumatic / manual

15

SDQ-WL 24/71

SDQ-WL 25/71

1.11

300

6S51B/6S46B PTO

Internal spline / flange

Pneumatic / manual

16

SDQ-WL 24/72

1.133

300

6TS55E/6TS60 PTO

Internal spline / flange

Pneumatic / manual

17

SDQ-WL23/63

1.35

350

10H46 PTO

Internal spline / flange

Pneumatics

18

SDQ-WL23/71

1.15

400

7TS60 PTO

Internal spline / flange

Pneumatics

19

SDQ-WL24/75

1

400

7TS60B  PTO

Internal spline / flange

Pneumatics

20

SDQ-WL25/70

1.244

400

7TS60C PTO

Internal flange / spline

Pneumatics

21

SDQ-WL24/73

1.07

400

7TS60D  PTO

Internal spline / flange

Pneumatics

22

SDQ-WL25/33

1.228

350

10h46 (right) PTO

Internal spline / flange

Pneumatics

23

SDQ-WL27/70

1.08

150

5TS40 PTO

Internal spline / flange

Pneumatics

24

SDQ-WL31/46

1.2

180

5TS40 PTO

Internal spline / flange

Pneumatics

25

SDQ-WL211/100

1

1000

9G90 PTO

Internal spline / flange

Pneumatics

WLY 5TS40 Transmission Power Take-Off PTO SDQ-WL31/46LGQ1 for Dongfeng Truck

PTO Gearbox Power Take off Pto (5)PTO Gearbox Power Take off Pto
