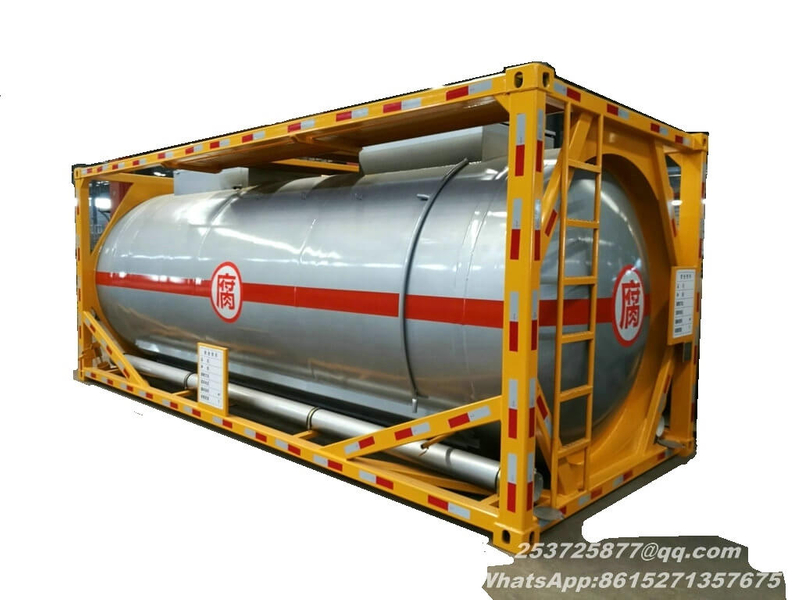

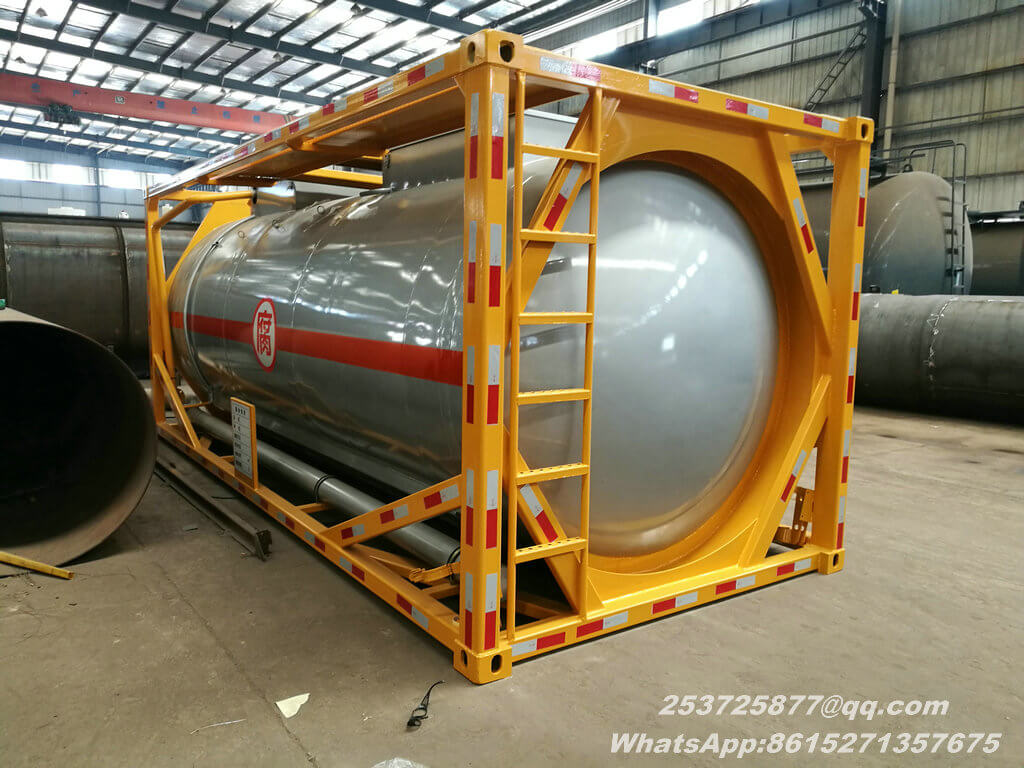

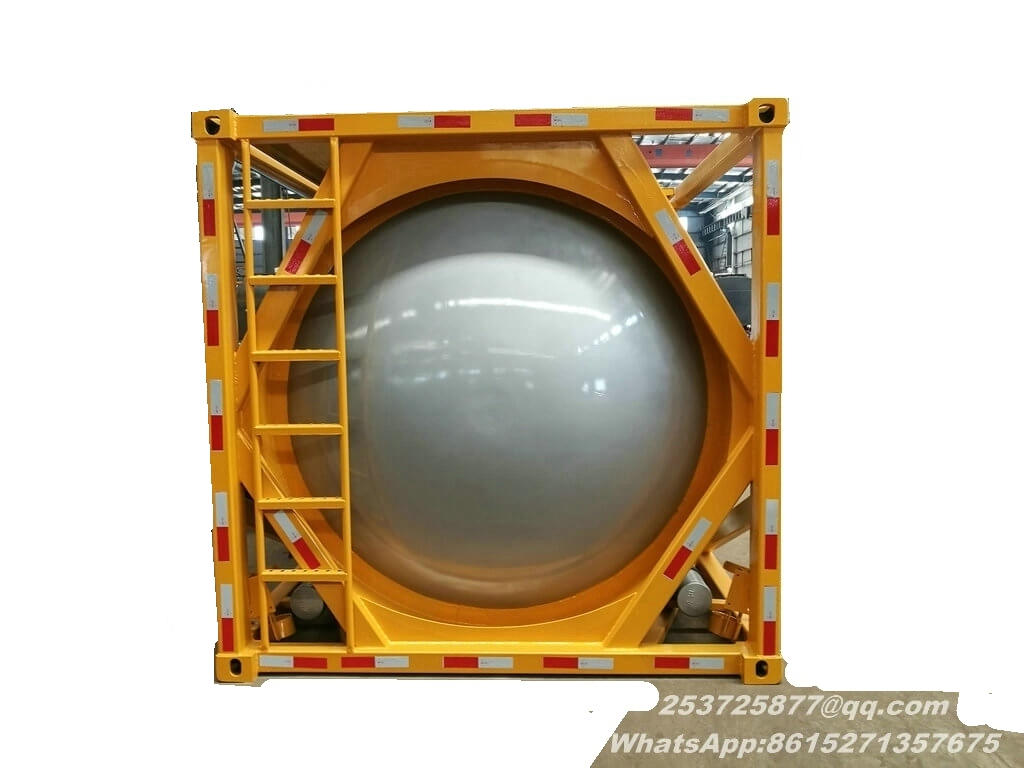

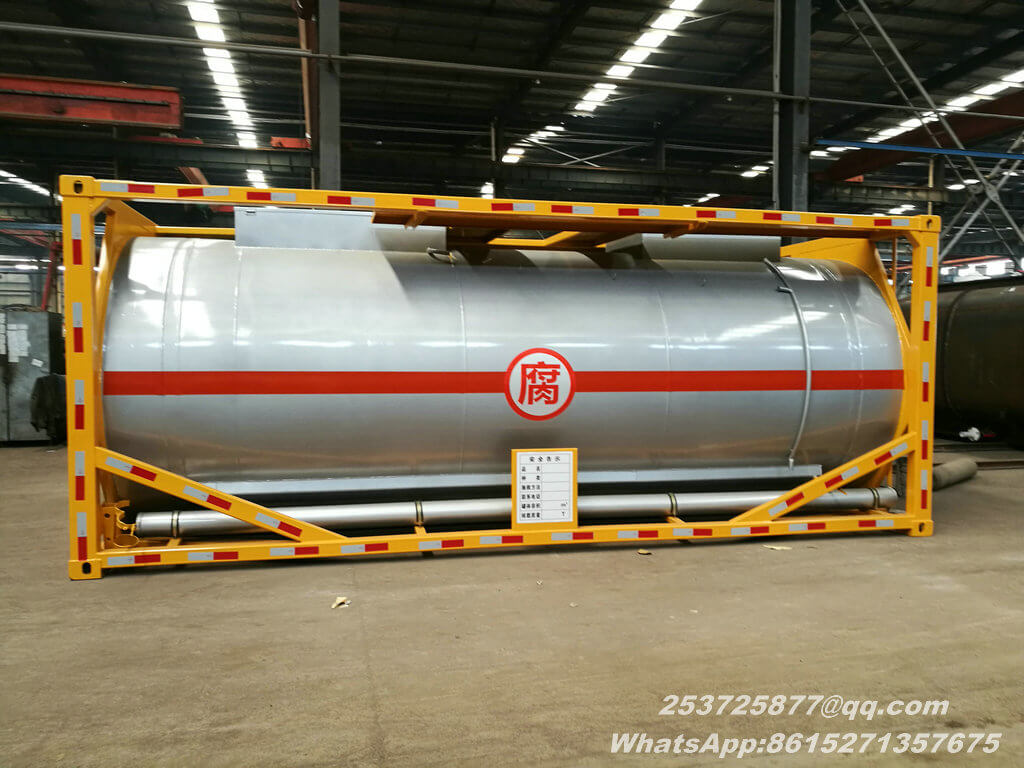

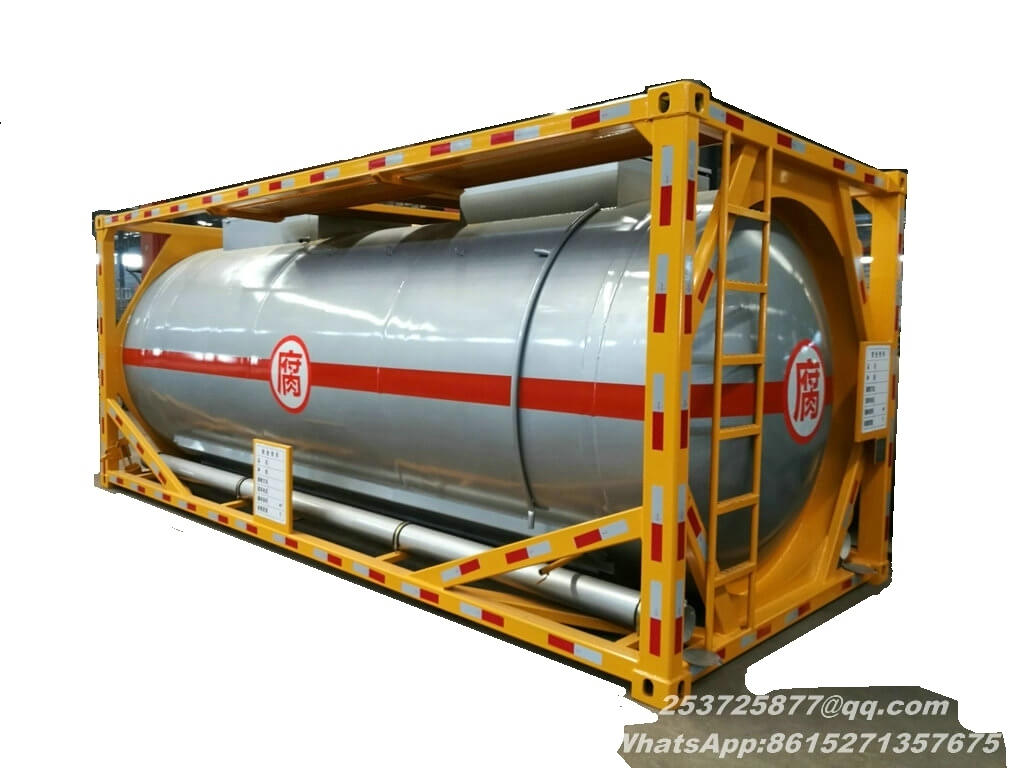

Yellow Phosphorus tank Container 20ft stainless steel with Heating Insulated System

stainless steel Tank Container with Heating Insulated System for transport Yellow Phosphorus
Price: $ 30000
Discount Price: $ 26000
FOB:
Availability:
Quantity:

  • 20FT

  • DRZE

  • 8609001200

 stainless steel Tank Container with Heating Insulated System  for transport Yellow Phosphorus

Technical Specifications for refer only.we reserves the right for appropriate amendments

Type

ISO single compartment
insulated and steam-heated tank containers





Capacity

Tare weight

Max gross weight

26,000ltr
6,870lbs

4150kg
9,140lbs

34,000kg
74,890lbs

25,000ltr
6,600lbs

3970kg
8,741lbs

34,000kg
74,890lbs

24,000ltr
6,340lbs

3,375kg/4,200kg
7,431lbs/9,248lbs

30,480kg/36,000kg 67,196lbs/79.295lbs

21,000ltr
5,550lbs

3,275kg/3,800kg
7,220lbs/8,380lbs

30,480kg
67,196lbs

17,500ltr
4,626lbs

3,000kg
6,614lbs

30,480kg
67,196lbs



Dimensions

Metric

Imperial

Length

6,058mm

19'10"

Width

2,438mm

8'0"

Height

2,591mm

8'6"



Pressures

Bar

Psi

Working pressure

4.0

58

Test pressure

6.0

87

Steam working pressure

4.0

58

Steam test pressure

6.0

87

Relief valve

4.4

64



Shelf material

Stainless steel, 304 L; 316L

Design Code

ASME VIII, division I where applicable



Temperatures

°C

°F

Maximum cargo temperature

100 - 130

212 - 266



Approvals

 Approvals cost not including ,(Lloyds Construction Certificate, UIC, TIR, IM101, UK (DOT), RID/ADR, AAR600, FRA, TC.CSC )

Standard fittings


Manlid

500mm (20") diameter

Calibration

Volumetric calibration chart adjacent to manlid - dipstick provided

Airline

1.5" with stainless ball valve and 1.5" BSP cap

Relief valve

2.5" Max Highflow set at 4.4 Bar - facility to fit a second

Bottom discharge

3" stainless steel foot-valve with butterfly valve and blank flange/3" BSP cap

Top outlet

Provision for 3" butterfly valve and syphon tube

Gaskets and seals

SWR (sweet white rubber) and PTFE (Teflon)

Insulation

50mm (2") rockwool/polyurathane with G.R.R or aluminium cladding

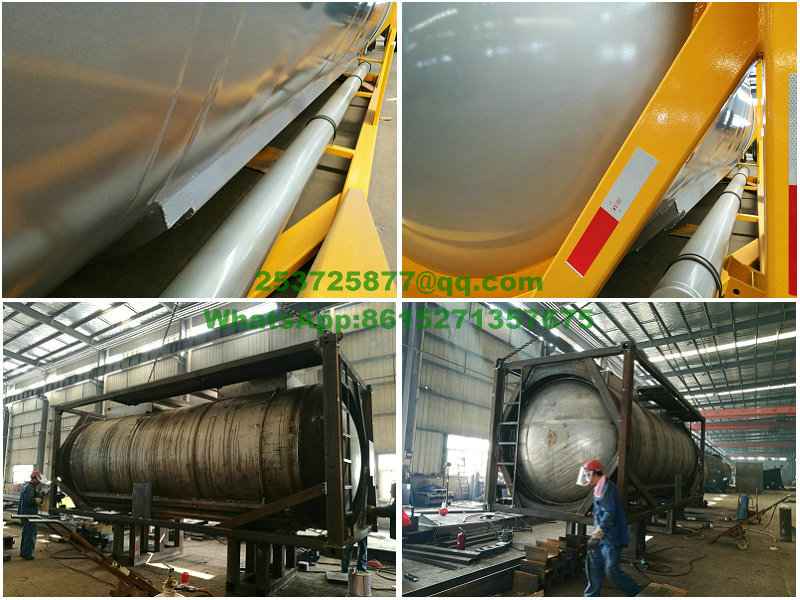

Steam heating

7.5m2 effective surface area external steam ducts. Inlet and oulet three quarter inch BSP



The pictures are for your reference only.
