WGSJT7 container pallet loader Price

WGSJT7 container pallet loader Price
Price: $ 169000  -  390000
Discount Price: $ 162900  -  381900
FOB:
Availability:
Quantity:

  • WGSJT7

  • WGS

  • 8428909090

 WGSJT7 container pallet loader

WGSJT7 container pallet loader 3_1WGSJT7 container pallet loader 4_1WGSJT7 container pallet loader 6_1WGSJT7 container pallet loader 8_1WGSJT7 container pallet loader_1WGSJT7_1

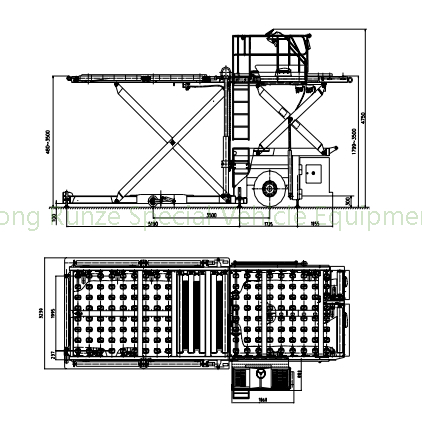

 STANDARD FEATURES:

 Engine: Deutz BF4M2012, 100HP (74.9kw) is mounted in a swing-out compartment for ease of maintenance. The engine provides the hydraulic power to propel the vehicle through the two front wheels (solid rubber) as well as supply hydraulic power for lifting both the front and rear platform as well operating the multi-directional roller system.


Elevator:

Lifting speed: 29ft/min (9m/min)

Transfer speed: 60ft/min (18m/min)

Minimum height: 16 inch (480 mm)

 Maximum height: 138inch (3500mm)


Bridge:

 Lifting speed: 13ft/min (4m/min)

 Transfer speed: 60ft/min (18m/min)

Minimum height: 71inch (1799mm)

Maximum height: 140inch (3550mm)


Drive:

Maximum driving speed: 6.2MPH (10km/hr)

Braking distance: 16 ft. (4m) at driving speed

Minimum turning radius: 28 ft (8.5m)

Maximum steering angle: 30 degrees.


Platform width: 98in.(2470mm)



PLATFORM CONFIGURATION:

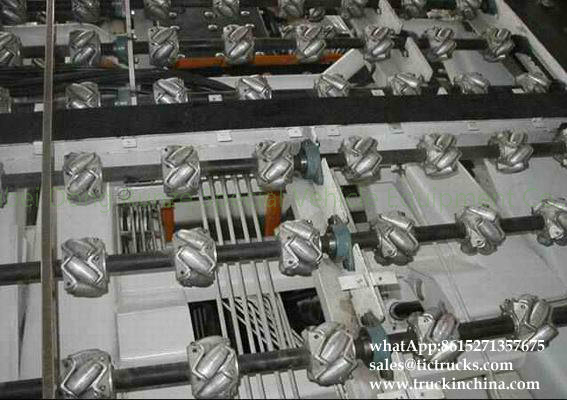

“multi-directional wheels” are used for positioning of the pallet/container on both the main platform and the bridge. They provide rotation as well as transfer of the pallet/container. In addition, the front section of the main deck is equipped with powered rollers assuring a good transfer of the pallet/container under all conditions. There are guides on the front platform to assure the ease of transfer of the load to the aircraft.


SYSTEM SPECIFICATIONS:

Electrical: 24VDC Fuel Tank: 37 gal (140L)

Brakes: Air Hydraulics: 3600psi (25Mpa)

Front Wheels: 10.00-20 solid rubber

Rear wheels: 12 x 5 inch (300 x 125mm)


SHIPPING DIMENSIONS STJ7 342x148x120 in. (8680x37600x3050mm)


WGSJT7 container pallet loader Price

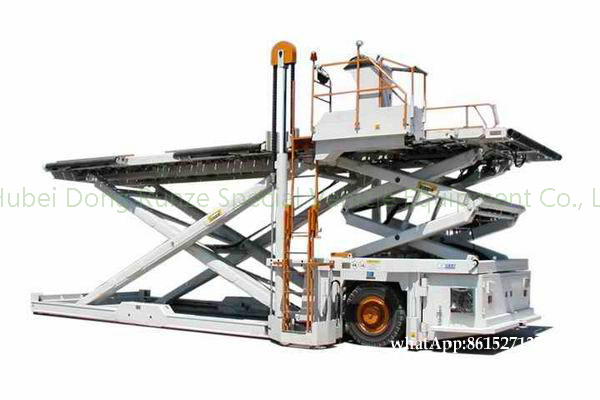

WGSJT7 series container/pallet loader is a dual-platform cargo loader capable of lifting 7,000 Kgs. to a maximum height of 5,600mm.It features dual loading platforms, multi-directional rollers, swing-out power module, adjustable operator’s platform and solid tires. WGSJT7 series are available in standard version (WGSJT7) or wide version (WGSJT7W) configuration as well as an optional high elevating front platform (WGSJT7WH) making this unit ideal for loading/unloading both the lower lobe and main deck of almost all aircraft flying. It is capable of rotating, positioning and moving cargo pallets and all types of containers (ULD) capability using the multi-directional roller system and full bed length rollers with chain-less drive. This unit features easy access to all major components through a swing out engine compartment.

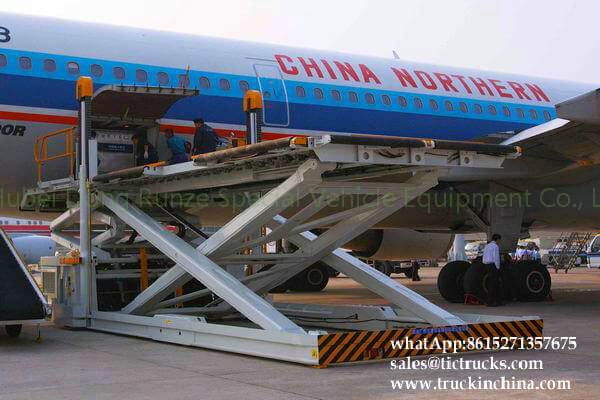

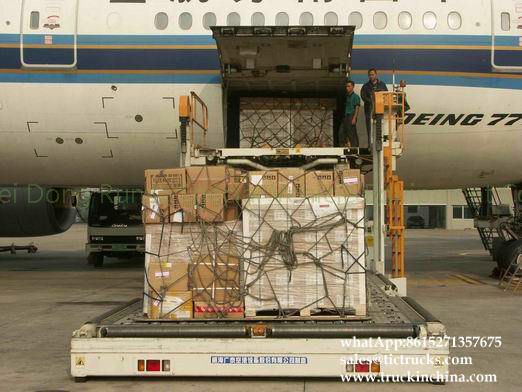

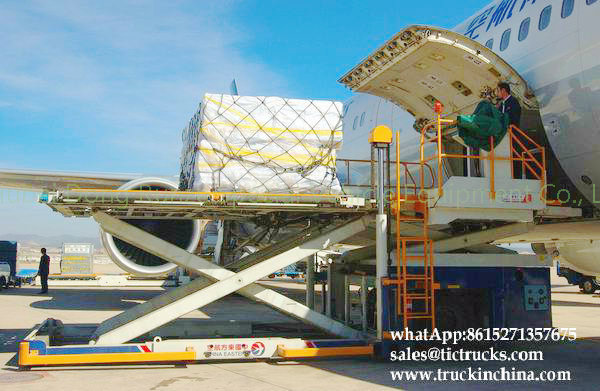

WGSJT7/WGSJT7W loader can be used to service the following aircraft:
Lower lobe: 747, 757, 767, 777, DC-10, MD-11, L-1011, A300, A310, A320, A330, A340
Main deck: 707, 727, 737, BAE-146, A320, DC-8, DC-9,MD-80

WGSJT7WH loader can be used to service the following aircraft:
Lower lobe: 747, 757, 767, 777, DC-10, MD-11, L-1011, A300, A310, A320, A330, A340
Main deck: 707, 727, 737, 747, 757, 767, BAE-146, A300, A310, A320, DC-8, DC-9,MD-80, MD-11, L-1011


WGSJT7 series aircraft container/pallet loaders are the best choice for cargo loading in the ramp.

The WGSJT 14 loader is the proven heavy-weight of cargo loaders. Renowned for its durability and dependability, the WGSJT14 loader features dual loading platforms, stand-up adjustable operator compartment and a maximum main deck loading capacity of 14,000 kgs.


This heavy-duty loader can be used on the following aircraft:
Lower lobe: B747, B757, B767, B777, DC-10, MD-11, L-1011, A300, A310, A320, A330, A340
Main deck: B707, B727, B737, B747, B757, B767, BAE-146, A300, A310, A320, DC-8, DC-9, L-1011, MD-11, MD-80



It is capable of rotating, positioning and moving cargo pallets and all types of containers (ULD) capability using the multi-directional caster system and full bed length rollers with chain-less drive. This unit features easy access to all major components through a swing out engine compartment.

WGSJ14 aircraft container/pallet loader is the best choice for cargo loading in the ramp.

Due to technical progress, the specification may be changed without prior notice.

Any requirement, please contact us for detailed information.
