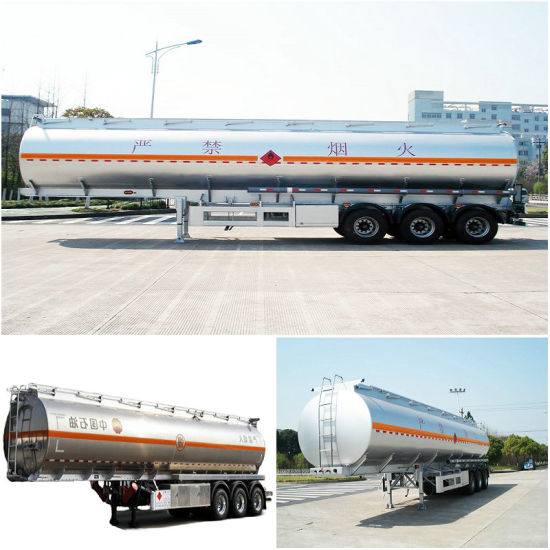

Straight Aluminum Tanker Trailer 42000L~44000L 3 Axle

Straight Tank Trailer Manufacturers
CONTACT US
Cellphone:  (+86)15271357675
Website:  www.truckinchina.com



 45000L Aluminum Tank Trailer Aluminum Fuel Tanker Semi-trailer 3 axles, 45000L to 54000L


Tanker
Material                  Aluminium
Thickness of shell     7mm
Thickness of dish      7mm
Inside baffles            5mm
Compartments          5 to 7 compartments
Volume                   45000L to 54000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading.            Option: Bottom loading
Running Gear
FUWA axle 13T*3                  Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
12+1 pcs tires 315/80R22.5 Tire  (9.0*R22.5 steel rims)
3.5" Jost kingpin                     Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting.
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools,  Heavy duty tail bumper
Contact to get the detail and price  → CONTACT US
Cellphone:  (+86)15271357635
Website:  www.truckinchina.com
ARAMETER
Dimension(mm)
L*w*h: 12972x2500x3950(mm)
King pin setting(mm)
1715mm
Kin pin plate height (mm)
1366mm
Axle space(mm)
7060mm+1310mm+1310mm
Tare weight
7500kgs
Loading capacity
49000L  (Valid 47500L)
OEM
Landing gear
Two speed manual operation type with sand shoe
Kingpin
Jost 2" bolted type
Brake system
Wabco brake valve;
Abs
4s/2M
Brake chamber
Type 30/30 spring brake system on all axles
Suspension
Air bag Suspension
Axle
Fuwa axle,13 ton capacity/set,3sets
Tire
425/65R22.5-20pr , 6 pcs Double Coin Brand; or  12 pcs 13R22.5
Rim
13.0-22.5 6pcs,  Aluminium Alloy
Tool box
1
Spare tire carrier
2
TANK SPECS
Compartment
Three,15000l/15000l/15000l
Tank material
Aluminium Alloy, thickness 6mm,5mm
Bulkhead and Baffle
Thickness is 7mm
Tank Shell
Thickness is 6mm & 5mm
Shape of tank
Ellipse (double "d")
Test pressure designed
36kpa
Manhole
Aluminium Alloy Manhole Cover, C801-560,
bottom valves
3, Aluminium Alloy
OTHERS
Oil Gas recovery System
Equiipped
Anti-overflow System
Equipped
