Customizing 2 Axles Vcuum Sewage Slurry Suction Tank Tanker 20-25m3
2 Axles Sewer Vacuum Sewage Suction Tank Trailer 22000 Liters with 30kw Diesel Generator
(1)Remarks:
1. VACUUM SUCTION SEMI TRAILER is suitable for suction, transportation and dumping soil and mud from various sewer man-hole, oil field, water wells and sediment. It is necessary tool for city sanitation department, waste processing company, big factory...,it can help to clean the sewer underground, clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water. More information please feels free to contact me.
2.Sewage suction truck is a sanitation vehicle, that collects and transfers sludge, septic and sewage with liquid substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, blocks and other bulk objects, to avoids secondary pollution. It's functioning self-suction and discharge, faster working speed and larger vacuum, that widely used in sewer, cesspit and gully.
3.Vacuum tank capacity ranges from 3,000 Liters to 40,000 liters .
(2)Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life.

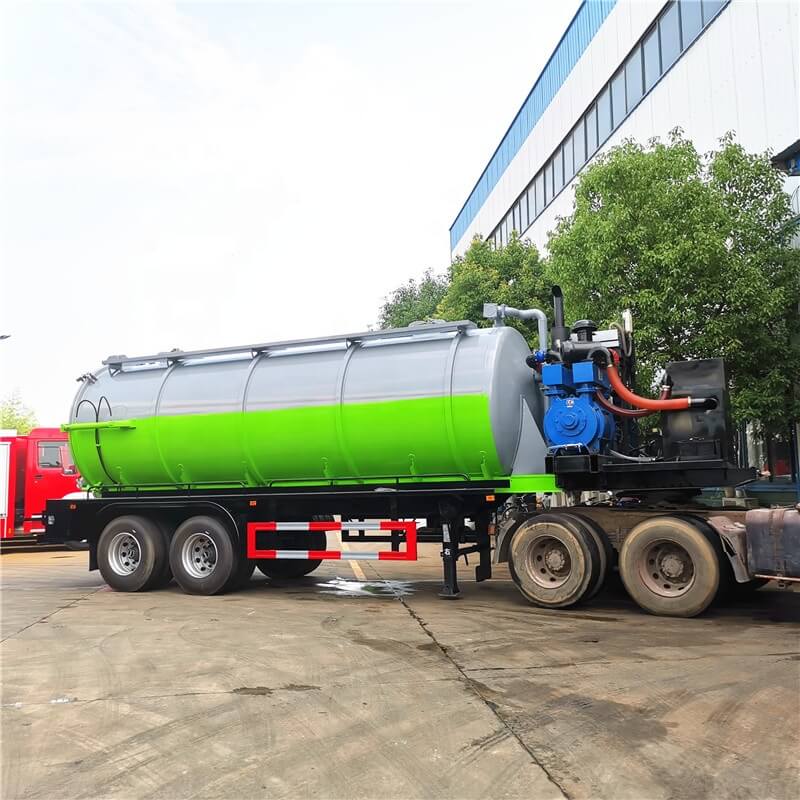

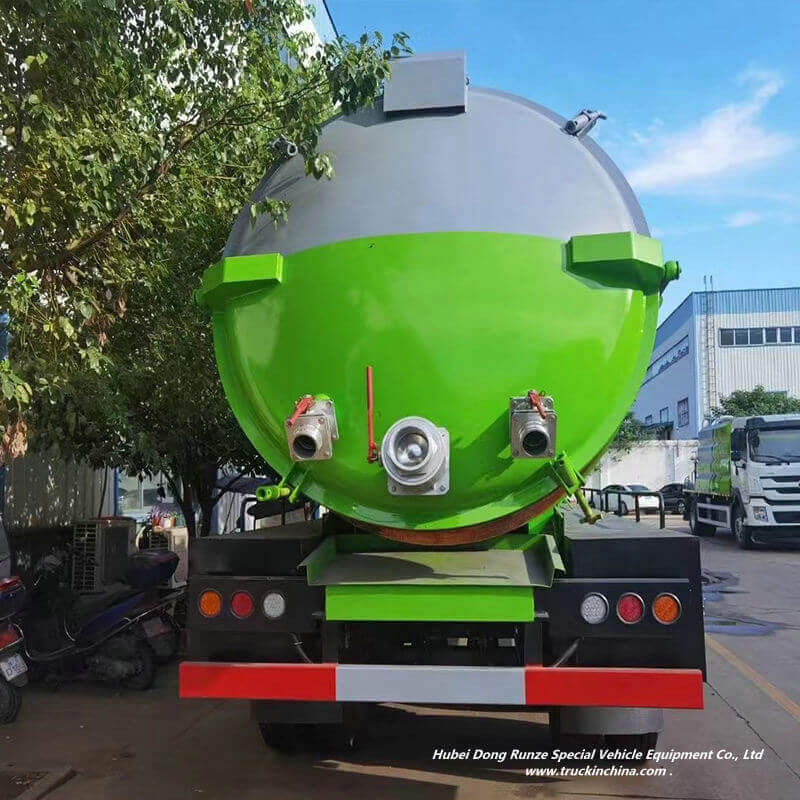

Detailed Photos
Vacuum Trailer For Sale
Size | 10000*2500*3800MM |
OE NO. | CUSTOMIZED |
Max Payload | 20001-25000 kg |
Total Weight | 13000kg |
Loading Weight | 30000kg |
Tire | 12R22.5 |
Usage | Oilfield drilling mud |
Tool box | 500*600mm |
Brake system | Air brake |
Auxiliary engine | Weichai 420 |
Water circulation pump | Water circulation pump 2BE-258 |
Axle | 13TFUWA |
Material | Q235, thickness 8mm |
| ItemsParameters | Parameters | |
| General | Product | 30000L 2 Axles Steel Sewage Tanker |
| Dimension | 10700x2500x3800mm | |
| Net Weight | 9000kg | |
| Loading Weight | 35000kg | |
| Tank Body | Volume | 30000L/ 30CBM |
| Material Ste | Carbon Steel | |
| Thickness | Endplate 5mm; body 5mm | |
| Welding | Robot Welding | |
| Chassis | Main beam | Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged-Arc processes |
| Axle | FUWA 2-axles (BPW in optional) | |
| Suspension | Spring type (Air-bag type in optional) | |
| Landing Legs | JOST 28Tons | |
| ABS | WABCO 4S2M | |
| Kingpin | 2'' or 3.5'' | |
| Tires | TRIANGLE 12/R22.5, 12 pcs (6pcs in optional) | |
| Configuration | Ladder | included |
| Spare tire carrier | included | |
| Tool box | included | |
| Auxiliary engine | included | |
| Valves | LED lights | |
Liquid Tank Trailers | Vacuum Trailers & Liquid Transport Heavy Duty Vacuum Trailers

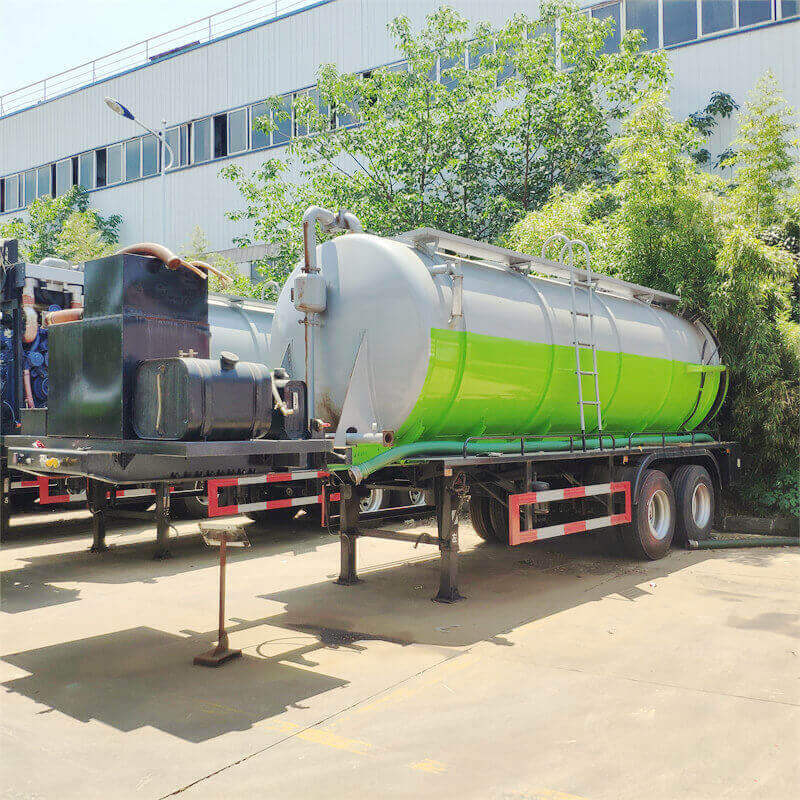

Images of Vacuum TANKER Trailers

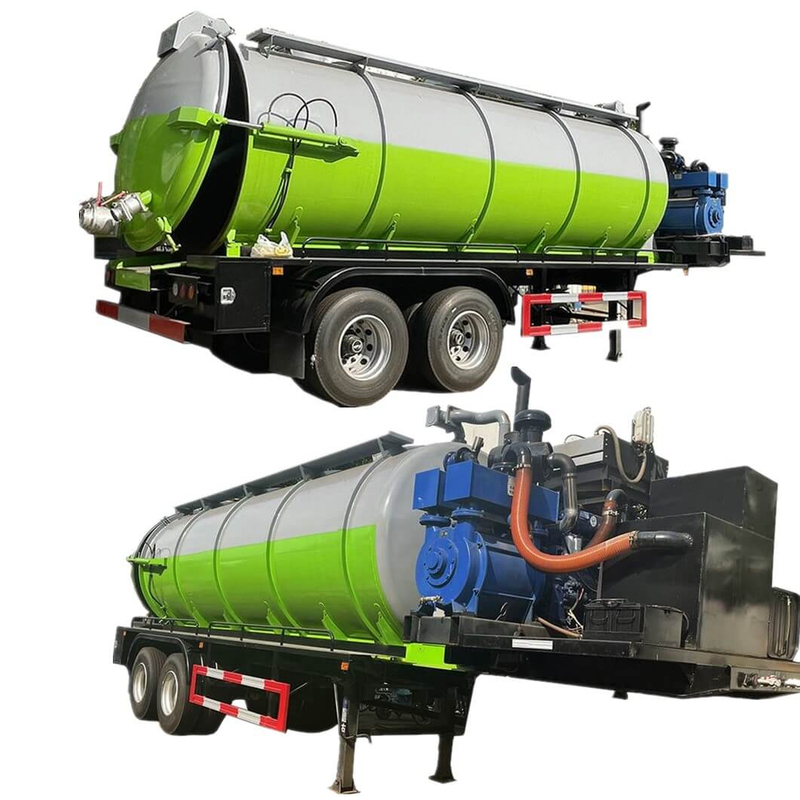

Images of Vac Tanker Trailer
| Name | 2 Axle Sewage Tank Trailer |
| Tank Volume | 22000 ,25000,28000,30000Liters |
| Number of Axle | 2/3/4 |
| Leaf Spring | 12 |
| Number of tire | 8/12/16+1 ( Spare Tire ) |
| Axle Brand | BPW / FUWA 13 T Axle |
| Suspension | Leaf Spring ( Optional Air Suspension ) |
| KInping | 2 inch or 3.5 inch |
| Supporting Device | Linkage Leg |
| ABS | with |
| Material | 6 - 8mm Carbon Steel ( Optional Stainless Steel ) |
| Tank volume | 22 -30cbm , ( customized according to your request ) |
| Vacuum pUmp rotation Speed | 800rpm -1400 rpm |
| Maximum suction lift | >6 m |
| Vaccum | >500 mmHg |
| Rotation Direction | Clockwise |
| Length of pipes | 5-10 m |
| Time for full suction | <5 min |
| Basic Equipment | Vacuum pump (imported one available), ball valve, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator, sprinkler (optional), alarm for full suction (optional) |
| Main Equipment | VICE-ENGINE 30KW-140KW |
vac trailer for sale
| Diameter of suction tube | Φ100mm |
| Suction depth | ≥ 8 m |
| Vacuum pump | type: Vane pump |
| Pumping speed: 318 m3/h | |
| Rated speed: 1300rpm | |
| Overall dimension | 9400×2500×3850mm |
| The curb weight | 12050(Kg) |
| Gross weight | 25000,31000,41000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
