Sinotruck 4*2 Asphalt Bitumen Sprayer Truck

Share to:

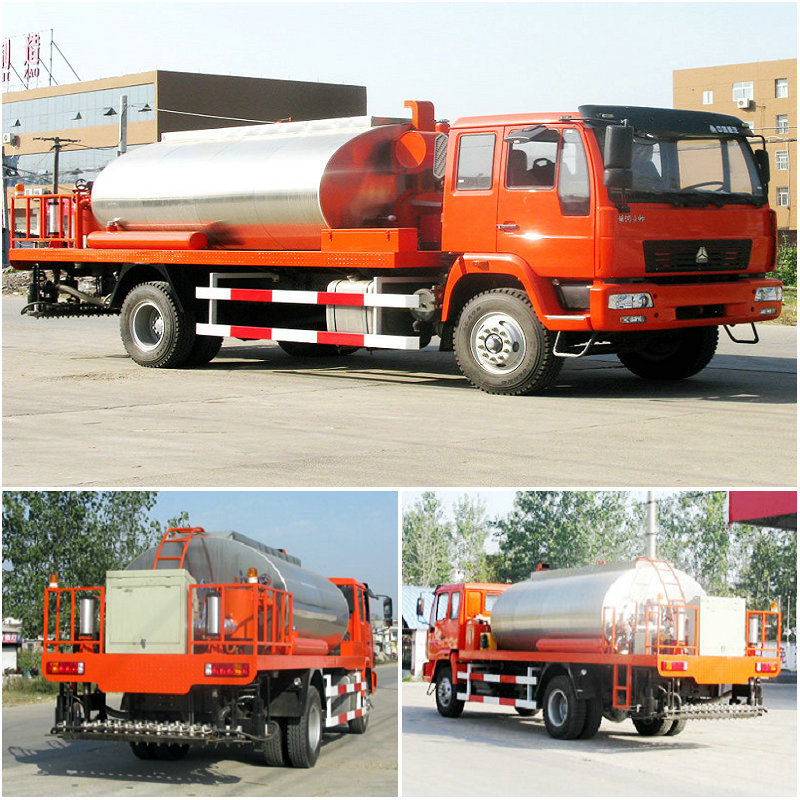

Sinotruck 4*2 Asphalt Bitumen Sprayer Truck

Availability:

Quantity:



Inquire Add to Basket

Brief introduction of asphalt distributor truck

The asphalt distributor truck is also called asphalt paver truck, asphalt spray truck, bitumen sprayer truck, asphalt bitumen tank truck, road black tar sealing truck, etc.

The asphalt distributor truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.

The asphalt distributor truck is mainly used to transport asphalt and distribut it for sealing the road.

Our asphalt distributor truck adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.

Advantages of our asphalt distributor truck

1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.

2.High quality metal hose, won't broken, long service life.

3.The distribution width can be adjusted according to your demand from 4.5m to 6m.

4.Start quickly, though the truck stop, still can distribute.

Technical parameters of Dongfeng 5 to 6 tons asphalt distributor truck

Tank	Asphalt Tank Volume(m⊃3;)	6
Pump	Asphalt Pump	QGB270 (300L/min)
Heating	Burner	Italy imported
Control System	Control Type	Manual control
Spray system	Asphalt spray nozzle	30 nos
Spray system	Spray Width	4.5m

Detailed parameters, more photoes, latest price and other information needed pls contact us.

Parameters of Semi-Automatic Asphalt Distributor.

Model	5251GLQ	5162GLQ	5161GLQ	5120GLQ	5111GLQ	5090GLQ	5081GLQ
Truck	Cab-over-engine 6*4	Cab-over-engine 4*2	Cab-over-engine 4*2	Cab-over-engine 4*2	Cab-over-engine 4*2	Cab-over-engine 4*2	Cab-over-engine 4*2
Chassis Model	ZZ1257M4647C	DFL1160BX	BJ5163ELFFD	BJ1123VJPEG-S	EQ1110TJ12D5	EQ1090T9ADJ3AC	HFC1081KT
Burner model	G20	G20	G20	G20	G20	G20	G20
Asphalt capacity	12000	8000	8000	6600	5400	4500	5000
Spray bar variable(m)	0-6M	0-6M	0-6M	0-6M	0-6M	0-6M	0-5.5M
Spray bar value(kg)	0.3-3.0	0.3-3.0	0.3-3.0	0.3-3.0	0.3-3.0	0.3-3.0	0.3-3.0
Dimension	1050024963350	899524903200	878524553015	899023502855	799822602870	744522852560	735020102460

Standard Asphalt Distributor,semi-automatic asphalt distributor,bitumen spraying mahcine

Asphalt distributor
Sinotruck 4*2 Asphalt Bitumen Sprayer Truck
Asphalt distributor-12-

Description

Technical parameters
Total Mass(kg)	16000	Curb Weight(kg)	11300
Rated quality(kg)	4505	Chassis Model	ZZ1164K4516D1
Approach/Departure angle(°)	16/18	Front/rear overhang	1250/2750
Dimensions(mm)	850025003150	Compartment Dimension(mm)	XX
Number of axes	2	Maximum speed(km/h)	95
Tire Specifications	9.00R20,10.00-20,10.00R20	Number of tires	6
Front track	1900,2020	Rear track	1860
Wheelbase(mm)	4500	Axle load(kg)	6000/10000
Emission Standards	Euro III/Euro IV	Type of fuel	Diesel
Engine parameters
Engine Model	YC6J190-46	Engine Manufacturer	Guangxi yuchai machinery co., LTD
Engine Displacement(ml)	6494	Engine power(kw)	140
