Asphalt Distributor 5090GLQ 5000 Liter To 6000 Liters

Asphalt Distributor 5090GLQ 5000 Liter To 6000 Liters
Price: $ 42000
Discount Price: $ 40000

  • DRZ5060

  • Dong Run ze

  • 8705909990


Condition: New Power(W): 120 Paving Width: 4.5cm-6cm
Place of Origin: Hubei, China (Mainland) Brand Name: DRZ Model Number: 5090GLQ
Dimension(L*W*H): 7330x2300x2750 Weight: 7300 Certification: ccc,ISO
Warranty: 12 months After-sales Service Provided: Engineers available to service machinery overseas tank volume: 5000 liter to 6000 liters
burner / heater: Imported from Italy asphalt pump: QGB680 high viscosity asphalt spray width: 4.5 to 6m
asphalt spray nozzle:
30 nos

Brief introduction of asphalt distributor truck

The asphalt distributor truck is also called asphalt paver truck, asphalt spray truck, bitumen sprayer truck, asphalt bitumen tank truck, road black tar sealing truck, etc.

The asphalt distributor truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.

The asphalt distributor truck is mainly used to transport asphalt and distribut it for sealing the road.

Our asphalt distributor truck adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.

Advantages of our asphalt distributor truck

1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.

2.High quality metal hose, won't broken, long service life.

3.The distribution width can be adjusted according to your demand from 4.5m to 6m.

4.Start quickly, though the truck stop, still can distribute.

Technical parameters of Dongfeng 5 to 6 tons asphalt distributor truck

Items Descriptions Specifications and Types
General Truck Name Asphalt Distributor Truck
Drive Type 4*2
Gross Vehicle Weight(kg) 9750
Curb Weight (kg) 5600
Overall Dimensions L*W*H(mm) 7330×2300×2750
Engine Brand CHAOCHAI
Fuel Type Diesel
Power 90kw/120HP
Emission Standard Euro III
Displacement(ml) 3856
Engine Type 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis Chassis Brand Dongfeng
Tire No. 6
Tire Specification 7.00-16 Nylon tire
Wheelbase (mm) 3800
Steering Wheel Left hand drive
Gear Box 5 speed forward with 1 reverse, manual
Brake Air brake
Radiator Suitable for tropical climate
Tank Asphalt Tank Volume(m³) 6
Pump Asphalt Pump QGB270 (300L/min)
Heating Burner Italy imported
Control System Control Type Manual control
Spray system Asphalt spray nozzle 30 nos
Spray Width 4.5m

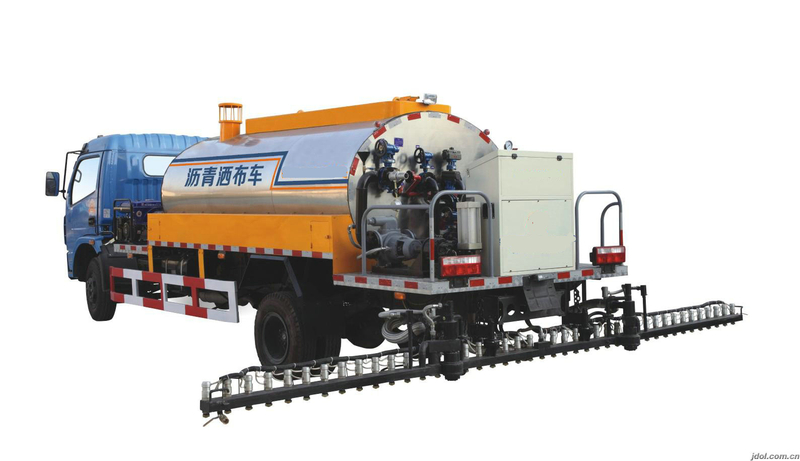

Pictures of 4X2 dongfeng heating asphalt distributor truck
Detailed parameters, more photoes, latest price and other information needed pls contact us.

Parameters of Semi-Automatic Asphalt Distributor.

Model 5251GLQ 5162GLQ 5161GLQ 5120GLQ 5111GLQ 5090GLQ 5081GLQ
Truck Cab-over-engine 6*4 Cab-over-engine 4*2 Cab-over-engine 4*2 Cab-over-engine 4*2 Cab-over-engine 4*2 Cab-over-engine 4*2 Cab-over-engine 4*2
Chassis Model ZZ1257M4647C DFL1160BX BJ5163ELFFD BJ1123VJPEG-S EQ1110TJ12D5 EQ1090T9ADJ3AC HFC1081KT
Burner model G20 G20 G20 G20 G20 G20 G20
Asphalt capacity 12000 8000 8000 6600 5400 4500 5000
Spray bar variable(m) 0-6M 0-6M 0-6M 0-6M 0-6M 0-6M 0-5.5M
Spray bar value(kg) 0.3-3.0 0.3-3.0 0.3-3.0 0.3-3.0 0.3-3.0 0.3-3.0 0.3-3.0
Dimension 10500*2496*3350 8995*2490*3200 8785*2455*3015 8990*2350*2855 7998*2260*2870 7445*2285*2560 7350*2010*2460
Standard Asphalt Distributor,semi-automatic asphalt distributor,bitumen spraying mahcine
