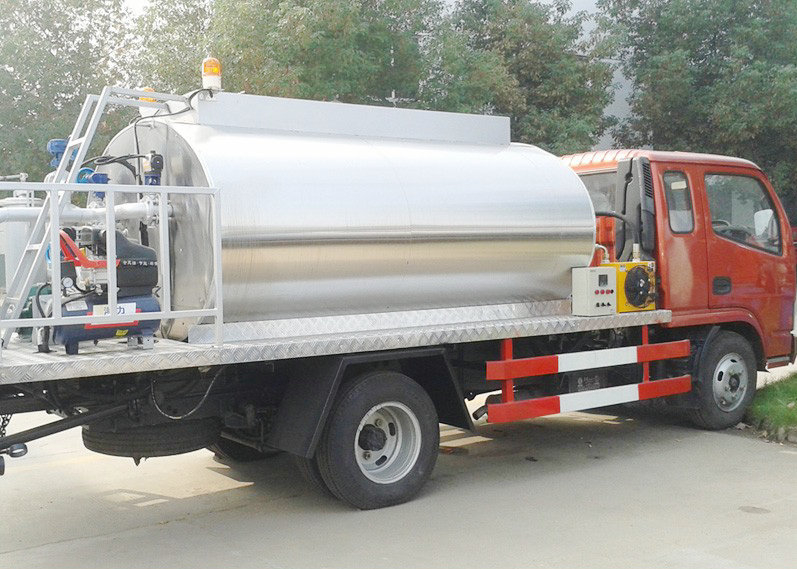

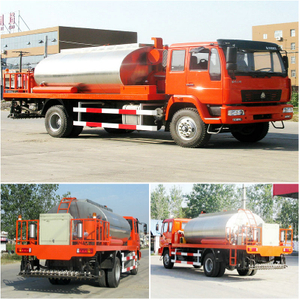

Brief introduction of asphalt distributor truck
The asphalt distributor truck is also called asphalt paver truck, asphalt spray truck, bitumen sprayer truck, asphalt bitumen tank truck, road black tar sealing truck, etc.
The asphalt distributor truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.
The asphalt distributor truck is mainly used to transport asphalt and distribut it for sealing the road.
Our asphalt distributor truck adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.
Advantages of our asphalt distributor truck
1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.
2.High quality metal hose, won't broken, long service life.
3.The distribution width can be adjusted according to your demand from 4.5m to 6m.
4.Start quickly, though the truck stop, still can distribute.
Product Brand | TIC | Tanker capacity (m3) | 6 |
Model | 5100 | Overall Dimensions(mm) | 7080×2300×2650 |
G.V.W(Kg) | 9750 | front/rear overhang (mm) | 1180/2100 |
Rated Weight Kg) | 3955 | Wheel Base (mm) | 3800 |
Curb Weight (Kg) | 5600 | Max. Speed(Km/h) | 80 |
Cab | 3 | Axles No. | 2 |
App./Dep. angel (° ) | 22/10 | Axle load(Kg) | 3400/6350 |
Tanker Information: | |||
Transport medium | liquid asphalt | Density | 900kg/CBM |
Tanker overall dimension (mm) | 3200*1800*1400 | Tanker insulation thickness | 50mm |
Tanker Internal Dimension(mm) | 3100*1700*1300 | Spray width | 4.5-6M |
Asphalt Intelligent nozzle No | 30 | Heatiing Mode | conduction oil heating automatically |
Pump Information: | |||
Pump and valve | Asphalt Pump Oil Hydraulic Pump Asphalt Pump Hydraulic drive motor Hydraulic System Proportional Valve | ||
Chassis parameter | |||
Chassis Model | EQ1110T9ADJ3AC | Tires No. | 6 |
Brand | Dongfeng | Tire Size | 8.25-16 |
Overall Dimensions(mm) | 6695×2285,2180×2380,2480 | Front Tread (mm) | 18,311,750 |
App./Dep. angel (° ) | 22/13 | Rear Tread(mm) | 16,401,586 |
Spring No. | 11/9+7,8/10+7 | Displacement (ml) | 3856 |
Type of Fuel | Diesel | Emission standard | Euro Ⅲ |
Engine Model | CY4102-C3C | Power(Kw) | 88 |
Configuration Type of oue Asphalt truck | Details |
Normal configuration | 1. Asphalt pump hydraulic drive motor model 05-90-BD31; hydraulic pump model CBQ540-L |
2. Asphalt pump uses QGB270 (300 Liter/min) | |
3. Spray width 4.5 m, 11 units of nozzles | |
4. Burner imported from Italy G10 | |
Standard configuration | 1. Asphalt pump uses QGB270 (high viscosity pump, 300 Liter/min) |
2. Hydraulic system comes from Shanxi Yuci; asphalt pump hydraulic drive motor model 05-90-BD31; hydraulic pump model CBQ540-L | |
3. Spray width 4.5 m, 20-29 units of intelligent nozzles | |
4. Control method: manual control 1 for 2 | |
5. Heating mode: automatically heating by heat-conduction oil | |
6. Burner imported from Italy G10 | |
7. Heat-conduction oil pump: 40-25-160 (domestic) | |
Intelligent configuration | 1. Asphalt pump uses QGB680 (high viscosity pump, 680 Liter/min) |
(domestic) | 2. Hydraulic system: asphalt pump hydraulic drive motor model 05-110-BD31; hydraulic pump model CBQ550-L; proportional valve (Taiwan EFBG-03-160-HF); reversing valve and overflow valve (Shanxi Yuci); Risheng brand radiator |
3. Control method: computer intelligent control 1 for 1; control system German Siemens -39-01; 20-29 units of intelligent nozzles | |
4. Heating mode: automatically heating by heat-conduction oil; burner G10 (Italy imported); heat-conduction oil pump uses Hebei domestic | |
5. Gasoline engine: 6 kw | |
6. Spray width 4.5-6 m; spray volume 0.2-2.5L/m2 | |
Intelligent configuration | 1. Asphalt pump uses Belgium TGGP-86-100 |
(imported) | 2. Hydraulic system: proportional valve (Taiwan EFBG-03-160-HF); reversing valve and overflow valve (Shanxi Yuci); hydraulic pump German Rexroth; Risheng brand radiator; asphalt pump hydraulic drive motor model 05-90-BD31 |
3. Control method: control system German Siemens CLW-39-01, computer intelligent control 1 for 1; 20-29 units of intelligent nozzles | |
4. Heating mode: automatically heating by heat-conduction oil; burner G10 (Italy imported); heat-conduction oil pump uses Hebei domestic | |
5. Gasoline engine: Honda 5.5 kw | |
6. Spray width 4.5-6 m; spray volume 0.2-3L/m2 |
Detailed parameters, more photoes, latest price and other information needed pls contact us.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
