Sino ZZ 50ton Heavy Duty Rotator Road Wrecker

Sino ZZ 50ton Heavy Duty Rotator Road Wrecker
Availability:
Quantity:

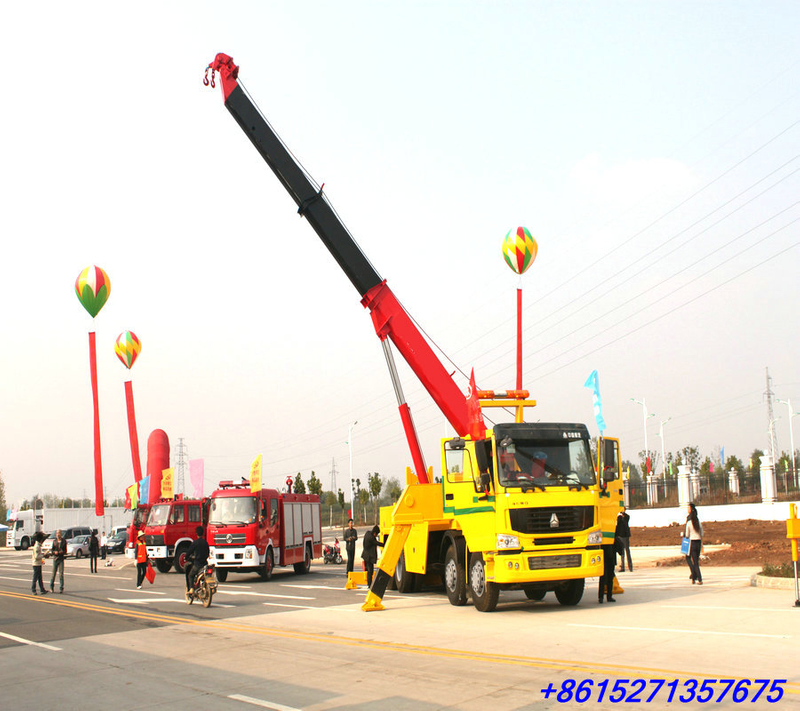

 Sino ZZ 50ton heavy duty rotator road wrecker



   1.Specifications:




           Model




            5381TQZ




           Chassis Model




           ZZ1317N4667C




           Wheel Base(mm)




           1800+4600+1350




           Over dimension (mm)




           11210,11235*2496*3820




           Curb Weight(kg)




           27870









           Under-lift




           Max. towing mass(kg)




           55000




           Lifting mass(kg)




           25000-9000




           Max. effective length of under-lift(mm)




           3588




           Extension stroke(mm)




           1850













           Boom




           Max. lifting mass(kg)




           50000




           Max. lifting height(mm)




           12500




           Rotary angle of boom(°)




           360




           Rating pulling force of winch(KN)




           250




           Quantity of winch




           2









           Legs




           Transverse span of front legs(mm)




           6300




           Transverse span of rear legs(mm)




           4320




           Span between the front and rear legs(mm)




           7765




           Remarks




           Equipped with remote control, outside legs and five different lifting forks (suitable for most vehicles).
















   2.Chassis








           Chassis Model




           ZZ1317N4667W




           Wheelbase(mm)




           1800+4600+1350




           Cab




           Right/left hand drive /air conditioner/one sleeper




           Engine




           Model




           WD615.95E




           Emission Standard




           Euro 3




           Engine Power(Kw/PS)




           247/336








   in need of a custom built Recovery Vehicle?







   Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!







   Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.







   That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.

 Heavy Duty Recovery Truck

 Medium Duty Recovery Truck

 Light Duty Recovery Truck

  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 TIC TRUCKS , www.truckinchina.com

Sino ZZ 50ton heavy duty rotator road wrecker
