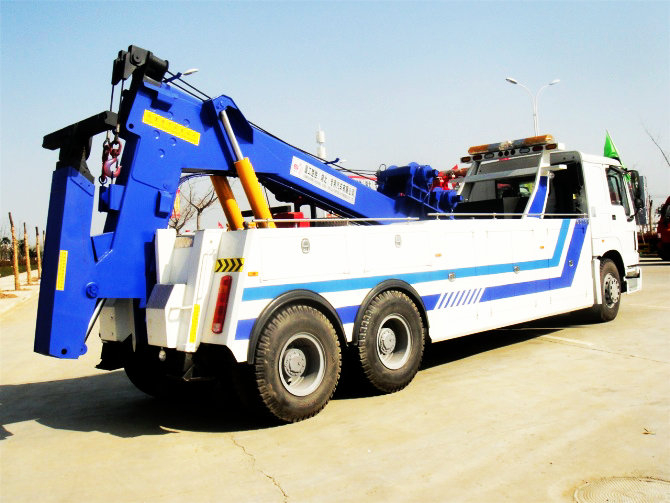

Howo Recovery Trucks Conjoined Towing Wrecker on Sale
| Quantity: | |
|---|---|
| Technical Parameters | |||
| Total Mass(kg) | 25000 | Curb Weight(kg) | 18500,20500 |
| Rated quality(kg) | XX | Chassis Model | ZZ1257N5847D1 |
| Approach/departure angle | 16/14 | Front / rear overhang | 1500/2000,1500/2150 |
| Dimensions(mm) | 10700,10850*2500*3250 | Number of spring | 4/-,4/12,10/-,10/12 |
| Number of axes | 3 | Maximum speed(km/h) | 95 |
| Tire Specifications | 315/80R22.5 16PR,295/80R22.5 | Number of tires | 10 |
| Front track | 2022,2041 | Rear track | 1830/1830 |
| Wheelbase | 5825+1350,5800+1400 | Axle load | 7000/18000 |
| Emission Standards | Euro3/Euro4 | Type of fuel | Diesel |
| Engine parameters | |||
| Engine Model | D10.34-40 | Engine Manufacturer | China National Heavy Duty Truck Group |
| Engine Displacement(ml) | 9726 | Engine power(kw) | 249 |
| Modified | 1. Unitary body, two sides with combined operation device, front bumper with a counterweight. | ||
| Component | Basic composition: chassis, unitary body, winch, crane, supporting forks, supporting forks stand, chain hook and warning lights. | ||
| Purpose | This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc. | ||
| Product advantage | high quality with best price | ||
5250TQZZ Sino Steyr 6x4 wrecker truck
| Name | Steyr ZZ1256M4646C towing and crane separate wrecker | |
| Chassis model | ZZ1256M4646C | |
| Towing (T) | 55 | |
| Crane lifting capacity (T) | 16 | |
| Lifting (T) | 20 | |
| Specs of truck | Outside dimension(LWH mm) | 9500*2500*3550,3600 |
| Total mass(kg) | 25000 | |
| Loading mass(kg) |
| |
| Kerb mass(kg) | 19880 | |
| Approach/departure angle (mm) | 15/14 | |
| Front/rear suspension(mm) | 1560/1990 | |
| Fuel type | Diesel | |
| fuel consumption (L) | 24 | |
| Max Speed | 90 | |
| Specs of engine | model | WD615.92,WD615.93 |
| Displacement / power(kw) | 9726/196,213(266HP,290HP) | |
| Producer | China heavy truck motor group. | |
| type | 6 cylinder inline, electrical control and Turbo Charged diesel engine | |
| Specs of chassis | Driving type | 6×4 |
| wheelbase(mm) | 4600+1350 | |
| Tread( front/rear) | 1939,1800/1800 | |
| Front axle | 6.5T | |
| Rear axle | 16T*2 | |
| Steering | Power | |
| Gear box | 8 controller | |
| cab | Flat head | |
| Spring file(front/rear) | 9/12 | |
| Tire specs | 11.00-20 | |
| Air condition | Optional | |
| Specs of wrecker | Rating lifting capacity (kg) 5500 Telescopic distance(mm) 1700 Max length of arms(mm)2850 Max. towing speed(km/h) 40 | |
| Specs of crane | Rating capacity (kg) 10000*2 Max. height (mm) 9600 Telescopic distance(mm) 3530 Telescopic distance of supporting leg(mm) 800 Max. Supporting fertility (KN):120 | |
| Winch | Number 2 Rating towing capacity (kg) 30000 length of steel rope (m) 40 Speed of steel rope (m/min) 4 | |
Standard equipment
Two stage extension boom
Two hydraulic winches
Monolithic tool box
Three lights
A group of fitting
Wheel lifting device
Auxiliary plug-in electric-pneumatic devices
Optional equipment
Wired remote control system
Rescuing equipment and tools
Black-and-white monitor
Technical data
Chassis Model: ZZ1256M4646C
Axle: Tandem
Engine: 196kw, six cylinder, Weichai Pover
Transmission: Howo 10-speed, Manual
Cab: Extended cab with A/C
Max. Lifting capacity (kg): 18,000
Max. Towing and drawing capacity (kg): 25,000
Max. Lifting height (mm): 6,500
Swing angle of lift boom (°): 5.0~33
Winch rated pulling force (KN): 100x2
Length of the wire rope (m): 45x2
Wheelbase (mm): 5825+1350
In need of a custom built Recovery Vehicle?
Well look no further and learn how the skilled team is ready to build your next recovery vehicle to your specifications!
Whether your starting or expanding a fleet, we can provide an affordable solution to satisfy your recovery needs without sacrificing quality. Our base model recovery bodies are very capable; however, customers have a variety of additional upgrades to build their own recovery vehicle to handle the toughest tasks. We offer customers the freedom to choose everything from recovery body to wheelbase length, hydraulic winch and your choice of color. Only new engines, hydraulic systems and P.T.O. systems are installed to insure dependability and overall customer satisfaction.
That's our specialty and with a talented team of welders, electricians, and mechanics the craftsmanship is displayed throughout our custom built recovery vehicle.
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
TIC TRUCKS , www.truckinchina.com
